75-1010-250
11/07
No. 264E O Gauge
No. 264E O Gauge
Passenger Train
Passenger Train
Owner's Manual
Owner's Manual
Featuring

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 264E O Gauge Passenger Train and is the answer not in the manual?

Questions and answers

Related Manuals for Lionel 264E O Gauge Passenger Train

Summary of Contents for Lionel 264E O Gauge Passenger Train

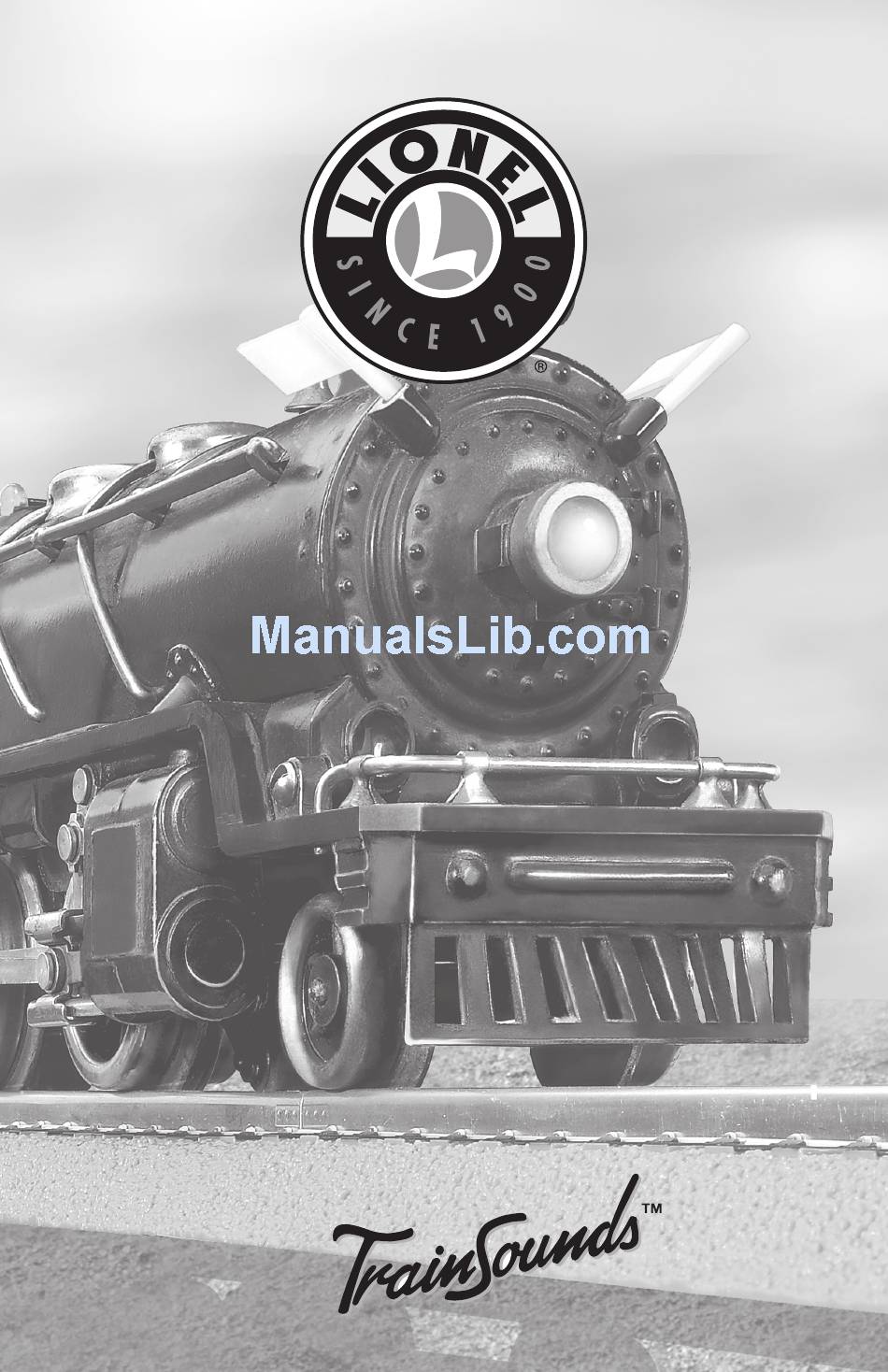

  • Page 1 75-1010-250 11/07 No. 264E O Gauge No. 264E O Gauge Passenger Train Passenger Train Owner’s Manual Owner’s Manual Featuring...
  • Page 2 StationSounds ™ , Pullmor ® , ElectroCoupler ™ , Magne-Traction ® , CAB-1 ® Remote Controller, PowerMaster ® , Lionel ZW ® , ZW ® , PowerHouse ® , TMCC ® , Lionelville ™ , Lockon ® , Wireless Tether ™ , LionMaster ® , FatBoy ™ , American Flyer ® , TrainSounds ™ , PowerMax ™ , LEGACY ™...

  • Page 3: Table Of Contents

    Running your train set Coupling Operating your locomotive's E-unit TrainSounds sound system operations Operating the TrainSounds sound system Adjusting the volume Maintaining and servicing your locomotive Lubricating your locomotive Replacing your locomotive’s lamp Replacing the lamps in the passenger car Limited Warranty/Lionel Service...

  • Page 4: Running Your Train

    Figure 1. Drawbar connection Power up your locomotive with your transformer. Your locomotive is designed to operate on 7-18 volts alternating current. Virtually all Lionel and Lionel-compatible alternating-current transformers are suitable. Note! Do not power your locomotive with direct current (DC) transformers.

  • Page 5: Coupling

    Running your train Coupling hen coupling your cars, lift the coupler arms on both couplers at the same time and move the cars together so that the hooks capture the latches. Note! Keep in mind that it’s easier to couple cars on a straight stretch of track. Figure 2.

  • Page 6: Operating Your Locomotive's E-Unit

    Running your train Operating your locomotive's E-unit our locomotive is equipped with a mechanical E-unit. The E-unit allows the locomotive to cycle through its operational states (forward, neutral, reverse, neutral, and so on) with interruptions in track power or locks the locomotive into a single operational state. The E-unit can be disconnected by sliding the E-unit lever to its OFF position.

  • Page 7: Trainsounds Sound System Operations

    TrainSounds sound system operation Operating the TrainSounds sound system our TrainSounds tender is designed to operate at approximately 6 to 18 volts (AC). When you power up the locomotive on the track, you will hear the sounds of the idling steam locomotive.

  • Page 8: Adjusting The Volume

    Maintaining and servicing your set Adjusting the volume se the volume control knob on the underside of the tender to adjust the volume or to turn off the TrainSounds sound system. Refer to Figure 4 for the location of the volume control knob.

  • Page 9: Lubricating Your Locomotive

    We recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small amount will do) and avoid getting grease or oil on the locomotive’s wheels, contact rollers, or your track.

  • Page 10: Replacing Your Locomotive's Lamp

    Unlatch the boiler face, and swing it downward. Locate and remove the expired lamp shown in Figure 6. Replace the lamp with Lionel part no. 600-0363-300, available from your authorized Lionel Service Center. (See the Lionel Service section on page 12 for more information.) Raise and latch the boilerface back into place.

  • Page 11: Replacing The Lamps In The Passenger Car

    Press the two tabs on the roof of the car and carefully lift off the roof. See Figure 7. Replace with part no. 600-0363-300 available from your authorized Lionel Service Center. (See the Lionel Service section on page 12 for more information.) Carefully replace the roof.

  • Page 12: Limited Warranty/Lionel Service

    Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the original purchase price will be granted.
