CMP/VGA
AUDIO IN
L
CMP IN(YP P )
B R
adapter
AV OUT
adapter
VGA IN
USB 2.0
Or USB 3.0
SD CARD
HDMI 1
(MHL)
Or HDMI 2
Or HDMI 3

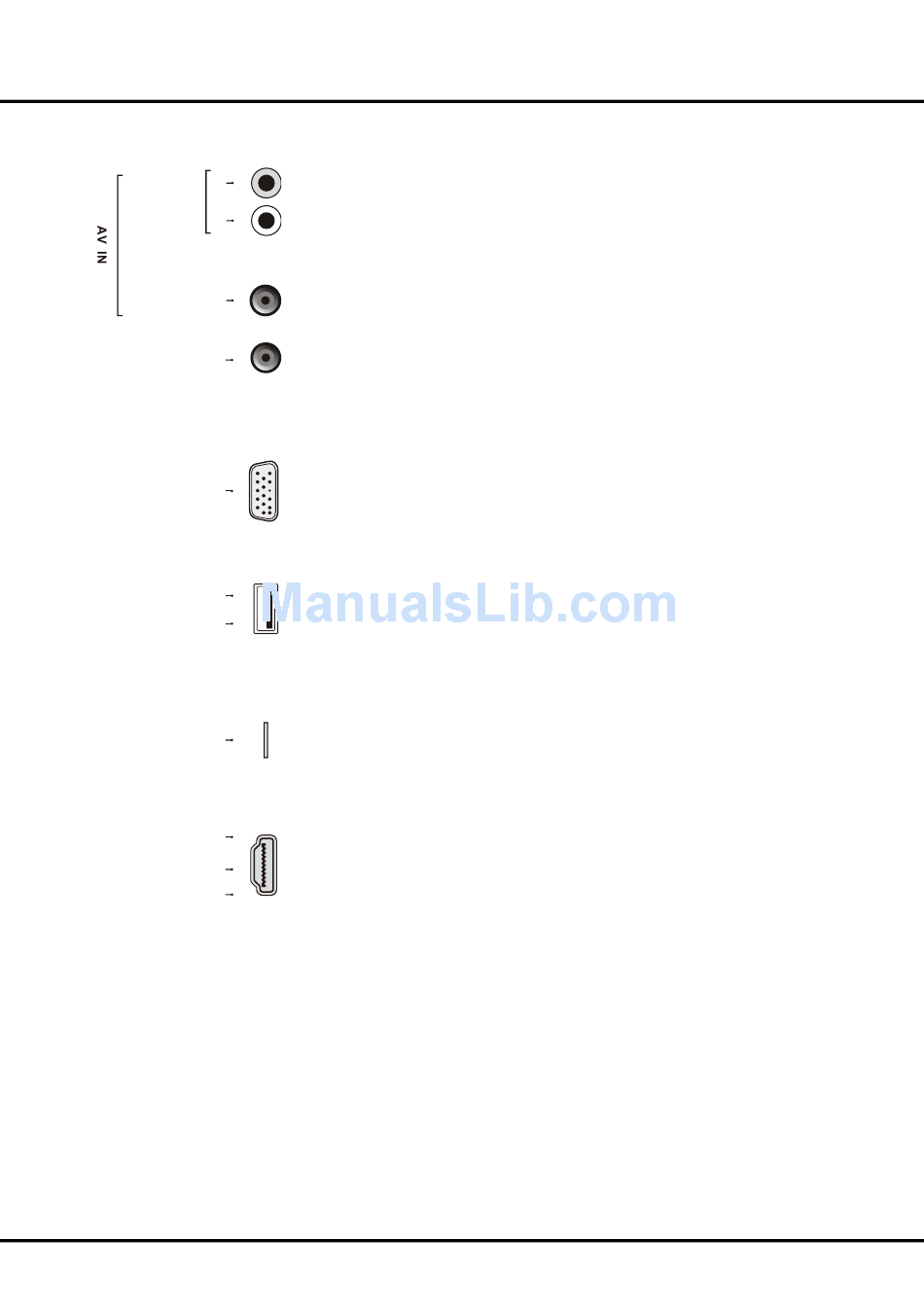

AV RCA audio + video sockets (input)
The AV IN sockets can be used to connect a range of equipment, including
video recorders, camcorders, decoders, satellite receivers, DVD players, or
games consoles.
Note: AV IN shares video (P
YP P .
B R
AV adapter (output) socket
The AV OUT adapter socket can be used to connect the attached AV adapter
cable with VIDEO and AUDIO L & R OUT sockets.
VGA IN socket (input)
This socket can be used to connect a computer.
Note: VGA IN shares the same audio sockets with YPBPR.
USB 2.0 or USB 3.0 socket (input)
These sockets can be used to connect a USB device.
Note: The number of USB sockets on the TV may vary according to TV
model.
SD CARD (input)
The socket can be used to connect a SD card.
HDMI 1 (MHL) or HDMI 2 or HDMI 3 socket (input)
The HDMI (High-Definition Multimedia Interface) socket can be used to
connect a PC with a compatible video card installed, certain DVD players or
a high-definition compatible digital satellite decoder. This socket provides an
uncompressed digital connection that carries both video and audio data by
way of an integrated mini-plug cable.
Note: Only HDMI sockets with the MHL identification will support the MHL
function, MHL stands for Mobile High-definition Link, and allows you to link a
MHL-capable mobile device to the television.
