Buttons on the TV

1. CH+/- (CHANNEL UP/DOWN) button
Scans up/down through the channel list. In the menu system, they act like the up/down direction buttons on the
remote and adjusts menu controls.
2. VOL+/- (VOLUME UP/DOWN) button
Increases/decreases the volume. In the menu system, they act like the right/left direction buttons on the remote
and adjust menu controls.
3. HOME ( ) button
Return to Home menu or enter certain source from Home menu.
4. OK button
In the menu system, confirms your selection or changes settings.
5. POWER ( ) button
Turns the TV on or into standby. (Note: for some models, the POWER button turns the TV on or off.)
Note:
The location and names of the function buttons and power button on the TV may vary according to TV model, and
not all buttons are available on all models.

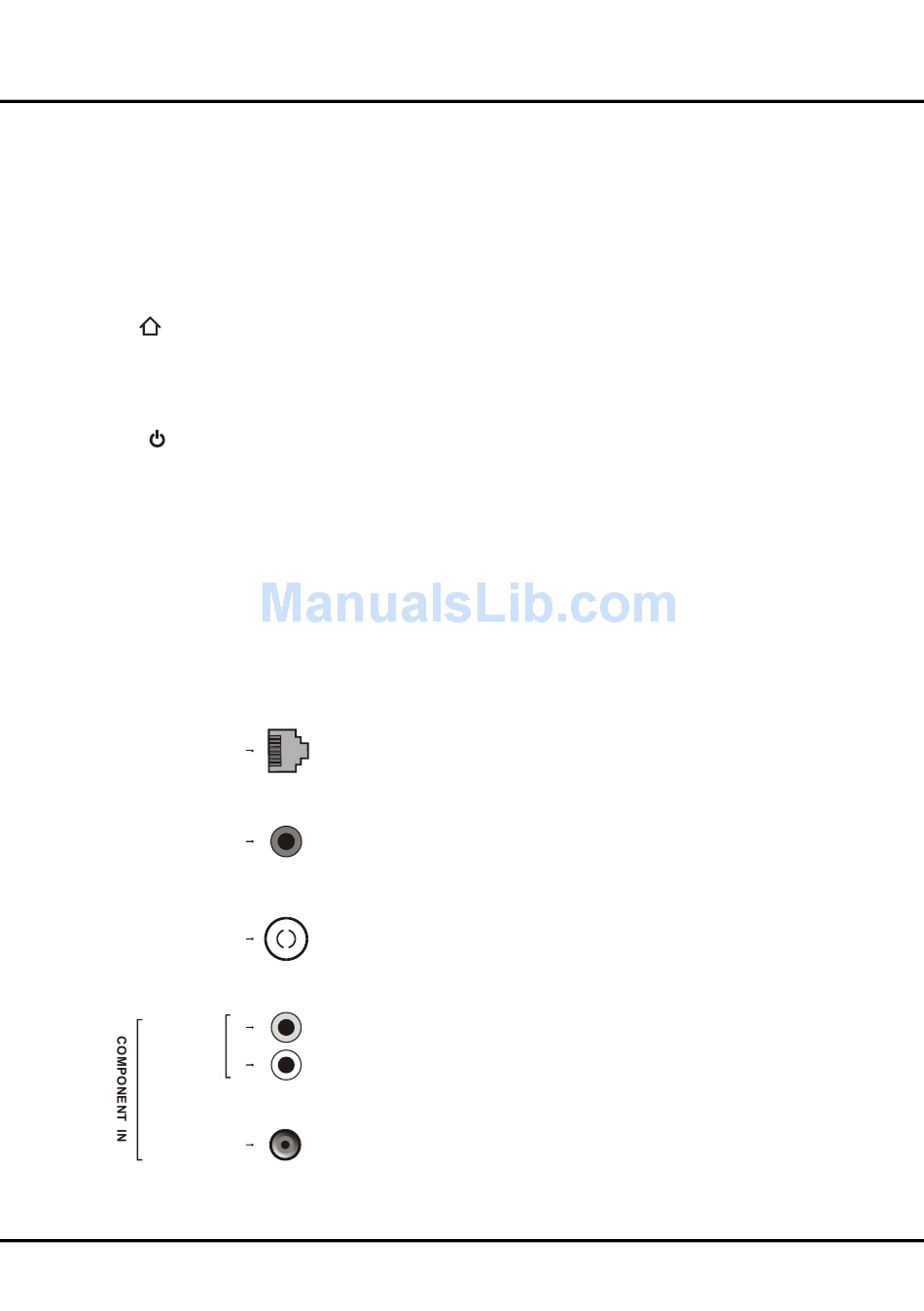

Sockets

Note: The location and names of the sockets on the TV may vary according to TV model, and not all sockets are
available on all models.
LAN
SPDIF
ANTENNA/
CABLE IN
R
CMP/VGA
AUDIO IN
L
CMP IN(YP P )
B R
adapter
LAN
RJ45 plug for connecting to external modem or network access equipment.
SPDIF socket (output)
The SPDIF socket can be used to connect a compatible digital audio receiver.
ANTENNA/CABLE IN socket (input)
This socket can be used to connect the outside aerial or cable network.
CMP/VGA AUDIO IN sockets (input)
These sockets can be used to provide audio for AV IN, YPbPr IN or VGA IN.
CMP IN (YP
P ) adapter socket (input)
B R
Note: The CMP (YP P ) adapter socket can be used to connect the attached
B R
CMP (YP P ) adapter cable with YPbPr component video sockets. These
B R
YPbPr sockets can be used to connect a device that has component video
sockets, such as a DVD player. The component sockets can recognize if the
device you're connecting to is Y P
provide excellent picture quality because the video is separated into three
independent parts.
4
Introduction
P compatible. The component sockets
B R
