Switch 3300 MM —
Rear View Detail

Power Socket

Unit Information
Label
Power Socket
Redundant Power
System Socket

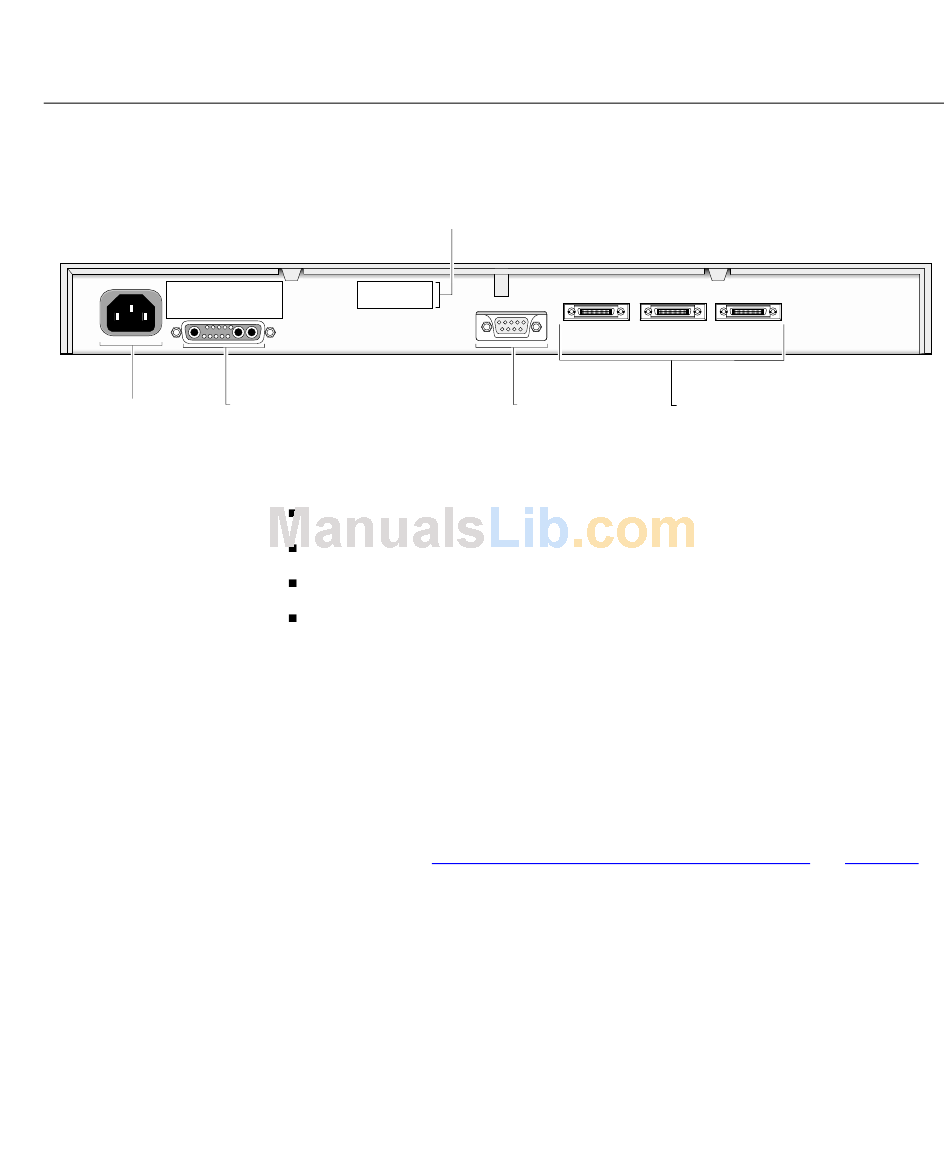

Figure 2 Switch 3300 MM — rear view

Unit Information Label

Switch 3300 MM 24 Port
3C16988
MAC Addr: XXXXXXXXXX
Serial XXXXXXXXXXXX

Redundant Power System Socket

This label shows the following:
The 3Com product name of the Switch
The 3Com 3C number of the Switch
The unique MAC address (Ethernet address) of the Switch
The serial number of the Switch
You may need this information for fault reporting purposes.
The Switch automatically adjusts its power setting to any supply voltage
in the range 90–240V A.C.
To protect against internal power supply failure, you can use this socket
to connect a SuperStack Advanced Redundant Power System (ARPS) to
the Switch. See
Switch 3300 MM — Rear View Detail
Unit 2
Console
(max) 19200,8,1,N
Console Port
"Connecting a Redundant Power System"
Unit 3 Unit 4
Matrix Ports
on
15
page 29.
