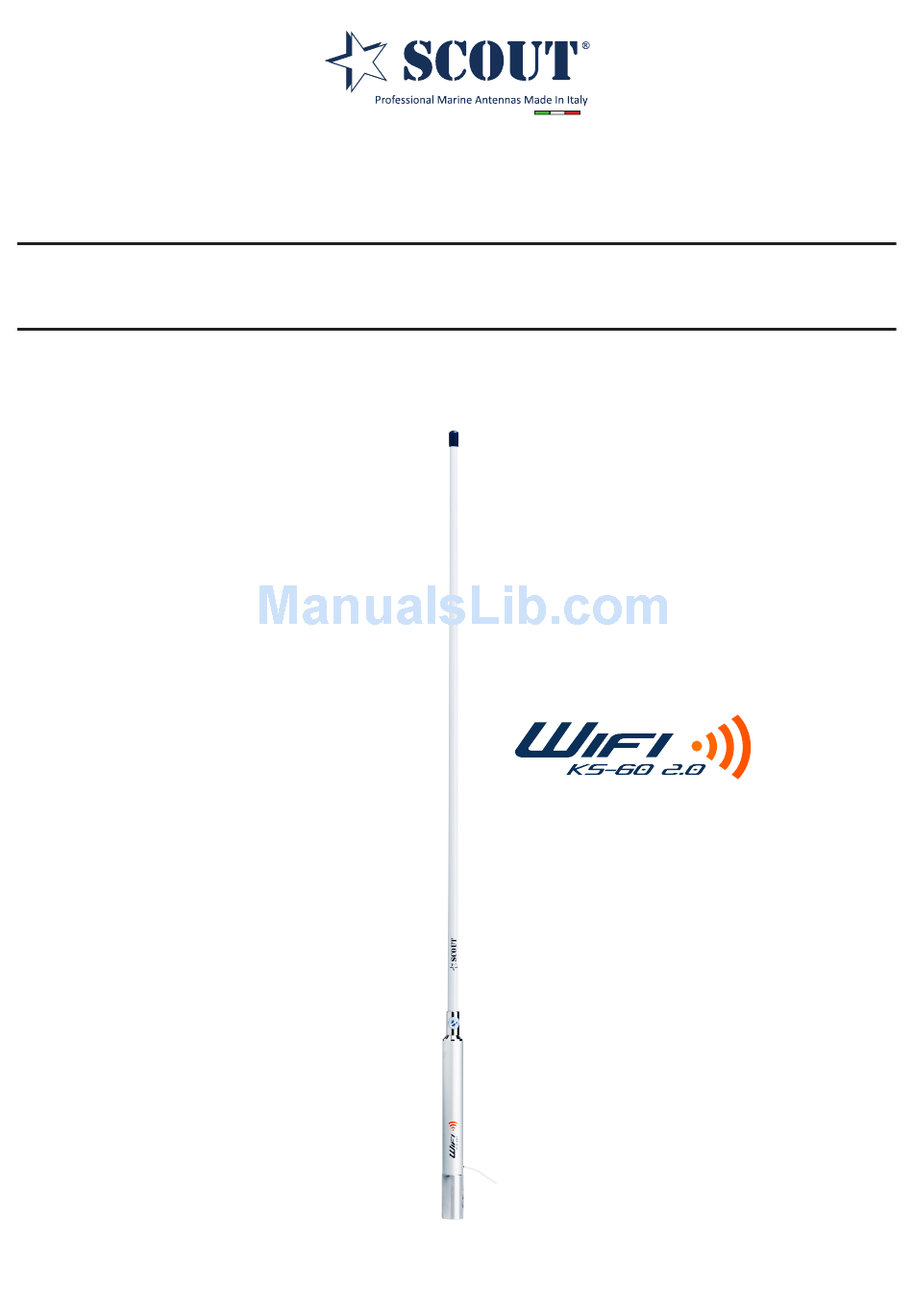

- Page 1 Basic User Manual KS-60 2.0 USB WiFi Antenna www.scoutantenne.com ed. 01-2016...
- Page 2 • Linux v2.6.13 Attention: do not plug in the KS-60 2.0 to the USB port of your computer before you have installed the drivers. 2. Installing the KS-60 2.0 on Windows To operate the KS-60 2.0 on Windows you need first to download the drivers and the Mediatek Wireless Lan Utility, following the steps below.
- Page 3 Figure 5 Step 4 - once the computer has fully rebooted, plug in the KS-60 2.0 to the USB port. A pop up window will inform you that the device driver software is going to be installed (Figure 6). When the installation is completed another pop up window informs you that the device driver software has been installed successfully (Figure 7).
- Page 4 3. Operating the KS-60 2.0 on Windows To operate the KS-60 2.0 on Windows you can use either the Windows Wireless Connection Manager (Figure 8) or the Mediatek Wireless LAN Utility, which you downloaded together with the driver (Figure 9). Both options are fine, just consider that the Mediatek Wireless LAN Utility offers more features than the tool supplied by Windows.
- Page 5 Menu, so that the Mediatek icon appears at the lower right hand corner of the computer screen. You must have your KS-60 2.0 connected to your PC’s USB port to open the utility. The utility will not open if it does not detect the antenna.
- Page 6 Scout KS-60 2.0 Basic User Manual Instantanous Name of wireless Antenna IP IP subnet WiFi Channel speed netwok (SSID) address mask Figure 15 Link Info - The Link Information consists of the instantaneous Link Status, Throughput and Statistics of the antenna.
- Page 7 To operate the KS-60 2.0 on a Mac you need first to download the drivers and the Mediatek Wireless Lan Utility, following the steps below. Step 1 - go to www.scoutantenne.com > Products > WiFi Antennas > KS-60 2.0 and select the Mac driver from the driver list (Figure 19).
- Page 8 KS-60 2.0 Basic User Manual Step 3 - once the Mac has restarted, plug the KS-60 2.0 in to the USB port and a new icon will appear in the Dock (Figure 23). You should be able to locate the Mediatek icon at the top right hand bar of your computer. Click on it and choose “Open Wireless Utility…”.
- Page 9 Stainless steel masthead brass mount rail mount standoff bracket Scout S.r.l. | Via Toscanini 148, 41019 Soliera, Italy SCOUT is a registered trademark. Reg. n. 009799602 tel. +39 059 566650 | fax +39 059 565949 web: www.scoutantenne.com | e-mail: scout@scoutantenne.com Technical specifications here included may change without prior notice.
