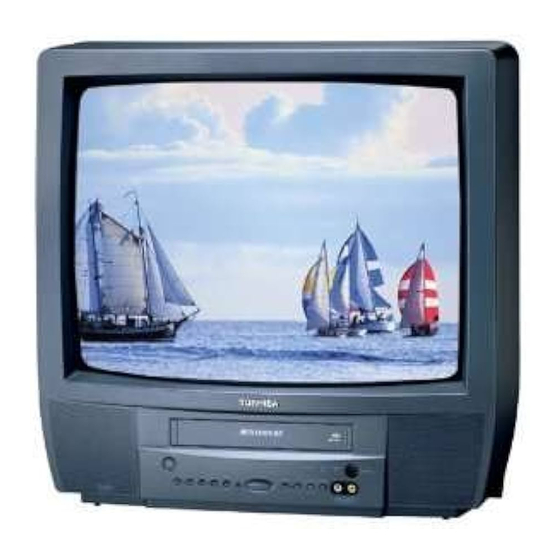

Toshiba MV19K2 Service Manual

Color television/video cassette recorder
Hide thumbs Also See for MV19K2:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Televisores a Color con Videograbadora
Especificaciones generales
Instrucciones para el desensamble
MV19K2
Guía de abreviaturas
Lista de modos de servicio
Revisiones preventivas e intervalos de servicio
Nota para el reemplazo del IC de memoria
Herramientas e implementos de servicio
Preparación para el servicio
Ajustes mecánicos
Ajustes eléctricos
Diagrama a bloques
Placas de circuito impreso
Diagramas esquemáticos
Formas de onda
Vistas explotadas mecánicas
Lista de partes de reemplazo mecánicas
Lista de partes de reemplazo eléctricas

Advertisement

Table of Contents
loading

Related Manuals for Toshiba MV19K2

Summary of Contents for Toshiba MV19K2

  • Page 1 Televisores a Color con Videograbadora Especificaciones generales Instrucciones para el desensamble MV19K2 Guía de abreviaturas Lista de modos de servicio Revisiones preventivas e intervalos de servicio Nota para el reemplazo del IC de memoria Herramientas e implementos de servicio Preparación para el servicio Ajustes mecánicos...
  • Page 2 FILE NO. 140-200005 SERVICE MANUAL COLOR TELEVISION/ VIDEO CASSETTE RECORDER MV19K2...

  • Page 3: Servicing Notices On Checking

    SERVICING NOTICES ON CHECKING 1. KEEP THE NOTICES 6. AVOID AN X-RAY As for the places which need special attentions, Safety is secured against an X-ray by consider- they are indicated with the labels or seals on the ing about the cathode-ray tube and the high cabinet, chassis and parts.

  • Page 4: General Specifications

    GENERAL SPECIFICATIONS G-1.Outline of the Product inch( 480.0 mmV):Measured diagonally Color CRT degree deflection -Speed 1/2" Video Cassette Recorder Recorder/Player VHS-C Player G-2.VCR Format VHS Standard NTSC SECAM PAL-M PAL-N VHS Hi-Fi Audio System G-3.Video Recording System :Rotary,slant azimuth two head helical scan system Luminance Component :FM recording Chrominance Component...
  • Page 5 GENERAL SPECIFICATIONS G-16.Antenna Input Impedance VHF/UHF 75 ohm unbalanced G-17.Tuner and Receiving channel 1Tuner System 2Tuner System BS Tuner Tuner : Contactless Electric tuner Oscar(W/O HYPER) Oscar(W/ HYPER) France CATV) Others channel coverage 2 ~ 69 , 4A , A-5 ~ A-1 , A ~ I , J ~ W , W+1 ~ W+84 Tuning System Frequency syn.
  • Page 6 GENERAL SPECIFICATIONS G-25.Power Source AC 50Hz AC 60Hz EXT DC Jack G-26.Power Consumption: 96 W at AC 60 Hz(Approx.) - W at DC (at TV and VCR ON) Stand by: 6 W at AC 60 Hz(Approx.) Per Year: --- kWh / Year G-27.Dimensions(Approx.) 489 mm(W) 462 mm(D)
  • Page 7 GENERAL SPECIFICATIONS G-37.Timer back up Time More than 1/12 Minutes (at Power Off Mode) G-38.Terminals VHF/UHF Antenna Input Din Type F-Type France Type Front Video Input<RCA ø8.3> Front Audio Input<RCA ø8.3> Rear Video Input<RCA ø8.3> Rear Audio Input<RCA ø8.3> Rear Video Output<RCA ø8.3> Rear Audio Output<RCA ø8.3>...
  • Page 8 GENERAL SPECIFICATIONS G-42.Speaker Position Front Side Bottom Size inches Imp. 8 ohm x Output W (Typical) G-43.EXT Speaker G-44.Carton Master Carton: Need No Need Content: ---- Material: ---- / ---- Corrugated Carton Dimensions: ---- mm(W) ---- mm(D) ---- mm(H) Description of Origin Gift Box Material Double/Brown Corrugated Carton (...
  • Page 9 GENERAL SPECIFICATIONS G-47.Switch Front Power Channel Up Volume Up Play Channel Down Volume Down Pause/Still F.FWD/Cue Rew/Rev System Select Eject/Stop Rec/OTR One Touch Playback Main Power SW Input Select Rear Color On/Off (SECAM only) Degauss Main Power SW AC/DC G-48.Magnetic Field BV : +0.45G BV :...

  • Page 10: Removal Of Mechanical Parts And P.c. Boards

    DISASSEMBLY INSTRUCTIONS 1. REMOVAL OF MECHANICAL PARTS 1-3: TV/VCR BLOCK (Refer to Fig. 1-3) Remove the 2 screws 1. AND P.C. BOARDS Disconnect the following connectors: 1-1: BACK CABINET (Refer to Fig. 1-1) (CP355, CP353, CP401, CP502 and CP351). Remove the 6 screws 1. Unlock the support 2.
  • Page 11 DISASSEMBLY INSTRUCTIONS 1-5: DECK SHIELD PLATE (Refer to Fig. 1-5) 1-7: JACK PLATE AND SYSCON PCB (Refer to Fig. 1-7) Remove the 2 screws 1. Remove the screw 1. Remove the screw 2. Remove the Syscon PCB in the direction of arrow (A). Remove the screw 3.

  • Page 12: Removal Of Deck Parts

    DISASSEMBLY INSTRUCTIONS 2. REMOVAL OF DECK PARTS NOTE When you install the Tape Guide L, install as shown in the 2-1: TOP BRACKET (Refer to Fig. 2-1) circle of Fig. 2-3-B. (Refer to Fig. 2-3-B) Remove the 2 screws 1. Slide the 2 supports 2 and remove the Top Bracket.
  • Page 13 DISASSEMBLY INSTRUCTIONS 2-6: LINK ASS'Y (Refer to Fig. 2-6) 2-9: TENSION ASS'Y (Refer to Fig. 2-9-A) Set the Link Ass'y to the Eject position. Move the Inclined S Ass'y to the back side. Unlock the support 1 and remove the S Reel Stopper. Remove the (A) side of the Link Ass'y first, then remove the (B) side.
  • Page 14 DISASSEMBLY INSTRUCTIONS 2-11: S REEL/T REEL ASS'Y (Refer to Fig. 2-11) NOTE Remove the Idler Ass'y. Do not touch the Pinch Roller. (Use gloves.) Remove the S Reel and T Reel Ass'y. When you install the Pinch Roller Ass'y, install as Remove the 2 Polyslider Washers 1.
  • Page 15 DISASSEMBLY INSTRUCTIONS 2-15: AHC ASS'Y/CYLINDER UNIT ASS'Y (Refer to Fig. 2-15) Middle Gear Unlock the support 1 and remove the AHC Ass'y. E-Ring Remove the 3 screws 2. Remove the Cylinder Unit Ass'y. Main Cam NOTE Pinch Roller Cam When you install the Cylinder Unit Ass'y, tighten the screws from (1) to (3) in order while pulling the Ass'y Joint Gear Link Lever Spacer...
  • Page 16 DISASSEMBLY INSTRUCTIONS 2-19: LOADING GEAR S/T ASS'Y (Refer to Fig. 2-19-A) 2-20: INCLINED S/T ASS'Y (Refer to Fig. 2-20) Remove the E-Ring 1 and remove the Main Loading Unlock the support 1 and remove the P4 Cover. Gear. Remove the S-S Brake Spring. Unlock the support 2 and remove the Loading Gear Remove the Capstan Brake Spring.

  • Page 17: Removal Of Anode Cap

    DISASSEMBLY INSTRUCTIONS 3. REMOVAL OF ANODE CAP 3. After one side is removed, pull in the opposite direction to remove the other. Read the following NOTED items before starting work. NOTE After turning the power off there might still be a potential Take care not to damage the Rubber Cap.

  • Page 18: Key To Abbreviations

    KEY TO ABBREVIATIONS Audio/Control H.SW Head Switch Automatic Color Control Hertz Audio Erase Integrated Circuit Automatic Frequency Control Intermediate Frequency Automatic Fine Tuning Indicator AFT DET Automatic Fine Tuning Detect Inverter Automatic Gain Control Killer Amplifier Left Antenna Light Emitting Diode A.PB Audio Playback LIMIT AMP...
  • Page 19 KEY TO ABBREVIATIONS SYNC Synchronization SYNC SEP Sync Separator, Separation Transistor TRAC Tracking TRICK PB Trick Playback Test Point UNREG Unregulated Volt Voltage Controlled Oscillator Video Intermediate Frequency Vertical Pulse, Voltage Display V.PB Video Playback Variable Resistor V.REC Video Recording Visual Search Fast Forward Visual Search Rewind Voltage Super Source...

  • Page 20: Service Mode List

    SERVICE MODE LIST This unit provided with the following SERVICE MODES so you can repair, examine and adjust easily. To enter SERVICE MODE, unplug AC cord till lost actual clock time. Then press and hold Vol (-) button of main unit and remocon key simultaneously.

  • Page 21: Preventive Checks And Service Intervals

    PREVENTIVE CHECKS AND SERVICE INTERVALS The following standard table depends on environmental conditions and usage. Unless maintenance is properly carried out, the following service intervals may be quite shortened as harmful effects may be had on other parts. Also, long term storage or misuse may cause transformation and aging of rubber parts. Time 1,000 1,500...

  • Page 22: Audio Control Head

    PREVENTIVE CHECKS AND SERVICE INTERVALS CLEANING NOTE 2. TAPE RUNNING SYSTEM After cleaning the heads with isopropyl alcohol, do not When cleaning the tape transport system, use the run a tape until the heads dry completely. If the heads gauze moistened with isopropyl alcohol. are not completely dry and alcohol gets on the tape, 3.

  • Page 23: Note For The Replacing Of Memory Ic

    NOTE FOR THE REPLACING OF MEMORY IC If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to ensure correct data settings while making reference to TABLE 1. NOTE: Initial Data setting will not be possible if clock has been set.

  • Page 24: Servicing Fixtures And Tools

    SERVICING FIXTURES AND TOOLS Alignment Tape Back tension cassette gauge Torque cassette gauge Taper nut driver (KT-300NR) ST-N5 ST-NF 70909103 70909199 70909228 VTR cleaning kit VTR lubrication kit Grease JG002B Adapter JG002E Dial Torque Gauge (10~90gf•cm) JG002F (60~600gf•cm) JG022 Master Plane JG024A Reel Disk Height JG153 X Value Adjustment JG154 Cable...

  • Page 25: Preparation For Servicing

    PREPARATION FOR SERVICING How to use the Servicing Fixture Unplug the connector CP351, CP355, CP502 and CP353, then remove the TV/VCR Block from the set. Unplug the connector CP810, CP820 and CP850, then remove the Main PCB from the VCR Block. Connect as shown in the below figure using the Service Fixture.

  • Page 26: Confirmation And Adjustment

    MECHANICAL ADJUSTMENTS 1. CONFIRMATION AND ADJUSTMENT 1-2: CONFIRMATION AND ADJUSTMENT OF TENSION POST POSITION Read the following NOTES before starting work. Set to the PLAY mode. • Place an object which weighs between 450g~500g on Adjust the Tension Adjust until the edge of the Tension the Cassette Tape to keep it steady when you want to Arm is positioning within 0.5mm range from the make the tape run without the Cassette Holder.

  • Page 27: Confirmation And Adjustment Of Tape Running Mechanism

    MECHANICAL ADJUSTMENTS 1-4: CONFIRMATION OF VSR TORQUE 2. CONFIRMATION AND ADJUSTMENT OF TAPE RUNNING MECHANISM Operate within 4~5 seconds after the reel disk begins to turn. Tape Running Mechanism is adjusted precisely at the Install the Torque Gauge (JG002F) and Adapter (JG002B) factory.
  • Page 28 MECHANICAL ADJUSTMENTS 2-2: CONFIRMATION AND ADJUSTMENT OF AUDIO/ 2-3: TAPE RUNNING ADJUSTMENT CONTROL HEAD (X VALUE ADJUSTMENT) When the Tape Running Mechanism does not work well, Confirm and adjust the height of the Reel Disk. adjust the following items. (Refer to item 1-1) Confirm and adjust the position of the Tension Post.

  • Page 29: Mechanism Adjustment Parts Location Guide

    MECHANICAL ADJUSTMENTS 3. MECHANISM ADJUSTMENT PARTS LOCATION GUIDE 1. Tension Adjust P4 Post 2. Tension Arm T Brake Spring 3. Guide Roller T Reel Ass'y 4. P1 Post Idler Ass'y 5. Audio/Control Head S-S Brake Spring 6. X value adjustment driver hole S Reel...

  • Page 30: Adjustment Procedure

    ELECTRICAL ADJUSTMENTS 1. ADJUSTMENT PROCEDURE Read and perform these adjustments when repairing the CH-2 circuits or replacing electrical parts or PCB assemblies. CAUTION When replacing IC's or transistors, use only specified 6.5H silicon grease. (To prevent the damage to IC's and transistors.) CH-1 Fig.
  • Page 31 ELECTRICAL ADJUSTMENTS 2-5: CUT OFF 2-9: SUB COLOR (TV) Receive the color bar pattern. (RF Input) Place the set with Aging Test for more than 15 minutes. Set condition is AV MODE without signal. Connect the synchro scope to TP801. Using the remote control, set the brightness and Using the remote control, set the brightness, contrast, contrast to normal position.
  • Page 32 ELECTRICAL ADJUSTMENTS 2-15: VERTICAL LINEARITY Receive the monoscope pattern. Using the remote control, set the brightness and contrast to normal position. Activate the adjustment mode display of Fig. 1-1 and press the channel button (1) on the remote control. The Fig. 2-6 appears on the display. Press the channel button (5) on the remote control.
  • Page 33 ELECTRICAL ADJUSTMENTS 2-18: WHITE BALANCE Place the set with Aging Test for more than 15 minutes. Receive the color bar pattern. Activate the adjustment mode display of Fig. 1-1 and press the channel button (2) on the remote control. The Fig. 2-8 appears on the display. Adjust the adjustment mode display of Fig.

  • Page 34: Electrical Adjustment Parts Location Guide

    ELECTRICAL ADJUSTMENTS 3. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (VCR SECTION) TP1001 TP1002 TP4001 CP603 TU601 L610 TP601 TP4201 J4201 SYSCON PCB...
  • Page 35 ELECTRICAL ADJUSTMENTS (TV SECTION) TP803 J801 TP801 CRT PCB R421 VR502 R408 TP401 T501 FOCUS VOLUME FB401 SCREEN VOLUME MAIN PCB...

  • Page 36: Purity And Convergence Adjustments

    ELECTRICAL ADJUSTMENTS 4. PURITY AND CONVERGENCE 4-3: STATIC CONVERGENCE ADJUSTMENTS NOTE Adjust after performing adjustments in section 4-2. NOTE Receive the crosshatch pattern from the color bar Turn the unit on and let it warm up for at least 30 generator.

  • Page 37: Tv Block Diagram

    TV BLOCK DIAGRAM V. OUTPUT IC401 LA7840 THERMAL PROTECTION PUMP Q405 Q406 H. DRIVE H. OUTPUT X604 3.579545MHz CHROMA/IF FB401 IC604 LA76814BM Q608 BUFFER CLMP J801 VIDEO Y/C VIDEO CLMP PPC1 TINT PFC2 Y/C AUDIO PHASE V801 AHIFTER Y/C/AUDIO/ HEAD AMP/ 1/256 IN/OUT TU_AUDIO...
  • Page 38 Y/C/AUDIO/HEAD AMP/IN/OUT BLOCK DIAGRAM Q4010 BUFFER Y/C/A/H.AMP IC4001 LA71170M-MPB 63 61 CP4001 SP CH1 (R) SP COM C COMB SP CH2 (L) Y_DELAY 3 EP/LP CH1 (R) 2 EP/LP COM COMB BEFORE PB BGA 1 EP/LP-CH2 (L) COMP BEFORE Q4012 AFTER 320FH PB BGA...
  • Page 39 MICON/POWER BLOCK DIAGRAM TIMER SYSCON MICON SW1001 IC1001 OEC7041A SYSTEM RESET TAB SW IC1002 RESET-L 3 OUT PST600H POWER FAIL(DC) AT+5.6V POWER_FAIL_L P. CON 5V MSSEN-A X-OUT(12MHz) Q1023 MS_SEN A J701 X1001 Q1009 12MHz AUDIO L X_RAY_SW X-IN(12MHz) FRONT_AUDIO XC-OUT(32KHz) MSSEN-B X1002 FRONT_VIDEO...

  • Page 40: Printed Circuit Boards

    PRINTED CIRCUIT BOARDS MAIN/CRT SOLDER SIDE W014 W006 C520_1 CP820 W047 W005 HS503 R423 CP804 CP810 W012 C511 W822 W010 W009 W817 C537_1 IC504 IC503 W027 D517 W823 R519 D519 W816 R520 W825 R460 C519 C523 C527 C422_1 C438 D508 C516 D505 ICP505...
  • Page 41 PRINTED CIRCUIT BOARDS JACK/LED SOLDER SIDE R761 R754 W001 D791 R350 W811 R351 W002 J701_1 CD351_1 DECK SOLDER SIDE CP101 CP102 Q101 Q102...
  • Page 42 PRINTED CIRCUIT BOARDS SYSCON (INSERTED PARTS) SOLDER SIDE TP1002 W133 CP1002 TP4001 RISK OF FIRE - REPLACE AS MARKED. CC001 C661 CP351 R4201 IC601 R4025 W037 Q620 D622 W032 W003 W002 W855 W091 W047 W831 C4023 W146 L4006 W813 W007 W144 W043 W042...
  • Page 43 PRINTED CIRCUIT BOARDS SYSCON (CHIP MOUNTED PARTS) SOLDER SIDE C4206 R4232 Q607 Q1006 Q4204 R1065 Q4210 Q1010 C1088 Q1008 R1064 Q1014 R1039 Q1012 R1038 Q4205 C657 R605 Q1017 Q1018 R603 C1007 Q4206 C604 C1025 Q1002 R606 R1046 C658 R1066 R617 C622 C1074 Q1004...

  • Page 44: Y/C/Audio/Head Amp Schematic Diagram

    Y/C/AUDIO/HEAD AMP SCHEMATIC DIAGRAM (SYSCON PCB) C4095 100P CH L4014 C4082 C4097 68uH 18P CH FROM POWER 0.1 B P.CON+5V W813 C4079 R4005 Y/C_AUDIO C4055 R4067 0.1 B 1.5K 120 1/4W L4006 6.3V C4078 C4001 FROM/TO I/O 100uH 6.3V 0.027 B FRONT_VIDEO C4056 0.1 B...

  • Page 45: Micon Schematic Diagram

    TP1001 MICON SCHEMATIC DIAGRAM (SYSCON PCB) SERVICE FROM/TO POWER D1011 SB10-03A3 AT+5.6V C1082 R1032 D1006 SB10-03A3 P.CON+5V 0.01 B P.CON+12V POWER_FAIL[DC] C1041 VCR_POWER_H C1060 0.1 B R1059 CAP_HI_H 150P CH 4.7K INVERTER C1061 CAP_VCO R1029 Q1016 (S/S) 2SC2412K 150P CH C1055 4.7K 1/4W -0.7...

  • Page 46: Power Schematic Diagram

    POWER SCHEMATIC DIAGRAM (SYSCON PCB) TO Y/C/A/H.AMP P.CON+5V D1010 C1004 25.1 P.CON 5V DRIVER DRIVER 1N4005E Q1019 Q1011 2SB1134R FROM/TO MICON 2SD2396 R1035 25.1 P.CON+5V DRIVER 1.8K CAP_VCO Q1010 DTA114EKA 23.6 AT+5.6V 12.1 FEED BACK FROM TV POWER R1065 P.CON+12V CAP_HI_H Q1012 Q1008...

  • Page 47: In/Out Schematic Diagram

    IN/OUT SCHEMATIC DIAGRAM (SYSCON PCB) R1092 100 1/4W Vout OS1001 GP1U281Q R1080 R1088 R1091 R1096 1.5K R1084 R1086 R1089 R1090 R1095 FROM/TO SOUND AMP 5.6K 2.7K 1.5K SOUND_GND W878 W880 SOUND+ SP_OUT W879 REC LED SW T-REC LED SW Q4205 Q4206 TV POWER SW FROM/TO MICON...

  • Page 48: Chroma/If Schematic Diagram

    CHROMA/IF SCHEMATIC DIAGRAM (SYSCON PCB) FROM/TO MICON X_RAY L607 100uH C669 C671 R675 VCR_POWER_H 220P CH 0.1 B 1K 1/4W TV_POWER_H OSD_R R656 OSD_G BUFFER OSD_B Q602 BUFFER OSD_BLK 2SA1037AK TU_VIDEO Q608 2SA1037AK L613 AFT_M 47uH FROM/TO Y/C/A/H.AMP TRICK-PB-H C675 R621 C668 TU_VIDEO...

  • Page 49: Sound Amp Schematic Diagram

    SOUND AMP SCHEMATIC DIAGRAM (SYSCON PCB) SOUND AMP IC352 AN7523 CD353 FROM/TO I/O CH12415A SPEAKER SP_OUT SP OUT SOUND GND SOUND+ (S802) CP353 SP351 SOUND_GND B2B-EH-A P-300S-3 FROM MICON R359 MUTE SW TV_A_MUTE Q351 2SC2412K TV_POWER_H R353 FROM CHROMA/IF SOUND+B C355 R351 AUDIO_OUT...

  • Page 50: Tv Power Schematic Diagram

    TV POWER SCHEMATIC DIAGRAM (MAIN PCB) TV.POWER_H P.CON+125V 127.0 127.5 R534 5A 125V 2.5A 250V 2A 125V 127.0 +B 100V DRIVE 0.82 2W Q503 CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, 2SC4160 100V DRIVE REPLACE ONLY WITH THE SAME TYPE FUSE PROTECT DRIVE -OEC-YAC1 Q502...
  • Page 51 DEFLECTION SCHEMATIC DAIGRAM (MAIN PCB) V.OUTPUT IC401 LA7840 THERMAL PUMP UP PROTECTION 14.2 23.5 22.8 C412 TO DY CP401 500V 390P B05B-DVS C409 0.022 M R404 R413 R416 4.7K 1.8K FROM/TO CHROMA/IF CP820 (CP601) 8283_1112_00_000 SOUND GND SOUND+B CC004 HS401 TP-1S-05 VCR POWER H 763WAA0098...

  • Page 52: Crt Schematic Diagram

    CRT SCHEMATIC DIAGRAM (CRT PCB) FROM CHROMA/IF TP801 CC003 CP850 (CP602) R802 8283_0512_00_000 15K 2W CUT OFF R807 G.OUT 2.7K 1/4W R.OUT B.OUT 132.5 RED AMP Q804 2SC4217 104.1 132.5 132.8 R811 4.7K J801 CVT3275-5102 TP802 R805 15K 2W R808 2.7K 1/4W 132.1 GREEN AMP...
  • Page 53 JACK/LED SCHEMATIC DIAGRAM (JACK/LED PCB) J351 HTJ-035-28A R350 R351 56 1/2W 56 1/2W FROM/TO I/O CD351_1 (CP351) CH27081A FRONT VIDEO IN FRONT A IN L GND/SOUND GND W805 SOUND OUT L SP OUT L POWER/PLAY R761 270 1/4W D792 SLZ-936C-07-S-T1 FROM I/O VIDEO AUDIO L...

  • Page 54: Deck Schematic Diagram

    DECK SCHEMATIC DIAGRAM LOADING MOTOR M101 (DECK PCB) S105 BOT SENSOR Q101 S106 RPT-38PB113 S101 S102 S103 S104 FROM/TO MICON CP101 52044-0445 LDM+ LDM- FROM/TO MICON CP102 173979-2 EOT SENSOR Q102 RPT-38PB113 PCB550 VE8851 CAUTION: SINCE THESE PARTS MARKED BY ATTENTION: LES PIECES REPAREES PAR UN ETANT...

  • Page 55: Interconnection Diagram

    INTERCONNECTION DIAGRAM J351 JACK/LED PCB PCB030 TE9A16 J701 HALL MAIN ROTOR SENSOR COIL MAGNET FG SENSOR TM101 HALL HALL SWITCH LOGIC CP1004 MOTOR GND I LIMIT SP351 SPEAKER CP353 SP OUT SOUND GND CAPSTAN DD UNIT CD353 CAP.M F/R DECK MECHA ASS’Y VCC(5V) M2001 HEAD AUDIO CONTROL ASS’Y...
  • Page 56 WAVEFORMS Y/C/AUDIO/HEAD AMP TV POWER 1 5.0V 0.1ms/div 50.0V 20µs/div 11 PB 0.5V 0.5ms/div DEFLECTION 2 2.0V 20µs/div 7 50.0V 20µs/div 12 PB 100mV 1ms/div DEFLECTION 3 0.5V 5ms/div 10.0V 5ms/div 13 PB 50mV 0.5ms/div TV POWER 4 200mV 20µs/div 9 20.0V 0.1ms/div 14 PB 0.5V 20µs/div...
  • Page 57 WAVEFORMS 16 REC 21 PB 26 POWER ON 100mV 20µs/div 1.0V 0.5ms/div 0.5V 10ms/div 17 POWER ON 22 PB 27 POWER ON 0.5V 1ms/div 1.0V 5ms/div 20.0V 20µs/div 18 POWER ON 23 PB 28 POWER ON 50mV 1ms/div 1.0V 5ms/div 5.0V 5ms/div MICON IN/OUT...

  • Page 58: Sound Amp

    WAVEFORMS CHROMA/IF SOUND AMP 31 POWER ON 36 POWER ON 0.5V 1ms/div 200mV 1ms/div 32 POWER ON 50mV 1ms/div 33 POWER ON 0.5V 20µs/div 34 POWER ON 200mV 20µs/div 35 POWER ON 10.5V 20µs/div NOTE: The following waveforms were measured at the point of the corresponding balloon number in the schematic diagram.

  • Page 59: Mechanical Exploded View

    MECHANICAL EXPLODED VIEW J801 PCB110 (CRT PCB) L503 V801 FB401 PCB070 (MAIN PCB) PCB030 (JACK/LED PCB) SP351...
  • Page 60 MECHANICAL EXPLODED VIEW TU601 PCB010 (SYSCON PCB)

  • Page 61: Chassis Exploded View (Top View)

    CHASSIS EXPLODED VIEW (TOP VIEW) M2003 UN4001 H5001 H5002 M101 PCB550 (DECK PCB ASS'Y) NOTE: Applying positions AA and BA for the grease or CLASS MARK oil are displayed for this section. GREASE Check if the correct grease or oil is applied for each position.

  • Page 62: Chassis Exploded View (Bottom View)

    CHASSIS EXPLODED VIEW (BOTTOM VIEW) M2001 NOTE: Applying positions AA and BA for the grease or CLASS MARK oil are displayed for this section. GREASE Check if the correct grease or oil is applied for each position.

  • Page 63: Mechanical Replacement Parts List

    MECHANICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description BZ610027 A54618A720 CABINET,FRONT ASS'Y BZ710160 701WPJ0898 CABINET,FRONT BZ710161 712WPJ0658 FLAP BZ710010 743WKA0032 SPRING,FLAP BZ710162 735WPJ0138 BUTTON,FRAME BZ710008 738WPA0014 BUTTON,BASE BZ710012 761WPA0151 HOLDER,M/PCB BZ710139 771WPAA010 PLATE,JACK BZ710151 702WPAA097 CABINET,BACK BZ710009 741WUA0019 SPRING,EARTH BZ710037...

  • Page 64: Chassis Replacement Parts List

    CHASSIS REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description BZ610017 A54547A420A DECK ASSY A54547A420A BZ710073 85OA500022 AHC ASS'Y BZ710081 85OP200270 BELT,CAPSTAN BZ710132 85OP900710 LEVER,REC BZ710094 85OP500083 BASE,AC HEAD BZ710112 85OP800324 SPRING,AC HEAD BZ710059 85OA000360 MAIN CHASSIS ASS'Y BZ710062 85OA200081 CLUTCH ASS'Y X BZ710060...
  • Page 65 CHASSIS REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description BZ710048 8107126A04 SCREW,TAP TITE(S) PAN 2.6x10 BZ710049 8107226804 SCREW,TAP TITE(S) BIND 2.6x8 BZ710017 8107226604 SCREW,TAP TITE(S) BIND 2.6x6 BZ710050 8109126604 SCREW,TAP TITE(B) PAN 2.6x6 BZ710052 810A126804 SCREW/WASHER(A) M2.6x8 BZ710053 810B126404 SCREW/WASHER(B) M2.6x4...

  • Page 66: Electrical Replacement Parts List

    ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description RESISTORS ! R418 BZ210029 R4X5T41R5F R,METAL 1.5 OHM 1/4W ! R439 BZ210015 R4X5T4223F R,METAL 22K OHM 1/4W ! R440 BZ210016 R4X5T4822F R,METAL 8.2K OHM 1/4W ! R441 BZ210013 R4X5T4104F R,METAL 100K OHM 1/4W ! R442...
  • Page 67 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description DIODES D517 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D518 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 ! D519 BZ410010 D28T21DQN9 DIODE SCHOTTKY 21DQ09N-TA2B1 D521 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D523 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77 D526 BZ410006 D1VT001330 DIODE,SILICON...
  • Page 68 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description TRANSISTORS Q1006 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S Q1008 BZ510021 TNYJC05001 COMPOUND TRANSISTOR DTC124EKAT146 Q1009 BZ410003 0002G00550 PHOTO COUPLER GP1S94L Q1010 BZ510025 TPYJB05001 COMPOUND TRANSISTOR DTA114EKAT146 Q1011 BZ510017 TD70D23960 TRANSISTOR,SILICON 2SD2396(J,K) Q1012 BZ510002...
  • Page 69 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description SWITCHES SW1007 BZ612001 0504201T31 SWITCH,TACT SKHVBED010 SW1008 BZ612001 0504201T31 SWITCH,TACT SKHVBED010 SW1009 BZ612001 0504201T31 SWITCH,TACT SKHVBED010 SW1010 BZ612001 0504201T31 SWITCH,TACT SKHVBED010 SW1011 BZ612001 0504201T31 SWITCH,TACT SKHVBED010 SW1012 BZ612001 0504201T31 SWITCH,TACT SKHVBED010 VARIABLE RESISTORS...
  • Page 70 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description SWITCHES SP351 BZ614063 070W133012 SPEAKER P-300S-3 ! TH501 BZ410024 DF20C3R0Q0 DEGAUSS ELEMENT PTH451C3R0Q11 TM101 BZ614055 076R0DA010 TRANSMITTER R25-1335 ! TU601 BZ610001 0145K00050 TUNER UHF-VHF TECC1040PG31A ! V801 BZ614064 098Q200482 CRT W/DY A48AGY13X78 X604...
  • Page 71 TOSHIBA VIDEO PRODUCTS PTE. LTD. 438B ALEXANDRA ROAD, BLOCK B #06-01 ALEXANDRA TECHNOPARK SINGAPORE 119968...
