Aiwa XR-MDK109 Service Manual
  1. Manuals
  2. Brands
  3. Aiwa Manuals
  4. Stereo System
  5. XR-MDK109
  6. Service manual
Aiwa XR-MDK109 Service Manual

Aiwa XR-MDK109 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

QQ
3 7 63 1515 0

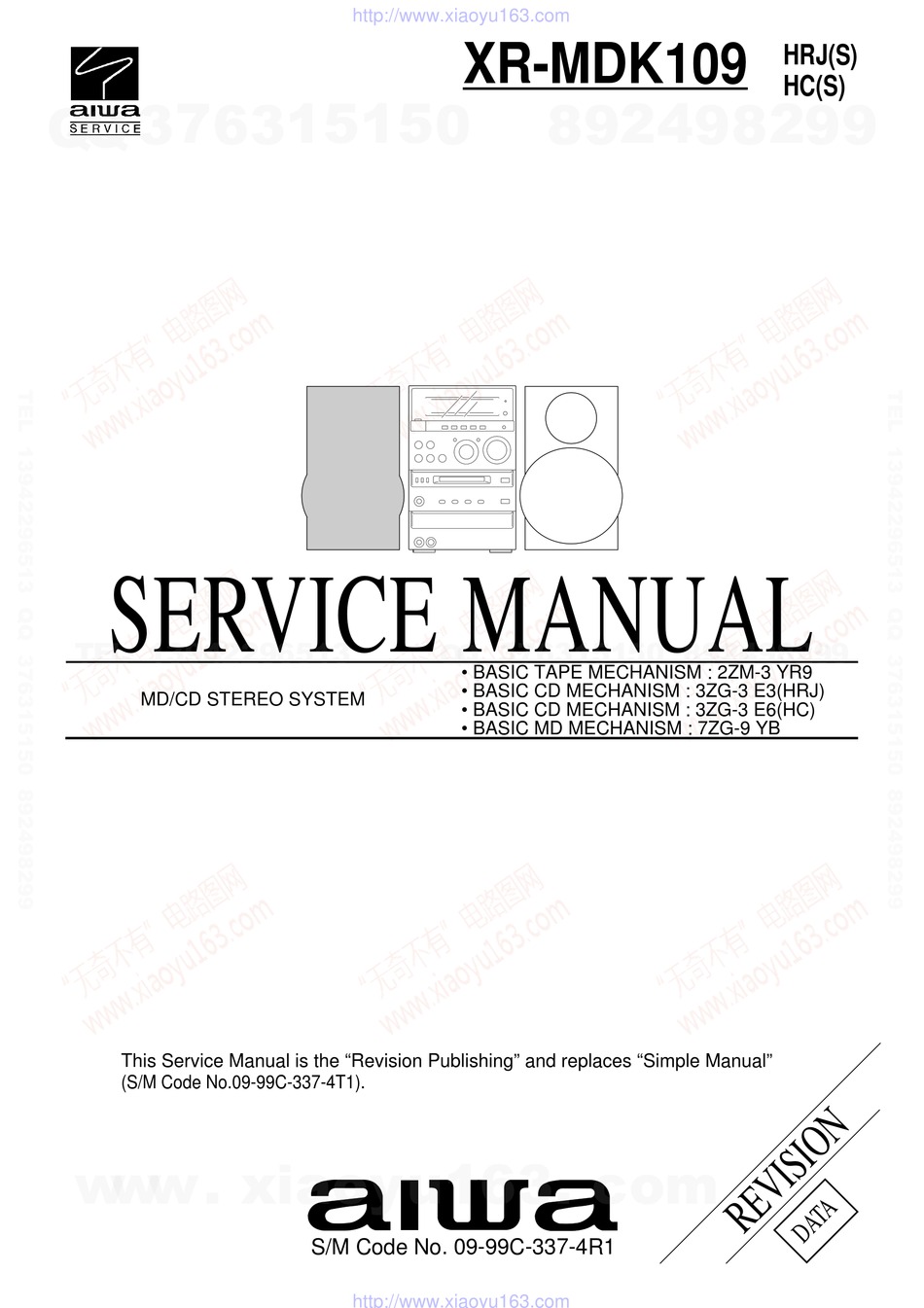

SERVICE MANUAL
