Rail King AeroTrain Operator's Manual

Rail King AeroTrain Operator's Manual

Diesel engine

Advertisement

Quick Links

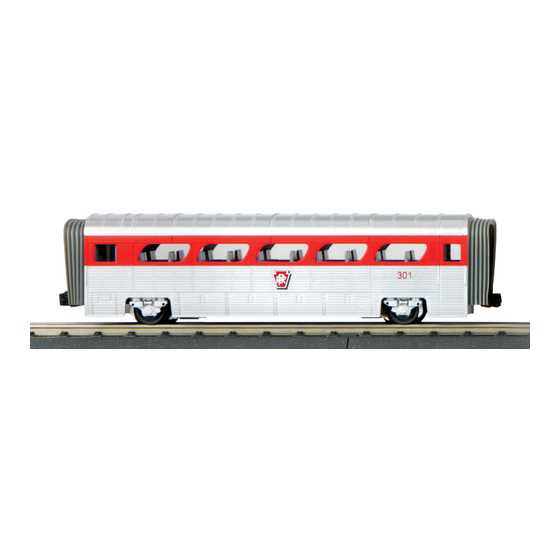

RailKing AeroTrain
Diesel Engine
OPERATOR'S MANUAL (Loco-Sound)
Compatibility
This engine will operate on any
traditional O-31 Gauge track system,
including M.T.H. ' s RealTrax® or
ScaleTrax™ or traditional tubular
track. It is also compatible with most
standard AC transformers. (See page
11 for a complete list of compatible
transformers and wiring instructions.)
PLEASE READ BEFORE USE AND SAVE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AeroTrain and is the answer not in the manual?

Questions and answers

Summary of Contents for Rail King AeroTrain

  • Page 1 RailKing AeroTrain Diesel Engine OPERATOR’S MANUAL (Loco-Sound) Compatibility This engine will operate on any traditional O-31 Gauge track system, including M.T.H. ’ s RealTrax® or ScaleTrax™ or traditional tubular track. It is also compatible with most standard AC transformers. (See page 11 for a complete list of compatible transformers and wiring instructions.)
  • Page 2: Table Of Contents

    Table of Contents Set Up Checklist......................Lubrication......................Basic Operation......................Activating Features................... Manual Volume Control.................. Loco Sound Operating Instructions................. Speed Control....................Locking Locomotive Into A Direction............Maintenance........................Lubricating and Greasing Instructions............Cleaning The Wheels, Tires and Track............Traction Tire Replacement Instructions............Locomotive Light Bulb Replacement.............
  • Page 3: Set Up Checklist

    Use only a drop or two on each pivot point. DO NOT DO NOT DO NOT OVER OIL OVER OIL OVER OIL Lubricate Pick Up Roller Axles (L) Lubricate All Wheel Axles (L) Figure 1. Lubrication Points on the Locomotive RK AeroTrain Diesel Engine with Loco-Sound...
  • Page 4: Basic Operation

    The engine is programmed to restart in neutral each time the track voltage is turned off for 25 seconds or more. Cycle Phases Neutral Reverse Forward Neutral RK AeroTrain Diesel Engine with Loco-Sound...
  • Page 5: Manual Volume Control

    To adjust the volume of all sounds made by this engine, turn the master volume control knob clockwise to increase the volume and counter-clockwise to decrease the volume. Volume Adjustment Knob Figure 2. Manual Volume Adjustment Knob RK AeroTrain Diesel Engine with Loco-Sound...
  • Page 6: Loco Sound Operating Instructions

    Total Time Lapse: 1 Seconds Speed Control Place Whistle Bell Bell Engine into Repeat to Return Neutral to Normal Condition Place Direction Lock Engine into Whistle Bell Bell Bell Repeat to Return Desired to Normal Condition Direction RK AeroTrain Diesel Engine with Loco-Sound...
  • Page 7: Maintenance

    (in the truck block) with grease. 4. Reassemble the truck and motor, being careful not to pinch any wires between the truck block and motor mount. RK AeroTrain Diesel Engine with Loco-Sound...
  • Page 8: Cleaning The Wheels, Tires And Track

    Thereafter, keep an eye on the track and clean it when it gets dirty to ensure good electrical contact and to lengthen the life of the tires. RK AeroTrain Diesel Engine with Loco-Sound...
  • Page 9: Traction Tire Replacement Instructions

    5. Reassemble in the reverse order. Replacement parts are available directly from the M.T.H. Parts Department (order online: www.mth-railking.com, e-mail: parts@mth-railking.com; mail: 7020 Columbia Gateway Drive, Columbia MD 21046-1532, FAX: 410-381-6122). RK AeroTrain Diesel Engine with Loco-Sound...
  • Page 10: Locomotive Light Bulb Replacement

    Replace the bulb and reassemble in reverse order. STEP STEP Contact Springs Remove Body Mount Screws Contact Remove the Floor out STEP STEP Pads of the Coach Body STEP STEP Light Bulbs Lift Out Seats RK AeroTrain Diesel Engine with Loco-Sound...
  • Page 11: Troubleshooting Loco-Sound

    No sound. Volume is set too low, adjust volume control knob on the bottom of the chassis clockwise to increase the volume or check connector to speaker. RK AeroTrain Diesel Engine with Loco-Sound...
  • Page 12: Transformer Compatibility And Wiring Chart

    9-19v 110-Watt Standard Lionel SW Unknown 130-Watt Standard Lionel TW 8-18v 175-Watt Standard Lionel ZW A,B,C or D 8-20v 275-Watt Standard Lionel Post-War A,B,C or D Common 0-20v 135/190 Watt Electronic Celebration Series ZW RK AeroTrain Diesel Engine with Loco-Sound...
  • Page 13: Service & Warranty Information

    Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty When you suspect an item is defective, please check the operator's manual for standard operation and trouble- shooting techniques that may correct the problem. Additional information may be found on the M.T.H. Website. Should you still require service, follow the instructions below to obtain warranty service.

Table of Contents
