- Page 1 P2® VERTICAL ARRAY POWERED SPEAKER SYSTEM Operating Manual www.peavey.com...
- Page 2 I’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the user’s authority to use the equipment.

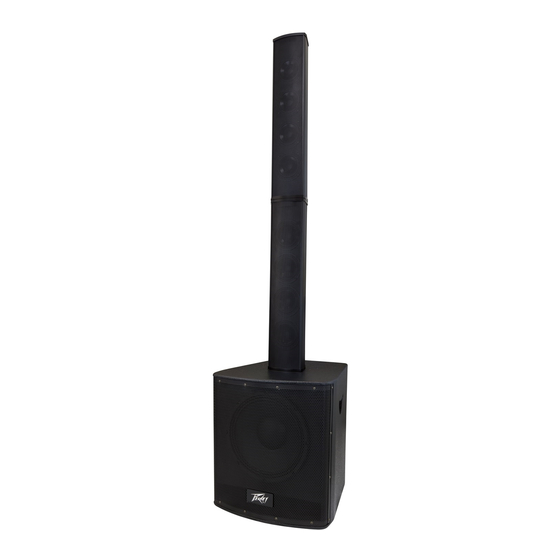

- Page 3 The compact and portable Peavey P2 Vertical Array Powered Speaker System, produces powerful and clear audio, thanks to its 12"powered Sub and eight 3 1/2" drivers. The P2 is equipped with a 3 Channel input mixer with independant level control per channel, Master Signal/Clip LED indicators, DSP voicing con- trols, and an XLR line level out for linking the P2 to other systems.
- Page 4 LOW FREQUENCY SHAPE SWITCH: This three way switch allows shaping of the low frequencies by either boosting, leveling or cutting the low frequency response. HIGH FREQUENCY SHAPE SWITCH: This two way switch allows shaping of the high frequencies. POWER SWITCH: To turn ON / OFF the P2 Vertical Array Speaker System.
- Page 5 P2™ AC INPUT/ Fuse In IEC Jack: 100V-240V~50Hz/60Hz Connect to main power (100~240V AC) with the included power chord. It is built-in with one electrical fuse. If damaged, please replace the fuse with the same specification. Fuse In IEC Jack To replace the fuse, be sure to remove the IEC power cord from the IEC socket.
- Page 6 Damage to the system is likely if this occurs! DO NOT connect the inputs of the P2™ to the output of a power amplifier. The inputs are meant to be driven from a line-level strength signal.
- Page 7 P2™ Input Connection CH.1 MIC/LINE IN LINE OUT LEVEL LINE 1 PIANO SIGNAL CLIP LEVEL CH.2 LINE IN OUTPUT LO CUT FLAT BOOST LOW FREQ LEVEL GUITAR PIN 1 SLEEVE - GROUND VOICE PIN 2 TIP - POSITIVE FLAT PIN 3 RING - NEGATIVE CH.3 LINE IN...
- Page 8 The best option is a shielded balanced cable no longer than necessary to reach the P2. It is usually a good idea to leave some slack at the input to the P2 and also to tape the cables down or run them under a cable guard to avoid anyone tripping over them or pulling the P2 over when stand mounted.
-
Page 9: Troubleshooting
First, ensure the mixer (signal source) is not clipping or being overdriven. Make sure the Level control on the P2 has not been set too low. Check that the input plug is fully seated in the input jack on the rear panel of the P2. - Page 10 Never clean the P2 while plugged in or turned ON! When the unit has been fully disconnected from AC power sources, use a dry cloth to remove soil or other dirt. Never use strong solvents on the P2, as they could damage...
- Page 11 P2™ Specifications Power Supply: 100-240VAC~ 50/60Hz Power Consumption: 230W Dimensions: WxDxH: 17.25"x 18.9" x 68" (438.15mm x 481mm x 1727mm) Net Weight: 76 lbs (34.5 kg) Sub Weight: 57.1 lbs (25.9 kg) Satellite Weight (x 2): 18.5 lbs (8.4 kg) Power Output: Woofer:130 watts peak available power, 65 watts Cont.
- Page 12 Warranty registration and information for U.S. customers available online at www.peavey.com/warranty or use the QR tag below Features and speci cations subject to change without notice. Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278 Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005...
