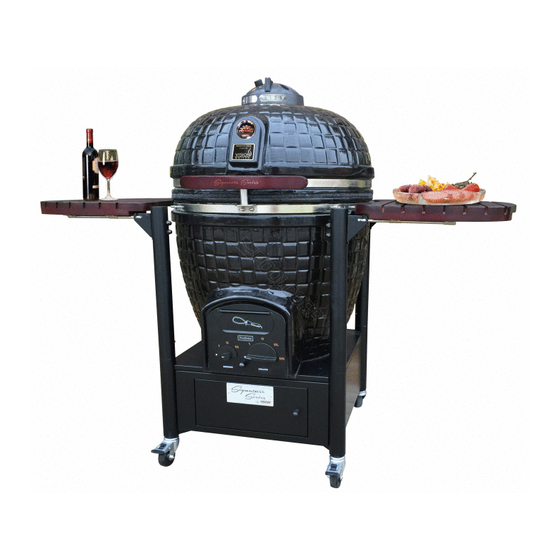

Vision grills RX-K18F1M4 Setup

Parts for Assembly:
A
1 pc. - Pre-Assembled
Cart
B
1 pc. - Kamado Grill
C
2 pcs. - Back Side Poles
D
2 pcs. - Front Side Poles
E
1 pc. - Fire Bowl
F G
1 pc. - 1 pc. -
Top Flip Grate Cast Iron Grate
H
1 pc. - Wood Handle
I
1 pc. - Top Vent
J
1 pc. - Charcoal Grate
K
2 pcs. - Side Shelves
L
Grate Lifting Tool
N
Cooking Stone &
Bracket
Tools Included:
Box Wrench: T-Handle Wrench
For shelves assembly
G
*
1 pc. -
Bottom Flip Grate
*Sanibel Only
M
Grill Light
Flat Wrench
ENGLISH
SIGNATURE SERIES GRANDE
Model #s RX-K18F1M4 / RX-W19D1L5 / Sanibel
Step 1: Cart & Grill Assembly
• Unpack cabinet cart from
packaging. (Step 1a)
• Wheels, door and posts are
preassembled.
STEP 1b
• Take all parts out of grill before lifting. The Kamado grill
is heavy and will require two people to lift and guide
onto cart (Step 1c).
• Be sure ProZone
TM
is centered between
two front posts and
the back of the grill
is resting against
the two back leg felt
stoppers.
SET UP
STEP 1a
• Insert back side poles over back
posts of cart (Step 1b). Make
sure felt stoppers are facing
inward and shelf brackets are
facing outward.
• Line up holes in back side pole
with spring loaded pin on back
post and push down until they
snap into place.
STEP 1c
