Marten BIRD 2 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Bird 2
Owners manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIRD 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marten BIRD 2

Summary of Contents for Marten BIRD 2

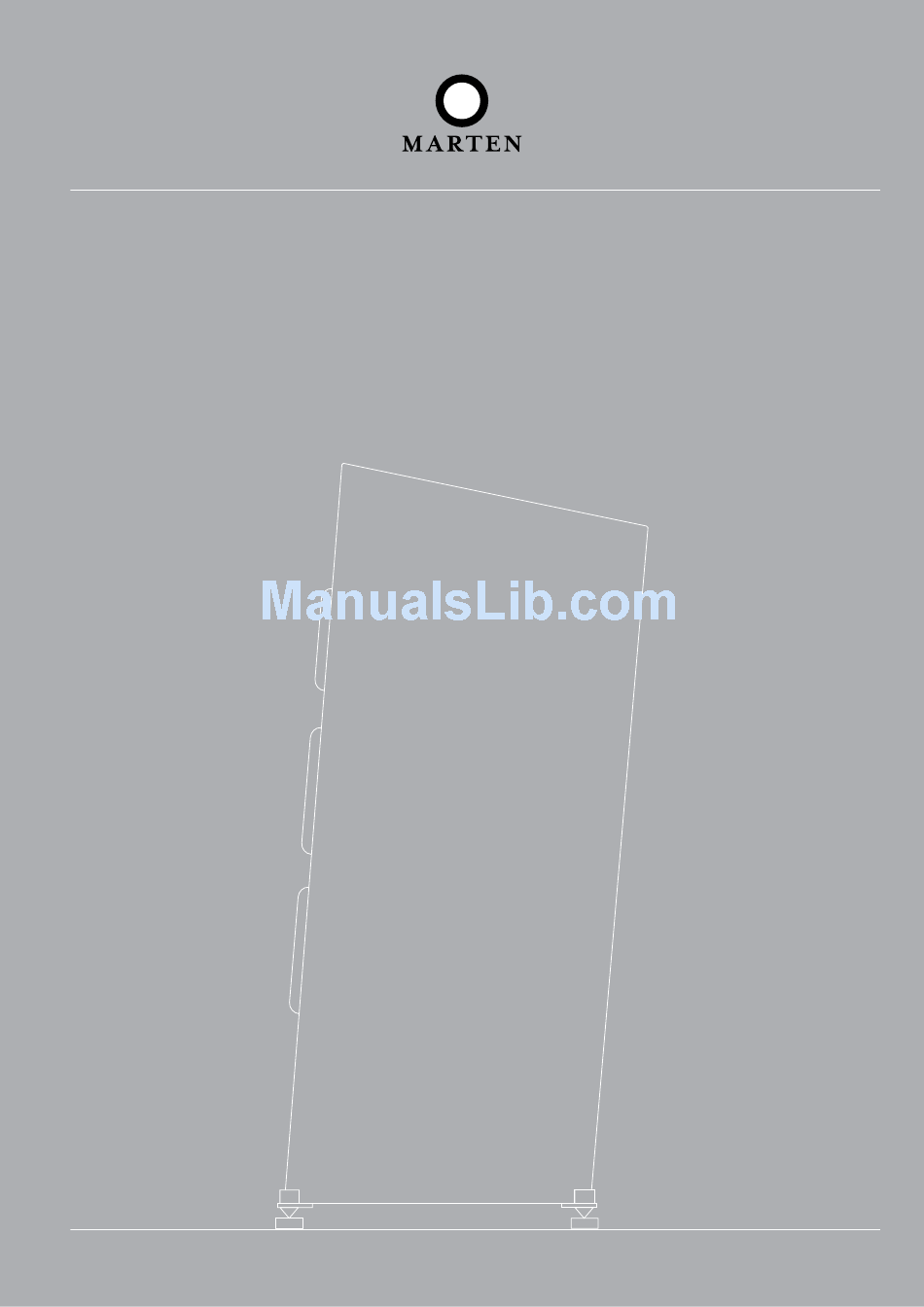

  • Page 1 Bird 2 Owners manual...

  • Page 2: Table Of Contents

    Table of contents Introduction Marten Philosophy Unpacking Quick Setup Connecting the loudspeakers Choosing cables Connections Burn-in Room Acoustics Positioning Loudspeaker Placement Distance to back and side walls Focusing the Loudspeakers Toe-in Bass-adjustment Enclosed CD Care of Loudspeakers Service Warranty Serial Number...

  • Page 3: Introduction

    Introduction Congratulations! You are now the proud owner of a pair of Marten loudspeakers. At the forefront of current designs, the Bird will reveal the full emotional range of music with vivid dynamics and detail. Properly installed, your Bird loudspeakers will give you many years of listening pleasure.To realize the highest sound quality from your loudspeakers, some important...

  • Page 4: Unpacking

    Make sure that each of your shipping boxes contains the following: 2 pcs Bird loudspeaker 4 pcs stainless steel stands 8 pcs Marten cones and pucks 1 pcs Owner’s Manual We recommend that two persons help each other in unpacking the loudspeakers.

  • Page 5: Connecting The Loudspeakers

    Connecting the Loudspeakers To make the most of your Bird loudspeakers, please consider the following suggestions: Choice of cable The impact loudspeaker cables can have on the sound is dramatic. Be sure to use the same brand, type, and length of cable on each channel. Mixing different types and/or lengths of cable can upset the precise timing and balance of your loudspeaker.

  • Page 6: Burn-In

    Burn-in The higher the quality of a loudspeaker system, the more demanding it will be regarding burn-in time. Your newly unpacked Bird loudspeakers need quite a bit of playing time to reach their optimum performance capability. We have enclosed a CD to help speed up this process. Please allow the CD to be run for a minimum of 24 hours before attempting to adjust the placement of the loudspeakers in your listening room.

  • Page 7: Positioning

    However, for good results, the Bird should be no closer than 40 cm (15.7 Inch) from the rear wall. Marten loudspeaker should not be placed close to a side wall, as reflections from these can disturb the depth of the sound image.

  • Page 8: Enclosed Cd

    Do not attempt to open the unit’s case. Refer all servicing to qualified service personnel. In the event your Bird loudspeakers need to be serviced, please contact your dealer, who will decide whether the problem can be remedied locally, or whether to contact Marten for service.

  • Page 9: Warranty

    Damage caused by abuse or misuse, or by the use of defective electronics, is not covered by warranty. Please contact your local Marten dealer for more information about this warranty. Warranty Exclusions Transportation damage, visible or hidden.

  • Page 10: Technical Specifications

    Technical Specifications Bird 2 Frequency range: 25-45000 Hz +-3dB Power rating: 250 W Sensitivity: 89 dB/2.83 V Impedance: 6 ohm (4.7 ohms minimum) Type: 3-way ported (26 Hz) Drive units: 2x9” ceramic sandwich, 7” ceramic, ¾ ” diamond Crossover frequency:...

This manual is also suitable for:

Miles 5
