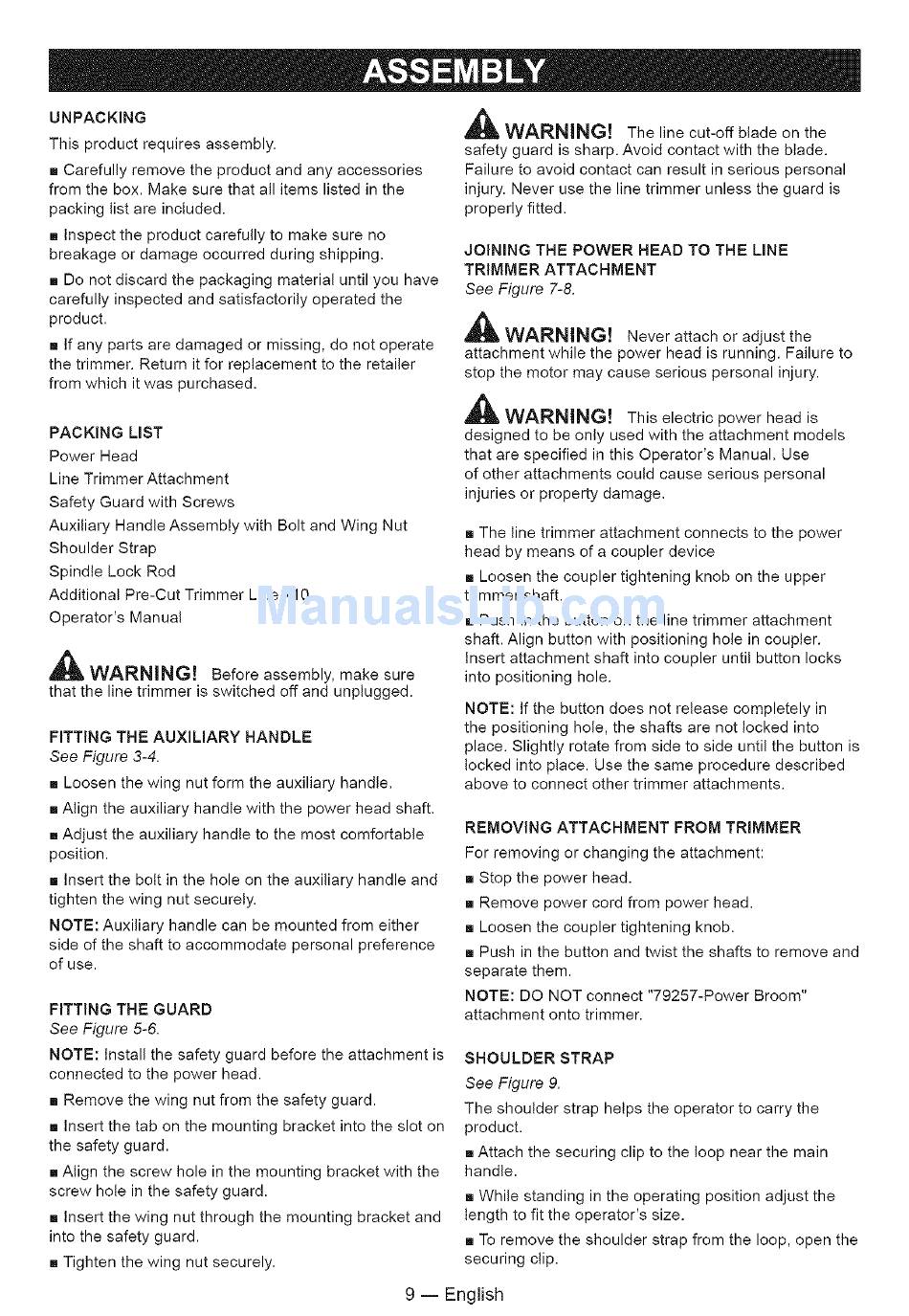

UNPACKING
This product requires
assembly.
[] Carefully
remove the product and any accessories
from the box. Make sure that all items listed in the
packing tist are included.
[] Inspect the product carefully to make sure no
breakage or damage occurred
during shipping.
[] Do not discard the packaging
material until you have
carefully inspected
and satisfactorily
operated the
product.
[] If any parts are damaged or missing, do not operate
the trimmer. Return it for replacement
to the retailer
from which it was purchased.
PACKING
LIST
Power Head
Line Trimmer Attachment
Safety Guard with Screws
Auxiliary Handle Assembly with Bolt and Wing Nut
Shoulder Strap
Spindle Lock Rod
Additional
Pre-Cut Trimmer Line xlO
Operator's
Manual
_b, WARNING!
Before assembly, make sure
that the line trimmer is switched off and unplugged.
FITTING THE AUXILIARY
HANDLE
See Figure 3-4.
[] Loosen the wing nut form the auxiliary handle.
[] Align the auxiliary handle with the power head shaft.
[] Adjust the auxiliary handle to the most comfortable
position.
[] Insert the bolt in the hole on the auxiliary handle and
tighten the wing nut securely.
NOTE: Auxiliary
handle can be mounted from either
side of the shaft to accommodate
personal preference
of use.
FITTING THE GUARD
See Figure 5-6.
NOTE: Install the safety guard before the attachment
is
connected
to the power head.
[] Remove the wing nut from the safety guard.
[] Insert the tab on the mounting
bracket into the slot on
the safety guard.
[] Align the screw hole in the mounting
bracket with the
screw hole in the safety guard.
[] Insert the wing nut through the mounting bracket and
into the safety guard.
[] Tighten the wing nut securely.
_
WARNING!
The line cut-off blade on the
safety guard is sharp. Avoid contact with the blade.
Failure to avoid contact can result in serious personal
injury. Never use the line trimmer unless the guard is
properly fitted.
JOINING
THE POWER HEAD TO THE LINE
TRIMMER ATTACHMENT
See Figure 7-8.
_hL WARNING!
Never attach or adjust the
attachment
while the power head is running. Failure to
stop the motor may cause serious personal injury.
_,WARNNNG!
This electric power head is
designed to be only used with the attachment
models
that are specified in this Operator's
Manual. Use
of other attachments
could cause serious personal
injuries or property damage.
[] The tine trimmer attachment
connects to the power
head by means of a coupler device
[] Loosen the coupler tightening
knob on the upper
trimmer shaft.
[] Push in the button on the line trimmer attachment
shaft. Align button with positioning
hole in coupler.
Insert attachment
shaft into coupler until button locks
into positioning
hole.
NOTE: If the button does not release completely
in
the positioning
hole, the shafts are not locked into
place. Slightly rotate from side to side until the button is
locked into place. Use the same procedure described
above to connect other trimmer attachments.
REMOVING
ATTACHMENT
FROM TRIMMER
For removing
or changing the attachment:
[] Stop the power head.
[] Remove power cord from power head.
[] Loosen the coupler tightening
knob.
[] Push in the button and twist the shafts to remove and
separate them.
NOTE: DO NOT connect "79257-Power
Broom"
attachment
onto trimmer.
SHOULDER
STRAP
See Figure 9.
The shoulder strap helps the operator to carry the
product.
[] Attach the securing
clip to the loop near the main
handle.
[] While standing in the operating position adjust the
length to fit the operator's
size.
[] To remove the shoulder strap from the loop, open the
securing clip.
9 J English
