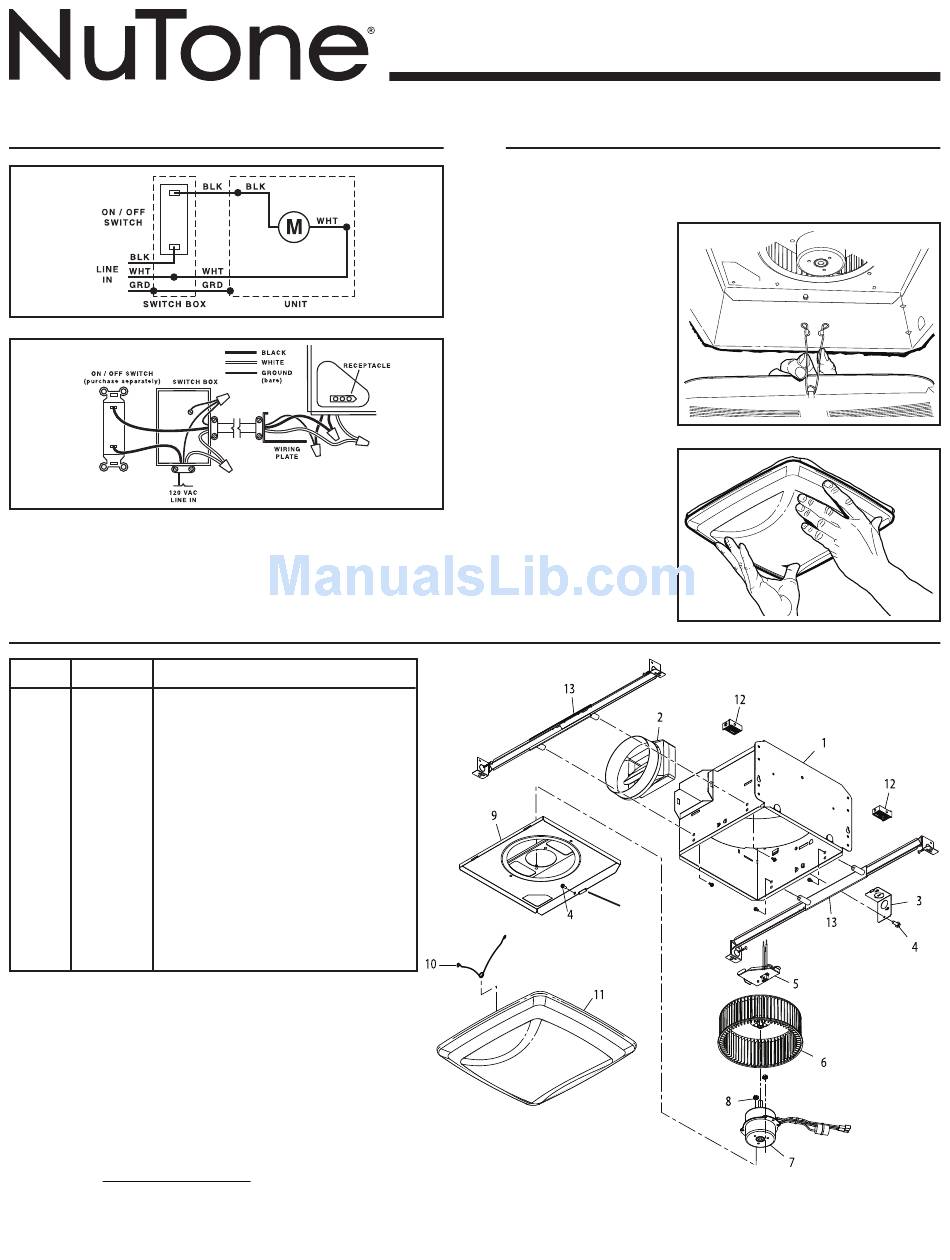

CONNECT WIRING

4. Connect electrical wiring.
Run 120 VAC house wiring to installation location. Use proper
UL approved connector to secure house wiring to wiring plate.
Connect wires as shown in wiring diagrams.

SERVICE PARTS

Key No. Part No.
1 97016466 Housing
2 97016449 Duct Connector - 4"
3 98010102 Wiring Plate
4 99170245 Screw, no. 8-18 x .375" (2 req'd)
5 97016932 Wire Panel/Harness Assembly
6 99020297 Blower Wheel
7 99080622 Motor
8 30260045 Nut, Hex Flange no. 8-32 (2 req'd)
9 97017848 Motor Plate
* 97017853 Blower Assembly
(includes keys nos. 6 thru 9)
10 99140199 Grille Spring (2 req'd)
11 97016915 Grille Assembly
(includes key no. 10)
12 99111293 Spacer (2 supplied)
13 97016909 Hanger Bar Kit
Order service parts by "Part No." - not by "Key No."
*Not shown assembled.
SERVICE NOTE to remove Blower Assembly:
Unplug motor (7). Remove screw (4) from motor plate (9) fl ange. Find the single
TAB on the motor plate (located next to the receptacle). Push up near motor plate
tab while pushing out on side of housing. Or insert a straight-blade screwdriver into
slot in housing (next to tab) and twist screwdriver.
Description
MODELS QTREN070C • QTREN080C
INSTALL GRILLE
5. Finish ceiling.
Install ceiling material. Cut out around housing.
6. Attach grille
to housing.
Squeeze grille
springs and insert
them into slots on
each side of
housing.
7. Push grille
against
ceiling.
BL0015
TAB
Page 4
30042380B
