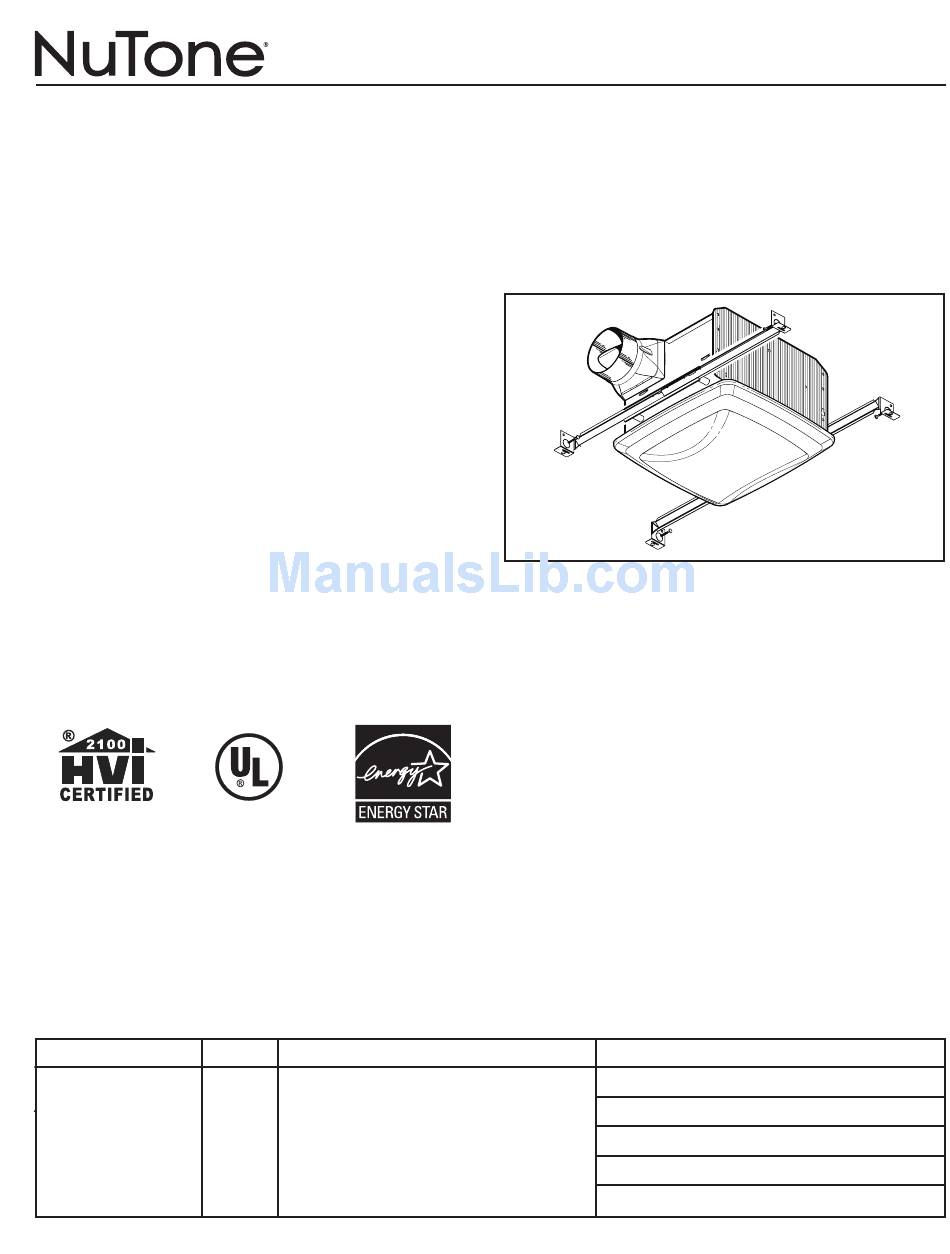

NuTone QTREN080 Series Specifications

DESCRIPTION
BLOWER:
• Plug-in, permanently lubricated motor - engineered for
continuous operation
• Dynamically balanced centrifugal blower wheel for quiet,
efficient performance
• Low RPM for quiet operation
• Resilient anti-vibration motor mounts
HOUSING:
• Rugged, 26 gauge, galvanized steel construction
• Polymeric, 4" round duct connector with tapered sleeve and no
metallic clatter
• 7-5/8" height allows for 2" x 8" (nominal) joist installations
• Sturdy, easy, four-point mounting directly to joist
• Includes unique spacer (patent pending) for mounting to
engineered "I" joists
• Includes hanger bars to position housing anywhere between
16" to 24"-on-center joists
• Two sets of mounting holes for hanger bars allow flush
installation with bottom or top of drywall
GRILLE:
• Polymeric construction
• Innovative design - the result of extensive research with
designers and consumers
CONTROLS (Purchase separately):
• Refer to NuTone's catalog for a complete line of accessories
to effectively adapt these fans to your construction
requirements.
U.L. Listed for use over bathtubs and showers when connected
to a GFCI protected branch circuit (ceiling mount only).
3-Year Warranty
INSTALLATION
Complete installation instructions are included with each Fan.
REFERENCE
NuTone, Inc., 4820 Red Bank Road, Cincinnai, OH 45227 (1-800-543-8687)
QTY. REMARKS
Architectural & Engineering Specifications
Series Fans

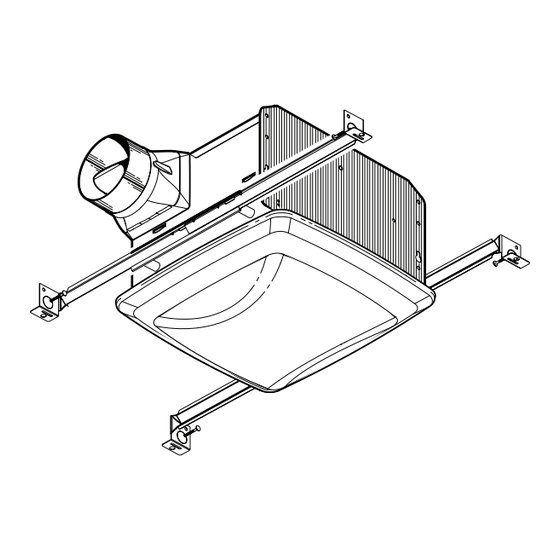

MODELS QTREN080, QTREN110
ARCHITECT'S SPECIFICATION
• Ceiling Ventilator shall be NuTone Model QTREN080
(QTREN110).
• Ceiling Ventilator shall have corrosion resistant galvanized steel
housing with four-point mounting capability. It shall be ducted to
a roof or wall cap using 4" round ductwork.
• Blower assembly shall be removable, have a centrifugal-type
blower wheel and a permanently lubricated motor designed for
continuous operation and mounted with resilient anti-vibration
mounts.
• Non-metallic damper/duct connector shall be included.
• Air delivery shall be no less than 80 (110) CFM and sound level
no greater than 0.8 (1.3) Sones. All air and sound ratings shall be
certified by HVI.
• Ceiling ventilator shall be Energy Star® qualified and have an
energy efficient permanent split capacitor motor.
• Ceiling Ventilator shall be U.L. Listed for use over bathtubs and
showers when connected to a GFCI protected branch circuit.
Project
Location
Architect
Engineer
Contractor
Submitted by
March 2006
QTREN
Date
60F 99043663E
