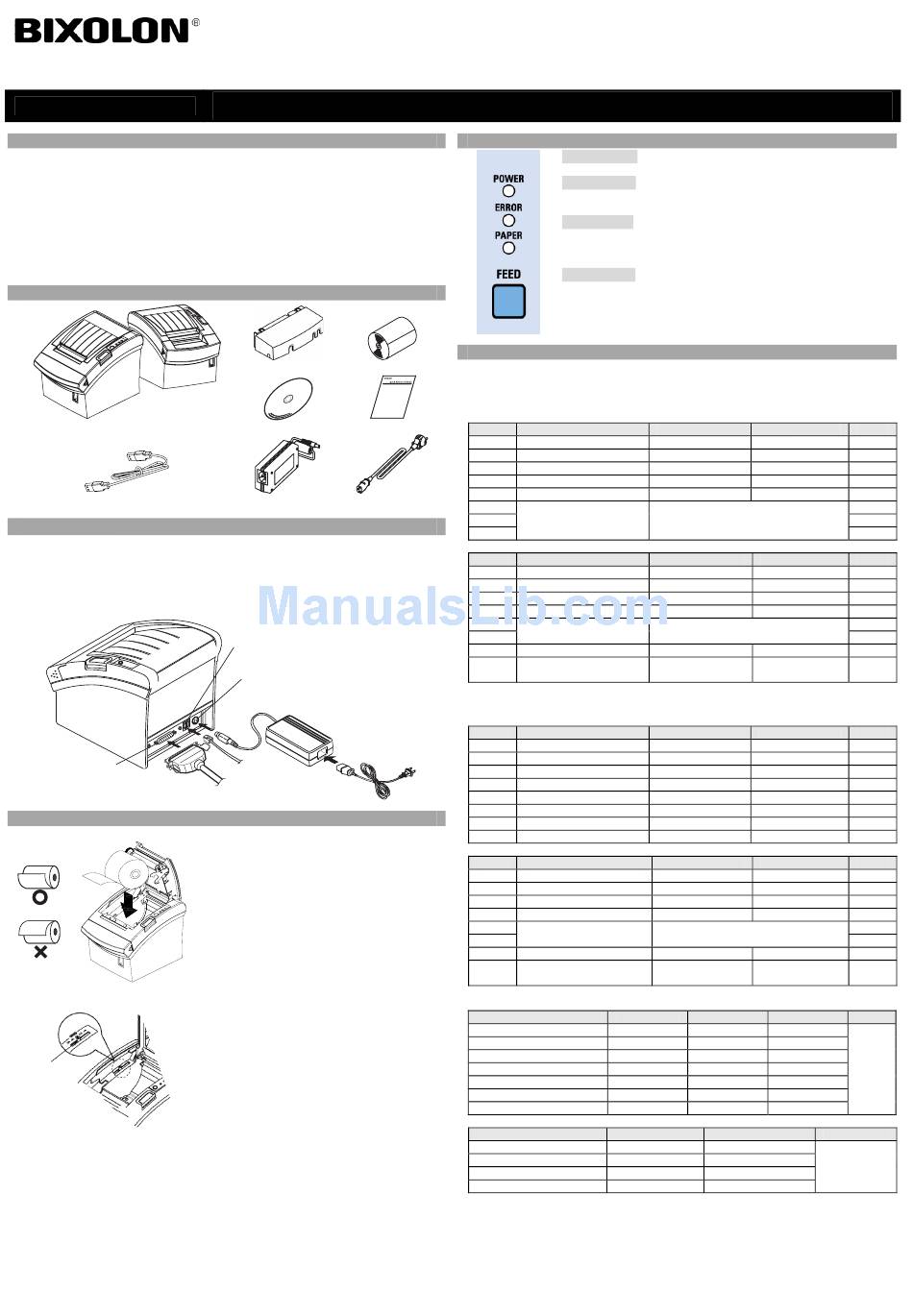

BIXOLON SRP-352plusIIA&C Installation Manual

KN04-00047A (Rev.1.1)

◈ Information

This Installation Guide includes a brief outline of information necessary for product
installation. For more detailed installation information, please refer to the user manual in the
enclosed CD. The contents of the CD include the following.
1. Manual: User Manual, Code Chart, Control Commands
2. Drivers: Windows Drivers, OPOS Drivers
3. Utilities: a Logo download tool and a virtual memory switch control tool
We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality
of all our products. In following, product specifications and/or user manual content may be
changed without prior notice.

◈ Components

SRP-350plusIIC SRP-350plusIIA
USB A-A JACK

◈ Connecting the cables

1. Turn off the printer and the host ECR (host computer).
2. Plug the power cord into the Adaptor, and then plug the Adaptor into the power connector
of the printer.
3. Check the interface cable (Serial, Parallel, USB, or Ethernet), and connect the interface
connector cable accordingly.
4. Plug the drawer kick-out cable into the drawer kick-out connector on the printer.
Interface connector
Interface cable
(Serial/Parallel/USB/Ethernet)

◈ Installing the Paper Roll

※ Note: Adjusting the Paper Near-End Sensor
Near end
sensor tab
THERMAL PRINTER SRP-350/352plusIIA&C
Cable cover Paper Roll
Procuct Installation CD Procuct Installation CD Procuct Installation CD
CD Installation Guide
AC/DC Adaptor Power cord
Drawer kick-out connector
Power connector
Adaptor
Power cord
Drawer kick-
out cable
1. Open the paper roll cover by pressing the cover-
open button.
2. Insert a new paper roll, making sure to align it
properly.
3. Pull out a small amount of paper, and close the
cover.
※ Note
When closing the cover, press down on the center
of the cover to ensure that the paper is in contact
with the roller.
The SRP-350plusIIC has a paper near-end sensor
that provides notice that the paper roll is nearly
exhausted. When the paper is running low, the lamp
on the apparatus is lit red. If the lamp is activated
even when sufficient paper remains, adjust the
near-end sensor setting by pushing the tab upward
towards 1.
Printer Installation Guide

◈ Using the Operation Panel

• POWER (LED)
When turning on the power, a green LED will be lit.
• ERROR (LED)
When an error occurs, a red LED will be lit.
(e.g. no paper, cover ajar, etc.)
• PAPER (LED)
Red LED will be lit when the paper roll is running low. The LED blinks
when the printer is in self-test standby mode or macro execution standby
mode.
• FEED (Button)
Press the FEED button once to discharge extra paper. Holding down the
FEED button will discharge paper continuously until the button is
released.

◈ Setting the DIP Switches

Changing Dip Switch settings must be done when the printer is off. Any changes done while
the printer is on will not be processed.
1. Serial Interface
• DIP Switch 1
SW Function
1-1 Auto Line Feed
1-2 Flow Control
1-3 Data Length
1-4 Parity Check
1-5 Parity Selection
1-6
1-7 Baud Rate Selection (bps)
1-8
• DIP Switch 2
SW Function
2-1 Auto cutter control
2-2 Internal bell control
2-3 Auto Cutter
2-4 Reserved
2-5
Print Density
2-6
2-7 Near-End Sensor Status
2-8 External buzzer control
2. Parallel / USB Interface
• DIP Switch 1
SW Function
1-1 Auto Line Feed
1-2 Reserved
1-3 Reserved
1-4 Reserved
1-5 Reserved
1-6 Reserved
1-7 Reserved
1-8 Reserved
• DIP Switch 2
SW Function
2-1 Auto cutter control
2-2 Internal bell control
2-3 Auto Cutter
2-4 Reserved
2-5
Print Density
2-6
2-7 Near-End Sensor Status
2-8 External buzzer control
• Table 1 – Baud rate (bps) Selection
Transmission Speed
2400
4800
9600
19200
38400
57600
115200
• Table 2 – Print Density Selection
Print Density
1 (Light)
2
3
4 (Dark)
ON OFF
Enable Disable
XON/XOFF DTR/DSR
7bits 8bits
Yes No
EVEN ODD
Refer to the following table 1
ON OFF
Full cut Partial cut
Internal bell disable Internal bell enable
Auto cutter disable Auto cutter enable
- -
Refer to the following table 2
Disable Enable
External buzzer External buzzer
enable disable
ON OFF
Enable Disable
- -
- -
- -
- -
- -
- -
- -
ON OFF
Full cut Partial cut
Internal bell disable Internal bell enable
Auto cutter disable Auto cutter enable
- -
Refer to the following table 2
Disable Enable
External buzzer External buzzer
enable disable
1-6 1-7 1-8
ON OFF OFF
ON OFF ON
OFF ON OFF
OFF OFF OFF
OFF ON ON
OFF OFF ON
ON ON ON
2-5 2-6
ON ON
OFF OFF
ON OFF
OFF ON
Default
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
Default
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Default
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
Default
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Default
9600
Default
2
