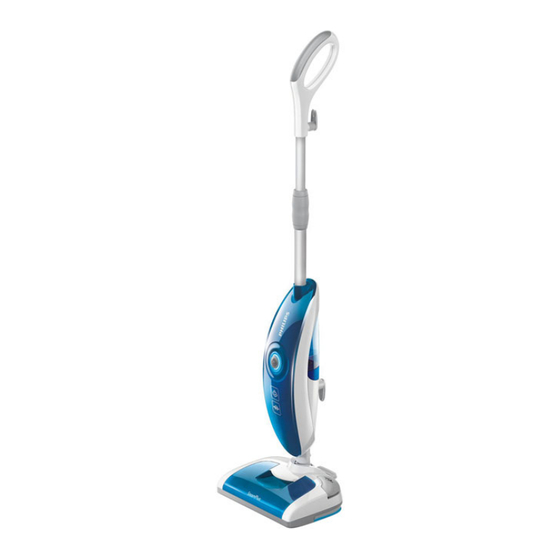

Philips FC7020 Service Manual
Sweep and steam cleaner
Hide thumbs
Also See for FC7020:
- Quick start manual (14 pages) ,
- Quick start manual (13 pages) ,
- Manual (4 pages)
Table of Contents
Advertisement
Quick Links
Philips Consumer Lifestyle
Service Manual
PRODUCT INFORMATION
Safety
• This product meets the requirements regarding
interference suppression on radio and TV.
• After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
• Colour
Design features
• Dust chamber and watertank : Translucent
Performance
• Power consumption
• Noise level (Lc IEC)
• Input power (max)
Steam Management
• Heating-up time
• Runtime (steaming)
• Steam capacity
• Steam temp. at nozzle
• Watertank size
Published by Philips Consumer Lifestyle
14/07 Version 1.2
: Star white and
resilient blue
: 1500 W
: < 75 dB
: 1500 W
: < 30 s
: 20 min
: 20 g/min
: > 100 °C
: 450 ml
Printed in the Netherlands
Sweep and Steam Cleaner
Usability
• Adjustable telescopic stick
• Cord length
• Removable stick assembly
• Stand by mode
Weight and dimensions
• Dimensions microfiber pad : 27 x 11 cm
• Dimensions nozzle
• Dimensions appliance
• Weight (kg)
ACCESSORIES
• 1 parking pad
• Cleaning
: 2 microfiber pads, Fast rotating brush
OPTIONAL (accessories)
• FC8056
: 2 microfiber pads and 1 filter assy
© Copyright reserved
FC7020/01
FC7020/71
FC7020/81
: 100 - 120 cm
: 6 m
: From body (with a screw)
: Auto steam shut-off
: 28 x 18 x 4.5 cm
: 16 x 32 x 112 cm
: < 3 kg
Subject to modification
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Philips FC7020
Summary of Contents for Philips FC7020
- Page 1 : 20 min • Steam capacity : 20 g/min • Steam temp. at nozzle : > 100 °C • Watertank size : 450 ml Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification 14/07 Version 1.2...
- Page 2 FC7020/01 /71 /81 DISASSEMBLY- AND RE-ASSEMBLY ADVISE • To replace the Rotating Brush (14) of the nozzle: • To replace the Brush Motor (15), Driving belt (12) and Turn the appliance upside down, open the Roller Brush Roller Holder assy (13): cover (18) by lifting it.
- Page 3 FC7020/01 /71 /81 REPAIR INSTRUCTION • If the Cordset needs to be repaired, in the repair centers you need to add a connection box yourself. • Because from wk. 1347 onwards the connection box has been replaced by a plastic cap, see pictures.
- Page 4 FC7020/01 /71 /81 PARTS LIST Service code Description Remark 9965 100 65711 Telescopic tube assy 9965 100 60777 Water tank 4322 004 93841 D.Calc fi lter 9965 100 60767 Pin for decalcifi cation 9965 100 60768 Cleaning padholder 4322 004 93831...
- Page 5 FC7020/01 /71 /81 EXPLODED VIEW...
- Page 6 FC7020/01 /71 /81 EXPLODED VIEW...
- Page 7 FC7020/01 /71 /81 EXPLODED VIEW 16 (2x) 17 (2x)
- Page 8 FC7020/01 /71 /81 Version history Version 1.1 : FC7020/01 / FC7020/71 / FC7020/81 initial release. Version 1.2 : In Parts List and Exploded views: Added: Pos. 19, 9965 100 70991 Nozzle assy Added: Pos. 20, 9965 100 70993 Hose clamp Added: Pos.
