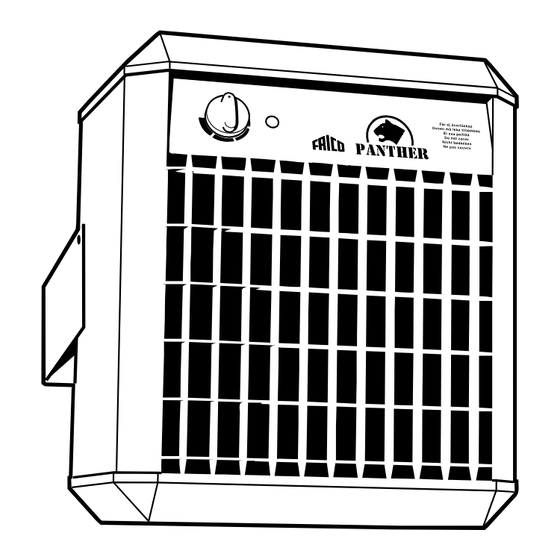

Frico panther 6 Original Instructions Manual

15kw.
Hide thumbs

Advertisement

SE
.... 8
ES
.... 16
NO
.... 24
GB
.... 10
FI
.... 18
RU
.... 26
Original instructions
Panther 6 - 15 kW
NL
.... 12
DE
.... 20
PL
.... 28
IT
.... 14
FR
.... 22

Advertisement

Table of Contents

   Related Manuals for Frico panther 6

   Summary of Contents for Frico panther 6

  • Page 1 Original instructions Panther 6 - 15 kW ..8 ..10 ..12 ..14 ..16 ..18 ..20 ..22 ..24 ..26 ..28...
  • Page 2 Panther 6/15 Fig 1. Bracket ø7 ø14 ø6,5 Fig 2. Wall Ceiling 30° min 300 min 300 min 1000 7 ,5° Mixing cabinet (accessory) 15° min 1800 [mm] [mm] [mm] [mm] [mm] [mm] [mm]...
  • Page 3: Controls And Accessories

    Panther 6/15 Controls and accessories RTI2 KRT2800 PP15 PTA01 PSA01 Type E-nr HxBxD [mm] RTI2 85 811 44 155x87x43 KRT2800 85 810 44 165x60x57 PP15 87 112 28 160x120x96 PTA01 87 112 31 215x185x115 87 112 32 660x430x365 PBS01 PBS01...
  • Page 4 Panther 6/15 SE 06, -09, -12, -15 400V 3N~ / 230V 3~ SE06-15 L 1 2 3 L 1 2 3 ºC 230V 440V 500V L 1 2 3 440V 3~ 500V 3~ SE 06 L 1 2 3 L 1 2 3 ºC...
  • Page 5 Panther 6/15 Note! Remove the two internal fuses 6.3A in the slave unit(s). Panther Panther SE06-15 Panther Panther SE06-15 Panther SE06-15 Panther SE06-15 High speed High speed Panther Panther Panther SE06-15 Panther SE06-15 Medium speed Medium speed Panther SE06-15 Panther SE06-15...
  • Page 6 Panther 6/15 Note! Remove the two internal fuses 6.3A in the slave unit(s). Panther Panther SE06-15 Panther SE06-15 Panther PP15 RTI2 PP15 RTI2 Note! Remove the two internal fuses 6.3A in the slave unit(s). Panther Panther SE06-15 Panther SE06-15 Panther...
  • Page 7: Technical Specifications

    Panther 6/15 Technical specifications | Fan Heater Panther 6-15 kW E-nr Effektsteg Luftflöde Ljudnivå Spänning Ström HxBxD Vikt ∆t* [kW] [m³/h] [dB(A)] [°C] [mm] [kg] SE06 87 112 50 0/3/6 900/1300 39/47 20/14 400V3N~ 520x450x510 SE09 87 112 51 0/4,5/9...
  • Page 8: Installation

    Mixing cabinet PBS is available as an acces- Application area sory and consists of an outer wall grille and Panther 6-15 is a range of very quiet and ef- a walling-in frame. The walling-in frame and ficient fan heaters for stationary use. They are...
  • Page 9: Maintenance

    Panther 6/15 Residual current circuit breaker (E) The heaters can be reconnected to 230V3~ When the installation is protected by means according to fig. 4. of a residual current circuit breaker, which The connection should be made with a cable trips when the appliance is connected, this type S05VV-U, A05VV-R or similar.
  • Page 12 Main offi ce Frico AB Tel: +46 31 336 86 00 Box 102 Fax: +46 31 26 28 25 SE-433 22 Partille mailbox@frico.se Sweden www.frico.se For latest updated information and information about your local contact: www.frico.se...
