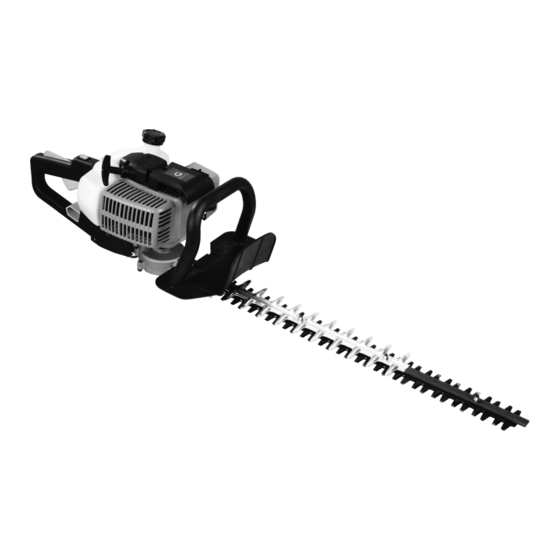

Petrol hedge trimmer
USER'S MANUAL
Congratulations! You purchased a high quality product. This hedge trimmer is excellent for trimming
hedges or small bushes, It is not suitable for other types of material. Do not use the hedge trimmer as a
lever to lift, move or break objects, nor lock it on fixed supports. Do not use it for pruning trees or cutting
grass.
Warning! Read rules for safe operation
and all instructions carefully. Gardenline
provides this manual and safety
instructions. Both must be read and
understood for proper and safe operation.
3 years warranty is for consumer use only.
Warning! The muffler and surrounding
cover may become extremely hot.
Always keep clear of exhaust and
muffler area, otherwise serious
personal injure may occur.
Warning! Avoid inhaling the engine
exhaust from this product as it contains
chemicals which can cause cancer, birth
defects or reproductive harm.
Art. No. HGM6002
www.servotool.nl
0512-30
