Summary of Contents for M3 Mobile M3 T

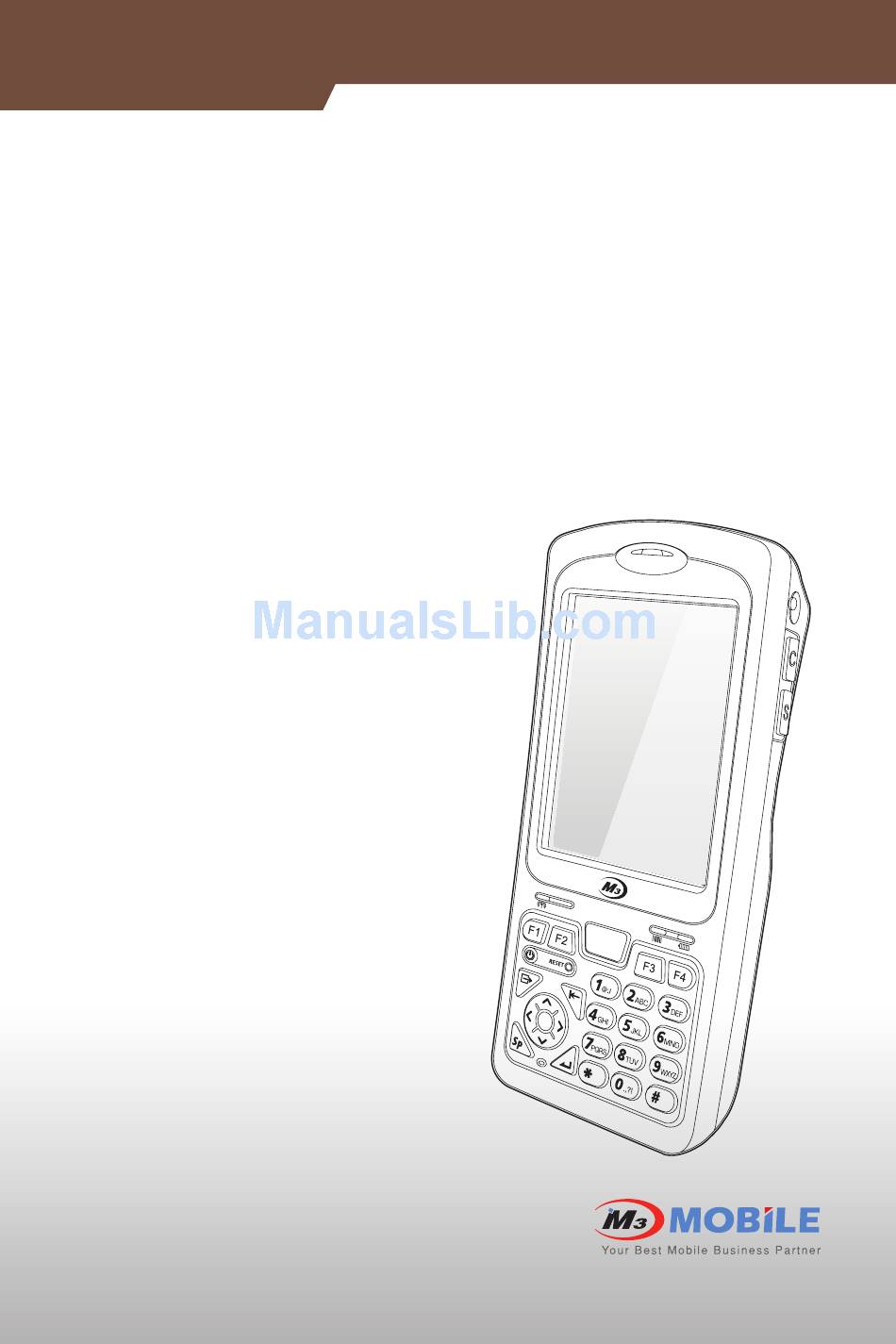

- Page 1 M3 T Quick Manual Ver.1.3...
- Page 2 PACKAGE ▪ Please check all items below are included in package box. < M3 T > < Cradle > < Battery > < Stylus pen > < Adaptor > < USB cable > ※Warning Use of controls or adjustments or performance of procedures other than...
- Page 3 FEATURES DEVICE Barcode Scan Window < 1D Scanner > < 2D Imager > Ear-Phone Connector Camera Button Scanner Button Battery Lock Camera Battery Keypad Charging & USB/Serial Port...
- Page 4 FEATURES KEYPAD SCAN Function Function Power Reset Button Mode Change Direction keys Space Enter Numbers / Characters...
-
Page 5: Soft Reset
RESET SOFT RESET When an unexpected error occurs while using the device, SOFT RESET allows your device to restart, similar to rebooting a computer. It will adjust memory allocation - all records and entries are retained after soft reset but unsaved data or files may be lost. -
Page 6: Device Setup
DEVICE SETUP CARD INSTALLATION Micro SD Card Installation ▪ Remove the battery from the battery pack. ▪ Insert the Micro SD Card as shown in the left picture. ▪ Check whether it is installed properly. -
Page 7: Inserting Battery
DEVICE SETUP BATTERY Inserting Battery ▪ Insert the battery to the battery pack position. ▪ Slide the battery lock to the left to lock the battery pack. Removing Battery ▪ Slide the battery lock to the right to unlock the battery pack. ▪... -
Page 8: How To Charge
DEVICE SETUP CHARGING How to charge ▪ Supply power to the cradle using the AC charger. ▪ Insert the PDA to device slot to start charging the PDA. Charging status Charging status of the PDA and the spare battery is indicated by LEDs. LED charging indicator on the cradle indicates the charging status of the spare battery. -
Page 9: Data Capture
DATA CAPTURE SCANNER Scanning ▪ Launch the Scanner program (either ScanEmul or M3ScanTest). ▪ Press the SCAN BUTTON toward barcode to read. Make sure the laser beam covered whole barcode to read data properly. Imaging ▪ Launch the Scanner program. ▪... -
Page 10: Taking Pictures
▪ Tab the Camera icon to take a picture. ▪ Taken pictures are stored in Photo folder. (My Device\Flash Disk\Camera\Photo) * Video function is not supported in M3 T. ※Warning It may cause significant damage to your eyes if you directly look the flash... -
Page 11: Services And Support
Desired or relevant manuals can be downloaded from Manuals or FAQ in technical support webpage. User manual, especially, is included in Flash Disk so that M3 T users can obtain it from the Flash Disk as well. For DOA or RMA, please send the defective product to suitable address... - Page 12 Seoul, 135-080, Korea Buchoen, Gyeonggi Do, Tel : +82 2 574 0037 420-857, Korea Fax : +82 2 558 1253 Tel: +82 32 623 0030 www.m3mobile.co.kr Fax: +82 32 623 0035 sales@m3mobile.co.kr Copyright©2000 – 2011 M3 Mobile Co., Ltd. All Rights Reserved.
