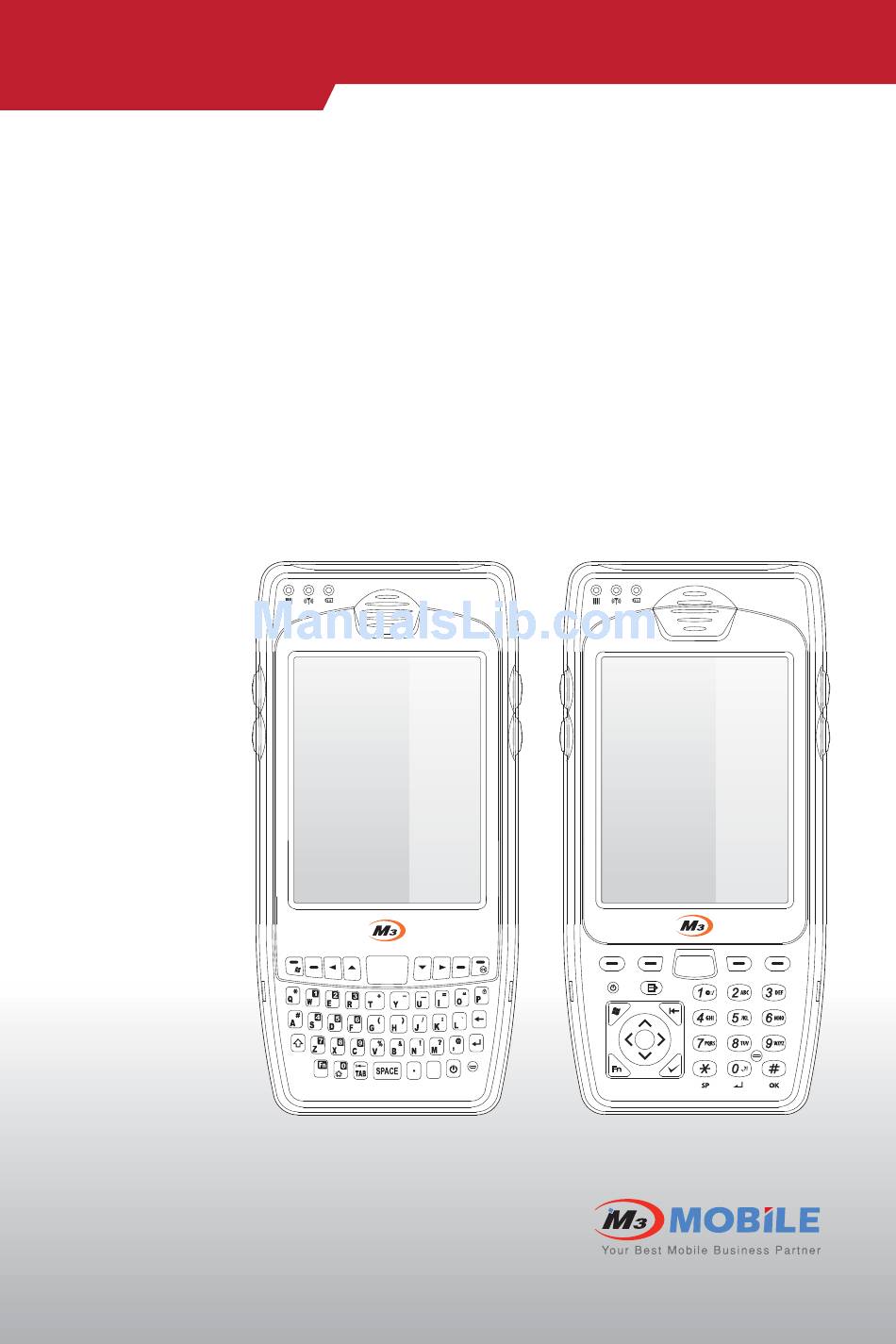

- Page 1 www.m3mobile.net M3 ORANGE+ Quick Manual Ver.1.0...
- Page 2 PACKAGE ▪ Please check all items below are included in package box. < M3 ORANGE+ > < Battery > < Adaptor > < USB cable > < Stylus pen > ※ NOTE For data synchronization, either desktop cradle or snap-on can be provided depending on your purchasing option.
- Page 3 FEATURES DEVICE Barcode Scan Window Micro SD card slot Scanner LED Volume Button GSM / WCDMA LED Charging LED LCD Touch Screen Camera Button Scanner Button Flash Camera Stylus Pen Speaker Battery Lock Reset Button Keypad Battery cover POGO Pin...
- Page 4 FEATURES KEYPAD ▪ M3 ORANGE+ has two types of keypad – Alphanumeric and QWERTY. Some function keys may not work depending on its options. SCAN Soft 1 Soft 1 Send Power Input mode change Windows Numbers Back Space Function Navigation Action (Enter) <AlphaNumeric>...
-
Page 5: Soft Reset
RESET SOFT RESET When an unexpected error occurs while using the device, SOFT RESET allows your device to restart, similar to rebooting a computer. It will adjust memory allocation - all records and entries are retained after soft reset but unsaved data or files may be lost. -
Page 6: Device Setup
DEVICE SETUP CARD INSTALLATION USIM Card Installation ▪ Remove the battery from the battery pack. ▪ Insert the USIM Card as shown in the below picture. ▪ Insert the battery back to original position and lock by sliding the lock to secure position ▪... -
Page 7: Inserting Battery
DEVICE SETUP BATTERY Inserting Battery ▪ Open battery cover by sliding the lock to the right. ▪ Insert the battery pack. ▪ Securely lock the battery cover by sliding the lock to the left. Removing Battery ▪ Loose the battery cover by sliding the lock to the right. ▪... -
Page 8: How To Charge
DEVICE SETUP CHARGING ※Either Cradle or Snap-on will be provided. How to charge ▪ Supply power to the cradle using the AC charger. ▪ Insert the PDA to device slot to start charging the PDA. Charging status Charging status of the PDA and the spare battery is indicated by LEDs. -
Page 9: Data Capture
DATA CAPTURE SCANNER Scanning ▪ Launch the Scanner program (either ScanEmul or M3ScanTest). ▪ Press the SCAN BUTTON toward barcode to read. Make sure the laser beam covered whole barcode to read data properly. Imaging ▪ Launch the Scanner program. ▪... -
Page 10: Taking Pictures
DATA CAPTURE CAMERA Taking pictures ▪ Run the Camera program. ▪ Tab the Capture button to take a picture. ▪ Taken pictures can be checked in the following folder. For Windows Embedded Handheld: Start\Programs\Pictures&Videos For Windows Embedded CE: \Flash Disk\Camera\Photo Taking videos ▪... -
Page 11: Services And Support
Windows Mobile Device Center (Windows Vista and 7) : http://www.microsoft.com/windowsphone/en-us/howto/wp6/sync/ installing-wmdc.aspx TECHNICAL SUPPORT Should you require and services or technical support on M3 Mobile’s product, contact your supplier or visit M3 Information & Technology Center webpage on: http://itc.m3mobile.net After your enquiry is registered on the page, our professional engineer will reply to you within 24 hours in during the week. - Page 12 202, Chunui-Dong, Wonmi-Gu, Seoul, 135-080, Korea Bucheon, Gyunggi-Do, Tel: +82 2 574 0037 (Ext.4) 420-857, Korea Fax: +82 2 556 0155 Tel: +82 32 623 0037 www.m3mobile.net Fax: +82 32 655 0884 sales@m3mobile.co.kr Copyright©2013 M3 Mobile Co., Ltd. All Rights Reserved.
