Summary of Contents for M3 Mobile MM3

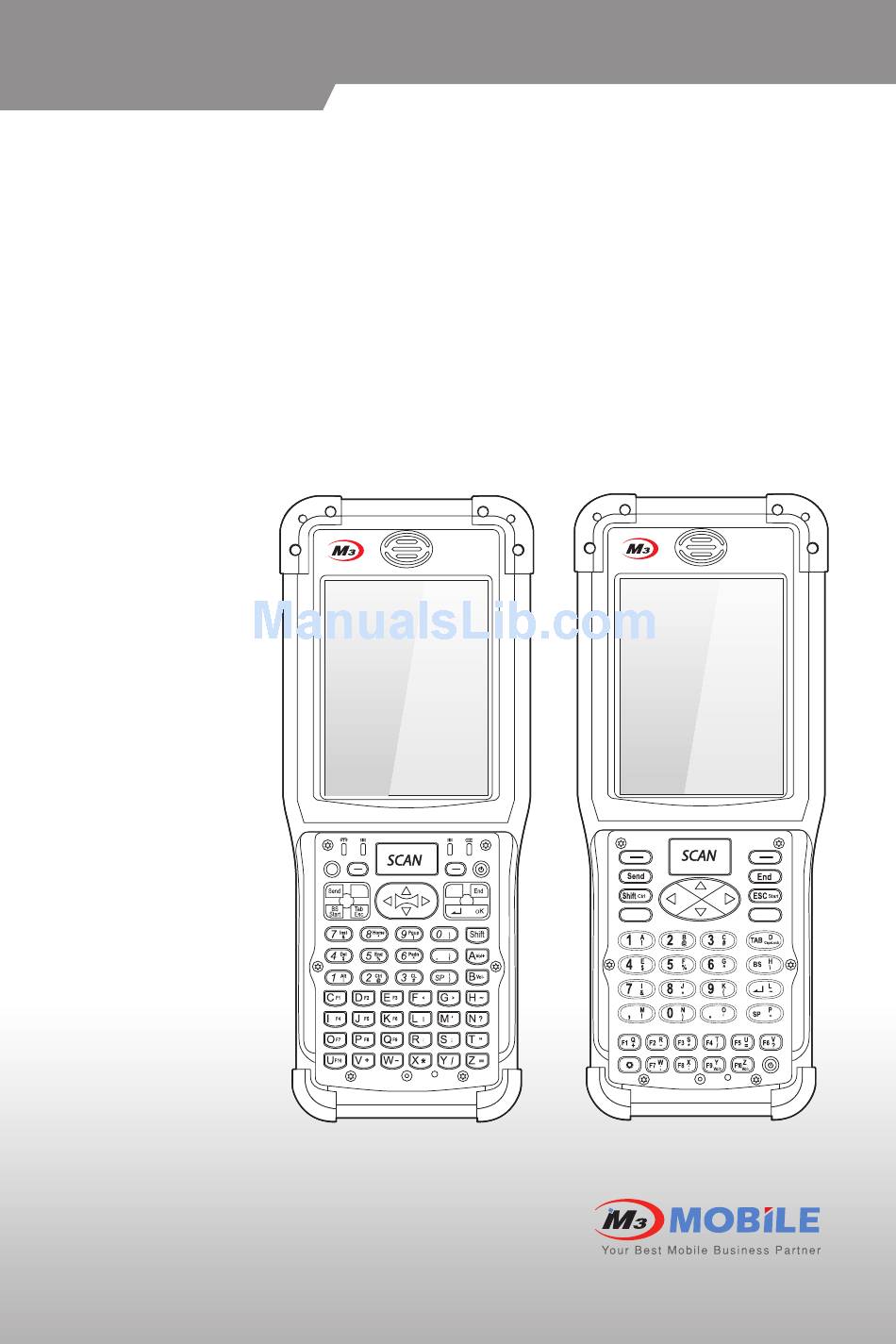

- Page 1 www.m3mobile.co.kr Quick Manual Ver.1.2...
- Page 2 PACKAGE • Please check all items below are included in package box. < MM3 > < Cradle > < Battery > < Adaptor > < USB cable > < Stylus pen > ※Warning Use of controls or adjustments or performance of procedures other...
- Page 3 FEATURES DEVICE Barcode Scan Window < 1D Scanner > < 2D Imager > < Long-Range Scanner > LCD Touch Screen Camera Flash Pistol Grip Conductor Speaker HSDPA LED Scanner LED Charging LED Battery Lock Scanner Button Battery Keypad Reset Button IO Port...
- Page 4 FEATURES KEYPAD MM3 has four types of keypad – 41keys, 55keys, 5250 and 3270/VT. Some function keys may not work depending on its options. SCAN Soft 1 Soft 2 Green function Yellow function Numbers Back Space Enter Space F keys (F1-F10)
- Page 5 FEATURES KEYPAD SCAN Backlight toggle Power Soft 1 Soft 2 Green function Yellow function FIELD EXIT Back Space Numbers / Space 5250 functions Characters / F keys (F1-F24) Reset < 5250 > SCAN Backlight toggle Power Soft 1 Soft 2 Home Green function Yellow function...
-
Page 6: Soft Reset
RESET SOFT RESET When an unexpected error occurs while using the device, SOFT RESET allows your device to restart, similar to rebooting a computer. It will adjust memory allocation - all records and entries are retained after soft reset but unsaved data or files may be lost. -
Page 7: Device Setup
DEVICE SETUP CARD INSTALLATION SIM Card Installation ▪ Remove the battery from the battery pack. ▪ Insert the SIM Card as shown in the below picture. ▪ Insert the battery back to original position and check whether it is installed properly. SD Card SIM Card SD Card Installation... -
Page 8: Inserting Battery
DEVICE SETUP BATTERY Inserting Battery ▪ Insert the battery to the battery pack position. ▪ Slide the battery lock to the left to lock the battery pack. Removing Battery ▪ Slide the battery lock to the right to unlock the battery pack. ▪... -
Page 9: How To Charge
DEVICE SETUP CHARGING How to charge ▪ Supply power to the cradle using the AC charger. ▪ Insert the PDA to device slot to start charging the PDA. Charging status Charging status of the PDA and the spare battery is indicated by LEDs. LED charging indicator on the cradle indicates the charging status of the spare battery. -
Page 10: Data Capture
DATA CAPTURE SCANNER Scanning ▪ Launch the Scanner program (either ScanEmul or M3ScanTest). ▪ Press the SCAN BUTTON toward barcode to read. Make sure the laser beam covered whole barcode to read data properly. Imaging ▪ Launch the Scanner program. ▪... -
Page 11: Taking Pictures
DATA CAPTURE CAMERA Taking pictures ▪ Run the Camera program. ▪ Tab the Capture button to take a picture. ▪ Taken pictures are stored in Pictures&Videos folder. (Start\Programs\Pictures&Videos) Taking videos ▪ Run the Camera program. ▪ Tab the Video Mode button to take a video. ▪... -
Page 12: Services And Support
Desired or relevant manuals can be downloaded from Manuals or FAQ in technical support webpage. User manual, especially, is included in Flash Disk so that MM3 users can obtain it from the Flash Disk as well. For DOA or RMA, please send the defective product to suitable address... - Page 13 MEMO...
- Page 14 Seoul, 135-080, Korea Buchoen, Gyeonggi Do, Tel : +82 2 574 0037 420-857, Korea Fax : +82 2 558 1253 Tel: +82 32 623 0030 www.m3mobile.co.kr Fax: +82 32 623 0035 sales@m3mobile.co.kr Copyright©2000 – 2011 M3 Mobile Co., Ltd. All Rights Reserved.
