Summary of Contents for Altuscn KH1508

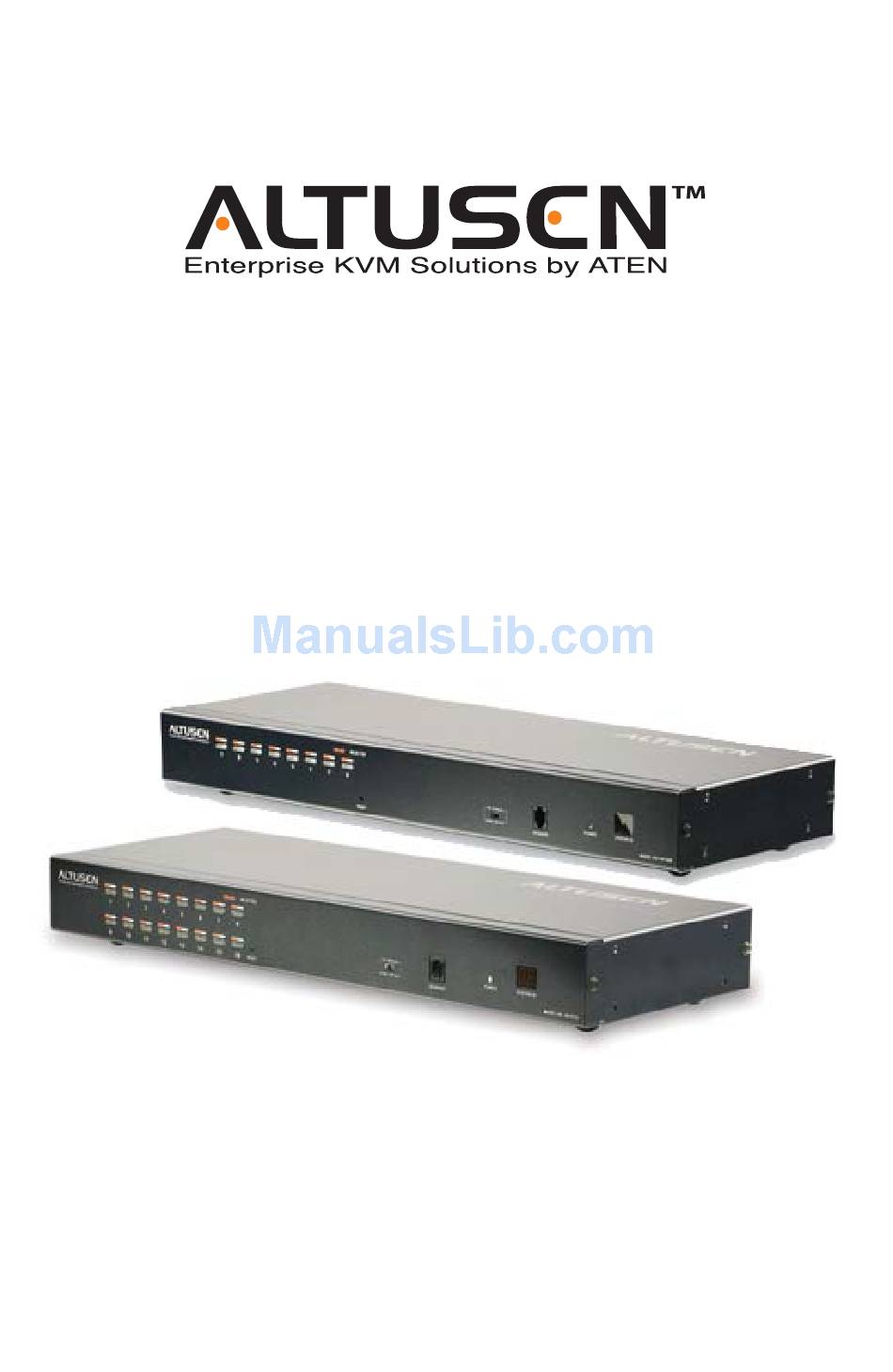

- Page 1 KVM Switch KH1508 / KH1516 User Manual www.aten.com...
-
Page 2: Fcc Information
KH1508 / KH1516 User Manual FCC Information This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: User Information
KH1508 / KH1516 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://support.aten.com North America ATEN TECH http://www.aten-usa.com/product_registration ATEN NJ http://support.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959... -
Page 4: Package Contents
KH1508 / KH1516 installation. * Features may have been added to the KH1508 / KH1516 since this manual was printed. Please visit our web site to download the most up-to-date version of the manual. -
Page 5: Table Of Contents
KH1508 ........ - Page 6 KH1508 / KH1516 User Manual OSD ..........17 Hotkey .
- Page 7 KH1508 ........
-
Page 8: About This Manual
KH1508 / KH1516 User Manual About This Manual This User Manual is provided to help you get the most from your KH1508 / KH1516 system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below. -
Page 9: Conventions
KH1508 / KH1516 User Manual Conventions This manual uses the following conventions: Indicates text that you should key in. Monospaced Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt]. - Page 10 KH1508 / KH1516 User Manual This Page Intentionally Left Blank...
-
Page 11: Chapter 1. Introduction
KVM (keyboard, monitor, and mouse) console. A single KH1508 / KH1516 can control up to 8 / 16 computers. As many as 31 additional KH1508 / KH1516 switches can be daisy-chained from the original unit, so that up to 512 computers can all be controlled from the original KVM console. - Page 12 A convenient Auto Scan function also permits automatic scanning and one-by- one monitoring of the activities of selected computers. There is no better way to save time and money than with a KH1508 / KH1516 installation. By allowing a single console to manage up to 512 computers, a KH1508 / KH1516 installation: (1) eliminates the expense of having to purchase a separate keyboard, monitor, and mouse for each;...
-
Page 13: Features
Chapter 1. Introduction Features A single console controls up to 8 (KH1508) or 16 (KH1516) computers Dedicated chain ports – daisy-chain up to 31 additional units – control up to 512 computers from a single console Extends the distance between computers and switch – up to 30 m feet (100 feet) for resolutions of 1600 x 1200 @ 60 Hz;... -
Page 14: Requirements
6-pin Mini-DIN keyboard and mouse ports (for PS/2 KVM adapter cable connection, see below) KVM Adapter Cables Cat 5e cable is required to connect the KH1508 / KH1516 to one of the KVM adapter cables. The following KVM adapter cables are required for use with the KH1508 /... -
Page 15: Operating Systems
Chapter 1. Introduction Operating Systems Supported operating systems are shown in the table, below: Version Windows 95 and higher Linux RedHat 6.0 and higher SuSE 8.2 and higher Mandriva (Mandrake) 9.0 and higher UNIX 4.3 and higher FreeBSD 3.51 and higher Solaris 8 and higher Novell Netware... -
Page 16: Components
KH1508 / KH1516 User Manual Components Front View KH1508 1&2 KH1516 1&2... - Page 17 Lights to indicate that the KH1508 / KH1516 is powered and ready to operate. Station ID LED The KH1508 / KH1516's Station ID is displayed here. If this is a single station installation (see page 12), or the first station on a daisy-chained installation (see page 15), the KH1508 / KH1516 has a station ID of 01.
-
Page 18: Rear View
Description Power Socket The power cord to the AC source plugs in here. Power Switch This is a standard rocker switch that powers the KH1508 / KH1516 on and off. Daisy-chain When daisy-chaining units (see Daisy-chaining, page 15), the Ports daisy-chain cables plug in here. -
Page 19: Chapter 2. Hardware Setup
Overview For convenience and flexibility that allows mixing the PS/2, USB and serial interfaces, the KH1508 / KH1516's design utilizes KVM adapter cables that serve as intermediaries between the KVM switch and the connected devices: A separate KVM adapter cable is required for each computer or device connection. -
Page 20: Stacking And Rack Mounting
KH1508 / KH1516 User Manual Stacking and Rack Mounting The KH1508 / KH1516 can be stacked on the desktop or rack mounted at the front or rear of the rack. The following sections take you through the procedures for each method. -
Page 21: Rack Mounting
Chapter 2. Hardware Setup Rack Mounting The KH1508 / KH1516 can be mounted in a 19" (1U) rack. The mounting brackets can screw into either the front or the back of the unit so that it can attach to the front or the back of the rack. To rack mount the unit: 1. -
Page 22: Single Station Installation
(See KVM Adapter Cable Installation Diagrams, page 14 for connection examples.) 4. Plug the female end of the power cord into the KH1508 / KH1516's power socket; plug the male end into an AC power source. - Page 23 Chapter 2. Hardware Setup Single Stage Installation Diagram...
-
Page 24: Kvm Adapter Cable Installation Diagrams
KH1508 / KH1516 User Manual KVM Adapter Cable Installation Diagrams KA9520 KA9131 KA9570 KA9140 SERIAL TERMINAL KA9130... -
Page 25: Daisy-Chaining
KH1508 / KH1516 daisy-chain. Tables showing the relation between the number of computers and the number of KH1508 / KH1516 units needed to control them are provided on page 59. To set up a daisy-chained installation, do the following: 1. Use a daisy-chain cable set to connect the Chain Out port of the parent... - Page 26 KH1508 / KH1516 User Manual b) Power on each station on the installation in turn (second station, then third station, etc.). In each case, wait for the station ID to be ascertained and displayed before powering on the next station.
-
Page 27: Chapter 3. Basic Operation
Chapter 3 Basic Operation Port Selection KH1508 / KH1516 installations provide three methods to obtain instant access to any computer in your installation: Manual, OSD (on-screen display), and Hotkey. Manual For a stand alone switch, or the first stage unit of a daisy-chained installation, simply press the port switch that corresponds to the device you wish to access. -
Page 28: Hot Plugging
KH1508 / KH1516 User Manual Hot Plugging The KH1508 / KH1516 supports hot plugging – components can be removed and added back into the installation by unplugging and replugging their cables from their ports without the need to shut the unit down. In order for hot plugging to work properly, however, the procedures described below must be followed. -
Page 29: Powering Off And Restarting
Chapter 3. Basic Operation Powering Off and Restarting If it becomes necessary to power off the KH1508 / KH1516, or if the switch loses power and needs to be restarted, before starting it back up you must follow these procedures: 1. - Page 30 KH1508 / KH1516 User Manual This Page Intentionally Left Blank...
-
Page 31: Chapter 4. Osd Operation
Chapter 4 OSD Operation OSD Overview The on-screen display (OSD) is a menu driven method to handle computer control and switching operations. All procedures start from the OSD Main Screen. To display the Main Screen, tap [Scroll Lock] twice. Note: You can optionally change the OSD hotkey to the Ctrl key, in which case you would tap [Ctrl] twice (see OSD HOTKEY, page 26). - Page 32 KH1508 / KH1516 User Manual When you invoke the OSD, a screen similar to the one below appears: Note: 1. The diagram depicts the Administrator's Main Screen. The User Main Screen does not show the F4 and F6 functions, since these are reserved for the administrator and can't be accessed by ordinary users.
-
Page 33: Osd Navigation
Chapter 4. OSD Operation OSD Navigation To dismiss the menu, and deactivate the OSD, click the X at the upper right corner of the OSD Window or press Esc. To Logout click F8 or the symbol at the top of the Main Screen, or press [F8]. -
Page 34: Osd Functions
KH1508 / KH1516 User Manual OSD Functions OSD functions are used to configure and control the OSD. For example, you can rapidly switch to any port, scan selected ports only, limit the list you wish to view, designate a port as a Quick View Port, create or edit a port name, or make OSD setting adjustments. -
Page 35: F2: List
Chapter 4. OSD Operation F2: LIST This function lets you broaden or narrow the scope of ports the OSD displays on the Main Screen. Many of the OSD functions only operate on the computers currently selected for listing on the Main Screen with this function. The submenu choices and their meanings are given in the table below: Choice Meaning... -
Page 36: F3: Set
KH1508 / KH1516 User Manual F3: SET This function allows the administrator and each user to set up an individual working environment. A separate profile for each is stored by the OSD and is activated according to the username provided during Login. - Page 37 Chapter 4. OSD Operation (Continued from previous page.) Setting Function SCAN/SKIP Selects which computers will be accessed under Skip mode (see F5: MODE SKP, page 32), and Auto Scan mode (see F7: SCAN, page 34). Choices are: – All the ports which have been set Accessible (see SET ACCESSIBLE PORTS, page 30);...
-
Page 38: F4: Adm
KH1508 / KH1516 User Manual F4: ADM F4 is an administrator only function. It allows the administrator to configure and control the overall operation of the OSD. To change a setting double click it; or use the up and down arrow keys to move the highlight bar to it, then press [Enter]. - Page 39 Chapter 4. OSD Operation (Continued from previous page.) Setting Function EDIT PORT To help remember which computer is attached to a particular port, NAMES every port can be given a name. This function allows the administrator to create, modify, or delete port names. To edit a port name: 1.
- Page 40 KH1508 / KH1516 User Manual (Continued from previous page.) Setting Function SET QUICK This function lets the administrator select which ports to include as VIEW PORTS Quick View ports. To select/deselect a port as a Quick View Port, use the navigation keys to move the highlight bar to it, then press the [Spacebar].
- Page 41 English (UK); French; German; Japanese; Korean; Traditional Chinese; and Spanish. The default is English (US). FIRMWARE In order to upgrade the KH1508 / KH1516’s firmware (see The UPGRADE Firmware Upgrade Utility, page 45) you must first enable Firmware Upgrade mode with this setting.
-
Page 42: F5: Skp
KH1508 / KH1516 User Manual F5: SKP This function enables you to easily skip backward or forward, switching the console focus from the currently active KVM Port to the previous or next available one. The selection of computers to be available for Skip mode switching is made with the Scan/Skip mode setting under the F3 SET function (see page 27). -
Page 43: F6: Brc
Chapter 4. OSD Operation F6: BRC F6 is an administrator only function. When this function is in effect, commands sent from the console are broadcast to all available computers on the installation. This function is particularly useful for operations that need to be performed on multiple computers, such as performing a system wide shutdown, installing or upgrading software, etc. -
Page 44: F7: Scan
KH1508 / KH1516 User Manual F7: SCAN This function automatically switches among the available computers at regular intervals so that you can monitor their activity without having to take the trouble of switching manually. The selection of computers to be included for Auto Scanning is made with the Scan/Skip mode setting under the F3 SET function (see page 27). -
Page 45: F8: Lout
Chapter 4. OSD Operation F8: LOUT Clicking the F8 field, or pressing [F8], logs you out of the OSD and blanks the console screen. This is different from simply deactivating the OSD when you are at the Main Screen by pressing [Esc]. With this function you must log in all over again to regain access to the OSD, whereas with [Esc], all you have to do to reenter the OSD is tap the OSD Hotkey. - Page 46 KH1508 / KH1516 User Manual This Page Intentionally Left Blank...
-
Page 47: Keyboard Port Operation
Keyboard Port Operation Overview Keyboard port control allows you to provide KVM focus to a particular computer using hotkey combinations from the keyboard. The KH1508 / KH1516 provides the following hotkey port control features: Selecting the Active Port Auto Scanning... -
Page 48: Selecting The Active Port
KH1508 / KH1516 User Manual Selecting the Active Port Each computer port is assigned a port ID (see Port ID Numbering, page 19). You can directly access any computer on the installation with a hotkey combination that specifies the port ID of the computer port that the computer is connected to. -
Page 49: Invoking Auto Scan
Chapter 5. Keyboard Port Operation Invoking Auto Scan To start Auto Scanning, key in the following hotkey combination: 1. Invoke Hotkey mode (see page 37). 2. Press [A]. After you press A, you automatically exit Hotkey mode, and enter Auto Scan mode, and Auto Scanning begins. -
Page 50: Skip Mode
KH1508 / KH1516 User Manual Skip Mode This feature allows you to switch between computers in order to monitor them manually. You can dwell on a particular port for as long or as little as you like, as opposed to Auto Scanning, which automatically switches after a fixed interval. -
Page 51: Hotkey Summary Table
Chapter 5. Keyboard Port Operation Hotkey Summary Table [Num Lock] + [-] [Port ID] [Enter] Switches access to the computer that corresponds to that port ID. [Ctrl] + [F12] [Port ID] [Enter] [Num Lock] + [-] [A] or Invokes Auto Scan mode. [Ctrl] + [F12] [A] Pauses auto scanning when in Auto Scan mode. - Page 52 KH1508 / KH1516 User Manual This Page Intentionally Left Blank...
-
Page 53: Chapter 6. Keyboard Emulation
Chapter 6 Keyboard Emulation Mac Keyboard The PC compatible (101/104 key) keyboard can emulate the functions of the Mac keyboard. The emulation mappings are listed in the table below. PC Keyboard Mac Keyboard [Shift] Shift [Ctrl] Ctrl [Ctrl] [1] [Ctrl] [2] [Ctrl] [3] [Ctrl] [4] [Alt]... -
Page 54: Sun Keyboard
KH1508 / KH1516 User Manual Sun Keyboard The PC compatible (101/104 key) keyboard can emulate the functions of the Sun keyboard when the Control key [Ctrl] is used in conjunction with other keys. The corresponding functions are shown in the table below. -
Page 55: The Firmware Upgrade Utility
The Firmware Upgrade Utility Introduction As new firmware revisions become available for the KH1508 / KH1516, new firmware upgrade packages are posted on our web site. Check the website regularly to find the latest packages and information relating to them. -
Page 56: Performing The Upgrade
KH1508 / KH1516 User Manual 4. Shut down all of the computers, but not the stations, on your KVM installation. 5. From your KVM switch console, bring up the OSD (see page 21) and select the F4ADM function. 6. Scroll down to FIRMWARE UPGRADE. Press [Enter], then press [Y] to invoke Firmware Upgrade mode. - Page 57 Chapter 7. The Firmware Upgrade Utility 3. Click Next to continue. The Firmware Upgrade Utility main screen appears: The Utility inspects your installation. All the devices capable of being upgraded by the package are listed in the Device List panel. (Continues on next page.)
- Page 58 KH1508 / KH1516 User Manual 4. After you have made your selection(s), click Next to perform the upgrade. If you enabled Check Firmware Version, the utility compares the device's firmware level with that of the upgrade files. If it finds that the...
-
Page 59: Upgrade Succeeded
Chapter 7. The Firmware Upgrade Utility Upgrade Succeeded After the upgrade has completed, a screen appears to inform you that the procedure was successful: Click Finish to close the Firmware Upgrade Utility. Upgrade Failed If the upgrade failed to complete successfully a dialog box appears asking if you want to retry. -
Page 60: Firmware Upgrade Recovery
KH1508 / KH1516 User Manual Firmware Upgrade Recovery There are basically four conditions that call for firmware upgrade recovery: When the unit’s firmware becomes corrupted for some reason and you are unable to operate it. When you invoke Firmware Upgrade mode (see FIRMWARE UPGRADE, page 31), but decide not to proceed with the upgrade. -
Page 61: Adapter Cable Upgrade
3. Use the Firmware Upgrade Cable (provided with this unit), to connect a COM port on your computer to the Firmware Upgrade Port of the KH1508 / KH1516. 4. From your KVM switch console, bring up the OSD (see page 21) and select the F4ADM function. -
Page 62: Performing The Upgrade
KH1508 / KH1516 User Manual Performing the Upgrade Starting the Upgrade To upgrade your firmware: 1. Run the downloaded Firmware Upgrade Package file - either by double clicking the file icon, or by opening a command line and keying in the full path to it. -
Page 63: Upgrade Succeeded
Chapter 7. The Firmware Upgrade Utility Upgrade Succeeded After the upgrade has completed, a screen appears to inform you that the procedure was successful: Click Finish to close the Firmware Upgrade Utility. Note: At the completion of the upgrade the KH1508 / KH1516 restarts. -
Page 64: Adapter Cable Firmware Upgrade Recovery
KH1508 / KH1516 User Manual Adapter Cable Firmware Upgrade Recovery There are basically four conditions that call for an adapter cable firmware upgrade recovery: When the unit’s firmware becomes corrupted for some reason and you are unable to operate it. -
Page 65: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. Do not use the device near water. - Page 66 KH1508 / KH1516 User Manual (Continued from previous page.) Do not allow anything to rest on the power cord or cables. Route the power cord and cables so that they cannot be stepped on or tripped over. If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating.
-
Page 67: Rack Mounting
Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 68: Technical Support
KH1508 / KH1516 User Manual Technical Support Technical support is available both by email and online (with a browser over the web): International Email Support support@aten.com Online Technical Support http://support.aten.com Support Troubleshooting http://www.aten.com Documentation Software Updates Telephone Support 886-2-8692-6959 North America Email Support ATEN TECH support@aten-usa.com... -
Page 69: Specifications
Appendix Specifications Function KH1508 KH1516 Computer Direct Connections Max. 256 (via daisy-chain) 512 (via daisy-chain) Port Selection OSD (on-screen display); Hotkeys Pushbutton Switches Connectors Console 1 x 6-pin Mini-DIN F (Purple) Video 1 x HDB-15 F Mouse 1 x 6-pin Mini-DIN F (Green) -
Page 70: Connection Tables
KH1508 / KH1516 User Manual Connection Tables The following table indicates the relationship between the number of KH1508 / KH1516 units and the number of computers that they control KH1508 Computers Computers Computers Computers 1 - 8 65 - 72... -
Page 71: Osd Factory Default Settings
Appendix OSD Factory Default Settings The factory default settings are as follows: Setting Default OSD Hotkey [Scroll Lock] [Scroll Lock] Port ID Display Position Upper Left Corner Port ID Display Duration 3 Seconds Port ID Display Mode The Port Number plus the Port Name Scan Duration 5 Seconds Scan/Skip Mode... -
Page 72: Administrator Login Failure
4. Power off the switch. 5. Remove the jumper cap from J8. 6. Close the housing and start the KH1508 / KH1516 back up. After you start back up, you can use the default Username and Password (see OSD Overview, page 21) to log in. -
Page 73: Troubleshooting
Appendix Troubleshooting Overview Operation problems can be due to a variety of causes. The first step in solving them is to make sure that all cables are securely attached and seated completely in their sockets. In addition, updating the product’s firmware may solve problems that have been discovered and resolved since the prior version was released. -
Page 74: User Manual Corrections
KH1508 / KH1516 User Manual User Manual Corrections The KH1508 / KH1516 User Manual describes certain features that may not be available on your KVM switch. The table below lists the features in question. Please update your manual according to the information described. -
Page 75: Limited Warranty
Appendix Limited Warranty ALTUSEN warrants this product against defects in material or workmanship for a period of one (1) year from the date of purchase. If this product proves to be defective, contact ALTUSEN's support department for repair or replacement of your unit. ALTUSEN will not issue a refund. Return requests can not be processed without the original proof of purchase. - Page 76 KH1508 / KH1516 User Manual This Page Intentionally Left Blank...
