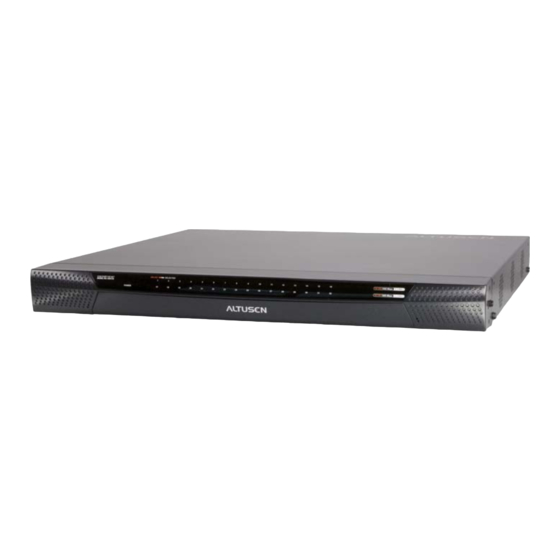

Page 1 KVM Over the NET™ KN2124v / KN2140v / KN4124v / KN4140v / KN2132 / KN4116 / KN4132 User Manual www.aten.com...
Page 2: Sj/T 11364-2006
KVM Over the NET™ User Manual FCC Information This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
Page 3: User Information
KVM Over the NET™ User Manual User Information Online Registration Be sure to register your product at our online support center: International http://support.aten.com North America ATEN TECH http://www.aten-usa.com/product_registration ATEN NJ http://support.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 North America ATEN TECH...
Page 4: Package Contents
1 Power Cord (KN4116 / KN2132 / KN4132 only) 2 Power Cords (KN2124v / KN2140v / KN4124v / KN4140v only) 1 5-in-1 Console Cable (KN2124v / KN2140v / KN4124v / KN4140v only) 1 Rack Mount Kit 1 Foot Pad Set (4 pcs.)
Page 5: Table Of Contents
Components ..........10 KN2124v / KN2140v / KN4124v / KN4140v Front View ... 10 KN4132 / KN4116 / KN2132 Front View .
Page 6 KVM Over the NET™ User Manual Adapter Cable Connection Diagram ......27 Two Stage Installation ........28 Two Stage Installation Diagram .
Page 7 KVM Over the NET™ User Manual User List Panel ........70 Virtual Media .
Page 8 KVM Over the NET™ User Manual Web Browser Interface ........107 GUI Interface.
Page 9 KVM Over the NET™ User Manual Modifying Filters........137 Deleting Filters.
Page 10 KN2124v / KN4124v ........
Page 11 KVM Over the NET™ User Manual KN2140v / KN4140v ........190 KN4116 .
Page 12: About This Manual
An overview of the information found in the manual is provided below. Overview Chapter 1, Introduction, introduces you to the KN2124v / KN2140v / KN4124v / KN4140v / KN2132 / KN4116 / KN4132 KVM Over the NET System. Its purpose, features and benefits are presented, and its front and back panel components are described.
Page 13: Conventions
KVM Over the NET™ User Manual Chapter 11, Port Operation, provides detailed information on accessing and operating the devices connected to the KVM Over the NET switch ports. Chapter 12, The Log Server, explains how to install and configure the Log Server.
Page 14: Product Information
KVM Over the NET™ User Manual Product Information For information about all ALTUSEN products and how they can help you connect without limits, visit ALTUSEN on the Web or contact an ALTUSEN Authorized Reseller. Visit ALTUSEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
Page 15: Chapter 1. Introduction
KN4132 1 Local; 4 Remote Each bus permits a separate user session so that up to three (KN2124v / KN2140v / KN2132) or five (KN4124v / KN4140v / KN4116 / KN4132) concurrent independent connections to the local servers can take place.
Page 16 KVM Over the NET™ User Manual Up to 32 users can share the remote buses. A Message Board feature allows them to communicate with each other to facilitate port sharing. Remote 21 - 40 Remote KN4140v TCP/IP 1 - 20 Remote Local Remote...
Page 17 ID, OS, keyboard language, adapter name, and operation modes of the port stay with the adapter. With its advanced virtual media features, the KN2124v / KN2140v / KN4124v / KN4140v series of switches let you map DVD/CD drives and other storage media to a remote server.
Page 18: Features
Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation Supports up to 5 bus sessions – 1 local and 2 (KN2132 / KN2124v / KN2140v) or 4 (KN4116 / KN4132 / KN4142v / KN4140v) remote administrators can simultaneously access separate ports Multi-user support –...
Page 19 Chapter 1. Introduction Total web solution features both a Windows Active X viewer and a Java Applet viewer – you can open multiple viewers to control multiple ports from the same login session The switch can detect your browser and open either the Java or Active X viewer accordingly –...
Page 20: V-Series Exclusive
Features found only with the V-Series KVM Over the NET switches (KN2124v, KN2140v, KN4124v, and KN4140v) include the following: Audio – a microphone and speakers are supported on the Local Console; speakers (only) are supported on the Local Client computers.
Page 21: System Requirements
Chapter 1. Introduction System Requirements Local Client Computers Local client computers are the ones used to log into the switch over the internet (see Terminology, page xiii). The following equipment must be installed on these computers: For best results we recommend that the computers used to access the switch have at least a P III 1 GHz processor, with their screen resolution set to 1024 x 768.
Page 22: Video
Note: 1. The KVM Adapter cables marked with an asterisk (*) are for use with the KN2124v, KN2140v, KN4124v and KN4140v switches only. 2. If you use Adapter Cables that were purchased prior to your switch purchase, you may have to upgrade the Adapter Cable’s firmware.
Page 23: Operating Systems
Chapter 1. Introduction Operating Systems Supported operating systems for Local Client computers that log into the KVM Over the NET switch include Windows 2000 and higher, and those capable of running Sun's Java Runtime Environment (JRE) 6, Update 3, or higher. Supported operating systems for the remote servers that are connected to the switch’s ports are shown in the table, below: Version...
Page 24: Components
KN2124v / KN2140v / KN4124v / KN4140v Front View Note: The figure above shows the front panel of a KN2140v / KN4140v. The KN2124v / KN4124v differs in that there are fewer port LEDs. KN4132 / KN4116 / KN2132 Front View Note: The figure above shows the front panel of a KN4132 /KN2132.
Page 25 Chapter 1. Introduction Component Description Power LED Lights when the unit is powered up and ready to operate. Port LEDs The Port LEDs provide status information about their corresponding KVM Ports. GREEN: The computer attached to the port is On Line. RED: The computer attached to the port is Selected (has KVM focus).
Page 26: Kn2124V / Kn2140V / Kn4124V / Kn4140V Rear View
16 KVM ports and one block of 8 (40 ports in total). The KN2124v / KN4124v differs in that it only has a single block of 16 KVM ports and one bock of 8 (24 ports in total).
Page 27 Description Power Socket The power cable(s) plugs in here. Note: For the KN2124v, KN2140v, KN4124v and the KN4140v units, the top power socket corresponds to the left power switch, and the bottom power socket corresponds to the right power switch.
Page 28 KVM Over the NET™ User Manual This Page Intentionally Left Blank...
Page 29: Chapter 2. Hardware Setup
Chapter 2 Hardware Setup Overview For convenience and flexibility that allows mixing the PS/2 and USB interfaces, as well as multiple platforms, the KVM Over the NET switch design utilizes KVM Adapter Cables, that serve as intermediaries between the switch and the connected devices (refer to the installation diagram on p. 16). A separate KVM Adapter Cable is required for each computer or device connection.
Page 30: Stacking And Rack Mounting
KVM Over the NET™ User Manual Stacking and Rack Mounting The KVM Over the NET switch can be stacked on the desktop or rack mounted in a variety of ways. The following sections take you through the procedures for each method. Stacking The KVM Over the NET switch can be placed on any appropriate level...
Page 31: Rack Mounting
Chapter 2. Hardware Setup Rack Mounting The KVM Over the NET switch can be mounted in a 19" (1U) rack. The mounting brackets can screw into either the front or the back of the unit so that it can attach to the front or the back of the rack. Rack Mounting - Front To mount the unit at the front of the rack, do the following: 1.
Page 32 KVM Over the NET™ User Manual 3. Position the device in the front of the rack and align the holes in the mounting brackets with the holes in the rack. 4. Screw the mounting brackets to the rack. Note: Cage nuts are provided for racks that are not prethreaded.
Page 33: Rack Mounting - Rear
Chapter 2. Hardware Setup Rack Mounting - Rear To mount the unit at the rear of the rack, do the following: 1. Remove the two screws at the rear of the unit. Phillips head hex M3 x 6 2. Use the M3 x 8 Phillips head hex screws supplied with the rack mounting kit to screw the rack mounting brackets into the rear of the unit.
Page 34 KVM Over the NET™ User Manual 4. Screw the mounting brackets to the rear of the rack. Note: Cage nuts are provided for racks that are not prethreaded.
Page 35: Single Stage Installation
23 (the numbers in the diagram correspond with the numbers of the instruction steps), and do the following: 1. For the KN2124v, KN2140v, KN4124v and KN4140v, use the 5-in-1 Console Cable supplied with the package to connect your Local Console devices to the unit.
Page 36 9. Plug the power cord(s) supplied with this package into the KVM Over the switch power socket, and then into an AC power source. For the KN2124v, KN2140v, KN4124v and KN4140v, when using a single power socket, be sure to turn on the correct power switch (see Power Switch, page 13).
Page 37: Kn2124V / Kn2140V / Kn4124V / Kn4140V Single Stage Installation Diagram
Chapter 2. Hardware Setup KN2124v / KN2140v / KN4124v / KN4140v Single Stage Installation Diagram PN0108 Modem...
Page 38: Kn2132 / Kn4116 / Kn4132 Single Stage Installation Diagram
KVM Over the NET™ User Manual KN2132 / KN4116 / KN4132 Single Stage Installation Diagram PN0108 Modem...
Page 39: Adapter Cable Connection Diagram
Chapter 2. Hardware Setup Adapter Cable Connection Diagram KA7120 / KA9120 KA9131 KA7170 / KA9170 KA7130 / KA9130 KA7140 KA9140 SERIAL TERMINAL KA7175 KA7176...
Page 40: Two Stage Installation
KVM Over the NET™ User Manual Two Stage Installation To control even more computers, up to 40 additional KVM switches can be cascaded from the KVM ports of the KVM Over the NET switch. As many as 640 computers can be controlled in a complete two stage installation. In a cascaded installation, the KVM Over the NET switch is considered the First Stage unit, the cascaded switches are considered Second Stage units.
Page 41: Two Stage Installation Diagram
Chapter 2. Hardware Setup Two Stage Installation Diagram KN4140v KH1516 KA9120...
Page 42: Hot Plugging
KVM Over the NET™ User Manual Hot Plugging The KVM Over the NET switch supports hot plugging – components can be removed and added back into the installation by unplugging and replugging cables from the ports without the need to shut the unit down. Note: If the computer’s Operating System does not support hot plugging, this function may not work properly.
Page 43: Port Id Numbering
Chapter 2. Hardware Setup Port ID Numbering Each computer on the installation is assigned a unique Port ID. The Port ID is a one or two segment number that is determined by the Stage Level and KVM Port number of the KVM switch that the computer is connected to. The first segment represents the KVM Port number of the First Stage unit;...
Page 44 KVM Over the NET™ User Manual This Page Intentionally Left Blank...
Page 45: Super Administrator Setup
Chapter 3 Super Administrator Setup Overview The KVM Over the NET switch supports three types of user, as shown in the table, bellow: User Type Role Super Administrator Access and manage ports and devices. Manage Users, and Groups. Configure the overall installation. Configure personal working environment.
Page 46 KVM Over the NET™ User Manual Since this is the first time you are logging in, use the default Username: administrator; and the default Password: password. Note: For security purposes, you should change these to a unique Username and Password. (See Changing the Super Administrator Login, page 34 for details.) After you successfully log in, the Local Console Main Page appears:...
Page 47: Network Setup
Chapter 3. Super Administrator Setup Network Setup To set up the network, do the following: 1. Click the Device Management tab. 2. Select the Network tab. 3. Fill in the fields according to the information provided under Network, page 124.
Page 48: Changing The Super Administrator Login
KVM Over the NET™ User Manual Changing the Super Administrator Login To change the default Super Administrator Username and Password, do the following: 1. At the top of the screen, click User Management. The User Management page has a list of Users and Groups in the left hand panel, and a more detailed list of users –...
Page 49 Chapter 3. Super Administrator Setup (Continued from previous page.) The User Information page appears: 3. Change the Username and Password to something unique. 4. Re-enter the password to confirm it is correct. 5. Click Save. 6. When the dialog box informing you that the change completed successfully appears, Click OK.
Page 50: Moving On
KVM Over the NET™ User Manual Moving On After setting up the network and changing the default Super Administrator password, you can proceed to other administration activities. These include User Management, Device Management, and Firmware Upgrade Maintenance. These activities can be accomplished using any of the KVM Over the NET switch GUI utilities.
Page 51: Chapter 4 Logging In
Chapter 4 Logging In Overview KVM Over the NET switches can be accessed from a local console; an internet browser; a Windows application (AP) program; and a Java application (AP) program. No matter which access method you choose, the KVM Over the NET switch’s authentication procedure requires you to submit a valid username and password.
Page 52: Browser Login
KVM Over the NET™ User Manual Browser Login The KVM Over the NET switch can be accessed via an Internet browser running on any platform. To access the switch, do the following: 1. Open the browser and specify the IP address of the switch you want to access in the browser's location bar.
Page 53: Winclient Ap Login
Chapter 4. Logging In WinClient AP Login In some cases, the Administrator may not want the KVM Over the NET switch to be available via browser access. The Windows AP Client allows direct remote access to Windows systems users, without having to go through a browser.
Page 54: The Connection Screen
KVM Over the NET™ User Manual The Connection Screen A description of the Connection Screen is given in the following table: Item Description Menu Bar The Menu Bar contains two items: File and Help. The File Menu allows the operator to Create, Save, and Open user created Work files see The File Menu, page 41...
Page 55: The File Menu
Chapter 4. Logging In The File Menu The File Menu allows the operator to Create, Save, and Open user created Work files. A Work File consists of all the information specified in a Client session. This includes the Server List and Server IP list items, as well as the Hotkey settings.
Page 56: Java Client Ap Login
KVM Over the NET™ User Manual Java Client AP Login In those cases in which the Administrator does not want the KVM Over the switch to be available via browser access, but the remote users aren’t running Windows, the Java AP Client provides direct remote access to non-Windows systems users.
Page 57 Chapter 4. Logging In Click OK. A Login dialog box appears: Provide a valid Username and Password, and then click OK to switch to the Java Client AP Main Page. The Java Client AP Main Page is similar to that of the WinClient AP Main Page.
Page 58 KVM Over the NET™ User Manual This Page Intentionally Left Blank...
Page 59: Chapter 5. The User Interface
Chapter 5 The User Interface Overview Once you have successfully logged in the KVM Over the NET user interface Main Page appears. The look of the page varies slightly, depending on which method you used to log in. Each of the interfaces is described in the sections that follow.
Page 60: Page Components
KVM Over the NET™ User Manual The web page components are described in the table below: Page Components The web page screen components are described in the table, below: Item Description Tab Bar The tab bar contains the KVM Over the NET ’s main operation categories.
Page 61: The Tab Bar
Chapter 5. The User Interface The Tab Bar The number and type of icons that appear on the Tab Bar at the top of the page are determined by the user’s type (Super Administrator, Administrator, User) and the permissions assigned when the user’s account was created. The functions associated with each of the icons are explained in the table below: Icon Function...
Page 62: The Gui Main Page
KVM Over the NET™ User Manual The GUI Main Page With WinClient AP, and Java Client AP access, once users log in (see Logging In, page 37), the GUI Main Page comes up: The GUI Main Page is similar to that of the Web Browser. The differences between them are as follows: 1.
Page 63 Chapter 5. The User Interface 5. There is an additional icon at the extreme right of the page: Click this icon to close the GUI Main Page and go to the display of the last selected port. 6. The GUI can be navigated via the keyboard as shown in the table, below: Keys Action Ctrl + P...
Page 64: The Local Console Gui Main Page
KVM Over the NET™ User Manual The Local Console GUI Main Page The Local Console GUI Main Page is similar to the Java and Windows GUI Main Page: The major difference is that the Local Console Main Page doesn’t have tabs for Maintenance or Download, and Array Mode isn’t available.
Page 65: The Control Panel
Chapter 5. The User Interface The Control Panel WinClient Control Panel Since the WinClient ActiveX Viewer and WinClient AP Control Panel contains the most complete functionality of all the user interface control panels, this section describes the WinClient Control Panel. Although the other control panels may not have all of the features that this one does, you can refer to the information described here when using them.
Page 66 KVM Over the NET™ User Manual As the mouse pointer moves over the icons in the icon bar the information in the top text row changes to describe the icon's function. If a message is entered in the message board, and you have not opened the message board in your session, the message scrolls across the top row, as well.
Page 67: Control Panel Functions
See Virtual Media, page 69, for specific details. Note: 1. This icon is displayed on the KN2124v, KN2140v, KN4124v and KN4140v switches only. 2. This icon displays in gray when the function is disabled or not available.
Page 68 KVM Over the NET™ User Manual (Continued from previous page.) Icon Function Click to bring up the on-screen keyboard (see The On-Screen Keyboard, page 73). Click to select the mouse pointer type. Note: This icon changes depending on which mouse pointer type is selected (see Mouse Pointer Type, page 74).
Page 69: Macros
Chapter 5. The User Interface Macros The Macros icon provides access to three functions found in the Macros dialog box: Hotkeys, User Macros, and System Macros. Each of these functions is described in the following sections. Hotkeys Various actions related to manipulating the remote server can be accomplished with hotkeys.
Page 70 KVM Over the NET™ User Manual To reset all the hotkeys to their default values, click Reset; to cancel setting a hotkey value, click Cancel; to clear an action’s Hotkeys field, click Clear. You can use the same function keys for more than one action, as long as the first key is not the same.
Page 71: User Macros
Chapter 5. The User Interface User Macros User Macros are used to perform specific actions on the remote server. To create the macro, do the following: 1. Select User Macros, then click Add. 2. In the dialog box that comes up, key in a name for your macro. The “New Macro”...
Page 72 KVM Over the NET™ User Manual 3. Click Record. The dialog box disappears, and a small panel appears at the top left of the screen: 4. Press the keys for the macro, then click Done. Note: To pause macro recording, click Pause. To resume, click Pause again.
Page 73 Chapter 5. The User Interface You return to the Macros dialog box with your system macro key presses displayed in the Macro column: If you want to change any of the keystrokes, select the macro and click Edit. 5. Repeat the procedure for any other macros you wish to create. After creating your macros, you can run them either by opening this dialog box and clicking Play, or by opening the Macro List on the Control Panel and clicking the one you want (see page 54).
Page 74: System Macros
KVM Over the NET™ User Manual System Macros System Macros are used to create exit macros for when you close a session. For example, as an added measure of security, you could create a macro that sends the Winkey-L combination which would cause the remote device’s log in page to come up the next time the device was accessed To create the macro, do the following: 1.
Page 75 Chapter 5. The User Interface 3. Click Record. The dialog box disappears, and a small panel appears at the top left of the screen: 4. Press the keys for the macro, then click Done. Note: To pause macro recording, click Pause. To resume, click Pause again.
Page 76: Search
KVM Over the NET™ User Manual Search Search allows you to find previously created macros and have them listed in the large upper panel for you to play or edit. Click a radio button to choose whether you want to search by name or by Hotkey;...
Page 77: Video Settings
Chapter 5. The User Interface Video Settings Clicking the Hammer icon on the Control Panel brings up the Video Settings dialog box. The options in this dialog box allow you to adjust the placement and picture quality of the remote screen on your monitor: The meanings of the video adjustment options are given in the table below: Option Usage...
Page 78 KVM Over the NET™ User Manual Drag the slider bars to adjust the RGB (Red, Green, Blue) values. When an RGB value is increased, the RGB component of the image is correspondingly increased. If you enable Set to Grayscale, the remote video display is changed to grayscale.
Page 79: Gamma Adjustment
Chapter 5. The User Interface Gamma Adjustment If it is necessary to correct the gamma level for the remote video display, use the Gamma function of the Video Adjustment dialog box. Under Basic configuration, there are ten preset and four user-defined levels to choose from.
Page 80: The Message Board
KVM Over the NET™ User Manual The Message Board The KVM Over the NET switch supports multiple user logins, which can possibly give rise to access conflicts. To alleviate this problem, a message board feature has been provided, allowing users to communicate with each other:...
Page 81: The Button Bar
Chapter 5. The User Interface The Button Bar The buttons on the Button Bar are toggles. Their actions are described in the table below: Button Action Enable/Disable Chat. When disabled, messages posted to the board are not displayed. The button is shadowed when Chat is disabled. The icon displays next to the user's name in the User List panel when the user has disabled Chat.
Page 82: User List Panel
KVM Over the NET™ User Manual User List Panel The names of all the logged in users are listed in this panel. Your name appears in blue; other users' names appear in black. By default, messages are posted to all users. To post a message to one individual user, select the user's name before sending your message.
Page 83: Virtual Media
Chapter 5. The User Interface Virtual Media The Virtual Media feature allows a drive, folder, image file, or removable disk on a user’s system to appear and act as if it were installed on the remote server. Note: Virtual Media is only supported on remote computers connected to the KVM Over the NET switch with KA7175 or KA7176 adapter cables.
Page 84 KVM Over the NET™ User Manual 3. To add additional media sources, click Add, and select the source as many times as you require. Up to three virtual media choices can be mounted. The top three in the list are the ones that are selected. To rearrange the selection order, highlight the device you want to move, then click the Up or Down Arrow button to promote or demote it in the list.
Page 85: Virtual Media Icons
Chapter 5. The User Interface Once mounted, you can treat the virtual media as if they were really on the remote server – drag and drop files to/from them; open files on the remote system for editing and save them to the redirected media, etc. Files that you save to the redirected media, will actually be saved on your local system.
Page 86: Zoom
KVM Over the NET™ User Manual Zoom The Zoom icon controls the zoom factor for the remote view window. Settings are as follows: Setting Description 100% Sizes and displays the remote view window at 100%. Sizes and displays the remote view window at 75%. Sizes and displays the remote view window at 50%.
Page 87: The On-Screen Keyboard
Chapter 5. The User Interface The On-Screen Keyboard The KVM Over the NET switch supports an on-screen keyboard, available in multiple languages, with all the standard keys for each supported language. Click this icon to pop up the on-screen keyboard: One of the major advantages of the on-screen keyboard is that if the keyboard languages of the remote and local systems aren’t the same, you don’t have to change the configuration settings for either system.
Page 88: Mouse Pointer Type
KVM Over the NET™ User Manual To display/hide the expanded keyboard keys, click the arrow to the right of the language list arrow. Mouse Pointer Type KVM Over the NET switches offer a number of mouse pointer options when working in the remote display. Click this icon to select from the available choices: Note: 1.
Page 89: Mouse Dynasync Mode
Chapter 5. The User Interface Mouse DynaSync Mode Synchronization of the local and remote mouse pointers is accomplished either automatically or manually. Automatic Mouse Synchronization (DynaSync) Mouse DynaSync provides automatic locked-in synching of the remote and local mouse pointers – eliminating the need to constantly resync the two movements.
Page 90: Mac And Linux Considerations
KVM Over the NET™ User Manual Mac and Linux Considerations For Mac systems, there is a second DynaSync setting to choose from when Mouse DynaSync is enabled. If the default synchronization result is not satisfactory, try the Mac 2 setting. To select Mac 2, right click in the text area →...
Page 91: Control Panel Configuration
Chapter 5. The User Interface Control Panel Configuration Clicking the Control Panel icon brings up a dialog box that allows you to configure the items that appear on the Control Panel, as well as its graphical settings: The dialog box is organized into six main sections as described in the table, below: Item Description...
Page 92 Control Panel diagram on page 51 for an example.) Snapshot These settings let the user configure the KN2124v / KN2140v / KN4124v / KN4140v / KN2132 / KN4116 / KN4132’s screen capture parameters (see the Snapshot description under The Control Panel,...
Page 93: The Java Control Panel
Chapter 5. The User Interface The Java Control Panel The Java Applet Viewer and Java Client AP Control Panel is similar to the one used by the WinClient: The major differences between them are: In the Macros dialog box, Toggle Mouse Display is not available. The Dot mouse pointer type is not available.
Page 94 KVM Over the NET™ User Manual This Page Intentionally Left Blank...
Page 95: Chapter 6 Port Access
Chapter 6 Port Access Overview When you log in to the switch the Port Access page comes up with the Connections page displayed. Web Browser Interface GUI Interface...
Page 96 KVM Over the NET™ User Manual The page is organized into several main areas. All the ports that a user is permitted to access are listed in the Port Selection Sidebar at the left of the page. At the bottom of the Sidebar, there are buttons for different port display functions.
Page 97: The Port Selection Sidebar
Chapter 6. Port Access The Port Selection Sidebar All switches and their ports – including cascaded switches and their ports – are listed in a tree structure in the Sidebar at the left of the screen: The Port Selection Tree Users are only allowed to see the switches and ports that they have access permission for.
Page 98: Port Views
KVM Over the NET™ User Manual Port Views In the Web Browser version, you can open as many port viewers as there are ports, but the number of ports that you see depends on the number of buses that the switch supports. For example, if the switch supports 4 buses, the 5th viewer displays the same port as the 1st viewer;...
Page 99 Chapter 6. Port Access The meanings of the configuration items are explained in the following table: Item User Type Explanation Expand/ Administrators If the device’s ports are nested (not displayed), Collapse the dialog box entry is Expand. Click Expand to Users open the tree and display the ports.
Page 100: Port Properties
KVM Over the NET™ User Manual Port Properties When you select Properties from the popup menu, a dialog box that allows you to make configuration settings for the selected port appears: Note: This is a quick setting method that performs the same port configuration functions as the ones found under Adapter Attributes on the Device Management Customization page.
Page 101 Chapter 6. Port Access (Continued from previous page.) An explanation of the configuration fields is given in the table, below: Field Explanation Port OS Specifies the operating system that the computer on the connected port is using. Choices are Win, Mac, Sun, and Other. The default is Win.
Page 102: Port Naming
KVM Over the NET™ User Manual Port Naming For convenience – especially in large installations with many switches and ports – each switch and each port can be given a name. To assign, modify or delete a port name, do the following: 1.
Page 103: Scan
Chapter 6. Port Access Scan Scan is found at the bottom of the GUI Sidebar. It automatically switches among all the ports that are visible in the Sidebar tree (see Filter, below), at regular intervals, so that their activity can be monitored automatically. See Auto Scanning, page 158 for details.
Page 104 KVM Over the NET™ User Manual (Continued from previous page.) The meanings of the choices are explained in the table, below: Choices Explanation This is the default view. With no other filter options selected, all of the ports that are accessible to the user are listed in the Sidebar tree.
Page 105: Connections
Chapter 6. Port Access Connections The Connections page displays port status information at the device level, and port connection configuration options at the port level. Device Level When a KVM Over the NET switch is selected in the Port Selection Panel, the Connections page displays a list of ports for the device that the user is authorized to access or view.
Page 106: Port Level
KVM Over the NET™ User Manual Port Level When a port is selected in the Sidebar tree, the Connections page changes to display the port connection and configuration options: The screen is divided into three major panels, as described in the table below: Panel Description Status...
Page 107: History
Chapter 6. Port Access History The History page provides a record of each time that a port was accessed. If there are more entries than there is room on the screen, a scroll bar appears to let you scroll up and down to see the entire record. To clear the record and start over, click the Clear History button at the bottom right of the page.
Page 108: Favorites
KVM Over the NET™ User Manual Favorites The Favorites page is similar to a bookmarks feature. Ports that you frequently visit can be saved in a list here. Simply open this page and select the port – rather than hunting for it in the port tree. This feature is especially handy on large, crowded installations: Note: This feature is only available in the GUI version.
Page 109: Modifying A Favorite
Chapter 6. Port Access 2. Click inside the text entry box to erase Untitled Favorite and key in an appropriate name. 3. To add a port: Drag it from the Port Select list and drop it onto the container, or Right Click on it;...
Page 110: User Preferences
KVM Over the NET™ User Manual User Preferences The User Preferences page allows users to set up their own, individual, working environments. The switch stores a separate configuration record for each user profile, and sets up the working configuration according to the Username that was keyed into the Login dialog box: The page settings are explained in the following table: Setting...
Page 111 Chapter 6. Port Access (Continued from previous page.) Setting Function ID Duration Determines how long a Port ID displays on the monitor after a port change has taken place. You can choose an amount from 1—255 seconds. The default is 3 Seconds. A setting of 0 (zero) means the Port ID is always on.
Page 112: Log
KVM Over the NET™ User Manual The KVM Over the NET switch logs all the events that take place on it. The Log page displays the information in the log file: Note: 1. The screenshot displays an GUI version screen. In the Web Browser version, Log appears as a separate icon on the Icon Tab Bar.
Page 113: Filter
Chapter 6. Port Access Filter Filter allows you to search for particular events by date or by specific words or strings. When you access this function, the log filter dialog box displays at the bottom of the page: A description of the items is given in the table, below: Item Description Priority...
Page 114: Sessions
KVM Over the NET™ User Manual Sessions The Session page lets the administrator see at a glance all the users currently logged into the KVM Over the NET switch, and provides information about each of their sessions. Note: 1. The Session page only appears in Administrator sessions. It isn’t available for ordinary users.
Page 115: Access
Chapter 6. Port Access Access Administrators use the Access page to set user and group access and configuration rights for switches and ports. The page is organized into three main areas: a large Main panel; a Status panel at the lower left, and a Properties panel at the lower right.
Page 116: Port Level
KVM Over the NET™ User Manual View Log indicates the users who have permission to view the log files. A √ check mark ( ) indicates that the user has permission to view the files; an X means that the user is denied permission to view them. Click the icon to toggle permission.
Page 117: The Status Panel
Chapter 6. Port Access Mount USB indicates users who have permission to mount Virtual Media √ devices on remote systems. A check mark ( ) indicates that a user has permission; an X means the user does not have permission. Note: This entry does not appear for switches that do not support the USB Virtual Media function (KN2132, KN4116, KN4132).
Page 118 KVM Over the NET™ User Manual This Page Intentionally Left Blank...
Page 119: Chapter 7. User Management
Chapter 7 User Management Overview When you select the User Management tab the screen comes up with the Users page displayed: Web Browser Interface GUI Interface...
Page 120 KVM Over the NET™ User Manual The page is organized into two main areas. All users and groups appear in the panel at the left of the page. The large panel at the right provides more detailed information at-a-glance for each. There is a pre-installed super administrator account.
Page 121: Users
Chapter 7. User Management Users Adding Users To add a user, do the following: 1. Select Users in the list panel. 2. Click Add at the bottom of the main panel. The User notebook opens, with the User tab selected: 3.
Page 122 KVM Over the NET™ User Manual Field Description Username From 1 to16 characters are allowed depending on the Account Policy settings. See Account Policy, page 136. Password From 0 to16 characters are allowed depending on the Account Policy settings. See Account Policy, page 136. Confirm Password To be sure there is no mistake in the password, you are asked to enter it again.
Page 123 Chapter 7. User Management (Continued from previous page.) Field Description Status Status allows you to control the user’s account and access to the installation, as follows: Disable Account lets you suspend a user’s account without actually deleting it, so that it can be easily reinstated in the future.
Page 124: Modifying User Accounts
KVM Over the NET™ User Manual 7. Click Users in the List panel to return to the main screen. The new user appears in the list and in the main panel, as well. The Users List can expand and collapse. If the list is expanded, click the minus symbol ( –...
Page 125: Groups
Chapter 7. User Management Groups Groups allow administrators to easily and efficiently manage users and devices. Since device access rights apply to anyone who is a member of the group, administrators need only set them once for the group, instead of having to set them for each user individually.
Page 126 KVM Over the NET™ User Manual (Continued from previous page.) 3. Enter the required information in the appropriate fields. A description of each of the fields is given in the table below: Field Description Group Name A maximum of 16 characters is allowed. Description Additional information about the user that you may wish to include.
Page 127: Modifying Groups
Chapter 7. User Management 7. Click Group in the List panel to return to the main screen. The new group appears in the list and in the main panel. The Groups List can expand and collapse. If the list is expanded, click the minus symbol ( –...
Page 128: Users And Groups
KVM Over the NET™ User Manual Users and Groups There are two ways to assign users to – and remove users from – groups: from the Users notebook; and from the Group notebook. Note: Before you can assign users to groups, you must first create them. See Adding Users, page 107 for details.
Page 129: Removing Users From A Group From The User's Notebook
Chapter 7. User Management Removing Users From a Group From the User’s Notebook To remove a user from a group from the User’s notebook, do the following: 1. In the User list, click the user’s name – or – In the main panel, select the user’s name, then click Modify. 2.
Page 130: Assigning Users To A Group From The Group's Notebook
KVM Over the NET™ User Manual Assigning Users to a Group From the Group’s Notebook To assign a user to a group from the Group notebook, do the following: 1. In the Group list, click the group’s name – or – In the main panel, select the group’s name, then click Modify.
Page 131: Removing Users From A Group From The Group's Notebook
Chapter 7. User Management Removing Users From a Group From the Group’s Notebook To remove a user from a group from the Group’s notebook, do the following: 1. In the Group list, click the group’s name – or – In the main panel, select the group’s name, then click Modify. 2.
Page 132: Device Assignment
KVM Over the NET™ User Manual Device Assignment When a user logs in to the KVM Over the NET switch, the interface comes up with the Port Access page displayed. All the ports that the user is permitted to access are listed in the Port Selection panel at the left of the page. Access permissions for those ports and the devices connected to them are assigned on a port-by-port basis from the User or Group list of the User Management page.
Page 133 Chapter 7. User Management 3. Under the Access or USB column, click the icon that corresponds to the port you want to configure to cycle through the choices, as shown below: Icon Meaning Description The user can view the remote screen and can perform Full Access operations on the remote system from his keyboard and monitor.
Page 134: Filters
KVM Over the NET™ User Manual Filters There are three filters at the top of the page that allow you to expand or limit the scope of the ports that are displayed, as described in the following table: Filter Description Name To filter on the port name, key in the name, partial name, or partial name and wild card ( * ) then press Enter.
Page 135: Chapter 8. Device Management
Chapter 8 Device Management Overview The Device Management page allows super administrators to configure and control overall KVM Over the NET switch operations. Web Browser Interface GUI Interface...
Page 136: Device Information
KVM Over the NET™ User Manual Device Information The General section of the Device Information page presents information about the selected device. Note: The screenshot shows the GUI version. The Web version only displays the upper panel. Each item of this section is described in the following table. Item Meaning Device Name...
Page 137 Chapter 8. Device Management The lower panel of the GUI page presents information about the selected device, as described in the table, below: Item Description Power Supply Detection The icons for Power Supply 1 and Power Supply 2 display in gray when there is no power to the power supply – they display in blue when power is present.
Page 138: Network
KVM Over the NET™ User Manual Network The Network page is used to specify the KVM Over the NET switch network environment.
Page 139: Service Ports
Chapter 8. Device Management Service Ports As a security measure, if a firewall is being used, the Administrator can specify the port numbers that the firewall will allow. Users must specify the port number when they log in. If an invalid port number (or no port number) is specified, the KVM Over the NET switch will not be found.
Page 140: Nic Settings
KVM Over the NET™ User Manual NIC Settings Redundant NIC The KVM Over the NET switch is designed with two network interfaces. If Redundant NIC is enabled (the default), both interfaces make use of the IP address of Network Adapter 1. Under this configuration, the second interface is usually inactive.
Page 141: Ip Address
Chapter 8. Device Management IP Address The KVM Over the NET switch can either have its IP address assigned dynamically (DHCP), or it can be given a fixed IP address. For dynamic IP address assignment, select the Obtain IP address automatically radio button.
Page 142: Anms
KVM Over the NET™ User Manual ANMS The Advanced Network Management Settings page is used to set up login authentication and authorization management from external sources. It is divided into three main panels, as described, below:...
Page 143: Ip Installer
Chapter 8. Device Management IP Installer The IP Installer is an external Windows-based utility for assigning IP addresses to the KVM Over the NET switch. Click one of the radio buttons to select Enable, View Only, or Disable for the IP Installer utility.
Page 144: Log Server
KVM Over the NET™ User Manual Log Server Important transactions that occur on the KVM Over the NET switch, such as logins and internal status messages, are kept in an automatically generated log file. Specify the MAC address and a port number for the computer that the Log Server resides on in this panel.
Page 145: Radius Settings
Chapter 8. Device Management RADIUS Settings To allow authentication and authorization for the KVM Over the NET switch through a RADIUS server, do the following: 1. Check Enable. 2. Fill in the IP addresses and port numbers for the Preferred and Alternate RADIUS servers.
Page 146: Ldap / Ldaps Authentication And Authorization Settings
KVM Over the NET™ User Manual LDAP / LDAPS Authentication and Authorization Settings To allow authentication and authorization for the KVM Over the NET switch via LDAP / LDAPS, refer to the information in the table, below: Item Action Enable Put a check in the Enable checkbox to allow LDAP / LDAPS authentication and authorization.
Page 147: Oobc
Chapter 8. Device Management OOBC In case the KVM Over the NET switch cannot be accessed with the usual LAN-based methods, it can be accessed via the switch’s modem port. This page is used to enable support for PPP (modem) dial in operation. An explanation of the items is given in the table below: Item Action...
Page 148: Security
KVM Over the NET™ User Manual Security The Security page controls access to the KVM Over the NET switch.
Page 149: Ip And Mac Filtering
Chapter 8. Device Management IP and MAC Filtering If any filters have been configured, they appear in the IP Filter and/or MAC Filter list boxes. IP and MAC Filters control access to the KVM Over the NET switch based on the IP and/or MAC addresses of the computers attempting to connect. A maximum of 100 IP filters and 100 MAC filters are allowed.
Page 150: Deleting Filters
KVM Over the NET™ User Manual Deleting Filters To delete a filter, select it in the IP Filter and/or MAC Filter list boxes and click Delete. Login String The Login String entry field lets the super administrator specify a login string (in addition to the IP address) that users must include when accessing the KVM Over the NET switch with a browser.
Page 151: Encryption
Chapter 8. Device Management Encryption These flexible encryption alternatives for keyboard/mouse, video, and virtual media data let you choose any combination of DES; 3DES; AES; RC4; or a Random cycle of any or all of them. Enabling encryption will affect system performance –...
Page 152: Customization
KVM Over the NET™ User Manual Customization The Customization page is used to set Login Failure, Working Mode, and Miscellaneous parameters. Login Failures Allowed sets the number of consecutive failed login attempts that are permitted from a remote computer. Timeout sets the amount of time a remote computer must wait before attempting to login again after it has exceeded the number of allowed failures.
Page 153: Working Mode
Chapter 8. Device Management Working Mode If ICMP is enabled, the KVM Over the NET switch can be pinged and an IP address can be assigned with the ARP command. If it is not enabled, the device cannot be pinged, nor can it be assigned an IP address with the ARP command.
Page 154: Miscellaneous
KVM Over the NET™ User Manual Miscellaneous The functions performed by the remaining elements at the bottom of the screen are described in the table, below: Parameter Explanation Clear Port Names This function removes the names that have been assigned to the ports settings (see Port Naming, page 88).
Page 155: Reset On Exit
Chapter 8. Device Management The attribute setting details are the same as the ones that were discussed in Chapter 6, Port Access. Refer back to Port Properties, page 86 for attribute details. Select any of the available options from the dropdown listbox for any port. Note: With the GUI version, you can use [Shift] Click or [Ctrl] Click to select several ports and set an attribute for all of them at the same time After making your choices, click Save to save your settings and exit.
Page 156: Date/Time
KVM Over the NET™ User Manual Date/Time The Date/Time dialog page sets the KVM Over the NET switch time parameters: Set the parameters according to the information below. Time Zone To establish the time zone that the KVM Over the NET switch is located in, drop down the Time Zone list and choose the city that most closely corresponds to where it is at.
Page 157: Date
Chapter 8. Device Management Date Select the month from the dropdown listbox. Click < or > to move backward or forward by one year increments. In the calendar, click on the day. To set the time, use the 24 hour HH:MM:SS format. Click Set to save your settings.
Page 158 KVM Over the NET™ User Manual This Page Intentionally Left Blank...
Page 159: Chapter 9 Maintenance
Chapter 9 Maintenance Overview The Maintenance function is used to upgrade the KVM Over the NET switch firmware, as well as the firmware of the KVM Adapter Cables. Web Browser Interface GUI Interface...
Page 160: Page Layout
KVM Over the NET™ User Manual Page Layout The organization of the Web Browser and GUI pages are similar The differences are as follows: The Web version has separate menu bar entries for upgrading the main firmware and Adapter firmware. The Web version has a menu bar entry for Backup and Restore.
Page 161 Chapter 9. Maintenance The Main Panel A description of the items shown in this panel are described in the table, below: Item Description Name KVM Over the NET A listing of the switch ports. The checkbox is for selecting ports whose KVM Adapter firmware you want to upgrade.
Page 162: Upgrading The Main Firmware
KVM Over the NET™ User Manual Upgrading the Main Firmware The following procedure describes upgrading the main firmware. To perform the upgrades, do the following: 1. Go to our website and download the new firmware file to a convenient location on your computer. 2.
Page 163: Adapter Firmware Upgrade
Chapter 9. Maintenance Adapter Firmware Upgrade The following procedure describes upgrading the firmware of selected KVM Adapter Cables. To perform the upgrades, do the following: 1. Click the Adapter Firmware Info button to see the adapter firmware versions stored by the main firmware. 2.
Page 164: Firmware Upgrade Recovery
KVM Over the NET™ User Manual Firmware Upgrade Recovery Should the switch’s main firmware upgrade procedure fail, and the switch becomes unusable, the following firmware upgrade recovery procedure will resolve the problem: 1. Power off the switch. 2. Press and hold the Reset Switch in (see Reset Switch, page 11 for details). 3.
Page 165: Backup/Restore
Chapter 9. Maintenance Backup/Restore When you select Backup/Restore on the Web version menu bar gives you the ability to back up the switch’s configuration and user profile information: Backup To backup the device’s settings do the following: 1. In the Password field, key in a password for the file. Note: Make a note of the password, since you will need it to be able to restore the file.
Page 166: Restore
KVM Over the NET™ User Manual Restore To restore a previous backup, do the following: 1. Click Browse; navigate to the file and select it. 2. In the Password field, key in the same password that you used to save the file.
Page 167: Chapter 10 Download
Chapter 10 Download Overview Download is used to download stand-alone AP versions of the Windows Client, the Java Client, the Log Server, and Power Over the Net (PON) programs. When you select this tab, a list of available programs appears: Note: The number and type of programs that appear will vary depending on your User Type.
Page 168 KVM Over the NET™ User Manual This Page Intentionally Left Blank...
Page 169: Chapter 11. Port Operation
Chapter 11 Port Operation Overview After you have successfully logged in (see Logging In, page 37), the KVM Over the NET switch’s Main Page appears with the Port Access tab selected: Note: 1. The WinClient and Java Client AP programs have a hidden Control Panel either at the upper or lower center of the screen that becomes visible when you mouse over it.
Page 170: The Port Toolbar
KVM Over the NET™ User Manual Once you switch to a port, its screen displays on your monitor, and your keyboard and mouse input affects the remote system: The Port Toolbar The switch interface provides a toolbar to help you with port switching operations from within the captured port.
Page 171: The Toolbar Icons
Chapter 11. Port Operation The Toolbar Icons The meanings of the toolbar icons are explained in the table below. Icon Purpose Click to skip to the first accessible port on the entire installation without having to recall the Port Access page. Click to skip to the first accessible port previous to the current one without having to recall the Port Access page.
Page 172: Toolbar Hotkey Port Switching
KVM Over the NET™ User Manual Toolbar Hotkey Port Switching When the toolbar displays, you can use hotkeys to provide KVM focus to a port directly from the keyboard. The KVM Over the NET switch provides the following hotkey features: Auto Scanning Skip Mode Switching The hotkeys are: A and P for Auto Scanning;...
Page 173: Pausing Auto Scan
Chapter 11. Port Operation Pausing Auto Scan While you are in Auto Scan Mode, you can pause the scanning in order to keep the focus on a particular computer by pressing P. During the time that Auto Scanning is paused, the S in front of the Port ID blinks On and Off. Pausing when you want to keep the focus on a particular computer can be more convenient than exiting Auto Scan Mode because when you Resume scanning, you start from where you left off.
Page 174: Recalling The Port Access Page
KVM Over the NET™ User Manual Recalling the Port Access Page To dismiss the toolbar and bring back the Port Access page, do one of the following: Tap the OSD Hotkey once. From the toolbar, click the icon that recalls the Port Access page (see The Toolbar Icons, page 157).
Page 175: Panel Array Mode
Chapter 11. Port Operation Panel Array Mode Clicking the toolbar's Panel icon invokes Panel Array Mode. Under this mode, the your screen divides into a grid of up to 42 panels: Each panel represents one of the switch’s ports beginning with Port 1 at the upper left, and going from left to right;...
Page 176: Panel Array Toolbar
KVM Over the NET™ User Manual Panel Array Toolbar The panel array toolbar, (hidden at the top center of the screen for the Java Applet Viewer and Java Client AP), provides shortcut navigation and control of the panel array. Mouse over the top center to bring up the toolbar. If you like, you can click and drag it anywhere on the screen.
Page 177: Multiuser Operation
Chapter 11. Port Operation Multiuser Operation The KVM Over the NET switch supports multiuser operation. When multiple users simultaneously access the switch from Local Client computers, the rules of precedence that apply are shown in the following table: Operation Rule General Each bus is independent, for the method by which users are assigned to buses, see the next section, Users and Buses.
Page 178: Users And Buses
KVM Over the NET™ User Manual Users and Buses The KN2132, KN2124v, and KN2140v only support two remote buses. The first, third, fifth, etc., users to log in are all on one bus; the second, fourth, sixth, etc., users to log in are all on the other bus.
Page 179: Chapter 12. The Log Server
Chapter 12 The Log Server The Windows-based Log Server is an administrative utility that records all the events that take place on selected KVM Over the NET switch units and writes them to a searchable database. This chapter describes how to install and configure the Log Server.
Page 180: Starting Up
KVM Over the NET™ User Manual Starting Up To start the Log Server, either double click the program icon, or key in the full path to the program on the command line. The first time your run it, a screen similar to the one below appears: Note: The MAC address of the Log Server computer must be specified on the Device Management Date/Time page (see page 142).
Page 181: The Menu Bar
Chapter 12. The Log Server The Menu Bar The Menu bar consists of four items: Configure Events Options Help These are discussed in the sections that follow. Note: If the Menu Bar appears to be disabled, click in the List window to enable it.
Page 182: Events
KVM Over the NET™ User Manual A description of the fields is given in the table, below: Field Explanation Address This can either be the IP address of the unit or its DNS name (if the network administrator has assigned it a DNS name). Port The port number that was assigned to the Log Server (see Date/Time, page 142).
Page 183: Maintenance
Chapter 12. The Log Server A description of the items is given in the table, below: Item Description New search This is one of three radio buttons that define the scope of the search. If it is selected, the search is performed on all the events in the database for the selected unit.
Page 184: Options
KVM Over the NET™ User Manual Options Network Retry allows you to set the number of seconds that the Log Server should wait before attempting to connect if its previous attempt to connect failed. When you click this item, a dialog box, similar to the one below, appears: Key in the number of seconds, then click OK to finish.
Page 185: The Log Server Main Screen
Chapter 12. The Log Server The Log Server Main Screen Overview The Log Server Main Screen is divided into two main panels. The upper (List) panel lists all of the units that have been selected for the Log Server to track (see Configure, page 167). The lower (Event) panel displays the tick information for the currently selected unit.
Page 186: The List Panel
KVM Over the NET™ User Manual The List Panel The List panel contains six fields: Field Explanation Recording Determines whether the Log Server records the ticks for this unit, or not. If the Recording checkbox is checked, the field displays Recording, and the ticks are recorded. If the Recording checkbox is not checked, the field displays Paused, and the ticks are not recorded.
Page 187: Ldap Server Configuration
Chapter 13 LDAP Server Configuration Introduction The KVM Over the NET switch allows log in authentication and authorization through external programs. This chapter describes how to configure Active Directory for KVM Over the NET switch authentication and authorization. To allow authentication and authorization via LDAP or LDAPS, the Active Directory’s LDAP Schema must be extended so that an extended attribute name for the KVM Over the NET switch –...
Page 188: Install The Active Directory Schema Snap-In
KVM Over the NET™ User Manual Install the Active Directory Schema Snap-in To install the Active Directory Schema Snap-in, do the following: 1. Open a Command Prompt. 2. Key in: regsvr32 schmmgmt.dll to register schmmgmt.dll on your computer. 3. Open the Start menu; click Run; key in: mmc /a; click OK. 4.
Page 189: Extend And Update The Active Directory Schema
Chapter 13. LDAP Server Configuration Extend and Update the Active Directory Schema To extend and update the Active Directory Schema, you must do the following 3 procedures: 1) create a new attribute; 2) extend the object class with the new attribute;...
Page 190 KVM Over the NET™ User Manual (Continued from previous page.) 5. Fill in the dialog box to match the entries for Description and Common Name shown below, then click OK to complete the procedure. Note: The Unique X500 Object ID uses periods, not commas.
Page 191: Extending The Object Class With The New Attribute
Chapter 13. LDAP Server Configuration Extending the Object Class With the New Attribute To extend the object class with the new attribute, do the following: → → 1. Open the Control Panel Administrative Tools Active Directory Schema. 2. In the left panel of the screen that comes up, select Classes. 3.
Page 192 KVM Over the NET™ User Manual 5. On the Attributes page, click Add: 6. In the list that comes up, select iKVM4140-userProfile, then click OK to complete the procedure.
Page 193: Editing Active Directory Users
Chapter 13. LDAP Server Configuration Editing Active Directory Users To edit Active Directory Users With the Extended Schema, do the following: 1. Run ADSI Edit. (Installed as part of the Support Tools.) 2. In the left panel, open Domain, and navigate to the DC=aten,DC=com CN=Users node.
Page 194 KVM Over the NET™ User Manual (Continued from previous page.) 5. On the Attribute Editor page of the dialog box that appears, select iKVM4140-userProfile from the list. 6. Click Edit to bring up the String Attribute Editor: (Continues on next page.)
Page 195 Chapter 13. LDAP Server Configuration (Continued from previous page.) 7. Key in the KVM Over the NET switch permission attribute values. For example: Note: Where user represents the Username of a KVM Over the NET switch user whose permissions reflect the permissions you want Jason to have (see Users, page 107).
Page 196 KVM Over the NET™ User Manual This Page Intentionally Left Blank...
Page 197: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. Do not use the device near water.
Page 198 KVM Over the NET™ User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
Page 199: Rack Mounting
Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.
Page 200: Technical Support
KVM Over the NET™ User Manual Technical Support Technical support is available both by email and online (with a browser over the web): International Email Support support@aten.com Online Technical Support http://support.aten.com Support Troubleshooting http://www.aten.com Documentation Software Updates Telephone Support 886-2-8692-6959 North America Email Support ATEN TECH support@aten-usa.com...
Page 201: Specifications
Appendix Specifications KN2124v / KN4124v Function KN2124v KN4124v Computer Direct Connections 384 (via cascade) Port Selection Pushbutton / GUI / Hotkey Connectors Console Port 1 x SPHD-18 Female (Yellow) KVM Port 24 x RJ-45 Female (Black) Power 2 x 3-prong AC socket...
Page 202: Kn2140V / Kn4140V
KVM Over the NET™ User Manual KN2140v / KN4140v Function KN2140v KN4140v Computer Direct Connections 640 (via cascade) Port Selection Pushbutton / GUI / Hotkey Connectors Console Port 1 x SPHD-18 Female (Yellow) KVM Port 40 x RJ-45 Female (Black) Power 2 x 3-prong AC socket 2 x RJ-45 Female (Black)
Page 203: Kn4116
Appendix KN4116 Function Description Computer Direct Connections 256 (via cascade) Port Selection Pushbutton / GUI / Hotkey Connectors Console Keyboard 1 x 6-pin Mini-DIN Female (Purple) Port 1 x USB Type A Female (White) Video 1 x HDB-15 Female (Blue) Mouse 1 x 6-pin Mini-DIN Female (Green) 1 x USB Type A Female (White)
Page 204: Kn2132 / Kn4132
KVM Over the NET™ User Manual KN2132 / KN4132 Function KN2132 KN4132 Computer Direct Connections Port Selection Pushbutton / GUI / Hotkey Connectors Console Keyboard 1 x 6-pin Mini-DIN Female (Purple) Port 1 x USB Type A Female (White) Video 1 x HDB-15 Female (Blue) Mouse 1 x 6-pin Mini-DIN Female (Green)
Page 205: Troubleshooting
Appendix Troubleshooting General Operation Problem Resolution I am confused about which By Local, we mean the place where the user is equipment the terms Local and operating from – whether he is connecting to the Remote refer to. switch from the Local Console right next to the switch, or from a Local Client login located half- way around the world.
Page 206 Since the PN9108 already has over IP functionality, I run the PON AP. there is no need for the KN2124v / KN2140v / KN4124v / KN4140v / KN2132 / KN4116 / KN4132 to provide it. Therefore, only PON devices that don’t have their own over IP functionality (such as the PN0108) are supported.
Page 207: Mouse Problems
Appendix Mouse Problems Problem Resolution Mouse and/or Keyboard not Check that your KVM Adapter Cable’s firmware version responding. is the same as the version stored in the switch’s Main firmware. See Adapter Firmware Upgrade, page 149, for details. Unplug the cable(s) from the console port(s), then plug it/ them back in.
Page 208 KVM Over the NET™ User Manual Problem Resolution When I log in with my Mac There are two automatic Mouse DynaSync settings: the system, the local and default, and Mac2. If mouse synchronization is not remote mouse pointers do satisfactory with the default, try the Mac 2 setting. See not sync.
Page 209: Virtual Media
Appendix Virtual Media Problem Resolution Virtual Media doesn’t The remote server’s mainboard does not support USB. If work. there is a newer firmware and BIOS version for the remote server’s mainboard – one that supports USB – get it from the manufacturer and upgrade the server’s mainboard firmware and BIOS.
Page 210: The Winclient Activex Viewer And The Winclient Ap
KVM Over the NET™ User Manual The WinClient ActiveX Viewer and the WinClient AP Problem Resolution My switch units don’t Only units whose Access Port settings for Program (see show up in the Server List page 142) match the number specified for Port in the window when I start the Server area of this dialog box appear in the Server List WinClient AP program.
Page 211: The Java Applet And Java Client Ap
Appendix The Java Applet and Java Client AP Problem Resolution I can't connect to the switch. 1. The latest Java version must be installed on your Local Client computer. 2. Check if you need to specify the Program port along with the IP address.
Page 212: Sun Systems
KVM Over the NET™ User Manual Sun Systems Problem Resolution Video display problems with The display resolution should be set to 1024 x 768 @ HDB15 interface systems 60Hz: (e.g. Sun Blade 1000 Under Text Mode: servers).* Go to OK mode and issue the following commands: setenv output-device screen:r1024x768x60 reset-all Under XWindow:...
Page 213: The Log Server
Appendix The Log Server Problem Resolution The Log Server program The Log Server requires the Microsoft Jet OLEDB 4.0 does not run. driver in order to access the database. This driver is automatically installed with Windows ME, 2000 and XP. For Windows 98 or NT, you will have to go to the Microsoft download site: http://www.microsoft.com...
Page 214: Ip Address Determination
KVM Over the NET™ User Manual IP Address Determination If you are an administrator logging in for the first time, you need to access the switch in order to give it an IP address that users can connect to. There are three methods to choose from.
Page 215: Browser
Appendix 3. Select the switch in the Device List. Note: 1. If the list is empty, or your device doesn't appear, click Enumerate to refresh the Device List. 2. If there is more than one device in the list, use the MAC address to pick the one you want.
Page 216: Port Forwarding
KVM Over the NET™ User Manual Port Forwarding For devices located behind a router, port forwarding allows the router to pass data coming in over a specific port to a specific device. By setting the port forwarding parameters, you tell the router which device to send the data coming in over a particular port to.
Page 217: Ppp Modem Operation
Appendix PPP Modem Operation Basic Setup In addition to the browser and AP methods, the switch can also be accessed through its RS-232 port using a PPP dial-in connection, as follows: 1. Set up your hardware configuration to match the diagram, below: SA0142 Cat 5e Cable (DB9-M, DTE - DCE)
Page 218: Connection Setup Example (Windows Xp)
KVM Over the NET™ User Manual Connection Setup Example (Windows XP) To set up a dial-in connection to the switch under Windows XP, do the following: → → 1. From the Start menu, select Control Panel Network Connections Create a New Connection. 2.
Page 219: Ka7140 Configuration And Operation
Appendix KA7140 Configuration and Operation The KA7140 Adapter Cable connects a serial device to the switch. Configuration To configure the KA7140 to interact with the connected device, you need to set its serial parameters to match the parameters of the device, as follows: 1.
Page 220: Additional Mouse Synchronization Procedures
KVM Over the NET™ User Manual Additional Mouse Synchronization Procedures If you use Manual Mouse Synchronization, you must perform the following operations on the remote servers that connect to the switch. Note: 1. These procedures are to be performed on the computers attached to the switch’s ports - not on the computer you are using to access the switch.
Page 221: Sun / Linux
Appendix 2. Windows XP / Windows Server 2003: → a) Open the Mouse Properties dialog box (Control Panel Mouse) b) Click the Pointer Options tab c) Set the mouse speed to the middle position (6 units in from the left) d) Disable Enhance Pointer Precision 3.
Page 222: Additional Video Resolution Procedures
KVM Over the NET™ User Manual Additional Video Resolution Procedures If you are running Windows, and wish to use the refresh rates indicated with an asterisk (*) on page 8, do the following: → → → → 1. Open Control Panel Display Settings Advanced...
Page 223: Trusted Certificates
Appendix Trusted Certificates Overview When you try to log in to the device from your browser, a Security Alert message appears to inform you that the device’s certificate is not trusted, and asks if you want to proceed. The certificate can be trusted, but the alert is triggered because the certificate’s name is not found on Microsoft list of Trusted Authorities.
Page 224: Installing The Certificate
KVM Over the NET™ User Manual Installing the Certificate To install the certificate, do the following: 1. In the Security Alert dialog box, click View Certificate. The Certificate Information dialog box appears: Note: There is a red and white X logo over the certificate to indicate that it is not trusted.
Page 225: Certificate Trusted
Appendix 5. Next, click Finish to complete the installation; then click OK to close the dialog box. Certificate Trusted The certificate is now trusted: When you click View Certificate, you can see that the red and white X logo is no longer present –...
Page 226: Fan Location And Speed Information
KVM Over the NET™ User Manual Fan Location and Speed Information Fan Location The switch has 6 fans that feed realtime fan speed information to the WinClient / Java Client Device Management page. The fan locations in the above image are listed in the Device Information section under Fan Speed.
Page 227: Temperature Sensor Location And Information
Appendix Temperature Sensor Location and Information The switch has 4 temperature sensors on its mainboard that feed realtime temperature updates to the WinClient / Java Client Device Management page. The sensors in the above image are listed in the Device Information section under Temperature.
Page 228: Clear Login Information
KVM Over the NET™ User Manual Clear Login Information If you are unable to perform an Administrator login (because the Username and Password information has become corrupted or you have forgotten it, for example) you can clear the login information with the following procedure. Note: Performing this procedure also returns all settings to their defaults.
Page 229: Factory Default Settings
Appendix Factory Default Settings The default settings are as follows: Setting Default Language English OSD Hotkey [Scroll Lock] [Scroll Lock] Port ID Display Port Number + Name Port ID Display Duration 3 Seconds Scan/Skip Mode Scan Duration 5 Seconds Screen Blanker 0 Minutes (disabled) Beeper Viewer...
Page 230: Supported Kvm Switches
KVM Over the NET™ User Manual Supported KVM Switches The following is a list of fully supported KVM switches that can be used in a cascaded installation: KH88 KH98 KH1508 KH1516 CS9134 CS9138 Note: The installation cannot be cascaded beyond the second level. Virtual Media Support WinClient ActiveX Viewer / WinClient AP IDE CDROM/DVD-ROM Drives –...
Page 231: Limited Warranty
Appendix Limited Warranty ALTUSEN warrants this product against defects in material or workmanship for a period of one (1) year from the date of purchase. If this product proves to be defective, contact ALTUSEN's support department for repair or replacement of your unit. ALTUSEN will not issue a refund. Return requests can not be processed without the original proof of purchase.
Page 232 KVM Over the NET™ User Manual This Page Intentionally Left Blank...
Page 233 Index Rear View, 12 Control Panel, 48 Access, 101 Java Client AP, 79 Access Ports, 125 WinClient, 51 Adapter Attributes, 140 Creating Groups, 111 Adapter cable Customization page, 138 firmware upgrade recovery, 150 Adapter Cables upgrading, 149 Date/Time Settings, 142 Adapter connection diagram, 25 Synchronize, 47 Adapter ID Function, 28...
Page 234 KVM Over the NET User Manual IP, 135 Logging in, 42 MAC, 135 Firmware KA7140 Setup and Operation, 205 upgrading, 145, 148 Keyboard Firmware Upgrade On-Screen, 73 Adapters, 149 KVM Adapter Cables Firmware upgrade recovery, 150 upgrading, 149 Firmware, Upgrading, 47 Front View, 10 LDAP / LDAPS, 132 LDAP Server Configuration, 173...
Page 235 Index filter log, 99 log page, 98 MAC Filtering, 135 Sessions, 100 Managing Groups, 111 Port Access Page Managing Users, 107 Recalling, 160 Message Board Port Forwarding, 202 Windows Client, 66 Port ID Numbering, 29 Modem operation, 203, 213 Port names Modifying groups, 113 clearing, 140 Modifying user accounts, 110...
Page 236 KVM Over the NET User Manual Security page, 134 Local Console, 50 Serial Adapter pin Tab bar, 47 assignments, 215 Web Browser Main Page, 45 Sessions, 100 User interface Single Station Installation, 21 Page components, 46 SJ/T 11364-2006, ii User Management, 105 Skip Mode, 159 User Notice, iii Stacking, 16...
