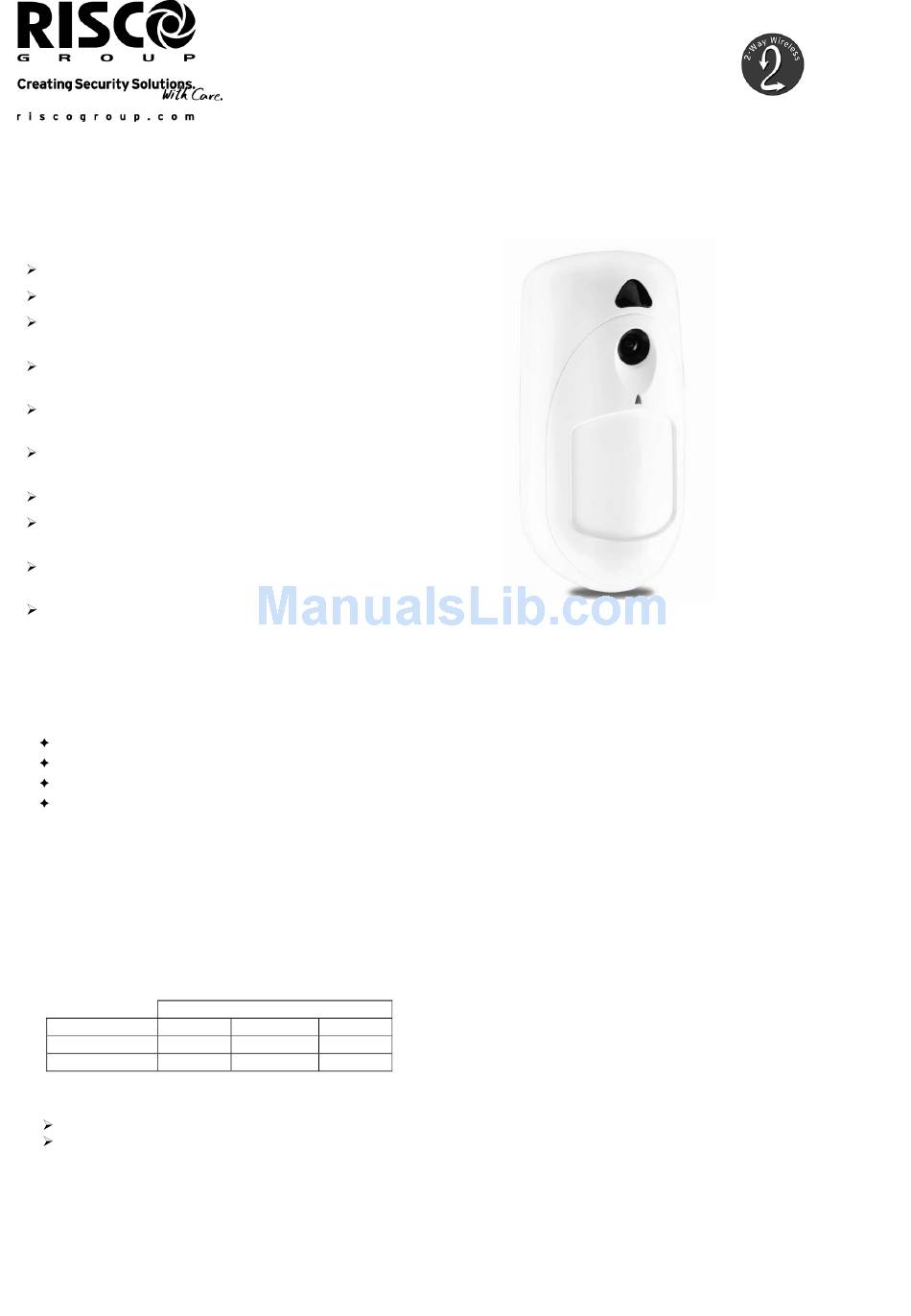

Description

Wireless eyeWave™ is a battery powered PIR detector with an integrated camera, designed for video verification and simple
installation by alarm installers. The camera captures and transmits a sequence of images to a remote server or to mobile phones via
RISCO systems, upon an intrusion event or homeowner demand.

Main Features

PIR coverage 12m (40') wide angle
VGA camera resolution with ~90° field-of-view
Discreet IR flash allows imaging in complete
darkness, up to 10m (33')
Sequence of images upon event, configurable
number and fps
During disarm, events are ignored to save
battery and for privacy
On-demand images initiated from authorized mobile
phone or web browser
Two RF channels with separate antennas:
One for control, second channel for image
transmission
Images stored on detector until transmission to
panel complete
Includes 2 long-life 3V lithium batteries

Installation

Step1: Preliminary Considerations

1. Select the mounting location for best coverage of the area that is to be protected (see Coverage Patterns).
Pay attention to the following:
Do not touch the lens with your finger as it will result in blurred image capture.
Do not mount the detector in direct sunlight or near heated sources and metal objects.
Detection sectors should be pointed towards either the wall or the floor and not towards windows and curtains.
Select mounting height according to the coverage patterns (recommended: 2.0–2.4 m in height and at least 40cm from ceiling).

Step 2: Registering the Detector into the system

The eyeWAVE must identify itself to the system receiver in a device allocation (enrollment) process, which can be performed by either
RF sequence registering or entering the detector's 11-digit serial number into the system or using RF mode (Panel Quick Key
Programming Sequence:
1) Radio Devices > 1) Allocation > 1)By RF or 2)By Code.
Refer to the Agility installation manual for full instructions.

Step 3: Mounting the detector

1. Open the knockout holes of the mounting bracket, and use them as a template for mounting according to the following table (see
Figure 1).
Knockout for
Left
Bracket
7,8
Tamper
For Pet-Friendly Model:
In order to optimize pet immunity the following guide lines are recommended:
Mount the detector vertically at right angles to the floor.
Make sure an animal cannot get above height of 1.5m (5') by climbing on furniture, shelving or stairs.
2. Fasten the cover to the base of the detector by inserting and fastening screw (B) into the hole located inside the battery
compartment. (see Figure 3)
3. Insert the batteries and close the battery compartment cover. (see Figure 3)
4. Once the bracket is installed, slide and lock the detector onto the mounting bracket in reverse sequence. (see Figure 2)
5. Perform a Walk Test as described in the Walk Test section.
6. Insert and fasten screw (C) into the hole located at the bottom of the detector to lock the detector to the mounting bracket. (see
Figure 3).
Mounting position
Flat
Right
1,2,3,4
5,6
9
10
11
eyeWAVE™
Wireless PIR Camera
Installation Instructions
Page 1
