Black & Decker 9072 Instruction Manual

Cordless
Hide thumbs


Advertisement

Quick Links

9 9
0 0
7 7
2 2
a a
n n
d d
9 9
0 0
7 7
4 4
C C
O O
9 9
0 0
7 7
2 2
a a
n n
d d
9 9
0 0
7 7
4 4
C C
O O

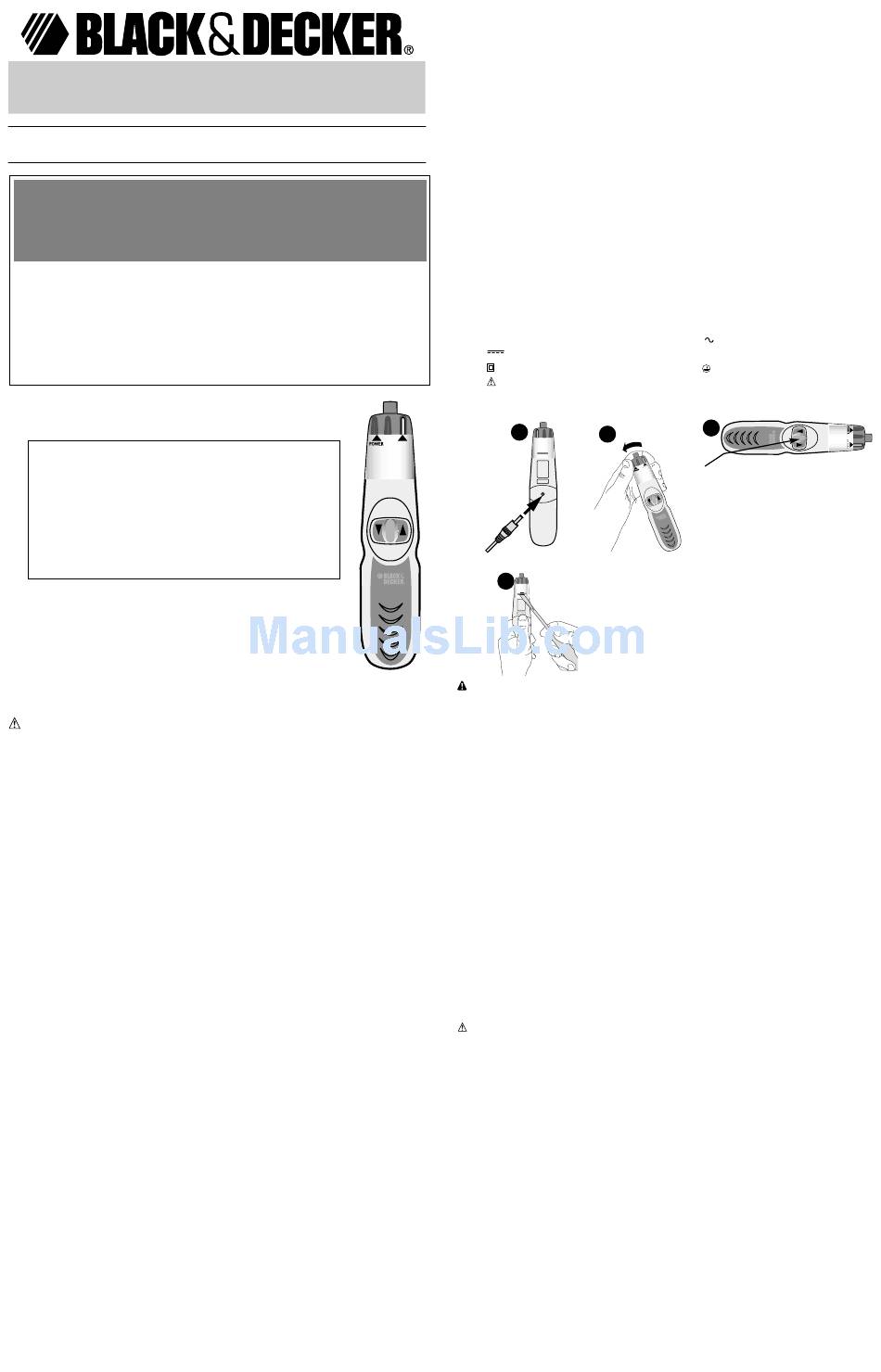

INSTRUCTION MANUAL
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON PLEASE CALL
1-800-54-HOW-TO
IF YOU SHOULD EXPERIENCE A PROBLEM
WITH YOUR BLACK & DECKER PURCHASE,
CALL 1-800-54-HOW-TO (1-800-544-6986).
IN MOST CASES, A BLACK & DECKER REPRESENTATIVE
CAN RESOLVE YOUR PROBLEM OVER THE PHONE.
IF YOU HAVE A SUGGESTION OR COMMENT,
GIVE US A CALL. YOUR FEEDBACK IS VITAL
TO THE SUCCESS OF BLACK & DECKER'S QUALITY
IMPROVEMENT PROGRAM.
KEY INFORMATION YOU SHOULD KNOW:
TO CHARGE: Charge12 hours before first use.
TO OPERATE: Rotate the black collar to the position marked power.
The orange button must be in the forward/reverse position and
depressed to operate tool in either direction. When the button is in
the center, it is in a safety position and will not operate.
TO INSTALL A BIT : Insert bit firmly into the cavity in the spindle
until it snaps into place. If the bit does not fit into the spindle, rotate
the bit and re-insert it.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
VEA EL ESPAÑOL EN LA CONTRAPORTADA.
INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA
DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES
DE USAR EL PRODUCTO.
Cat No. 9072 / 9074
Form No. 612268-00
GENERAL SAFETY RULES - FOR ALL BATTERY OPERATED TOOLS
WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS.
Failure to follow all instructions listed below, may result in electric shock, fire and/or serious
personal injury.
SAVE THESE INSTRUCTIONS
Work Area
• Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or
fumes.
• Keep bystanders, children, and visitors away while operating a power tool. Distractions
can cause you to lose control.
Electrical Safety
• A battery operated tool with integral batteries or a separate battery pack must be
recharged only with the specified charger for the battery. A charger that may be suitable
for one type of battery may create a risk of fire when used with another battery.
• Use battery operated tool only with specifically designated battery pack. Use of any
other batteries may create a risk of fire.
Personal Safety
• Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use tool while tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating power tools may result in serious
personal injury,
• Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your
hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
• Avoid accidental starting. Be sure switch is in the locked or off position before
inserting battery pack. Carrying tools with your finger on the switch or inserting the battery
pack into a tool with the switch on invites accidents.
• Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that is
left attached to a rotating part of the tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. Proper footing and
balance enable better control of the tool in unexpected situations.
• Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes,
hard hat, or hearing protection must be used for appropriate conditions.
Tool Use and Care
• Use clamps or other practical way to secure and support the workpiece to a stable
platform. Holding the work by hand or against your body is unstable and may lead to loss of
control.
• Do not force tool. Use the correct tool for your application. The correct tool will do the job
better and safer at the rate for which it is designed.
• Do not use tool if switch does not turn it on or off. A tool that cannot be controlled with the
switch is dangerous and must be repaired.
• Disconnect battery pack from tool or place the switch in the locked or off position
before making any adjustments, changing accessories, or storing the tool. Such
preventive safety measures reduce the risk of starting the tool accidentally.
• Store idle tools out of reach of children and other untrained persons. Tools are
dangerous in the hands of untrained users.
R R
D D
L L
E E
S S
S S
S S
C C
R R
E E
W W
D D
R R
D D
L L
E E
S S
S S
S S
C C
R R
E E
W W
D D
(544-6986)
(MAY-02-1)
Copyright © 2002 Black & Decker
• When battery pack is not in use, keep it away from other metal objects like: paper
clips, coins, keys, nails, screws or other small metal objects that can make a
connection from one terminal to another. Shorting the battery terminals together may
cause sparks, burns, or a fire.
• Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools,
with sharp cutting edge are less likely to bind and are easier to control.
R R
I I
V V
E E
R R
S S
R R
I I
V V
E E
R R
S S
• Check for misalignment or binding of moving parts, breakage of parts, and any other
condition that may affect the tool's operation. If damaged, have the tool serviced
before using. Many accidents are caused by poorly maintained tools.
• Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for one tool may create a risk of injury when used on
another tool.
Service
• Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel may result in a risk of injury.
• When servicing a tool, use only identical replacement parts. Follow instructions in the
Maintenance section of this manual. Use of unauthorized parts or failure to follow
Maintenance Instructions may create a risk of shock or injury.
SPECIFIC SAFETY RULES
• Hold tool by insulated gripping surfaces when performing an operation where the
cutting tool may contact hidden wiring. Contact with a "live" wire will also make exposed
metal parts of the tool "live" and shock the operator.
The label on your tool may include the following symbols.
V ..........................volts
Hz ........................hertz
min ........................minutes
......................direct current
.......................... Class II Construction
........................safety alert symbol
MANUAL
4
Printed in China
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other con-
struction activities contains chemicals known to cause cancer, birth defects or other reproduc-
tive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber (CCA).
Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are specially designed to filter out
microscopic particles.
• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and
other construction activities. Wear protective clothing and wash exposed areas with
soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote
absorption of harmful chemicals.
Charging the Screwdriver
Before attempting to charge your screwdriver, thoroughly read all of the safety instructions.
To charge your screwdriver, follow the steps below.
1. Plug the output cord of the charger into the socket in the back half of the screwdriver
handle as shown in Figure 1.
2. Plug the charger into any standard electrical outlet.
Charging Notes
NOTE: The tool was sent from the factory in an uncharged condition. Before attempting to
use it, it must be charged for 12 hours.
1. Charger will work best at normal room temperature.
2. The charger plug and the tool handle may become warm while charging. This is normal
and does not indicate a problem.
3. The tool can be left on charge as long as you desire. A minimum charge time of 12 hours
is required to recharge a completely discharged tool.
4. For most fix up jobs a charge of 3 to 4 hours will be adequate.
WARNING: When disconnecting the screwdriver from the charger, be sure to unplug the
charger from the outlet first then disconnect the charger cord from the screwdriver.
Operating Instructions
REMOVING AND INSTALLING BITS
Insert power hex bit or bit tip with bit tip holder into the cavity in the spindle until it snaps into
place. To remove the bit pull it straight out. If bit does not fit into spindle, rotate the bit and re-
insert it. Do not insert a bit tip without a bit tip holder.
OPERATING IN POWER MODE
Forward
• Rotate the black collar shown in Figure 2 to the position marked POWER.
• Slide the black button shown in Figure 3 to the right, exposing the arrow pointing forward.
• Press the black button and the tool will run; release the button and the tool will stop.
Reverse
• Rotate the black collar shown in Figure 2 to the position marked POWER.
• Slide the black button shown in Figure 3 to the left, exposing the arrow pointing backward.
• Press the black button and the tool will run; release the button and the tool will stop.
OPERATING IN MANUAL MODE
• Rotate the black collar to the position marked MANUAL.
• Use the tool as any conventional non-powered screwdriver. With the collar in this position,
the forward/reverse button will not be active.
Maintenance
Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the tool;
never immerse any part of the tool into a liquid.
IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and
adjustment (other than those listed in this manual) should be performed by authorized
1
2
A..........................amperes
W ........................watts
......................alternating current
n o ........................no load speed
........................earthing terminal
.../min ..................revolutions or
reciprocations
per minute
3
On/off switch with forward/reverse function
Interrupteur de marche-arrêt muni d'une
fonction de marche avant ou de marche
arrière
Botón de encendido / apagado con función
de marcha / reverso.
