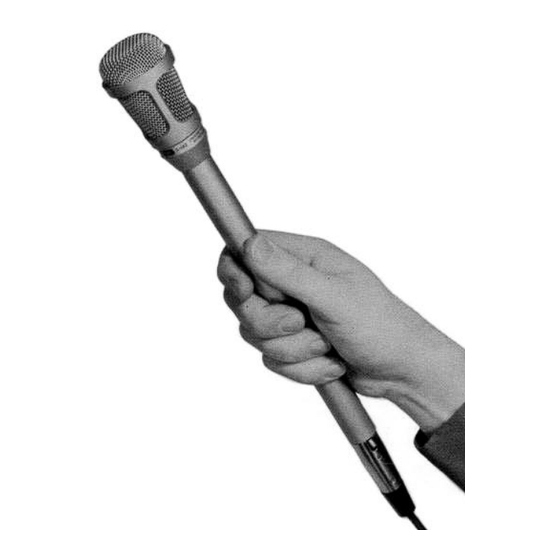

The Model SM82-LC is a hand-held, self-contained,
unidirectional, condenser microphone containing its
own line level amplifier, peak limiter, and battery. It is
designed to provide a line level output for use in a varie-
ty of broadcasting situations where a line level
microphone with a built-in limiter is required.
Microphone Features:
Wide range frequency response for exceptionally
n
clean and natural sound reproduction
Cardioid polar pattern, uniform with frequency and
n
symmetrical about axis, to provide maximum rejec-
tion and minimum coloration of off-axis sound
Balanced line level output can directly drive
n
telephone lines or other line level inputs
Built-in peak limiter controls output level to prevent
n
microphone line amplifier or external equipment
overloading
Internal 9.8V battery operation
n
Phantom powering over a 15V to 50V range
n
Automatic switchover from phantom to battery
n
power
Solid-state line level amplifier output
n
Built-in "pop" and wind filter protects against wind
n
and explosive breath sounds
Unidirectional condenser transducer
n n
Output connector/switch turns microphone on when
n
cable connector is inserted
Copyright 1986, Shure Brothers Inc.
27A1103 (FD)
PROFESSIONAL PRODUCTS
®
n n
n n
n
rugged, reliable line level microphone for broadcast ap-
plications. Intensive laboratory development and
testing in major broadcast studios and remote pickup
sites complemented the field-derived specifications
and features, resulting in an optimum design to meet a
variety of broadcast needs.
the SM82 make it an outstanding choice for such ap-
plications as:
n
n
n n
n
screen, swivel adapter, and mercury battery.
Type
Frequency Response
Polar Pattern
Output Impedance
Rugged construction for outstanding reliability
Can be used over wide range of operating
temperatures and humidity conditions
Very low mechanical handling noise
The Model SM82 was designed to fill the need for a
The exceptional performance and unique features of
Single-Channel Remotes-without separate remote
amplifier.
"Dialed-Up" Telephone Reports - internal resistance
holds "dialed-up" line.
Long-Run Microphone Lines for Parades, Political
Events, Golf Tournaments or Other Live
Remotes - using unshielded cable.
Sports Announcing-limiter prevents overloading of
remote broadcast amplifier.
The SM82 is supplied with an accessory foam wind-
SPECIFICATIONS
Cardioid condenser with line level amplifier and
limiter
40 to 15,000 Hz (see Figure 1)
Cardioid (unidirectional) response-uniform with fre-
quency, symmetrical about axis (see Figure 2)
250 ohms actual (designed for use with 600-ohm or
greater loads)
TYPICAL FREQUENCY RESPONSE
FIGURE 1
Printed in U.S.A.
U.S. Patents 4,000,370 and D239,722
