MODEL SM89
CONDENSER SHOTGUN MICROPHONE

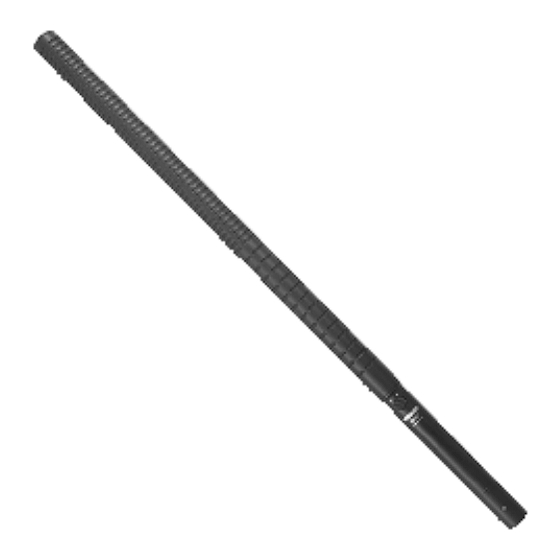

Model SM89 is a highly directional condenser shotgun
microphone with distant pickup characteristics suitable for
on-location film and television production. The SM89 can
also be used for theater sound reinforcement, spot news
coverage, or wildlife recording. The SM89 discriminates at
a distance in favor of desired dialogue or effects and
against ambient noise–even in noisy surroundings.
The on-axis frequency response of the SM89 is very
smooth and extended. For clarity and speech intelligibility,
a slight presence rise optimizes the high-frequency re-
sponse to compensate for high-frequency losses. A low-
frequency roll-off minimizes pickup of wind, mechanical
vibration, ambient noise, and rumble without affecting
voice frequencies.
The off-axis response of the SM89 is virtually free of
comb-filter effects. This is important when it is not possible
to aim the microphone precisely or when it is desirable to
pick up dialogue or sound from moving sources.
2001, Shure Incorporated
27B2365 (AC)
Model SM89 User Guide
FEATURES
Designed especially for location film and TV prodution,
theater sound reinforcement, and spot news coverage
Highly directional polar pattern optimized for distant
pickup
Smooth, wide on-axis response
Greatly suppressed side pickup with minimum comb-
filter effects
Two low-cut frequencies, switch selectable
Low impedance, high sensitivity
Extremely low hum, noise, and RF pickup
Uses readily available 11 to 52 Vdc phantom supply
Rugged and reliable, operates over wide range of tem-
perature and humidity
Extremely lightweight, can be suspended on fishpole for
long periods of time without operator fatigue
Aircraft-grade materials used throughout
Supplied with foam windscreen and strong luggage-
grade carrying case
SPECIFICATIONS
Type
Pressure gradient/line combination
Transducer
Condenser
Frequency Response
60 to 20,000 Hz (see Figure 1*)
*Curves shown at 1.8m (6 ft)
TYPICAL ON-AXIS FREQUENCY RESPONSE
FIGURE 1
Printed in U.S.A.
