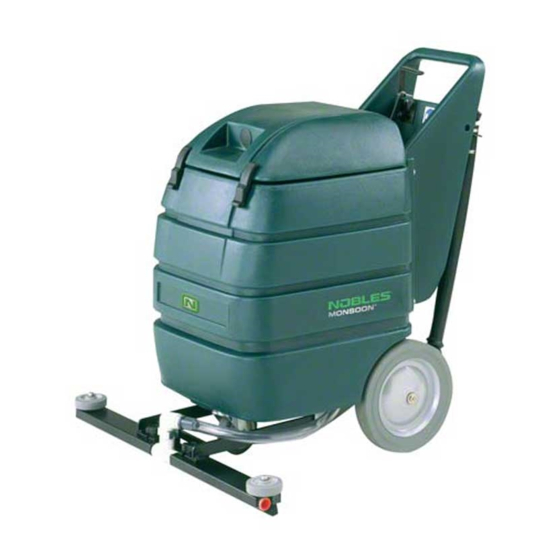

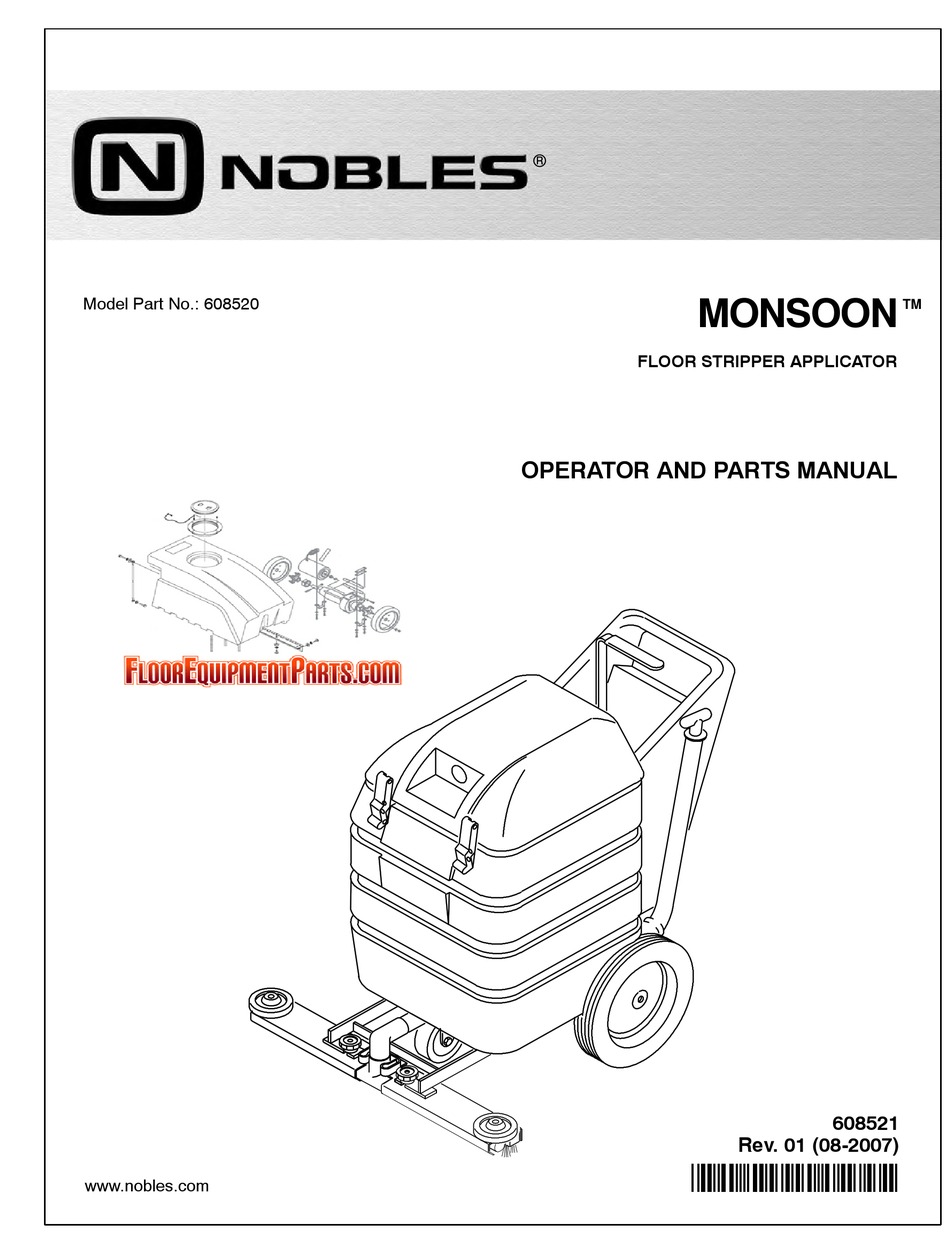

- Page 1 ® MONSOON Model Part No.: 608520 FLOOR STRIPPER APPLICATOR OPERATOR AND PARTS MANUAL 608521 Rev. 01 (08-2007) *608521* www.nobles.com...
-
Page 2: Table Of Contents
Serial No.- E1999, 2007 Tennant Company Printed in the U.S.A. Nobles is a registered United States trademark of Tennant Company. TABLE OF CONTENTS MACHINE APPLICATION .... -
Page 3: Machine Installation
OPERATION MACHINE INSTALLATION (1) Allen Screw UNCRATING MACHINE (2) Flat Washers Carefully check carton for signs of damage. Report Solution Flow damages at once to carrier. Lever Linkage (1) Nylon Lock Nut Check carton contents list below to ensure everything is included. -
Page 4: Machine Setup
OPERATION 3. Loosen (2) knobs and attach dispenser assembly to frame weldment, tighten down knobs. Brush MACHINE SETUP side should face towards machine (Figure 5.). 1. Push solution flow lever completely forward to shut off solution flow. 2. Open solution tank cover and pour up to 76L (20 gal) of recommended stripper solvent into tank. -
Page 5: Draining Tank
OPERATION 3. Begin applying stripper by pushing machine at a moderate walking pace. MACHINE MAINTENANCE FOR SAFETY: When using machine, go slow on inclines and slippery surfaces. AFTER EACH USE: 1. Remove and rinse out dispenser drip bar and DRAINING TANK brushes. -
Page 6: Parts List
PARTS LIST MAIN HOUSING ASSEMBLY Monsoont (08- -07) -
Page 7: Monsoont (08
103065 DCASTER, SWIVEL 4” 140825 SCREW, #6X1/2 608348 TANK, 16 GAL, GREEN ∇ 27 701061 DASM, DRAIN HOSE STOPPER 1035609 DECAL, “MONSOON” 230831 KNOB, DRAIN HOSE 601297 BRACKET, VALVE 230882 STRAP, DRAIN STOPPER 140011 WASHER 140056 WASHER, FNDR 3/8ID X 1.50OD 41169 NUT, HEX, LOCK, .25- -20, NL, SS... -
Page 8: Dispenser Assembly
PARTS LIST DISPENSER ASSEMBLY PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 607703 ASM., 30” DISPENSER W/ BRUSH 601364 FITTING, 90_ ELBOW 3/4” ∇ 630258 PIN, CLEVIS 601360 CONNECTOR 230454 BRACKET, SQUEEGEE MOUNT 601361 O- -RING 140017 WASHER, SPLIT LOCK 3/8” 601303 DBRUSH, STRIP 10”...
