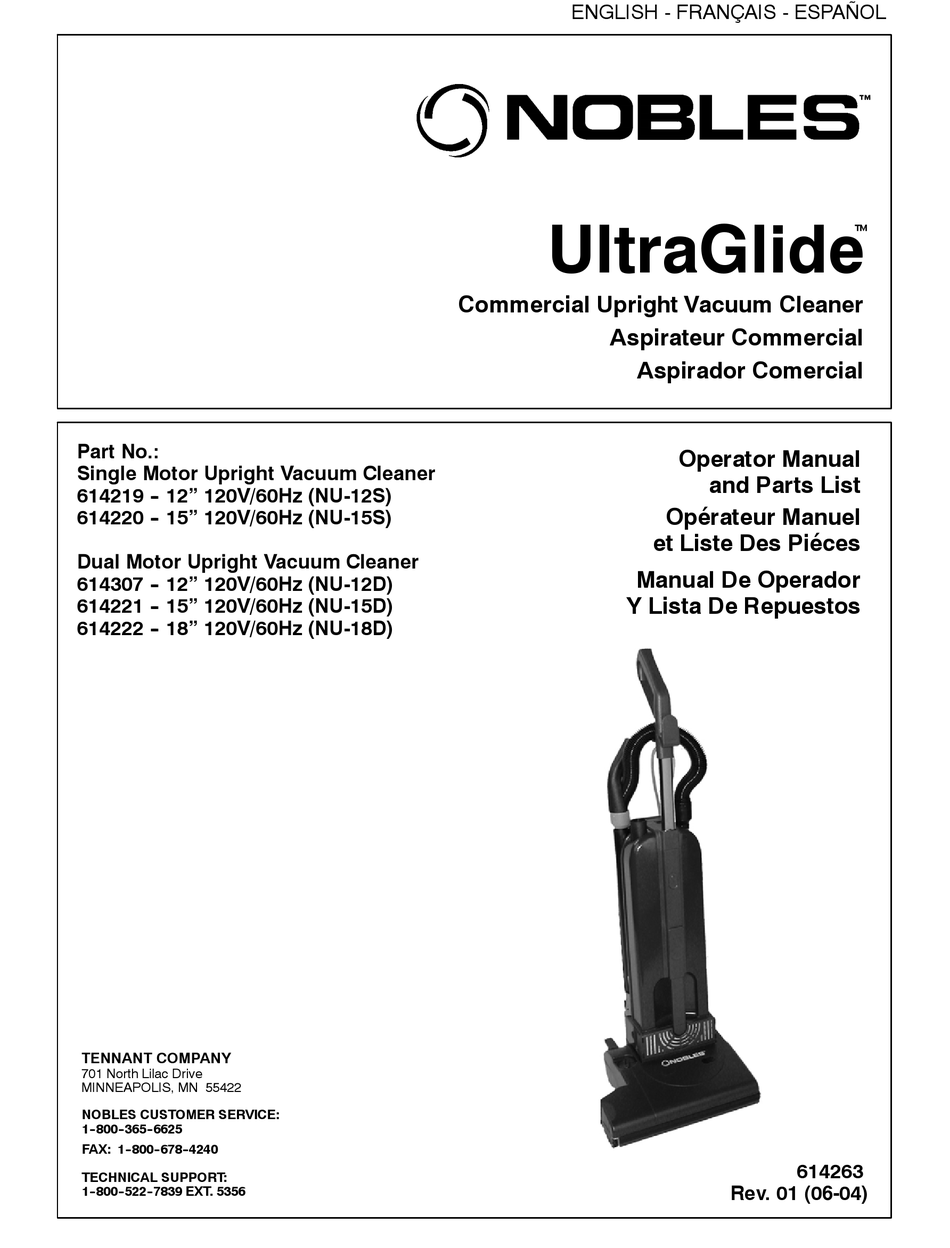

Part No.:

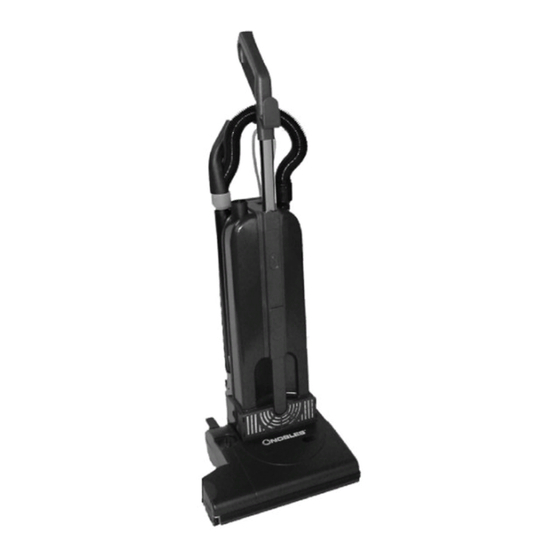

Single Motor Upright Vacuum Cleaner
614219 - - 12" 120V/60Hz (NU-12S)
614220 - - 15" 120V/60Hz (NU-15S)
Dual Motor Upright Vacuum Cleaner
614307 - - 12" 120V/60Hz (NU-12D)
614221 - - 15" 120V/60Hz (NU-15D)
614222 - - 18" 120V/60Hz (NU-18D)
TENNANT COMPANY
701 North Lilac Drive
MINNEAPOLIS, MN 55422
NOBLES CUSTOMER SERVICE:
1- - 800- - 365- - 6625
FAX: 1- - 800- - 678- - 4240
TECHNICAL SUPPORT:
1- - 800- - 522- - 7839 EXT. 5356
ENGLISH - FRANÇAIS - ESPAÑOL
UltraGlide
Commercial Upright Vacuum Cleaner
Aspirateur Commercial
Aspirador Comercial
Manual De Operador
Y Lista De Repuestos
Operator Manual
and Parts List
Opérateur Manuel
et Liste Des Piéces
614263
Rev. 01 (06-04)
t
Advertisement
Table of Contents
Related Manuals for Nobles 614220
Summary of Contents for Nobles 614220
- Page 1 Part No.: Single Motor Upright Vacuum Cleaner 614219 - - 12” 120V/60Hz (NU-12S) 614220 - - 15” 120V/60Hz (NU-15S) Dual Motor Upright Vacuum Cleaner 614307 - - 12” 120V/60Hz (NU-12D) 614221 - - 15” 120V/60Hz (NU-15D) 614222 - - 18” 120V/60Hz (NU-18D)
- Page 2 This manual is furnished with each new upright vacuum cleaner. It provides necessary operation, maintenance instructions and parts list. Read this manual completely and understand the machine before operating or servicing it. This machine is intended for commercial use only. It is designed...
-
Page 3: Table Of Contents
ENGLISH SAFETY PRECAUTIONS ..IMPORTANT SAFETY INSTRUCTIONS ... . GROUNDING INSTRUCTIONS WARNING LABEL ... . . THERMAL VACUUM MOTOR PROTECTOR . -
Page 4: Safety Precautions
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER WARNING - To reduce the risk of fire, explosion, electric shock, or injury: 1. Do not use appliance with flammable or combustible... - Page 5 6. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes. 7. Do not allow to be used as a toy. Close attention is necessary when used by or near children. 8. Use only as described in this manual.
-
Page 6: Grounding Instructions
18. Use and keep the machine in a dry environment and at a temperature between 5°C--35°C (41°F--95°F). 19. Do not expose to the sun and UV rays. SAVE THESE INSTRUCTIONS GROUNDING INSTRUCTIONS This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric... - Page 7 This appliance is for use on a nominal 120--volt circuit and has a grounding attachment plug that looks like the plug illustrated in sketch. Make sure that the appliance is connected to an outlet having the same configuration as the plug.
-
Page 8: Warning Label
WARNING LABEL This warning label appears on the machine in the location indicated. Replace label if it’s missing or if it becomes damaged or illegible. IMPORTANT: THERMAL VACUUM MOTOR PROTECTOR The vacuum motor is equipped with a safety thermal protector. Should the vacuum become overloaded by vacuuming with the bag full, or vacuuming with very dirty filters, or if the... -
Page 9: Operation
KNOW YOUR MACHINE Handle grip Upper cord hook 4 to 1 stretch cord Telescopic Handle Crevice Tool Telescopic wand Lower cord hook Carrying handle Exhaust grill Brush resistance light Brush adjustment knob Side wheels Cord strain relief Power switch Full bag light Paper bag storage Side cover for easy brush change... -
Page 10: Assembly Instructions
ASSEMBLY INSTRUCTIONS Insert the chrome handle into the hole in the top of the switch housing. Push down until the button snaps into the proper position. Attach cord to strain relief clip. Wind the electrical cord around the upper and lower cord hooks on the front of the machine. -
Page 11: Brush Height Adjustment
BRUSH HEIGHT ADJUSTMENT Your carpet cleaner has 4 wheels, two rear wheels and two adjustable front wheels. Based on your carpet pile, use the adjusting knob (see photo), to lift or lower the base. For the dual motor machines only Low Pile STEP 1: With machine on and Poil bas... -
Page 12: Changing The Paper Filter Bag
ALWAYS DISCONNECT THE POWER CORD BEFORE PERFORMING CHANGING THE PAPER FILTER BAG Gently push the latch on the back of the bag housing and remove the bag cover. Remove the full dust bag by carefully removing the cardboard from the safety latch and slide it down. -
Page 13: Changing The Exhaust Filter
CHANGING THE EXHAUST FILTER The electrostatic exhaust filter catches any particles that may escape from the filter bag, vacuum inlet filter, or lower motor filter. The electrostatic exhaust filter is located under the external front grill. Replace the filter every fourth time you change the bag. - Page 14 4. Look inside the brush roll for the end that has a hexagon shape cut out. This is also the end that will have a white dot on the outside of the brush roll. Put this end in first. Line up the white dot with a flat portion of the drive.
-
Page 15: Bag Housing Group
PART # DESCRIPTION 1015712 COVER ASM., NOB HSG W/LBLS ∇ 613280 LABEL, WARNING 1015715 LABEL, FILTER IMPORTANT 1015595 BUTTON, HOUSING, BAG COVER 1015620 GUIDE, BUTTON 1015621 BUTTON, HOLDER, BAG 1015619 SPRING, BUTTON, BAG HOLDER 1015719 SCREW KIT, 3.9X16, KIT=20 PCS 1015618 ADAPTOR, BAG 1014505... -
Page 16: Single Motor Base Group
SINGLE MOTOR BASE GROUP Nobles UltraGlide (03- -04) - Page 17 PART # DESCRIPTION 1015658 GASKET, MOTOR 1015657 DMOTOR, VAC, W/PULLEY 1015659 GASKET, MOTOR, BRH HOLDER 1015645 TERMINAL BLOCK, 5 POLE 1015612 FILTER, MOTOR 1015727 SCREW KIT, 3.9X32, KIT=20 PCS 1015602 LENS KIT, RED/GREEN, KIT=6 PCS 1015671 SUPPORT, LEFT 1015656 DCIRCUITBOARD, SMU 1015718 SCREW KIT, 3.5X16, KIT=20 PCS 1015717...
-
Page 18: Dual Motor Base Group
DUAL MOTOR BASE GROUP Nobles UltraGlide (03- -04) - Page 19 PART # DESCRIPTION 1015658 GASKET, MOTOR 1015740 DMOTOR, VAC, W/BAL DISC 1015659 GASKET, MOTOR, BRH HOLDER 130005 TERMINAL BLOCK, 3 POLE 1015612 FILTER, MOTOR 1015727 SCREW KIT, 3.9X32, KIT=20 PCS 1015601 LENS KIT, RED/GREEN, KIT=6 PCS 1015747 FILTER 1015725 SCREW KIT, 3.9X19, KIT=20 PCS 1015746 CORD, BASE 1016509...
-
Page 20: Warranty Policy
UltraGlide U.S. AND CANADIAN NEW MACHINE WARRANTY POLICY Our Commitment to Customer Satisfaction The warranty terms outlined below are in lieu of any other warranties, either expressed or implied, including any implied warranty of merchantability, fitness for a particular purpose or otherwise. Under no circumstances will seller be liable for any loss, damage, expense or consequential damages arising in connection with the use or inability to use, these products.
