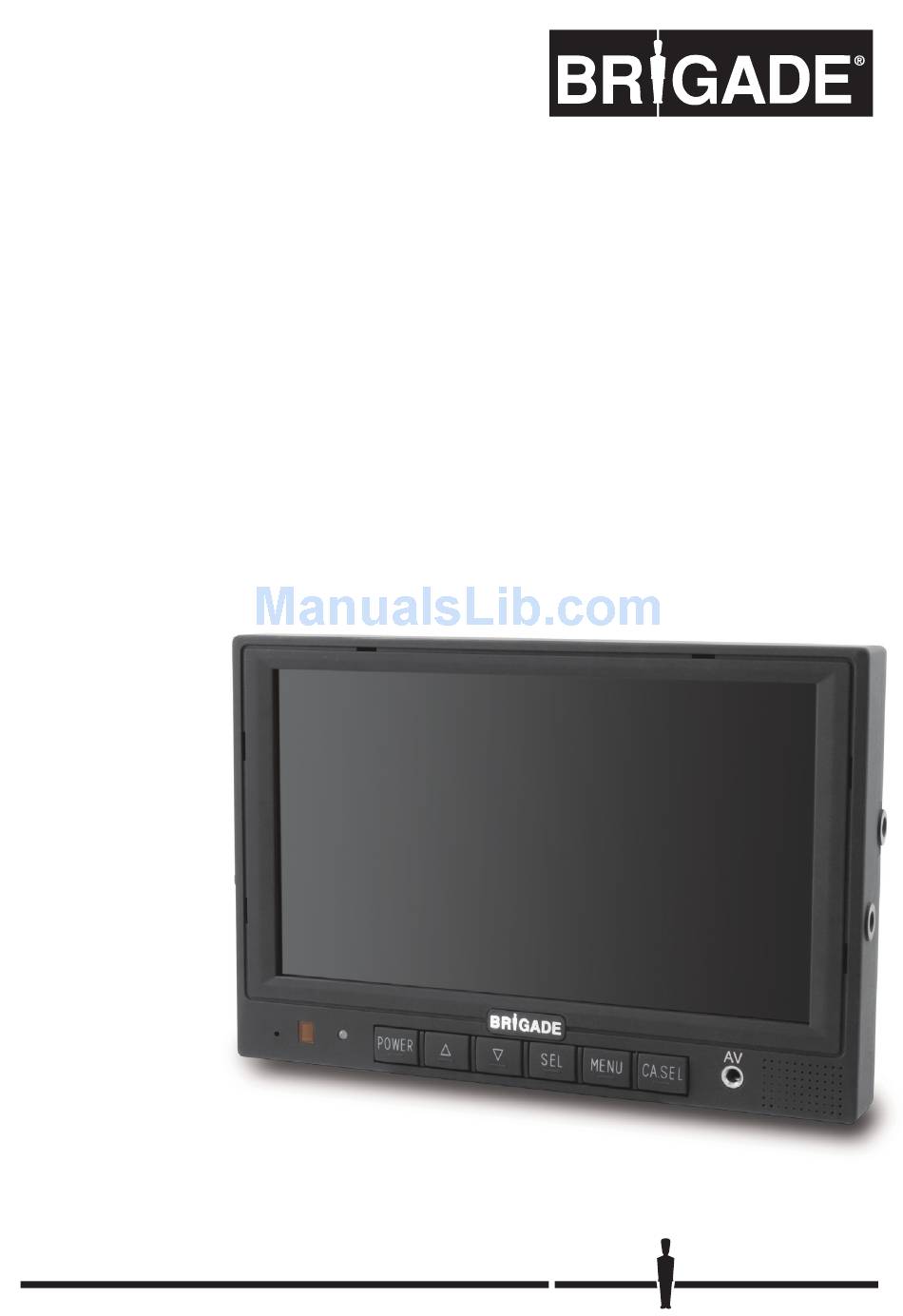

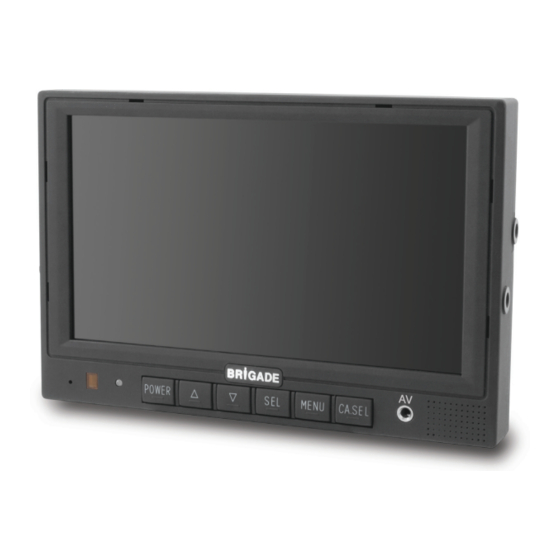

- Page 1 VBV-770DM-S vehicle CCTV monitor Quick installation guide Guide d’installation rapide Quick installation guide Guida di installazione rapida Guía rápida de instalación Snelle installatie handleiding Stock code #3985...
- Page 2 Contents Contenu/Inhalt/Contenuti/Contenidos/inhoud VBV-770DM M VBV-770DM SS VBV-7X0DM SCA BM-018 BMM-015...
-
Page 3: Monitor Installation
Monitor installation Surveiller l’installation/Monitor-Installation/L’installazione del monitor/ Vigilar la instalación/Monitor installatie... - Page 4 Connections Connexions/Verbindungen/Connessioni/Conexiones/Aansluitingen #(3662) TRIG. CA3 TRIG. CA1 TRIG. CA2 DC12~24V (REV)
- Page 5 Controls Contrôles/Kontrollen/Controlli/Controles/Controles POWER MENU CA.SEL Automatic low light sensor. Capteur optique automatique de basse luminosité. Automatischer Low-Light Sensor. Sensore automatico di bassa luminosità. Sensor automático de baja luminosidad. Automatische low-light sensor. POWER MENU CA.SEL PICTURE PICTURE BRIGHT BRIGHT POWER POWER MENU CA.SEL MENU...
- Page 6 Controls Contrôles/Kontrollen/Controlli/Controles/Controles PICTURE BRIGHT MENU CA.SEL CONTRAST COLOR VOLUME MENU CA.SEL MENU CA.SEL 3.5mm MENU CA.SEL Input Entrée Eingang Ingresso Entrada Invoer...
-
Page 7: Operation
Operation Opération/Betrieb/Operazione/Operación/Werking MENU CA.SEL x 20sec OPTION LANG ENGLISH SCALE MENU CA.SEL x 2 = CAM 1 NORMAL CAM 2 NORMAL CAM 3 NORMAL OPTION LANG ENGLISH POWER MENU CA.SEL SCALE CAM 1 NORMAL CAM 2 NORMAL CAM 3 NORMAL PICTURE BRIGHT MENU... -
Page 8: Trigger Delay
Trigger delay Retard de déclenchement/Trigger verzögerung/Ritardo selettore/ Retraso disparador/Trigger vertraging TRIGGER DELAY CAM 1 DELAY 3 SEC CAM 2 DELAY 3 SEC x 4 = CAM 3 DELAY 0 SEC CA.SEL Set camera to mirror view Appareil est en miroir de vue/Kamera auf Spiegel Blick/Fotocamera impostata su specchio di vista/Cámara en espejo/Cameraposities te bekijken spiegel OPTION LANG... -
Page 9: Specifications
Specifications Spécifications/ Spezifikationen/Specifiche/Especificaciones/Specificaties ENGLISH FRANCAIS Specifications Specifications Monitor VBV-770DM-S Moniteur BV-770DM-S TV system NTSC/PAL Système TV NTSC/PAL Picture 7" Digital TFT LCD colour monitor Image 7" Numérique TFT LCD moniteur with on-screen display function couleur avec affichage de fonction (OSD) Display size 7"... - Page 10 Specifications Spécifications/ Spezifikationen/Specifiche/Especificaciones/Specificaties ESPANOL NEDERLANDS Especificaciones Specificaties Monitor BV-770DM-S Monitor BV-770DM-S Sistema de TV NTSC/PAL TV-systeem NTSC/PAL Imagen Monitor a color de 7" digital TFT Beeld 7" digitale TFT LCD kleurenmoni- LCD con visualización de las tor met on-screen display functie funciones (OSD) Displayformaat 7"...
- Page 11 Camera monitor systems are an invaluable driver aid but do not exempt the driver from taking every normal precaution when conducting a manoeuvre. No liability arising out of the use or failure of the product can in any way be attached to Brigade or to the distributor. Dénégation Les systèmes de moniteurs des caméras sont une aide précieuse pour le conducteur, mais...
