Summary of Contents for Brigade BE-970WM

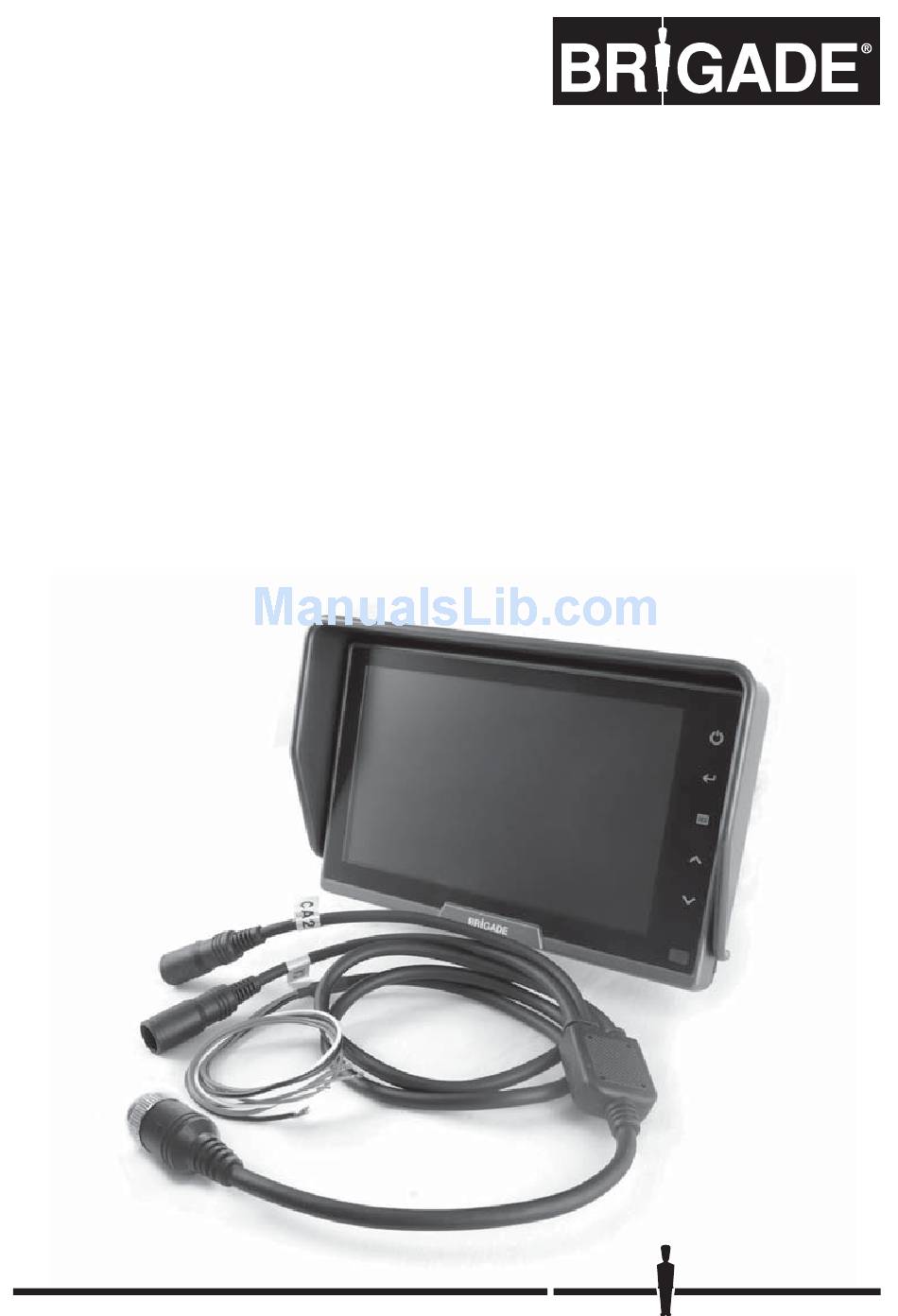

- Page 1 BE-970WM vehicle CCTV monitor User & fitting guide User Guide & montage User & Einbau Anleitung Utente di montaggio e guida Guía de usuario y montaje User & montage handleiding Stock code #3431...
- Page 2 Contents/Contenu/Inhalt/Contenuti/Contenidos/inhoud...
- Page 3 Monitor installation/Surveiller l’installation/ Monitor-Installation/L’installazione del monitor/ Vigilar la instalación/Monitor installatie...
- Page 4 Connections/Connexions/Verbindungen/ Connessioni/Conexiones/Aansluitingen...
- Page 5 Controls/Contrôles/Kontrollen/Controlli/Controles/ Controles/ MENU DOWN Automatic low light sensor - automatically adjusts monitor brightness. Capteur optique automatique de basse luminosité - Réglage automatique de luminosité du moniteur Automatischer Low-Light Sensor -passt Monitorhelligkeit automatisch an Sensore automatico di bassa luminosità – varia automaticamente la luminosità dello schermo Sensor automático de baja luminosidad –...
- Page 6 Controls/Contrôles/Kontrollen/Controlli/Controles/ Controles MENU x 0.5sec MENU DOWN...
- Page 7 Operation/Opération/Betrieb/Operazione/Operación/ Werking Auto Power x 20sec MENU MENU x 20sec...
-
Page 8: Advanced Menu
Set up menu/Menu setup/Setup Menü/Menu setup/Menú setup/Setup menu x 0.5sec = MENU 1. CAMERA SETTING 2. TRIGGER SETTING 3. AUTO SCAN SETTING 4. DAY/NIGHT SETTING 5. ADVANCED MENU 1. LANGUAGE: [ENGLISH;DEUTCH; FRANCAIS;ITALIANO;ESPANOL] 2. AUTO POWER: [ON] 3. FACTORY RESET MENU... - Page 9 Specifications/Spécifications/ Spezifikationen/ Specifiche/Especificaciones/Specificaties ENGLISH FRANCAIS Specifications Specifications Monitor BE-970WM Moniteur BE-970WM TV system NTSC/PAL Système TV NTSC/PAL Picture 7" TFT LCD colour monitor with Image 7" TFT LCD moniteur couleur avec on-screen display function affichage de fonction (OSD) Display size 7"...
- Page 10 Specifications/Spécifications/Spezifikationen/ Specifiche/Especificaciones/Specificaties ESPANOL NEDERLANDS Especificaciones Specificaties Monitor BE-970WM Monitor BE-970WM Sistema de TV NTSC/PAL TV-systeem NTSC/PAL Imagen Monitor a color de 7" TFT LCD Beeld 7" TFT LCD colour monitor with con visualización de las funciones on-screen display function (OSD) Displayformaat 7"...
- Page 11 Camera monitor systems are an invaluable driver aid but do not exempt the driver from taking every normal precaution when conducting a manoeuvre. No liability arising out of the use or failure of the product can in any way be attached to Brigade or to the distributor. Dénégation Les systèmes de moniteurs des caméras sont une aide précieuse pour le conducteur, mais...
- Page 12 Head Office Brigade Electronics plc Brigade House, The Mills Station Road, South Darenth DA4 9BD United Kingdom Tel: +44 (0)1322 420300 Fax: +44 (0)1322 420343 email: sales@brigade-electronics.com Brigade Electronics Inc Tel: +1 (610) 826-7870 Fax: +1 (484) 229-0088 email: infousa@brigade-electronics.com...
