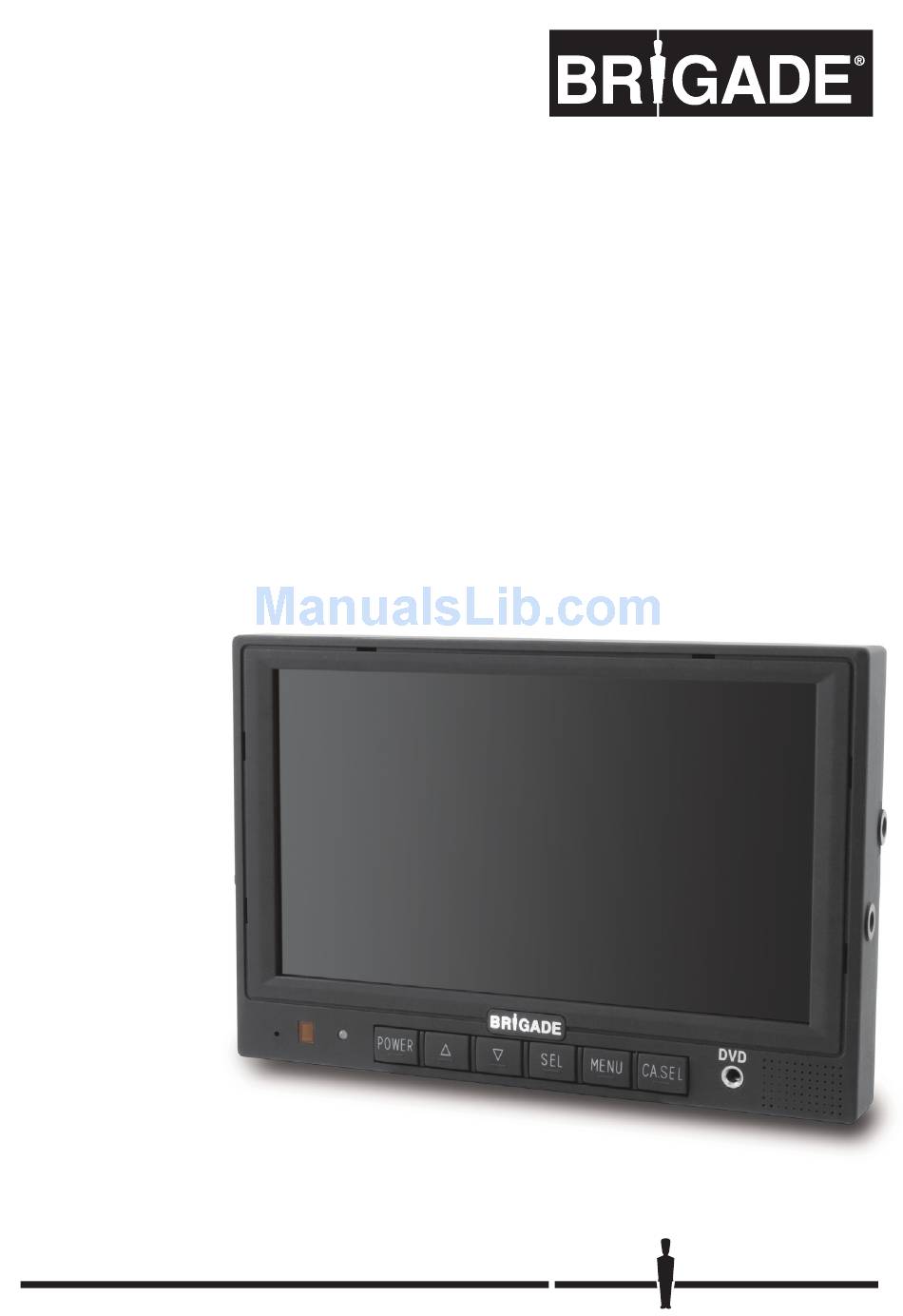

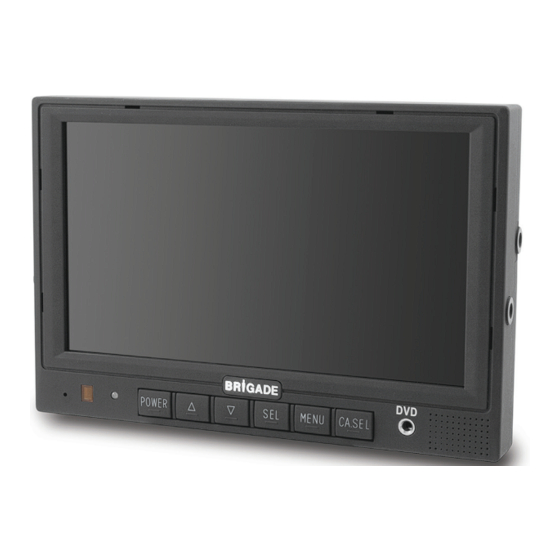

- Page 1 VBV-770DM vehicle CCTV monitor Quick installation guide Guide d’installation rapide Quick installation guide Guida di installazione rapida Guía rápida de instalación Snelle installatie handleiding Stock code #3353A...
- Page 2 Contents/Contenu/Inhalt/Contenuti/Contenidos/inhoud BM-018 VBV-770DM M VBV-770DM SS VBV-7X0DM RT VBV-7X0DM RC BMM-017 VBV-7X0DM CA BMM-015 AC-027 AC-024...
- Page 3 Monitor installation/Surveiller l’installation/ Monitor-Installation/L’installazione del monitor/ Vigilar la instalación/Monitor installatie...
- Page 4 Connections/Connexions/Verbindungen/ Connessioni/Conexiones/Aansluitingen #3176A DC12/24V...
- Page 5 Controls/Contrôles/Kontrollen/Controlli/Controles/ Controles/ POWER MENU CA.SEL Automatic low light sensor. Capteur optique automatique de basse luminosité. Automatischer Low-Light Sensor. Sensore automatico di bassa luminosità. Sensor automático de baja luminosidad. Automatische low-light sensor. POWER MENU CA.SEL PICTURE PICTURE BRIGHT BRIGHT POWER POWER MENU CA.SEL MENU...
- Page 6 Controls/Contrôles/Kontrollen/Controlli/Controles/ Controles PICTURE BRIGHT MENU CA.SEL CONTRAST COLOR VOLUME MENU CA.SEL MENU CA.SEL...
- Page 7 Operation/Opération/Betrieb/Operazione/Operación/ Werking MENU CA.SEL x 20sec OPTION LANG ENGLISH SCALE MENU CA.SEL x 2 = CAM 1 NORMAL CAM 2 NORMAL CAM 3 NORMAL OPTION LANG ENGLISH POWER MENU CA.SEL SCALE CAM 1 NORMAL CAM 2 NORMAL CAM 3 NORMAL PICTURE BRIGHT MENU...
- Page 8 Set camera to mirror view OPTION LANG ENGLISH MENU CA.SEL SCALE x 2 = CAM 1 NORMAL CAM 2 NORMAL CAM 3 NORMAL OPTION LANG ENGLISH MENU CA.SEL SCALE x 2 = CAM 1 NORMAL CAM 2 NORMAL CAM 3 NORMAL OPTION LANG...
- Page 9 Specifications/Spécifications/ Spezifikationen/ Specifiche/Especificaciones/Specificaties ENGLISH FRANCAIS Specifications Specifications Monitor VBV-770DM Moniteur VBV-770DM TV system NTSC/PAL Système TV NTSC/PAL Picture 7" Digital TFT LCD colour monitor Image 7" Numérique TFT LCD moniteur with on-screen display function couleur avec affichage de fonction (OSD) Display size 7"...
- Page 10 Specifications/Spécifications/Spezifikationen/ Specifiche/Especificaciones/Specificaties ESPANOL NEDERLANDS Especificaciones Specificaties Monitor VBV-770DM Monitor VBV-770DM Sistema de TV NTSC/PAL TV-systeem NTSC/PAL Imagen Monitor a color de 7" digital TFT Beeld 7" digitale TFT LCD kleurenmoni- LCD con visualización de las tor met on-screen display functie...
