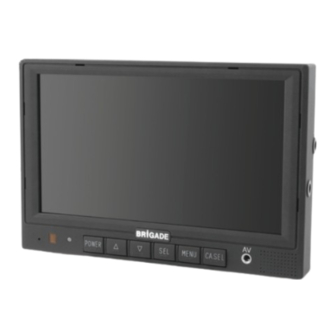

- Page 1 All manuals and user guides at all-guides.com VBV-770DM-S vehicle CCTV monitor Quick installation guide Guide d’installation rapide Quick installation guide Guida di installazione rapida Guía rápida de instalación Snelle installatie handleiding Stock code #3985...
- Page 2 All manuals and user guides at all-guides.com Contents Contenu/Inhalt/Contenuti/Contenidos/inhoud VBV-770DM M VBV-770DM SS VBV-7X0DM SCA BM-018 BMM-015...
-
Page 3: Monitor Installation
All manuals and user guides at all-guides.com Monitor installation Surveiller l’installation/Monitor-Installation/L’installazione del monitor/ Vigilar la instalación/Monitor installatie... - Page 4 All manuals and user guides at all-guides.com Connections Connexions/Verbindungen/Connessioni/Conexiones/Aansluitingen #(3662) TRIG. CA3 DC12~24V TRIG. CA1 TRIG. CA2 (REV)
- Page 5 All manuals and user guides at all-guides.com Controls Contrôles/Kontrollen/Controlli/Controles/Controles POWER MENU CA.SEL Automatic low light sensor. Capteur optique automatique de basse luminosité. Automatischer Low-Light Sensor. Sensore automatico di bassa luminosità. Sensor automático de baja luminosidad. Automatische low-light sensor. POWER MENU CA.SEL PICTURE PICTURE...
- Page 6 All manuals and user guides at all-guides.com Controls Contrôles/Kontrollen/Controlli/Controles/Controles PICTURE BRIGHT MENU CA.SEL CONTRAST COLOR VOLUME MENU CA.SEL MENU CA.SEL 3.5mm MENU CA.SEL Input Entrée Eingang Ingresso Entrada Invoer...
-
Page 7: Operation
All manuals and user guides at all-guides.com Operation Opération/Betrieb/Operazione/Operación/Werking MENU CA.SEL x 20sec OPTION LANG ENGLISH SCALE MENU CA.SEL x 2 = CAM 1 NORMAL CAM 2 NORMAL CAM 3 NORMAL OPTION LANG ENGLISH POWER MENU CA.SEL SCALE CAM 1 NORMAL CAM 2 NORMAL... -
Page 8: Trigger Delay
All manuals and user guides at all-guides.com Trigger delay Retard de déclenchement/Trigger verzögerung/Ritardo selettore/ Retraso disparador/Trigger vertraging TRIGGER DELAY CAM 1 DELAY 3 SEC CAM 2 DELAY 3 SEC x 4 = CAM 3 DELAY 0 SEC CA.SEL Set camera to mirror view Appareil est en miroir de vue/Kamera auf Spiegel Blick/Fotocamera impostata su specchio di vista/Cámara en espejo/Cameraposities te bekijken spiegel OPTION... -
Page 9: Specifications
All manuals and user guides at all-guides.com Specifications Spécifications/ Spezifikationen/Specifiche/Especificaciones/Specificaties ENGLISH FRANCAIS Specifications Specifications Monitor VBV-770DM-S Moniteur BV-770DM-S TV system NTSC/PAL Système TV NTSC/PAL Picture 7" Digital TFT LCD colour monitor Image 7" Numérique TFT LCD moniteur with on-screen display function... - Page 10 All manuals and user guides at all-guides.com Specifications Spécifications/ Spezifikationen/Specifiche/Especificaciones/Specificaties ESPANOL NEDERLANDS Especificaciones Specificaties Monitor BV-770DM-S Monitor BV-770DM-S Sistema de TV NTSC/PAL TV-systeem NTSC/PAL Imagen Monitor a color de 7" digital TFT Beeld 7" digitale TFT LCD kleurenmoni- LCD con visualización de las tor met on-screen display functie funciones (OSD) Displayformaat...
- Page 11 Camera monitor systems are an invaluable driver aid but do not exempt the driver from taking every normal precaution when conducting a manoeuvre. No liability arising out of the use or failure of the product can in any way be attached to Brigade or to the distributor. Dénégation Les systèmes de moniteurs des caméras sont une aide précieuse pour le conducteur, mais...
- Page 12 All manuals and user guides at all-guides.com Head Office Brigade Electronics Plc Brigade Elektronik GmbH Haberstr. 21 Brigade House, The Mills Station Road, South Darenth 24539 Neumünster Germany DA4 9BD United Kingdom Telefon: +49 (0) 4321 555 360 Tel: +44 (0)1322 420300...
