Summary of Contents for Nikon Coolpix S500

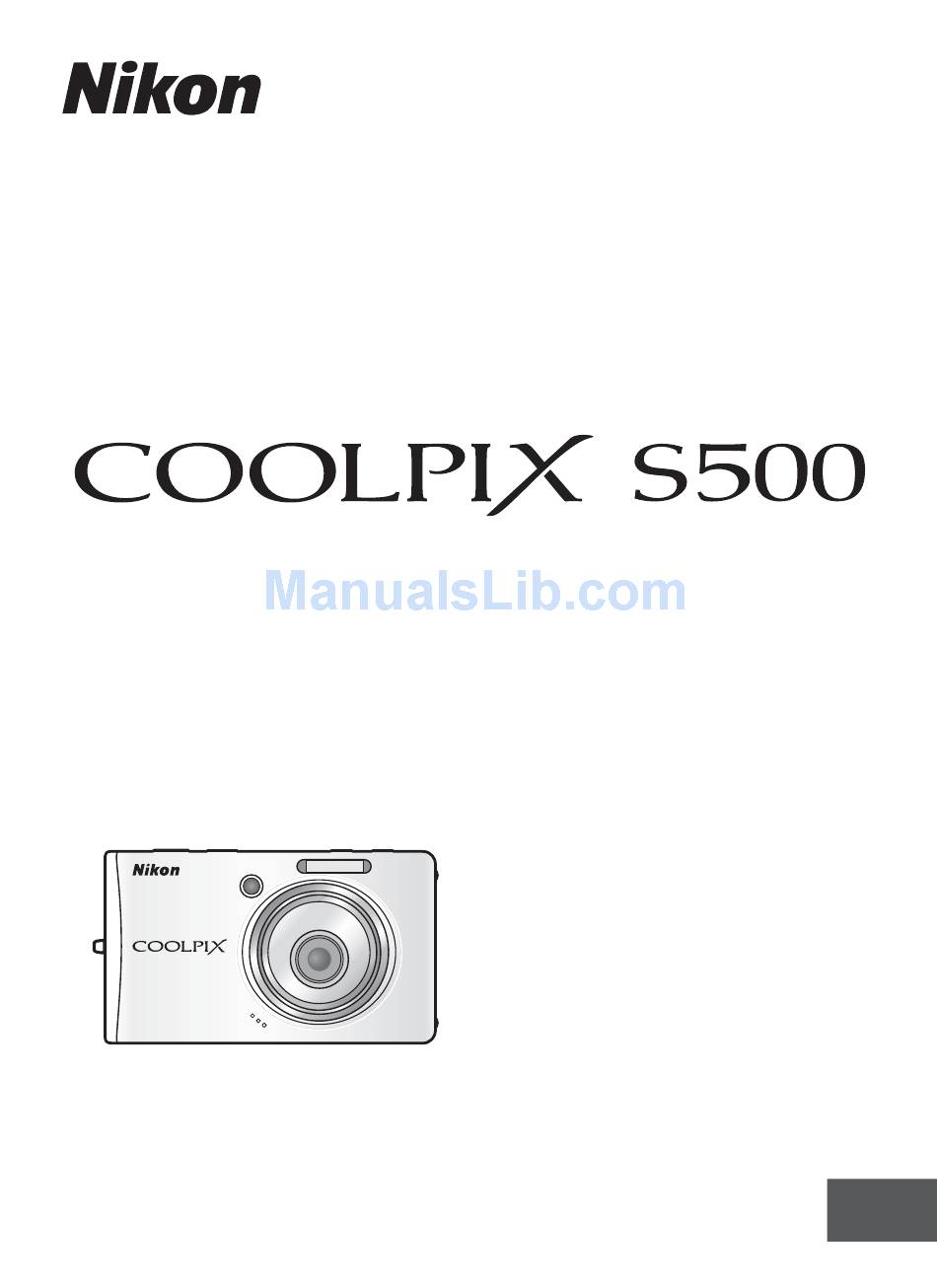

  • Page 1 DIGITAL CAMERA User's Manual...

  • Page 2: Trademark Information

    • PictBridge is a trademark. • D-Lighting technology is provided by o Apical Limited. • All other trade names mentioned in this manual or the other documentation provided with your Nikon product are trademarks or registered trademarks of their respective holders.
  • Page 3 Introduction First Steps Basic Photography and Playback: Auto Mode Shooting Suited for the Scene - High-sensitivity Shooting Mode, Scene Mode Anti-shake Mode One-Touch Portrait Mode More on Playback Movies Voice Recordings Connecting to Televisions, Computers, and Printers Shooting, Playback, and Setup Menus Technical Notes...

  • Page 4: For Your Safety

    Introduction For Your Safety To prevent damage to your Nikon product or injury to yourself or to others, read the following safety precautions in their entirety before using this equipment. Keep these safety instructions where all those who use the prod- uct will read them.
  • Page 5 Should the insulation be damaged and the wires become exposed, take it to a Nikon-authorized service rep- resentative for inspection. Failure to observe these precautions could result in fire or electric...
  • Page 6 Use appropriate cables When connecting cables to the input and output jacks, use only the cables provided or sold by Nikon for the purpose, to maintain compli- ance with product regulations. Handle moving parts with care...

  • Page 7: Notices

    Corporation may void the user’s authority to operate the equipment. Interface Cables Use the interface cables sold or pro- vided by Nikon for your equipment. Using other interface cables may harmful exceed the limits of Class B Part 15 of the FCC rules.
  • Page 8 Notices Notice for customers in Canada CAUTION This Class B digital apparatus com- plies with Canadian ICES-003. ATTENTION Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Symbol for Separate Collec- tion in European Countries This symbol indicates that this product is to be col- lected separately.

  • Page 9: Table Of Contents

    Table of Contents Introduction ...ii For Your Safety...ii WARNINGS ... ii Notices... v About This Manual...1 Information and Precautions... 2 Parts of the Camera...4 Attaching the Camera Strap ...4 The Monitor...6 Shooting ...6 Playback... 7 Basic Operations ...8 The i (shooting/playback) Button ...8 The C (mode) Button ...8 The Rotary Multi Selector ...9 The m Button ...10...
  • Page 10 Table of Contents Kn Shooting Suited for the Scene - High-sensitivity Shooting Mode, Scene Mode ...33 High-sensitivity Shooting Mode ...33 Scene Modes ...34 Features ...35 F Anti-shake Mode ...42 Shooting in Anti-shake Mode...42 A One-Touch Portrait Mode...43 Taking Pictures in the One-Touch Portrait Mode...43 The One-Touch Portrait Menu...44 i More on Playback...45 Viewing Multiple Pictures: Thumbnail Playback ...45...
  • Page 11 Connecting to Televisions, Computers, and Printers ...68 Connecting to a TV...68 Connecting to a Computer ...69 Before Connecting the Camera ...69 Setting the USB Option ...70 Transferring Pictures to a Computer ...71 Connecting to a Printer...73 Connecting the Camera and Printer ...74 Printing Pictures One at a Time...75 Printing Multiple Pictures...76 Creating a DPOF Print Order: Print Set ...79...
  • Page 12 Table of Contents u AF Assist ...108 h Sound Settings...108 i Auto Off ...109 M Format Memory/O Format Card ...110 j Language ...111 k Interface...111 n Reset All...112 B Firmware Version ...113 Technical Notes ...114 Optional Accessories ...114 Approved Memory Cards ...114 Image/Sound File and Folder Names...115 Caring for the Camera ...116 Cleaning ...118...

  • Page 13: About This Manual

    About This Manual Thank you for your purchase of a Nikon COOLPIX S500 digital camera. This manual has been written to help you enjoy taking pictures with your Nikon digital camera. Read this manual thoroughly before use, and keep it where all those who use the product will read it.

  • Page 14: Information And Precautions

    Before taking pictures on important occasions (such as at weddings or before taking the cam- era on a trip), take a test shot to ensure that the camera is functioning normally. Nikon will not be held liable for damages or lost profits that may result from product malfunction.
  • Page 15 Note that simply being in possession of material that has been digitally copied or reproduced by means of a scanner, digital camera or other device may be punishable by law. • Items prohibited by law from being copied or reproduced Do not copy or reproduce paper money, coins, securities, government bonds, or local gov- ernment bonds, even if such copies or reproductions are stamped “Sample”.

  • Page 16: Parts Of The Camera

    Parts of the Camera Speaker (c 51, 62, 65) Power switch (c 20) Power-on lamp (c 20, 109) Shutter-release button (c 24) Self-timer lamp (c 30, 117) AF-assist illuminator (c 29, 35, 108, 117) Eyelet for camera strap Attaching the Camera Strap A (one-touch portrait) button (c 43)/ (D-Lighting) button (c 48) Built-in microphone...
  • Page 17 Rotary multi selector: c 9 H (self-timer) : c 30 F (macro close-up mode): c 31 Monitor (c 6) Tripod socket T (delete) button (c 26, 27, 51, 62) m button (c 10, 82, 92) Power connector cover (when the Battery-chamber/memory card slot cover (c 14, 18) optional AC adapter is con-...

  • Page 18: The Monitor

    The Monitor The following indicators may appear in the monitor during shooting and playback (actual display varies with current camera settings). Shooting q w z q w z q w z fg h ijl fg h ijl fgh ijl C D B A C D B A C D B A FEdehi...

  • Page 19: Playback

    Playback I J K I J K I J K Date of recording ... 16 Time of recording... 16 Internal memory indicator ... 26 Battery level indicator ... 20 File number and type... 115 Volume indicator... 51, 62 Voice memo recording guide... 51 Voice memo playback guide...

  • Page 20: Basic Operations

    Basic Operations The i (shooting/playback) Button The C (mode) Button Shooting-mode Selection Menu Setup mode (c 98) Movie mode (c 56) Playback-mode Selection Menu Setup mode (c 98) Audio playback mode (c 65) Press i once in shooting mode to enter full-frame playback;...

  • Page 21: The Rotary Multi Selector

    The Rotary Multi Selector The rotary multi selector is made up of the rotating ring and the d button. When selecting menus or pictures, you can either press the rotating ring up, down, left, or right, or rotate it. When choosing from numerous menu items or pictures, rotating the ring is recommended for easy scrolling, and faster operation.

  • Page 22: The M Button

    Basic Operations The m Button Press m to display the menu for the selected mode. Use the rotary multi selector to navigate the menus (c 9). • L Shooting menu (c 81) • K High-sensitivity menu (c 81) • n Scene menu (c 34) •...

  • Page 23: Help Displays

    Help Displays Press v (l) to view a description of the currently selected menu option. • To return to the original menu, press v (l) again. • Press m to return to shooting or playback mode. Continuous Choose single frame, continous mode, multi-shot 16 (16 shots in one picture), or interval timer shooting.

  • Page 24: First Steps

    First Steps Charging the Battery The camera uses a Rechargeable Li-ion Battery EN-EL10 (supplied). Charge the battery with the Battery Charger MH-63 (supplied) before first use or when the battery is running low. Connect the power cable Connect the power cable to the battery charger 1 and insert the wall plug into a power outlet 2.
  • Page 25 To power the camera continuously for extended periods, use an AC Adapter EH-62D (avail- able separately from Nikon) (c 114). Do not, under any circumstances, use another make or model of AC adapter. Failure to observe this precaution could result in overheat- ing or in damage to the camera.

  • Page 26: Inserting The Battery

    Inserting the Battery Insert a Rechargeable Li-ion Battery EN-EL10 (supplied) that has been fully charged, using the Battery Charger MH-63 (supplied), into your camera. Open the battery-chamber/memory card slot cover. Insert the battery. Confirm that the positive (+) and negative (-) termi- nals are oriented correctly as described on the label at the entrance of the battery chamber, and insert the battery.

  • Page 27: Removing The Battery

    Removing the Battery Turn the camera off before removing the battery. To eject the battery, open the battery-chamber/ memory card slot cover and slide the battery latch in the direction shown 1. The battery can then be removed by hand 2. •...

  • Page 28: Setting Display Language, Date, And Time

    Setting Display Language, Date, and Time A language-selection dialog is displayed the first time the camera is turned Press the power switch to turn on the camera. The power-on lamp will light and the monitor will turn on. Use the rotary multi selector to choose the desired language and press d.
  • Page 29 Select your home time zone (c 103) and press d. The date menu is displayed. Edit the day ([D]) (order of the day, month, and year may differ in some areas) and press d. Edit the month ([M]) and press d. Repeat steps 6 and 7 to edit the year ([Y]), hour, and minutes.

  • Page 30: Inserting Memory Cards

    Inserting Memory Cards Pictures are stored in the camera’s internal memory (26 MB) or on removable Secure Digital (SD) memory cards (available separately) (c 114). If a memory card is inserted in the camera, pictures are automatically stored on the memory card and pictures recorded to the memory card can be played back, deleted, or transferred.

  • Page 31: Removing Memory Cards

    • Do not turn the camera off or remove the battery or memory card until formatting is complete. • The first time you insert the memory cards used in other devices into the COOLPIX S500, be sure to format them (c 110).

  • Page 32: L Basic Photography And Playback: Auto Mode

    Basic Photography and Playback: Auto Mode Step 1 Turn the Camera On and Select L (Auto) Mode This section describes how to take pictures in L (auto) mode, an automatic, “point-and-shoot” mode recommended for first-time users of digital cam- eras. Press the power switch to turn on the camera.

  • Page 33: Vibration Reduction

    Step 1 Turn the Camera On and Select L (Auto) Mode Indicators Displayed in L (Auto) Mode Shooting mode M displayed in L (auto) mode Image mode Choose from six image-mode options depending on how you plan to use the picture. The default setting is E Normal (3,072 ×...

  • Page 34: Step 2 Frame A Picture

    Step 2 Frame a Picture Ready the camera. • Hold the camera steadily in both hands, keeping your fingers and other objects away from the lens, flash, and self-timer lamp. • When taking pictures in “tall” orientation, turn the camera counterclockwise so that the built-in flash is above the lens.

  • Page 35: Digital Zoom

    Digital Zoom Unlike optical zoom, data from the camera’s image sensor are processed digitally with digital zoom. Details visible at maximum optical zoom are simply enlarged, producing a slightly “grainy” image. High-sensitivity Shooting Mode In high-sensitivity shooting mode (c 33), sensitivity is increased to reduce blurring caused by camera shake or subject movement under low lighting.

  • Page 36: Step 3 Focus And Shoot

    Step 3 Focus and Shoot Press the shutter-release button halfway. The camera focuses on the subject positioned within the active focus area. By default, the camera auto- matically chooses the focus area (one of nine) con- taining the subject closest to the camera and adjusts exposure accordingly.

  • Page 37: During Recording

    During Recording While pictures are being recorded, the y (wait) icon will be displayed, and the M icon or the O icon (when memory card is inserted) will blink. Do not turn the camera off, open the bat- tery-chamber/memory card slot cover, or remove or disconnect the power source while these icons are displayed.

  • Page 38: Step 4 Viewing And Deleting Pictures

    Step 4 Viewing and Deleting Pictures Full-Frame Playback Press i. The last picture taken will be displayed. Use the rotary multi selector to view additional pictures. Pictures may be displayed briefly at low resolution while being read from the memory card or internal memory. Press i or the shutter-release button to switch to shoot- ing mode.

  • Page 39: Viewing Pictures

    Full-Frame Playback Mode The following options are available in full-frame playback mode. Option Playback zoom View thumbnails D-Lighting Record/play voice memo Switch to shooting mode Quick Playback Zoom Pressing v (k) during full-frame playback zooms the current picture in 3×, with the center of the picture displayed in the monitor (Quick Playback Zoom) (c 46).

  • Page 40: Using The Flash

    Using the Flash The flash has a range of 0.5–7.5 m (19.7 in.–24 ft. 6.0 in.) when the camera is zoomed out all the way. With maximum optical zoom applied, the range is 0.5–4.0 m (19.7 in.–13 ft. 1.2 in.) (when [ISO sensitivity] is set to [Auto]). The following flash modes are available: Auto (default for L (auto) mode) Flash fires automatically when lighting is poor.

  • Page 41: The Af-Assist Illuminator

    • Off: Flash will not fire when picture is taken. Red-Eye Reduction The COOLPIX S500 is equipped with an advanced red-eye reduction system. Pre-flashes are fired several times at low intensity before the main flash to reduce “red-eye.” If the camera detects “red-eye”...

  • Page 42: Taking Pictures With The Self-Timer

    Taking Pictures with the Self-Timer The camera is equipped with a ten-second and three-second timer for self- portraits. When using the self-timer, use of a tripod is recommended. Turn vibration reduction (c 107) off when using a tripod. Press H (self-timer). The self-timer menu is displayed.

  • Page 43: Macro Close-Up Mode

    Macro Close-up Mode Macro close-up mode is used for taking pictures of objects as close as 15 cm (5.9 in.). Note that the flash may be unable to light entire subject at distances of less than 30 cm (11.8 in.). Press L (macro close-up mode).

  • Page 44: Exposure Compensation

    Exposure Compensation Exposure compensation is used to alter exposure from the value suggested by the camera to make pictures brighter or darker. Press the rotary multi selector I (expo- sure compensation). Use the rotary multi selector to adjust exposure. • When the picture is too dark: adjust the exposure compensation to “+”...

  • Page 45: Scene Mode

    Shooting Suited for the Scene - High-sensitivity Shooting Mode, Scene Mode High-sensitivity Shooting Mode In high-sensitivity shooting mode, sensitivity is increased with shooting under low lighting to reduce blurring caused by camera shake or subject move- ment, allowing you to capture the atmosphere of the scene. ISO sensitivity will be automatically increased to a maximum of 1600 depending upon the brightness of the subject.

  • Page 46: Scene Modes

    Scene Modes The camera offers a choice of 15 “scene” options. Camera settings are auto- matically optimized for the selected subject type. B Portrait E Landscape P Sports D Night portrait C Party/indoor Enter scene mode by pressing C in shooting mode, select- ing n (use the rotary multi selector), and then pressing d.

  • Page 47: Features

    Features B Portrait Use this mode for portraits in which the main subject stands out clearly. Portrait subjects exhibit smooth, natu- ral-looking skin tones. • Camera focuses on subject in the center of the monitor. Off* * Other settings can be selected. E Landscape Use this mode for vivid landscapes and cityscapes.
  • Page 48 Scene Modes D Night Portrait Use this mode to achieve a natural balance between the main subject and background lighting in portraits taken at night. Fill flash with slow sync and red-eye reduction. Other settings can be selected. C Party/indoor Captures the effects of candlelight and other indoor back- ground lighting.
  • Page 49 I Sunset Preserves the deep hues seen in sunsets and sunrises. • Camera focuses on subject in center of frame. Off* * Other settings can be selected. J Dusk/dawn Preserves the colors seen in the weak natural light before sunrise or after sunset. •...
  • Page 50 Scene Modes M Close up Photograph flowers, insects, and other small objects at close range. • The camera can focus at distances as close as 15 cm (6.9 in.). The camera can be zoomed in when the zoom indicator is positioned over F. •...
  • Page 51 O Copy Provides clear pictures of text or drawings on a white board or in print. • Camera focuses on subject in center of frame. • Use macro close-up mode (c 31) to focus at short ranges. • Colored text and drawings may not show up well. Off* * Other settings can be selected.

  • Page 52: Taking Pictures For A Panorama

    Scene Modes F Panorama assist Use when taking a series of pictures that will later be joined to form a single pan- orama using PictureProject. * Other settings can be selected. Taking Pictures for a Panorama The camera focuses on the subject in the center of the frame. Use a tripod for best results.

  • Page 53: Take The Second Picture

    Take the second picture. Compose the next picture so that it over- laps the first picture. Repeat until you have taken the necessary number of pictures to complete the scene. Press d when shooting is completed. The camera returns to step 2. Panorama Assist Flash mode (c 28), self-timer (c 30), macro close-up (c 31), and exposure compensation (c 32) settings cannot be adjusted after the first picture is taken.

  • Page 54: F Anti-Shake Mode

    Anti-shake Mode Shooting in Anti-shake Mode In anti-shake mode, vibration reduction (c 107) and BSS (c 88) are enabled. In addition, ISO sensitivity is automatically raised to 1600 depending upon the brightness of the subject and shutter speed is faster than with L (auto) mode, under the same lighting conditions, to reduce blurring caused by camera shake or subject movement.

  • Page 55: A One-Touch Portrait Mode

    One-Touch Portrait Mode Taking Pictures in the One-Touch Portrait Mode For portrait shots, press A when the camera is in L (auto) mode, high-sensitiv- ity shooting mode, scene mode, movie mode, and anti-shake mode. The following features are automatically activated: •...

  • Page 56: The One-Touch Portrait Menu

    The One-Touch Portrait Menu Press m in one-touch portrait mode to display the one-touch portrait menu. In addition to image mode, portrait effects (reducing vividness of skin tones, softening overall image) can be set. Image mode Choose an image size and quality (c 82). Portrait effect Choose from [Normal], [Brighter] (reduces vividness of skin tones), and [Softer] (soft effect).

  • Page 57: More On Playback

    More on Playback Viewing Multiple Pictures: Thumbnail Playback Press t (j) in full-frame playback (c 26) to dis- play pictures in “contact sheets” of thumbnail images. The following operations can be performed while thumbnails are displayed: Choose pictures Change number of pictures dis- played Cancel thumb-...

  • Page 58: Taking A Closer Look: Playback Zoom

    Taking a Closer Look: Playback Zoom Pressing v (k) during full-frame playback (c 26) zooms the current picture in 3×, with the center of the picture displayed in the monitor (Quick Playback Zoom). The guide at lower right shows which portion of the picture is enlarged.

  • Page 59: Editing Pictures

    • The COOLPIX S500 editing functions may not be available for pictures taken with non- COOLPIX S500 digital cameras. • If a copy created using the COOLPIX S500 is viewed on a different digital camera, the pic- ture may not be displayed or may not be transferred to a computer.

  • Page 60: Enhancing Brightness And Contrast: D-Lighting

    Editing Pictures Enhancing Brightness and Contrast: D-Lighting D-Lighting can be used to create copies with enhanced brightness and con- trast, brightening dark portions of a picture. Enhanced copies are stored as separate files. Select the desired picture from full- frame (c 26), or thumbnail (c 45) play- back and press A.

  • Page 61: Creating A Cropped Copy: Crop

    Creating a Cropped Copy: Crop This function is only available when D is displayed in the monitor with playback zoom (c 46) enabled. Cropped copies are stored as separate files. Press v (k) to zoom in on the image. Refine copy composition. Press v or t to adjust the zoom ratio.

  • Page 62: H Resizing Pictures: Small Picture

    Editing Pictures H Resizing Pictures: Small Picture Create a small copy of the current picture. Small copies are stored as JPEG files with a compression ratio of 1:16. The following sizes are available. Option I 640×480 Suited to television playback. J 320×240 Suited to display on web pages.

  • Page 63: Voice Memos: Recording And Playback

    • If a voice memo already exists for the current picture, it must be deleted before a new voice memo can be recorded. • The COOLPIX S500 may be not able to attach a voice memo to pictures recorded by other cameras.

  • Page 64: Viewing Pictures By Date

    Viewing Pictures by Date In calendar mode or list by date mode, pictures taken on a specified date can be displayed. When m is pressed, the calendar menu or the list by date menu is displayed, and all pictures taken on a specified date can be selected for deletion, printing, protection, and transfer.

  • Page 65: Selecting A Date In List By Date Mode

    Selecting a Date in List by Date Mode Enter list by date mode by press- ing C in playback mode, selecting L (use the rotary multi selector), and then press- ing d. Dates for which pictures exist will be listed. Choose the desired date and press d.

  • Page 66: Using Calendar Mode And List By Date Mode

    Viewing Pictures by Date Using Calendar Mode and List by Date Mode Select date Select month (cal- endar mode only) Switch to full- frame playback Delete picture View calendar or list by date menu View playback mode menu Switch to shoot- ing mode Notes on Calendar Mode and List by Date Mode •...

  • Page 67: Calendar And List By Date Menus

    Calendar and List by Date Menus Press m in either mode to display the following menus for only the pic- tures taken on the specified date. Print set Slide show Delete Protect Transfer marking Small picture* * During full-frame playback only The procedure for selecting pictures in calendar or date list playback differs from that in full-frame playback as follows: •...

  • Page 68: T Movies

    Movies Recording Movies To shoot movies with sound recorded via the built-in microphone, select shooting mode and follow the steps below. Enter movie mode by pressing C in shooting mode, select- ing S (use the rotary multi selector), and then pressing d. Exposure count display shows maximum total length of movie that can be recorded.

  • Page 69: The Movie Menu

    The Movie Menu Press m in movie mode to display the movie menu. Movie options Choose type of movie that will be recorded. Auto-focus mode Choose how camera focuses in movie mode. c 58 c 61...

  • Page 70: Selecting Movie Options

    The Movie Menu Selecting Movie Options The movie menu offers the options shown below. Option Image size and frame rate Image size: 640 × 480 pixels TV movie Frame rate: 30 frames per second 640A Image size: 320 × 240 pixels Small size Frame rate: 30 frames per second 320A...

  • Page 71: Time-Lapse Movies

    Time-Lapse Movies Record flowers opening or butterflies emerging from cocoons. Use the rotary multi selector to choose [Movie options] and press d. Choose [Time-lapse movieA] and press Choose the interval between shots and press d. Choose from intervals between 30 seconds and 60 minutes.

  • Page 72: Stop-Motion Movies

    • To power the camera continuously for extended periods, use an AC Adapter EH-62D (avail- able separately from Nikon) (c 114). Do not, under any circumstances, use another make or model of AC adapter. Failure to observe this precaution could result in over- heating or in damage to the camera.

  • Page 73: Auto-Focus Mode

    Auto-Focus Mode Choose how the camera focuses in movie mode. Option Z Single AF Camera focuses when shutter-release button is pressed half- (default setting) way and locks at this position during shooting. Camera focuses continuously until focus is acquired and locked.

  • Page 74: Movie Playback

    Movie Playback In full-frame playback (c 26), movies are recog- nized by the T icon. To play a movie, display it in full-frame playback and press d. Use the zoom buttons to adjust playback volume. Press t (j) to lower volume, or v (k) to raise volume.

  • Page 75: O Voice Recordings

    Voice Recordings Making Voice Recordings Audio voice recordings can be recorded over the built-in microphone and played back over the built-in speaker. Enter voice recording mode by pressing C in shooting mode, selecting O (use the rotary multi selector), and then pressing d. The length of recording that can be made will be displayed.

  • Page 76: Operations During Recording

    Making Voice Recordings Operations During Recording The following operations are available during recording. If the monitor has turned off, press i to reactivate. Press Pause/resume recording Create index End recording Voice Recordings • PictureProject cannot be used to transfer or play voice recordings. Select [Interface] > [Mass storage] for [USB], copy the files manually.

  • Page 77: Playing Voice Recordings

    Playing Voice Recordings Enter audio playback mode by pressing C in playback mode, selecting q (use the rotary multi selector), and then pressing d. Choose the desired file and press d. The selected file will be played back. Control icons File number Playback time Progress indicator...

  • Page 78: Operations During Playback

    Playing Voice Recordings Operations During Playback Use the zoom buttons to adjust playback volume. Press t (j) to lower vol- ume, or v (k) to raise volume. Rotate the rotary multi selector to advance or rewind the voice recording. Playback controls appear at the top of the monitor. Press the rotary multi selector I or J to choose a control, then press d to perform the selected operation.

  • Page 79: Copying Voice Recordings

    Choose [Yes] and press d. Copying starts. Voice Recordings The COOLPIX S500 may be unable to play or copy sound files created with another make of camera. [No sound file.] Message If there are no sound files stored on the memory card when q is selected (c 65, step1), the message, [No sound file.], will be displayed.

  • Page 80: Connecting To Televisions, Computers, And Printers

    While connected to the TV, the camera monitor will remain off. Before Connecting the Camera Use a fully charged battery or the AC Adapter EH-62D (available separately from Nikon) to prevent the camera from turning off unexpectedly while connected. Connecting an A/V Cable When connecting the A/V cable, be sure that the camera connector is oriented correctly.

  • Page 81: Connecting To A Computer

    Windows 2000 Professional Mac OS X (Version10.3.9, 10.4.x) Refer to the Nikon website for the latest information on operating system compatibility. This camera supports the USB options, [PTP] (default setting) and [Mass storage]. The camera’s E (d) button cannot be used to transfer pictures in the following cases.

  • Page 82: Setting The Usb Option

    Connecting to a Computer Setting the USB Option Set the USB option in the setup menu (c 98) on the camera before connect- ing the camera to a computer or printer. Display the setup menu by pressing C in playback or shooting mode, selecting Z (use the rotary multi selector), and then pressing d.

  • Page 83: Transferring Pictures To A Computer

    Transferring Pictures to a Computer Start a computer to which PictureProject has been installed. Turn off the camera. Connect the camera to the computer using the supplied USB cable. Turn on the camera. At default PictureProject settings, PictureProject Transfer is launched immediately with recognition of camera connection.
  • Page 84 Connecting to a Computer Disconnect the camera when transfer is complete. If the USB option is set to [PTP] Turn the camera off and disconnect the USB cable. If the USB option is set to [Mass storage] Remove the camera from the system as described below before turning the camera off and disconnecting the USB cable.

  • Page 85: Connecting To A Printer

    Connecting to a Printer Users of PictBridge-compatible (c 131) printers can connect the camera directly to the printer and print pictures without using a computer. Take pictures Select pictures for printing using [Print set] option (c 79). Connect to printer (c 74) Print pictures one at Print multiple pictures (c 76) a time (c 75)

  • Page 86: Connecting The Camera And Printer

    Connecting to a Printer Connecting the Camera and Printer Set the USB option (c 70) to [PTP]. Turn off the camera. Turn on the printer. Check printer settings. Connect the camera to the printer using the supplied USB cable. Turn on the camera. When connected correctly, the PictBridge start-up screen 1 will be displayed in the camera monitor.

  • Page 87: Printing Pictures One At A Time

    Printing Pictures One at a Time After connecting the camera to the printer correctly (c 74), print pictures by following the procedure below. Use the rotary multi selector to choose the desired picture and press d. The PictBridge menu is displayed. Press v (k) to switch to full-frame playback.

  • Page 88: Printing Multiple Pictures

    Connecting to a Printer Choose [Start print] and press d. Printing starts. Monitor display returns to that shown in step 1 when printing is complete. To cancel before all copies have been printed, press Printing Multiple Pictures After connecting the camera to the printer correctly (c 74), print pictures by following the procedure below.
  • Page 89 Choose the desired paper size and press To specify paper size using printer settings, choose [Default] in the paper size menu and press d. Choose [Print selection], [Print all images] or [DPOF printing] and press d. Print selection Choose the pictures and number of copies (up to nine) of each.
  • Page 90 Connecting to a Printer DPOF printing Print pictures for which a print order has been created in [Print set] (c 79). • The menu shown at right will be displayed. • To print, choose [Start print] and press d. • Choose [Cancel] and press d to return to the print menu (step 4).

  • Page 91: Creating A Dpof Print Order: Print Set

    Creating a DPOF Print Order: Print Set The [Print set] option in the playback menu is used to create digital “print orders” for printing on DPOF-compatible devices (c 131). In addition to pictures themselves, shooting date and photo information (shutter speed, aperture, etc.) can also be printed. When the camera is connected to a PictBridge-compatible printer, pictures can be printed from the printer according to the DPOF print order you have created for pictures on the memory card.
  • Page 92 Creating a DPOF Print Order: Print Set Choose whether or not to also print shooting date and photo information. [Date]: Print date of recording on all pictures in the print order. [Info]: Print shutter speed and aperture on all pictures in the print order.

  • Page 93: Shooting, Playback, And Setup Menus

    Shooting, Playback, and Setup Menus Shooting Options: The Shooting Menu The shooting menu and high-sensitivity menu contain the following options. Image mode Choose image size and quality. White balance Match white balance to the light source. Continuous Take pictures one at a time or in a sequence. Use the “best shot selector”...

  • Page 94: Displaying The Shooting Menu And High-Sensitivity Menu

    • To exit the shooting or high-sensitivity menu, press m. Z Image Mode Pictures taken with a digital camera are recorded as image files. The size of the files, and with it the number of images that can be recorded, depends on the size and quality of the images.

  • Page 95: Image Mode

    Image Mode and the Number of Exposures Remaining The following table lists the number of pictures that can be stored in internal memory and on a 256 MB memory card, together with the size of still pictures. Note that the number of pic- tures that can be stored will differ depending on the composition of the picture (due to JPEG compression).

  • Page 96: White Balance

    Shooting Options: The Shooting Menu d White Balance The color of light reflected from an object varies with the color of the light source. The human brain is able to adapt to changes in the color of the light source, with the result that white objects appear white whether seen in the shade, direct sunlight, or under incandescent lighting.

  • Page 97: Preset White Balance

    f Preset White Balance Preset white balance is used with mixed lighting or to compensate for light sources with a strong color cast (for example, to make pictures taken under a lamp with a red shade look as though they had been taken under white light). Place a white or gray reference object under the lighting that will be used during shooting.

  • Page 98: Continuous

    Shooting Options: The Shooting Menu q Continuous Capture a fleeting expression on a portrait subject, photograph a subject that is moving unpredictably, or capture motion in a series of pictures. Focus, exposure, and white balance are fixed at the values for the first picture in each series.

  • Page 99: Interval Timer Photography

    • To power the camera continuously for extended periods, use an AC Adapter EH-62D (avail- able separately from Nikon) (c 114). Do not, under any circumstances, use another make or model of AC adapter. Failure to observe this precaution could result in over- heating or in damage to the camera.

  • Page 100: A Best Shot Selector (Bss)

    Shooting Options: The Shooting Menu A Best Shot Selector (BSS) The “best shot selector” is convenient for shooting in situations where inadvertent camera movement can result in blurred pictures. At [On] setting, the flash automatically turns off and focus, exposure, and white balance for all pictures are determined by the first picture in each series.

  • Page 101: W Iso Sensitivity

    W ISO Sensitivity Sensitivity is a measure of how quickly the camera reacts to light. The higher the sensitivity, the less light needed to make an exposure. Although a high ISO rating is suited for taking pictures of subjects in action or in poor lighting, high sensitivity is often associated with “noise”...

  • Page 102: Af Area Mode

    Shooting Options: The Shooting Menu k AF Area Mode Use this option to determine where the camera focuses. Auto (default setting) Camera automatically selects the focus area (1 of 9; c 24) containing the subject closest to the camera. The selected focus area is displayed when the shutter-release button is pressed halfway.

  • Page 103: Restrictions On Camera Settings

    Press the shutter-release button the rest of the way down. Restrictions on Camera Settings Restrictions apply to the following settings in L (auto) mode: Flash mode Flash turns off at [Continuous] settings of [Continuous] or [Multi-shot 16], or when [BSS] is on. Applied setting is restored when [Single] or [Intvl timer shooting] is selected, or [BSS] is turned off.

  • Page 104: Playback Options: The Playback Menu

    Playback Options: The Playback Menu The playback menu contains the following options. Print set Select pictures to print and the number of copies for each. Slide show View pictures stored in the internal memory or on a memory card in an automatic slide show.

  • Page 105: Selecting Multiple Pictures

    Selecting Multiple Pictures When following the steps below to select multiple pictures for a print set (c 79), deletion (c 95), protection from deletion (c 95), transfer (c 96), copying between internal memory and the memory card (c 97), or for the welcome screen (c 100), the screen shown at right is displayed.

  • Page 106: Slide Show

    Playback Options: The Playback Menu z Slide Show Play back pictures stored in the internal memory or on a memory card in an automated “slide show”. Display the slide show menu; use the rotary multi selector to choose [Start] and press d. To change the interval between pictures, choose [Frame intvl], select the desired interval time, and press d before choosing [Start].

  • Page 107: A Delete

    A Delete The delete menu contains the options shown below. If no memory card is inserted in the camera, pic- tures in the internal memory will be deleted. If a memory card is inserted, pictures on the mem- ory card will be deleted. Erase selected images Delete selected pictures (c 93).

  • Page 108: E Transfer Marking

    Playback Options: The Playback Menu E Transfer Marking Change transfer marking (E) for existing pictures. When the camera is connected to a computer with PictureProject installed via the supplied USB cable, pressing d transfers only the pictures marked with a E icon (c 71). At the default setting, all pic- tures are marked for transfer.

  • Page 109: L Copy

    L Copy Copy pictures between the internal memory and a memory card. First, select from the following options. Copy pictures from internal memory to memory card. Copy pictures from memory card to internal memory. Then, select the desired copy option. Choose [Selected images] (c 93) to copy specific pictures in the internal memory or memory card.

  • Page 110: Basic Camera Setup: The Setup Menu

    Basic Camera Setup: The Setup Menu The setup menu contains the following options. Menus Choose how menus are displayed. Quick startup Enable or disable welcome screen and start-up sound. Welcome screen Select screen displayed when camera is turned on. Date Set camera clock and choose home and destination time zones.

  • Page 111: Displaying The Setup Menu

    Displaying the Setup Menu First, display the playback-mode or shooting-mode selection menu by press- ing C. Then select Z (use the rotary multi selector), press d. Set up • Use the rotary multi selector to choose and apply settings. (c 9) •...

  • Page 112: H Quick Startup

    To set the welcome screen, [Quick startup] must be set to [Off]. Nikon Displays a welcome screen when the camera is turned on. Animation (default setting) Displays a short animation when the camera is turned on.

  • Page 113: W Date

    W Date Set the camera clock and choose home and travel destination time zones. Date Set camera clock to current date and time. See “Setting Display Language, Date, and Time” (c 16-17) for more informa- tion. Time zone X(home time zone) can be specified and daylight saving enabled or disabled from [Time zone] options.
  • Page 114 Basic Camera Setup: The Setup Menu Choose the travel destination time zone and press d. The setting is enabled. While the travel destination time zone is selected, the Y icon will be displayed in the monitor when the camera is in shooting mode. The Clock Battery The clock battery charges when the main battery is installed or an AC adapter is connected, and can provide several days of backup power after about 10 hours of charging.
  • Page 115 Time Zones (c 16) The camera supports the time zones listed below. Increments of less than one hour are not supported; when travelling to or from destinations at half- or quarter-hour increments from Greenwich Mean Time (GMT), such as Afghanistan, Central Australia, India, Iran, Nepal, or Newfoundland, set the camera clock to local time (c 16, 101).

  • Page 116: Z Monitor Settings

    Basic Camera Setup: The Setup Menu Z Monitor Settings Choose whether or not to display information in the monitor, and set the monitor brightness. Photo info Choose information displayed in monitor during shooting and playback mode. Brightness Choose from five settings for monitor brightness. Photo Info The following display options are available.

  • Page 117: Date Imprint

    f Date Imprint Date and time of recording can be imprinted on pictures for printing this information from printers that are not DPOF-compatible (c 122). Off (default setting) Date and time are not imprinted on pictures. Date Date is imprinted on the bottom right corner of pictures taken while this option is in effect.
  • Page 118 Basic Camera Setup: The Setup Menu Date Counter Pictures taken while this option is in effect are imprinted with the number of days remaining until, or the number of days elapsed since a specified date. Use it to track the growth of a child or count down the days until a birthday or wedding.

  • Page 119: Vibration Reduction

    b Vibration Reduction Vibration reduction effectively corrects blur, caused by slight hand movement known as camera shake, that commonly occurs when shooting with zoom applied or at slow shutter speeds. Vibration reduc- tion can be used in all shooting modes. When [Off] is selected, an icon for the current setting is not displayed in the monitor (c 6).

  • Page 120: Af Assist

    Basic Camera Setup: The Setup Menu u AF Assist If [Auto] (default setting) is selected, AF-assist illu- mination will be used to assist the focus operation when the subject is poorly lit. Note that for some scene modes, AF-assist illumina- tion turns off automatically.

  • Page 121: Auto Off

    i Auto Off Choose the time allowed to elapse before the cam- era enters standby mode to save power (c 21). The time options are [30s], [1m] (default setting), [5m], and [30m]. The power-on lamp flashes in standby mode. If no operations are performed for another three minutes, the camera turns off.

  • Page 122: M Format Memory/O Format Card

    • Do not turn the camera off, disconnect the AC adapter, or remove the battery or memory card during formatting. • The first time you insert the memory cards used in other devices into the COOLPIX S500, format them. Format memory...

  • Page 123: Language

    j Language Choose one of 20 languages for display of camera menus and messages. Czech Danish German (default setting) Spanish French Indonesian Italian Dutch Norwegian k Interface Adjust settings for connection to a computer or television. Select [PTP] (default setting) or [Mass storage] for connection to computer (c 69) or printer (c 74).

  • Page 124: Reset All

    Basic Camera Setup: The Setup Menu n Reset All This option restores the following settings to their default values: Pop-up menu Option Flash mode (c 28) Self-timer (c 30) Macro close-up (c 31) Exposure compensation (c 32) Scene mode Option Scene mode (c 34) One-touch portrait menu Option...

  • Page 125: Setup Menu

    Value set for [White bal. preset] (c 85) in the shooting menu will remain unaffected even if [Reset all] is performed. B Firmware Version View the current camera firmware version. Basic Camera Setup: The Setup Menu Default value Text Animation Auto info Auto Normal Default value Default COOLPIX S500 Ver. X.X Back...

  • Page 126: Technical Notes

    USB cable A/V cable Approved Memory Cards The following memory cards have been tested and approved for use in the COOLPIX S500: SanDisk Toshiba Panasonic If the memory card will be used with a card reader or similar device, the device must support memory card specifications.

  • Page 127: Image/Sound File And Folder Names

    (e.g., “101P_001”; c 40), “INTVL” for inter- val timer photography (e.g., “101INTVL”; c 87), “SOUND” for voice recordings (e.g., “101SOUND”; c 63), and “NIKON” for all other pictures (e.g., “100NIKON”). When the number of files within a folder reaches 9999, a new folder will be created.

  • Page 128: Caring For The Camera

    Caring for the Camera To ensure continued enjoyment of this Nikon product, observe the following precautions when using or storing the device. Keep dry The device will be damaged if immersed in water or subjected to high humidity. Do not drop The product may malfunction if subjected to strong shock or vibration.

  • Page 129: The Battery

    The Self-Timer Lamp/AF-Assist Illuminator LED The light-emitting diode (LED; c 4, 30, 108) used in the self- timer lamp/AF-assist illuminator conforms to the following IEC standard: The Battery • Check the battery level when taking the camera out and charge the battery if necessary (c 12).

  • Page 130: Cleaning

    Some smear may appear in movies. • Images in the monitor may be difficult to see under bright lighting. • The monitor is lit by an LED backlight. Should the monitor begin to dim or flicker, contact your Nikon service representative.

  • Page 131: Error Messages

    Error Messages The following table lists the error messages and other warnings displayed in the monitor, as well as the solutions for dealing with them. Display S (blinks) Clock not set. Battery running low. Battery exhausted. Warning! Battery exhausted. p (● blinks red) Camera cannot focus.
  • Page 132 Error Messages Display Image cannot be saved. Sound file cannot be saved. Image has already been modified. D-Lighting cannot be used. Cannot record movie. Memory contains no images. No sound file. Problem Error occurred while Format internal memory recording picture. or memory card.
  • Page 133 Solution View file on computer or other device. Disable protection. Turn camera off and then on again. If error persists, contact retailer or Nikon representative. If PictureProject displays error, click [OK] to exit. Resume operation after turning camera off and reconnecting cable.
  • Page 134 Error Messages Display Printer error. Check printer status. Printer error: check paper Printer error: paper Printer error: out of paper Printer error: check Printer error: out of Printer error: file cor- rupt * See the documentation provided with your printer for further guidance and informa- tion.

  • Page 135: Troubleshooting

    Troubleshooting If the camera fails to function as expected, check the list of common prob- lems below before consulting your retailer or Nikon representative. Refer to the page numbers in the right-most column for more information. Display, Settings and Power Supply...
  • Page 136 Turn the camera off, remove and replace the battery, and then turn the camera on again. In the event of continued malfunction, contact your retailer or Nikon representative. Note that disconnecting the power source as described above may result in the loss of any data not recorded to internal memory or the memory card at the time the problem occurred.
  • Page 137 Problem Bright specks appear in pictures taken with flash Flash does not fire Optical zoom cannot be used Digital zoom cannot be used [Image mode] not available No sound when shutter is released AF-assist illuminator does not light Pictures appear smeared Colors are unnatural Randomly spaced bright pixels (“noise”) appear in image...
  • Page 138 Troubleshooting Problem Pictures are too dark (underexposed) Pictures are too bright (overexposed) Unexpected results when flash set to A (auto with red-eye reduction) Playback Problem File cannot be played back Cannot zoom in on picture Cannot record voice memo Cannot use D-Lighting, crop, or small picture options Cause/Solution •...
  • Page 139 PictureProject to transfer pictures. Pictures were marked for transfer using another model of camera. Mark pictures for transfer using COOLPIX S500. d cannot be used to transfer pictures from internal memory when [Mass stor- age] is selected for [USB] or if memory card is locked.

  • Page 140: Specifications

    Specifications Nikon COOLPIX S500 Digital Camera Type Effective pixels Image sensor Lens Focal length f/-number Construction Digital zoom Vibration reduction Autofocus (AF) Focus range (from lens) Focus-area selection Auto (9-area automatic selection), center, manual with AF-assist illumination Class 1 LED product (IEC 60825-1 Edition 1.2...

  • Page 141: Exposure Metering

    ISO sensitivity ISO 50,100, 200, 400, 800, 1600, 2000, Auto (auto gain to ISO 50 to 1000) Exposure Metering 256-segment matrix, center-weighted, spot (digital zoom), spot AF area (99 focus area) Exposure control Programmed auto exposure with exposure compensation (–2.0 to +2.0 EV in steps of Range [W]: –0.35 to +16.5 EV (ISO 100)

  • Page 142: Battery Charger Mh

    (W × H × D) Weight Specifications Nikon will not be held liable for any errors this manual may contain. The appearance of this product and its specifications are subject to change without notice. Rechargeable lithium-ion battery 3.7 V/740 mAh Approx.

  • Page 143: Supported Standards

    Exif-compliant printers. • PictBridge: A standard developed cooperatively by the digital camera and printer industries, allowing photographs to be output directly to a printer...

  • Page 144: Index

    Index Symbols F (anti-shake) button 4, 42 F Anti-shake mode 42 d (apply selection) button 5 L Auto mode 20–27 J Calendar mode 52 T (delete) button 10, 26 z (D-Lighting) 48 I (exposure compensation) 5, 32 l Help 11 K High-sensitivity shooting mode 33 L List by date mode 53 m button 10...
  • Page 145 Digital print order format 79–80, 131 D-Lighting 48 DPOF 131 DSCN 115 Dusk/dawn (J) 37 E-mail 82 Error messages 119–122 Exif version 2.2 131 Exposure compensation 32 Extension 115 Face-priority AF 44 File names 115 Fill flash 28 Fireworks show (K) 38 Firmware version 113 Flash 28, 112 lamp 5, 29...
  • Page 146 Index Party/indoor (C) 36 PictBridge 73–79, 131 Playback 26, 45–50 menu 92–97 thumbnail 45 zoom 46 Playback menu 92–97 Playback-mode selection menu 8 Power switch 4 Power-on lamp 4, 20 Print set 79, 92 Print size 83 Protect 95 Quick startup 100 Red-eye reduction 29 Reset all 112 Rotary multi selector 5, 9...
  • Page 147 No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION. YP7A01(11) 6MA27211--...

This manual is also suitable for:

25559 - coolpix s500 digital camera

Table of Contents

Save PDF
