1
1 Monitor ..................................................................6
2 Shooting mode button................................8
c (playback) button....................................8
3
4 Flash lamp.........................................................27
5 Multi selector......................................................9
Zoom buttons ................................................20
f : Zoom out ...........................................20
g : Zoom in...............................................20
6
h : Thumbnail playback....................40
i : Playback zoom................................41
j : Help .......................................................11
2 3 4
11
5 6 7 8 9 10
12 13
d button ..............................10, 47, 62, 70
7
k (apply selection) button...................... 9
8
l (delete) button.........................24, 25, 48
9

Battery-chamber/

10
memory card slot cover....................12, 16
11 Tripod socket
12 SD card slot.......................................................16
13 Battery-chamber............................................12

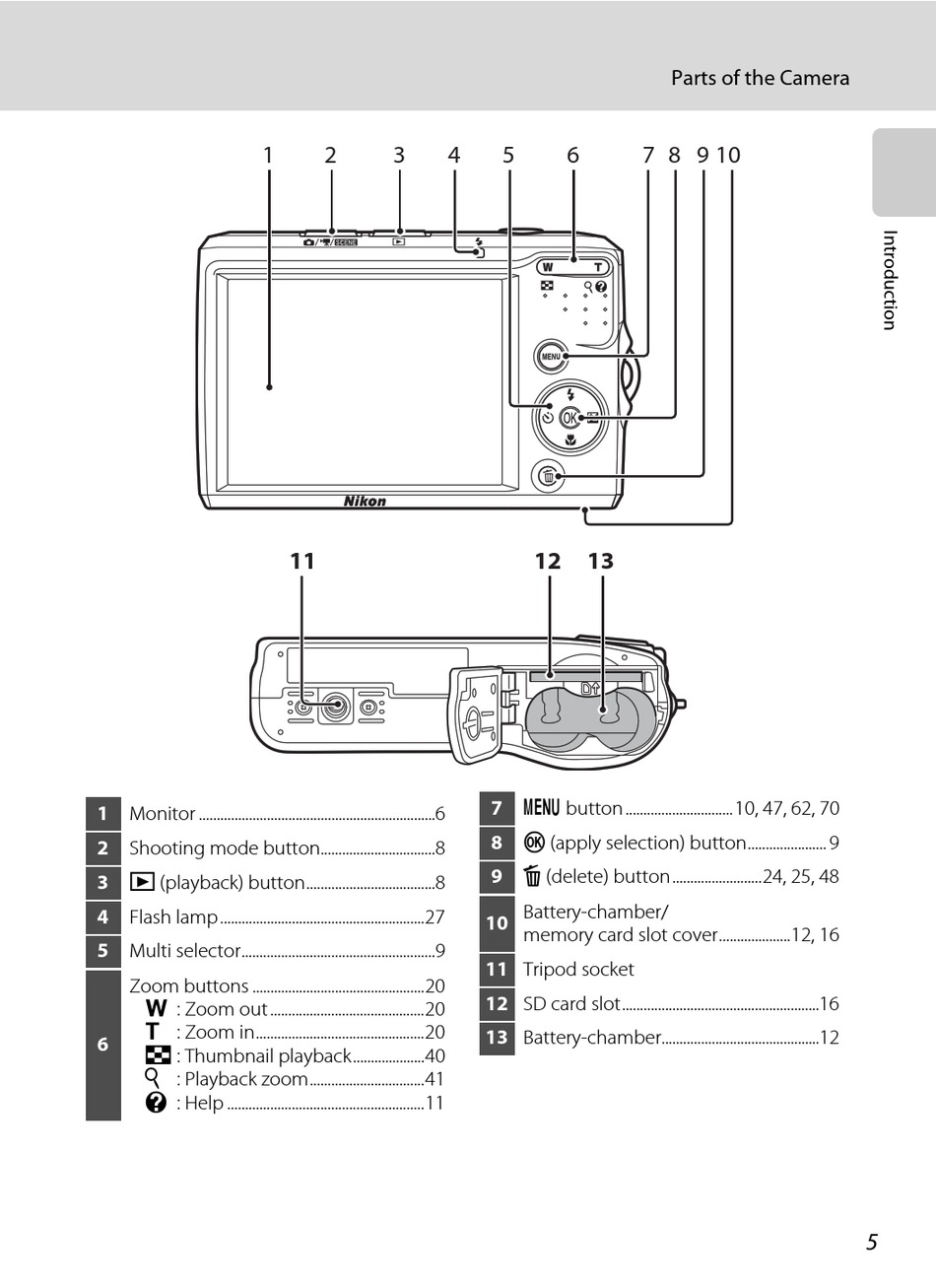

Parts of the Camera
5
