Copyright
This publication, including all photographs, illustrations and software, is protected
under international copyright laws, with all rights reserved. Neither this manual, nor
any of the material contained herein, may be reproduced without written consent of
the author.
Version 1.0
Disclaimer
The information in this document is subject to change without notice. The manufac-
turer makes no representations or warranties with respect to the contents hereof and
specifically disclaims any implied warranties of merchantability or fitness for any
particular purpose. The manufacturer reserves the right to revise this publication and
to make changes from time to time in the content hereof without obligation of the
manufacturer to notify any person of such revision or changes.
Trademark Recognition
Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel
Corporation.
Other product names used in this manual are the properties of their respective
owners and are acknowledged.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
•
Reorient or relocate the receiving antenna
•
Increase the separation between the equipment and the receiver
•
Connect the equipment onto an outlet on a circuit different from that to
which the receiver is connected
•
Consult the dealer or an experienced radio/TV technician for help
Shielded interconnect cables and a shielded AC power cable must be employed with
this equipment to ensure compliance with the pertinent RF emission limits govern-
ing this device. Changes or modifications not expressly approved by the system's
manufacturer could void the user's authority to operate the equipment.
Preface
Preface
Advertisement
Table of Contents
Related Manuals for ECS h61h2-a2
Summary of Contents for ECS h61h2-a2
- Page 1 Preface Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Version 1.0 Disclaimer The information in this document is subject to change without notice.
-
Page 2: Declaration Of Conformity
Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interfer- ence that may cause undesired operation. Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference- causing Equipment Regulations. -
Page 3: Table Of Contents
T T T T T ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS Preface Chapter 1 Introducing the Motherboard Introduction..................1 Feature....................2 Specifications...................4 Motherboard Components............5 Chapter 2 7 7 7 7 7 Installing the Motherboard Safety Precautions................7 Choosing a Computer Case............7 Installing the Motherboard in a Case...........7... - Page 4 Security Menu ...............52 ..Save & Exit Menu..............53 Updating the BIOS..............55 Chapter 4 57 57 57 57 57 Using the Motherboard Software About the Software DVD-ROM/CD-ROM.........57 Auto-installing under Windows XP/Vista/7.......57 Running Setup................58 Manual Installation................60 Utility Software Reference............60 61 61 61 61 61 Chapter 5 Trouble Shooting Start up problems during assembly..........61...
-
Page 5: Introducing The Motherboard

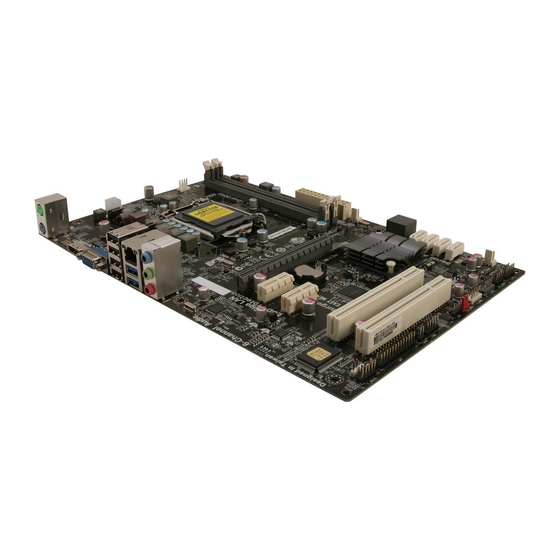

Chapter 1 Introducing the Motherboard Introduction Thank you for choosing H61H2-A2/H61H2-A2 Deluxe motherboard. This motherboard is a high performance, enhanced-function motherboard designed to support the LGA1155 socket for latest new Sandy Bridge high-end processors to reach the optimum system performance for high-end business or personal desktop market. -
Page 6: Feature
Feature Processor The motherboard uses an LGA1155 type of socket that carries the following features: • Accommodates latest new Sandy Bridge high-end desktop proces- sors • DMI 20 Gb/s • Supports “Hyper-Threading” technology CPU • Integrated DirectX 10.1 graphics processor ®... -
Page 7: Onboard Lan
Onboard LAN The onboard LAN provides the following features: • Supports PCI Express • Integrated 10/100/1000 transceiver • Wake-on-LAN and remote wake-up support • Supports PCI Express • Integrated 10/100 transceiver (Optional) • Wake-on-LAN and remote wake-up support Expansion Options The motherboard comes with the following expansion options: •... -
Page 8: Specifications
Specifications • LGA1155 socket for latest new Sandy Bridge high-end desk- top processors • DMI 20 Gb/s Supports “Hyper-Threading” technology CPU • Chipset ® • Intel H61 Chipset Extra Chips ITE IT8893 PCI Bridge supports two PCI slots expansion • •... -
Page 9: Motherboard Components
Supports PgUp clear CMOS Hotkey (Has PS2 KB Model only) • Supports Dual Display • Supports ACPI 3.0 revision, DMI & Watch dog • Supports ECS M.I.B III Utility • Supports Non-Disk Utility • Supports GUI UEFI • Supports eBLU/eDLU/eSF •... - Page 10 Table of Motherboard Components LABEL COMPONENTS LGA1155 socket for latest new Sandy Bridge high-end 1. CPU Socket desktop processors 2. CPU_FAN CPU cooling fan connector 3. DDR3_1~2 240-pin DDR3 SDRAM slots 4. ATX_POWER Standard 24-pin ATX power connector 5. SYS_FAN System cooling fan connector 6.
-
Page 11: Installing The Motherboard
Chapter 2 Installing the Motherboard Safety Precautions • Follow these safety precautions when installing the motherboard • Wear a grounding strap attached to a grounded device to avoid dam- age from static electricity • Discharge static electricity by touching the metal case of a safely grounded object before working on the motherboard •... -
Page 12: Checking Jumper Settings
Do not over-tighten the screws as this can stress the motherboard. Checking Jumper Settings This section explains how to set jumpers for correct configuration of the motherboard. Setting Jumpers Use the motherboard jumpers to set system configuration options. Jumpers with more than one pin are numbered. -
Page 13: Checking Jumper Settings
Checking Jumper Settings The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled. Jumper Settings Type Jumper Description Setting (default) 1-2: NORMAL 2-3: CLEAR CLR_CMOS 3-pin Clear CMOS Before clearing the CLR_CMOS CMOS, make sure to turn off the system. -
Page 14: Installing Hardware
Installing Hardware Installing the Processor Caution: When installing a CPU heatsink and cooling fan make sure that you DO NOT scratch the motherboard or any of the surface-mount resis- tors with the clip of the cooling fan. If the clip of the cooling fan scrapes across the motherboard, you may cause serious damage to the motherboard or its components. -
Page 15: Cpu Installation Procedure
CPU Installation Procedure The following illustration shows CPU installation components. A. Opening of the Load Plate · Put your thumb on the tail of the load plate and press the tail down. · Rotate the load plate to fully open position. -
Page 16: Installing Memory Modules
1. To achieve better airflow rates and heat dissipation, we suggest that you use a high quality fan with 3800 rpm at least. CPU fan and heatsink installation procedures may vary with the type of CPU fan/ heatsink supplied. The form and size of fan/heatsink may also vary. 2. -
Page 17: Installation Procedure
Installation Procedure Refer to the following to install the memory modules. This motherboard supports unbuffered DDR3 SDRAM . Push the latches on each side of the DIMM slot down. Align the memory module with the slot. The DIMM slots are keyed with notches and the DIMMs are keyed with cutouts so that they can only be installed correctly. -
Page 18: Expansion Slots
Expansion Slots Installing Add-on Cards The slots on this motherboard are designed to hold expansion cards and connect them to the system bus. Expansion slots are a means of adding or enhancing the motherboard’s features and capabilities. With these efficient facilities, you can increase the motherboard’s capabilities by adding hardware that performs tasks that are not part of the basic system. - Page 19 Follow these instructions to install an add-on card: Remove a blanking plate from the system case corresponding to the slot you are going to use. Install the edge connector of the add-on card into the expansion slot. Ensure that the edge connector is correctly seated in the slot. Secure the metal bracket of the card to the system case with a screw.
-
Page 20: Connecting Optional Devices
Connecting Optional Devices Refer to the following for information on connecting the motherboard’s optional devices: F_AUDIO: Front Panel Audio Header The front panel audio header allows the user to install auxiliary front-oriented microphone and line-out ports for easier access. This header supports HD audio by default. - Page 21 For AC’97 HD Front Audio Description Description Front panel microphone input signal 2 Analog ground Microphone power 4 Analog power( +5V ) Right channel to front panel 6 Right channel return from front panel RSVD 8 No pin Left channel to front panel 10 Left channel return from front panel AC’...
- Page 22 SATA1~4: Serial ATAII connectors These connectors are used to support the Serial ATA 3Gb/s devices, simpler disk drive cabling and easier PC assembly. It eliminates limitations of the current Parallel ATA interface. But maintains register compatibility and software compatibility with Par- allel ATA.
- Page 23 SPDIFO: SPDIF out header This is an optional header that provides an SPDIFO (Sony/Philips Digital Interface) output to digital multimedia device through optical fiber or coaxial connector. Signal Name SPDIFOUT CASE: Chassis Intrusion Detect Header This detects if the chassis cover has been removed. This function needs a chassis equipped with instrusion detection switch and needs to be enabled in BIOS.
- Page 24 COM: Onboard serial port header Connect a serial port extension bracket to this header to add a serial port to your system. Signal Name Function DCDB Data Carrier Detect SINB Serial Input SOUTB UART B Serial Output DTRB UART B Data Terminal Ready Ground DSRB Data Set Ready...
-
Page 25: Installing A Sata Hard Drive
Installing a SATA Hard Drive This section describes how to install SATA devices such as a hard disk drive and a CD- ROM drive. About SATA Connectors This motherboard features four SATA 3.0 Gb/s connectors and two SATA 6.0 Gb/s connectors supporting a total of six drives. -
Page 26: Connecting I/O Devices
Connecting I/O Devices The backplane of the motherboard has the following I/O ports: PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device. PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard. LAN Port Connect an RJ-45 jack to the LAN port to connect your computer to the Network. -
Page 27: Connecting Case Components
Connecting Case Components After you have installed the motherboard into a case, you can begin connecting the motherboard components. Refer to the following: Connect the CPU cooling fan cable to CPU_FAN. Connect the system cooling fan connector to SYS_FAN. Connect the power cooling fan connector to PWR_FAN. Connect the case switches and indicator LEDs to the F_PANEL. - Page 28 Connecting 4-pin power cable The ATX12V4P power connector is used to provide power to the CPU. When installing 4-pin power cable, the latches of power cable and the ATX12V4P match perfectly. 4-pin power cable CPU_FAN: CPU cooling FAN Power Connector Signal Name Function System Ground...
- Page 29 PWR_FAN: FAN Power Connector Signal Name Function System Ground +12V Power +12V Sense Sensor SPK: Internal speaker Signal Name Signal ATX12V: ATX 12V Power Connector Signal Name Ground Ground +12V +12V Installing the Motherboard...
-
Page 30: Front Panel Header
Front Panel Header The front panel header (F_PANEL) provides a standard set of switch and LED headers commonly found on ATX or Micro ATX cases. Refer to the table below for information: Signal Function Signal Function HD_LED_P Hard disk LED(+) 2 FP PWR/SLP *MSG LED(+) HD_LED_N Hard disk LED(- ) FP PWR/SLP *MSG LED(-) -
Page 31: Using Bios
Chapter 3 Using BIOS About the Setup Utility The computer uses the latest “American Megatrends Inc. ” BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the motherboard BIOS. The BIOS (Basic Input and Output System) Setup Utility displays the system’s configuration status and provides you with options to set system parameters. -
Page 32: Resetting The Default Cmos Values
BIOS Boot Menu for Black Deluxe Series---For H61H2-A2 Deluxe only. Press the delete key to access BIOS Setup Utility. Resetting the Default CMOS Values When powering on for the first time, the POST screen may show a “CMOS Settings Wrong” message. This standard message will appear following a clear CMOS data at factory by the manufacturer. -
Page 33: Bios Navigation Key
Using BIOS When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. - Page 34 Language Select the language icon and press <Enter> or double click the left key of the mouse to display the following screen. Then you can choose the language which displays in the following screen. Default Select the default icon and press <Enter> or double click the left key of the mouse to display the following screen.
- Page 35 Boot Select the boot icon and press <Enter> or double click the left key of the mouse to display the following screen. Then you can choose the boot device. Advanced Select the advanced icon and press <Enter> or double click the left key of the mouse to display the following screen.
-
Page 36: Main Menu
Main Menu This menu shows the information of BIOS and enables you to set the system language, date and time. Main Advanced Chipset M.I.B III Boot Security Exit BIOS Information Choose the system default language System Language English System Date Thu 10/06/2011 System Time 15:14:13... -
Page 37: Advanced Menu
Advanced Menu The Advanced menu items allow you to change the settings for the CPU and other system. Main Advanced Chipset M.I.B III Boot Security Exit Legacy OpROM Support Enabled /Disabled Onboard Launch PXE OpROM Disabled LAN Option ROM Launch Storage OpROM Enabled LAN Configuration PC Health Status... -
Page 38: Pc Health Status
PC Health Status On motherboards support hardware monitoring, this item lets you monitor the parameters for critical voltages, temperatures and fan speeds. Main Advanced Chipset M.I.B III Boot Security Exit PC Health Status Smart Fan Function Smart Fan Function CPU Fan Speed 2860RPM CPU Voltage 1.248 V... - Page 39 Smart Fan Mode (Normal) This item allows you to select the fan mode (Normal, Quiet, Silent, or Manual) for a better operation environment. If you choose Normal mode, the fan speed will be auto adjusted depending on the CPU temperature. If you choose Quite mode, the fan speed will be auto minimized for quiet environment.
-
Page 40: Power Management Setup
Power Management Setup This page sets up some parameters for system power management operation. Main Advanced Chipset M.I.B III Boot Security Exit Power Management Setup About Resume by Ring Resume By RING Disabled Resume By PME Disabled Resume By USB2.0 (S3) Disabled Resume By PS2 KB (S3) Disabled... -
Page 41: Acpi Configuration
ACPI Configuration The item in the menu shows the highest ACPI sleep state when the system enters suspend. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset M.I.B III Boot Security Exit ACPI Settings Select the highest ACPI sleep state the system ACPI Sleep State S3 (Suspend to RAM) - Page 42 CPU Configuration The item in the menu shows the CPU. Main Advanced Chipset M.I.B III Boot Security Exit CPU Configuration Disabled for Windows XP Intel (R) Pentium(R) CPU G630 @ 2.70GHz EMT64 Supported Processor Speed 2700 MHz Processor Stepping 206a7 Microcode Revision ...
-
Page 43: Sata Configuration
Intel Virtualization Technology (Enabled) When enabled, a VMM can not utilize the additional hardware capabilities provided by Vandor Pool Technology. Power Technology (Energy Efficient) Use this item to control the Energy mode of the processor. Enhanced Halt(CIE) (Enabled) Use this item to enable or disable the Enhanced Halt(CIE) of the processor. Press <Esc>... -
Page 44: Usb Configuration
USB Configuration Use this item to show the information of USB configuration. Main Advanced Chipset M.I.B III Boot Security Exit USB Configuration Enabled/Disabled All USB Devices All USB Devices Enabled USB 3.0 Controller Enabled Legacy USB Support Enabled : Select Screen ... -
Page 45: Super Io Configuration
Super IO Configuration Use this item to show the information of Super IO configuration. Main Advanced Chipset M.I.B III Boot Security Exit Super IO Configuration Set Parameters of Serial Port 0 (COMA) Super IO Chip IT8728 Serial Port 0 Configuration Parallel Port Configuration ... -
Page 46: Parallel Port Configuration
Parallel Port Configuration Scroll to this item and press <Enter> to view the following screen: Main Advanced Chipset M.I.B III Boot Security Exit Parallel Port Configuration Enabled or Disabled Parallel Port (LPT/LPTE) Parallel Port Enabled Device Settings IO=378h; IRQ=5; DMA=3; Change Settings Auto Device Mode... -
Page 47: Chipset Menu
Chipset Menu The chipset menu items allow you to change the settings for the North Bridge chipset, South Bridge chipset and other system. Main Advanced Chipset M.I.B III Boot Security Exit North Bridge North Bridge Parameters South Bridge ME Subsystem ... -
Page 48: South Bridge
IGD Multi-Monitor (Disabled) This item allows you to enable or disable IGD Multi-Monitor. Press <Esc> to return to the chipset menu page. South Bridge Scroll to this item and press <Enter> to view the following screen. Main Advanced Chipset M.I.B III Boot Security Exit... - Page 49 ME Subsystem Scroll to this item and press <Enter> to view the following screen. Main Advanced Chipset M.I.B III Boot Security Exit Intel ME Subsystem Configuration ME Subsystem Help ME Subsystem Help ME Version 7.0.4.1197 ME Subsystem Enabled : Select Screen ...
-
Page 50: M.i.b Iii (Mb Intelligent Bios Iii) Menu
M.I.B III (MB Intelligent BIOS III) Menu This page enables you to set the clock speed and system bus for your system. The clock speed and system bus are determined by the kind of processor you have installed in your system. Main Advanced Chipset... - Page 51 Current ICC Profile Index (N/A) This item shows current ICC profile index. ICC Enable (Disabled) This item allows you to enable or disable current ICC. Press <Esc> to return to the M.I.B III menu page. Memory Voltage Control Scroll to this item and press <Enter> to view the following screen. Main Advanced Chipset...
- Page 52 Performance Tunning Scroll to this item and press <Enter> to view the following screen. Main Advanced Chipset M.I.B III Boot Security Exit Performance Tuning CPU Configuration CPU Configuration Chipset Configuration : Select Screen /Click: Select Item Enter/Dbl Click : Select +/- : Change Opt.
-
Page 53: Chipset Configuration
Chipset Configuration Scroll to this item to view the following screen: Main Advanced Chipset M.I.B III Boot Security Exit Memory Multiplier Configuration Disabled/Enabled GT Overclocking Memory Multiplier 10.67 Memory Timing Configuration CAS# Latency(tCL) : Row Precharge Time(tRP) RAS# to CAS# Delay(tRCD) ... - Page 54 Active to Active Delay (tRRD) (4) This item controls the ACTIVE bank x to ACTIVE bank y in memory clock cycles. Read CAS# Precharege (tRTP) (4) This item controls the Read to PRECHARGE delay for memory devices, in memory clock cycles. Four Activate Window Delay (tFAW) (16) This item controls the four bank activate time in memory clock cycles.
-
Page 55: Boot Menu
Boot Menu This page enables you to set the keyboard NumLock state. Main Advanced Chipset M.I.B III Boot Security Exit Boot Configuration Select the keyboard NumLock state Bootup NumLock State Set Boot Priority 1st Boot Hard Disk 2nd Boot CD/DVD ... -
Page 56: Security Menu
Security Menu This page enables you to set setup administrator password and user password. Main Advanced Chipset M.I.B III Boot Security Exit Administrator Password Set Setup Administrator Password : Select Screen /Click: Select Item Enter/Dbl Click : Select +/- : Change Opt. -
Page 57: Save & Exit Menu
Save & Exit Menu This page enables you to exit system setup after saving or without saving the changes. Main Advanced Chipset M.I.B III Boot Security Exit Back to EZ Mode Go back to EZ Mode. Save Changes and Exit Discard Changes and Exit Save Changes and Reset Discard Changes and Reset... -
Page 58: Boot Override
Boot Override Use this item enables you to set the device order. Main Advanced Chipset M.I.B III Boot Security Exit Back to EZ Mode Restore/Load Default values for all the setup Save Changes and Exit options. Discard Changes and Exit Save Changes and Reset Discard Changes and Reset Exit without Saving... -
Page 59: Updating The Bios
Updating the BIOS You can download and install updated BIOS for this motherboard from the manufacturer’s Website. New BIOS provides support for new peripherals, improve- ments in performance, or fixes for known bugs. Install new BIOS as follows: If your motherboard has a BIOS protection jumper, change the setting to allow BIOS flashing. - Page 60 Memo Using BIOS...
-
Page 61: Using The Motherboard Software
Chapter 4 Using the Motherboard Software About the Software DVD-ROM/CD-ROM The support software DVD-ROM/CD-ROM that is included in the motherboard package contains all the drivers and utility programs needed to properly run the bundled products. Below you can find a brief description of each software program, and the location for your motherboard version. -
Page 62: Running Setup
Drivers Click the Setup button to run the software installation program. Setup Select from the menu which software you want to install. Click the Utilities button to display the application software and Utilities other software utilities that are available on the disk. Select the sofware you want to install then follow installation procedure. - Page 63 Click Next. The following screen appears: Check the box next to the items you want to install. The default options are recom- mended. Click Next run the Installation Wizard. An item installation screen appears: Follow the instructions on the screen to install the items. Drivers and software are automatically installed in sequence.
-
Page 64: Manual Installation
Windows Vista/7 will appear below UAC (User Account Control) message after the system restart. You must select “Allow” to install the next driver. Continue this process to complete the drivers installation. Manual Installation Insert the disk in the DVD-ROM/CD-ROM drive and locate the PATH.DOC file in the root directory. -
Page 65: Trouble Shooting
Chapter 5 Trouble Shooting Start up problems during assembly After assembling the PC for the first time you may experience some start up problems. Before calling for technical support or returning for warranty, this chapter may help to address some of the common questions using some basic troubleshooting tips. -
Page 66: Start Up Problems After Prolong Use
2. From the BIOS setting, try to disable the Smartfan function to let the fan run at default speed. Doing a Load Optimised Default will also disable the Smartfan. Start up problems after prolong use After a prolong period of use your PC may experience start up problems again. This may be caused by breakdown of devices connected to the motherboard such as HDD, CPU fan, etc. - Page 68 Memo...
