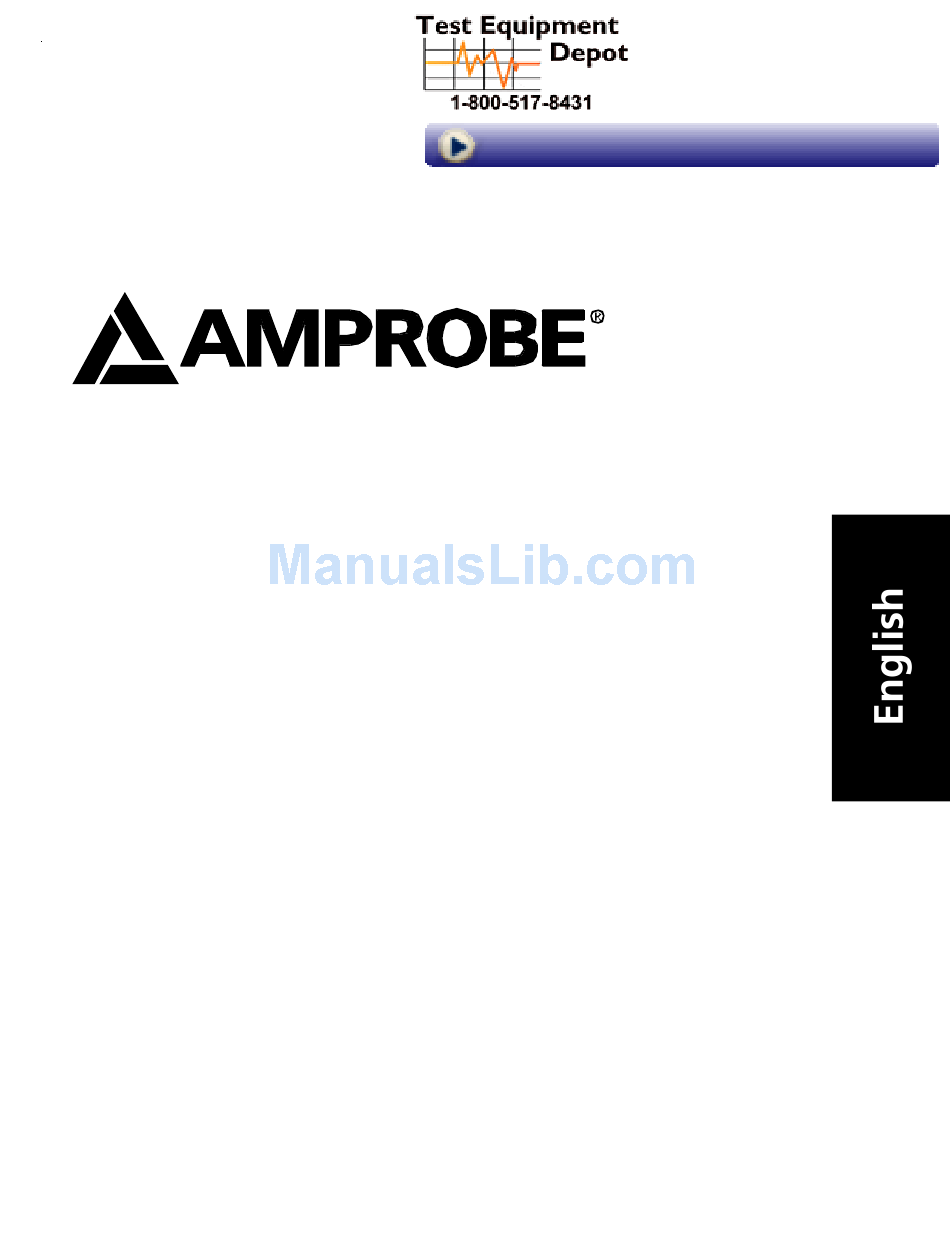

- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com HD110C Heavy-Duty Digital Multimeter User Manual...
- Page 2 HD110C Features HD110C HD110C 1500 1000 1000 V 2A MAX 1500V FUSED 1000V Number Description COM Input - common or low input for all measurements Amp Input Function/Range Selector Switch Low Battery Indicator Hold Indicator 3 ½ Digit LCD with unit indicators...
-
Page 3: Table Of Contents
HD110C Heavy-Duty Digital Multimeter Contents Symbols ................................ 2 Introduction ..............................2 Warnings and Precautions .......................... 2 Instrument Familiarization ......................... 3 Overload Indication ............................ 3 Measuring Procedures ..........................3 DC & AC Voltage Measurement (See Figure 1) ..................4 DC and AC Current Measurement (See Figure 2) ..................4 Resistance Measurement (See Figure 3) .................... -
Page 4: Symbols
Introduction The HD110C Heavy-Duty Digital Multimeter is a 3-1/2 digit, manual ranging, ac-coupled average measuring rms reading display instrument that measures: voltage, current, resistance, continuity, and diode junctions. Menu selection allows Data Hold and ac or dc voltage and current selection. -
Page 5: Instrument Familiarization
ACROSS a voltage source. Check fuse first. • Never replace a fuse with one of a different rating. • Do not operate instrument in an explosive atmosphere (flammable gases, fumes, vapor, dust.) • Do not use this or any piece of test equipment without proper training •... -
Page 6: Dc & Ac Voltage Measurement (See Figure 1)
DC & AC Voltage Measurement (See Figure 1) Connect test leads to the meter as shown in Figure 1. Turn function selector switch to V and the desired range. Press the AC/DC menu button to display either ac or dc indicator. Touch Probe tips across voltage source (in parallel with circuit). -
Page 7: Ac/Dc Button
AC/DC Button The AC/DC button works in conjunction with the Selector Switch to alternate the type of input desired for the Volts and Amperes ranges. Each press of the button will alternate the input type again and an ac or dc indication will be appear on the display. Hold Button Data Hold freezes the reading present on the LCD at the moment the button is pressed. -
Page 8: Specifications
Specifications the following European Community Directives: 89/336/EEC (Electromagnetic Compatibility) and General Specifications 73/23/EEC (Low Voltage) as amended by 93/68/EEC (CE Marking). Display: 3-1/2 digit LCD, 1999 counts, with annunciators and menu features However, electrical noise or intense electromagnetic fields in the vicinity of the Polarity Indication: Automatic equipment may disturb the measurement circuit. - Page 9 OL Protection: 1500 V dc/1000 V ac rms Resistance Ranges: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ Transient Protection: 12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement Resolution: 0.1 Ω for at CAT IV 1000 V product. This product should Accuracy: 200 Ω...
-
Page 10: Maintenance & Repair
Use only the same size and type fuse specified. Use of higher amperage or lower voltage or different type fuses could result in shock, injury and/or damage to the meter. Replacement fuse is: 2 A/1500 V fast blow ceramic size 8 x 65 mm (small) fuse. Amprobe p/n: FP700. -
Page 11: Repair
Non-Warranty Repairs and Replacement – US and Canada Non-warranty repairs in the United States and Canada should be sent to a Amprobe® Test Tools Service Center. Call Amprobe® Test Tools or inquire at your point of purchase for current repair and replacement rates. - Page 12 > 20V HD110C Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 FAX 781.665.0780 - TestEquipmentDepot.com 1500 1000 1000 V 2A MAX 1500V FUSED 1000V HD110C 1500 1000 1000 V 2A MAX 1500V FUSED 1000V...
- Page 13 > 20V HD110C 1500 1000 1000 V 2A MAX 1500V FUSED 1000V HD110C 1500 1000 1000 V 2A MAX 1500V FUSED 1000V...
- Page 14 Visit us at www.TestEquipmentDepot.com Back to Amprobe HD110C/HD160C Page...
