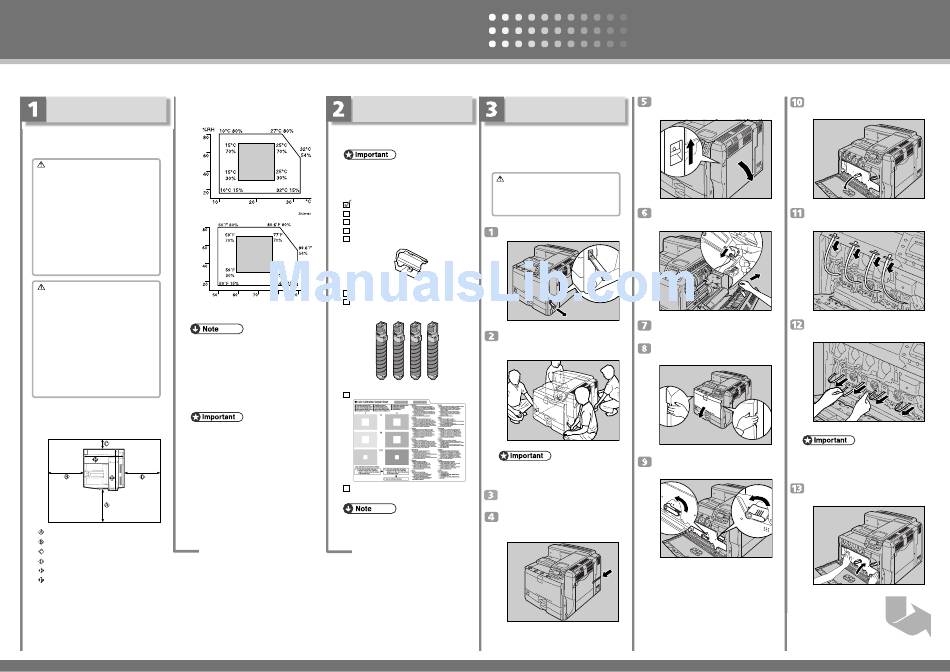

Aficio C811DN Quick Installation Manual

Quick Installation Guide
Read this manual carefully before you use the product and keep it handy for future reference.
For safe and correct use, please be sure to read the Safety Information in "Safety Information"
before using the machine.
❖ Optimum Environmental Conditions
Where to Put the Printer
Permissible and recommended temperature and humid-
ity ranges are as follows:
The printer's location should be carefully chosen
because environmental conditions greatly affect its
performance.
Warning
• Confirm that the wall outlet is near the machine and
freely accessible, so that in event of an emergency, it
can be unplugged easily.
• Only connect the machine to the power source
described on this manual.
• Avoid multi-wiring.
• Do not damage, break or make any modifications to
%RH
the power cord. Do not place heavy objects on it, pull
it hard or bend it more than necessary. These actions
could cause an electric shock or fire.
• The supplied power cord is for use with this equipment
only. Do not use with other appliances. Doing so may
result in fire, electric shock, or injury.
Caution
• Do not handle the plug with wet hands. Doing so might
• White area: Permissible Range
cause an electrical shock.
• Gray area: Recommended Range
• Keep the machine in an area that is within optimum
environmental conditions. Operating the machine in
an environment that is outside the recommended
ranges of humidity and temperature can cause an
• The machine must be level within 5 mm, 0.2˝ from
electrical fire hazard. Keep the area around the socket
both front to rear and left to right.
free of dust. Accumulated dust can become an
• To avoid possible build-up of ozone, locate this
electrical fire hazard.
machine in a large well ventilated room that has an
• Place the machine on a strong and level surface.
air turnover of more than 30 m
Otherwise, it might fall and injure someone.
• When you use this machine for a long time in a
• If you use the machine in a confined space, ensure
confined space without good ventilation, you may
there is continuous air circulation. detect a smell. To keep the workplace comfortable,
we recommend that you keep it well ventilated.
❖ Space Required for Installation
Leave enough space around the printer to operate it
Do not use the printer in the following environments:
freely. The recommended minimum space is as follows:
• Areas exposed to direct sunlight or strong light
• Dusty areas
• Areas with corrosive gases
• Areas that are excessively cold, hot, or humid
• Locations near air conditioners or humidifiers
• Locations near other electronic equipment
• Locations subject to frequent strong vibration
❖ Power Source
Connect the power cable to a power source of the fol-
lowing specification:
• 120 V, 60 Hz, 12 A or more
ATU600S
: 75 cm (29.6 inches) or more
: 60 cm (23.7 inches) or more
: 10 cm (4 inches) or more
: 60 cm (23.7 inches) or more
: 67 cm (26.4 inches) or more
: 67 cm (26.4 inches) or more
Checking the included
items
Follow the procedure below to verify the items that
come with the printer.
• Ensure that the box contains all items listed below.
The items, except for the Quick Installation Guide
and toner, are in tray 1. If there are any missing or
defective items, contact your sales representative.
❖ Manuals and CD-ROMs
Quick Installation Guide (This manual)
CD-ROM "Printer Drivers and Utilities"
CD-ROM "Manuals"
CD-ROM "Document Management Utility"
Ferrite Core
Power Cable
TS4K031KE
Toner: Black (K), Magenta (M), Cyan
(C), Yellow (Y)
3 /hr/person.
Color Calibration Sample Sheet
Additional Documentation
• This package does not include an interface cable.
Purchase one as necessary to connect to the printer.
Unpacking
To protect it from shock and vibration during transit,
this printer comes packaged in cushioning foam and
secured with tape. Remove these protective materials
after bringing the machine to where it will be installed.
Caution
• When lifting the machine, use the grips on
both sides. The printer could break or cause
an injury if dropped.
• Place no objects on the front or inner cover.
Pull out the handle.
ATU602S
ATU604S
Lift the printer with four people by us-
ing the handles on both sides of the
printer.
ATU1601S
ATU605S
• Leave the tape in place while moving the printer.
• Lower the machine slowly and carefully to prevent
trapping your hands.
Return the handle you pulled out from
the printer to its original position.
Remove the tape indicated by the arrow.
Do not remove the four strips of tape at-
tached to the front cover.
ATU606S
Aficio SP C811DN
Push up the lever on the right side, and Pulling the handle, slowly open the
open the printer's right cover carefully. inner cover.
ATU607S
While pushing the lever, remove the secur- Remove the orange tapes from the
ing pin by pulling the wire with the red tag. printer.
ATU608S
Close the right cover firmly until it Pull out the tapes horizontally. Be sure
to pull out all four strips of tape.
clicks.
Holding the left and right side grips,
carefully open the front cover.
ATU609S
• To avoid malfunctions, be sure to remove all four
strips of tape from the photo conductor unit.
Turn the two green levers counterclock-
• Removed tape is dirty. Be careful not to let it touch
wise.
your hands or clothes.
Pressing both sides, firmly close the
inner cover.
ATU610S
CLP240D
C7640nD
LP440c
ATU611S
ATU612S
ATU613S
