DVP-S320
RMT-D109E
SERVICE MANUAL
Singapore Model
SPECIFICATIONS
– Continued on next page –
CD/DVD PLAYER
MICROFILM

Advertisement

Table of Contents
loading

Related Manuals for Sony DVP-S320

Summary of Contents for Sony DVP-S320

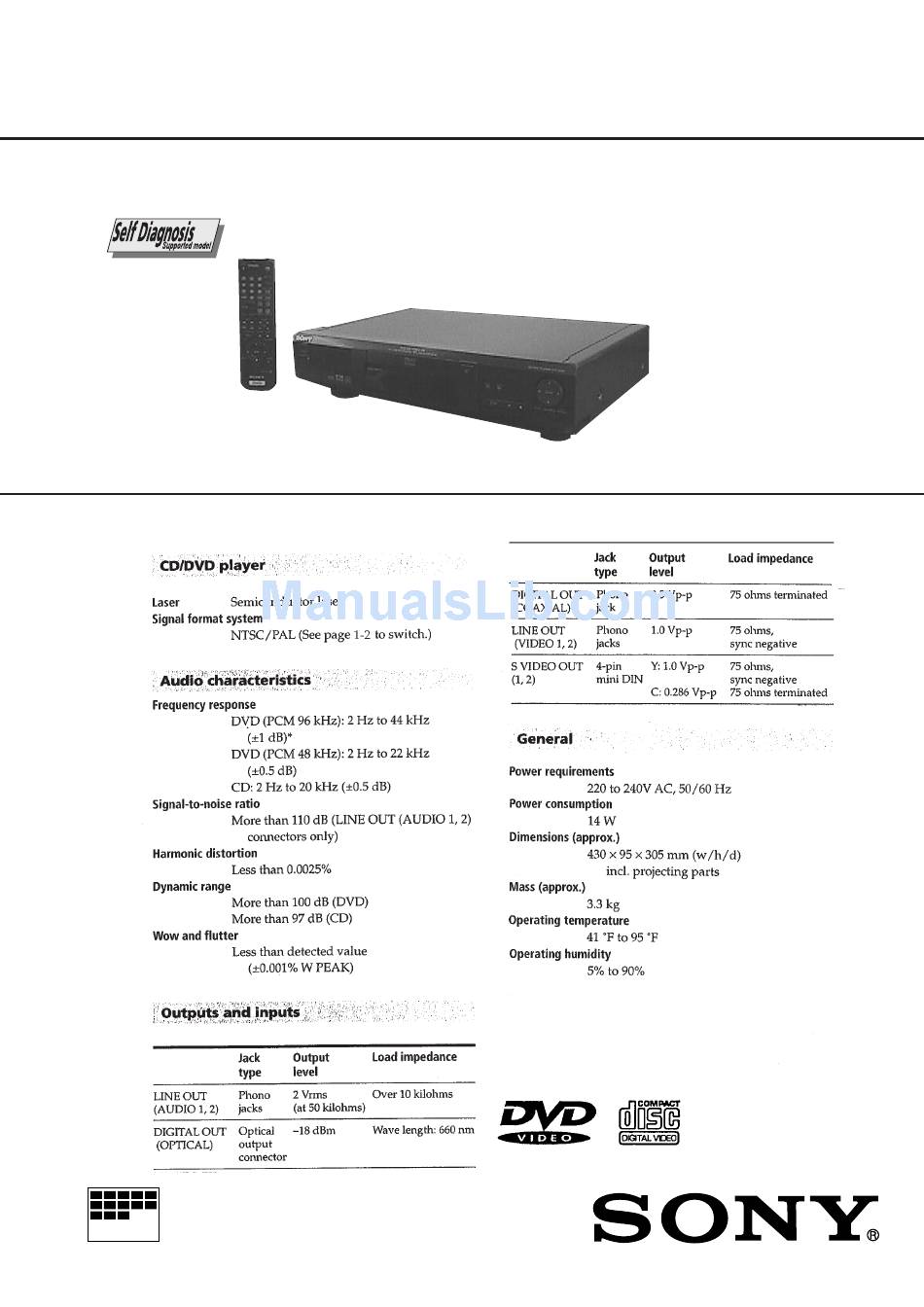

  • Page 1 DVP-S320 RMT-D109E SERVICE MANUAL Singapore Model SPECIFICATIONS – Continued on next page – CD/DVD PLAYER MICROFILM...
  • Page 2 LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Section Title Page Section Title Page Service Note ................4 IC PIN FUNCTION DESCRIPTION GENERAL 5-1. System Control Pin Function (MB-82 Board IC202) ............ 5-1 This Player Can Play the Following Discs ....1-1 Getting Started .............. 1-1 TEST MODE Playing Discs ..............

  • Page 4: Service Note

    SERVICE NOTE 1. DISASSEMBLY • This set can be disassembled in the order shown below. Case (Page 2-1) Power MB-82 Board AU-208 Board Tray Cover Block (Page 2-2) (Page 2-1) (Page 2-1) (Page 2-1) Mechanism Front Panel Deck (Page 2-2) (Page 2-2) Tray (Page 2-2)
  • Page 5 2. NOTE ON REMOVE THE CASE 4. HOW TO SERVICE MB-82 BOARD 1) Remove seven screws. (See Fig. 1) 1) Remove the case from the set. (Refer to 2-1) 2) Open the side of case. (See Fig. 1) 2) Remove the MB-82 board. (Refer to 2-2) 3) Remove the case as lift straight.

  • Page 6: General

    DVP-S320 SECTION 1 This section is extracted from instruction GENERAL manual (3-867-036-11).
  • Page 15 1-10...
  • Page 16 1-11...
  • Page 17 1-12...
  • Page 18 1-13...
  • Page 19 1-14 E 1-14...

  • Page 20: Disassembly

    DVP-S320 SECTION 2 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. 2-1. CASE REMOVAL 2-3. POWER BLOCK REMOVAL 4 Case 1 Connector 2 Three connectors (CN101) (CN201, 202, 203) 2 Two screws 3 Four screws 1 Three screws...

  • Page 21: Tray Cover Removal

    2-5. TRAY COVER REMOVAL 2-7. MECHANISM DECK REMOVAL 4 Tray cover 3 Screw 3 Two claws (B3) 4 Mechanism deck 2 Two flat cables (CN003, 004) 2 Pull the tray in the direction of the arrow B. 1 Connector 1 Insert a tapering driver into the aperture of the (CN001) unit bottom, and move the lever of chuck cam in the direction of the arrow A.

  • Page 22: Optical Pick-Up Removal

    2-9. OPTICAL PICK-UP REMOVAL 2-10. BELT, LOADING MOTOR (M001), MS-46, TK-51 BOARD REMOVAL 1 Belt 5 Optical pick-up 4 Three step 2 Two screws screws (B2.6 × 4) 3 Remove the base unit holder in the direction of the arrow A. 9 TK-51 board 6 Flexible board (CN001)

  • Page 23: Internal View

    2-11. INTERNAL VIEW DC motor (loading) Optical pick-up (KHM-220AAA/J1RP) 1-541-632-11 8-820-081-03...

  • Page 24: Circuit Boards Location

    2-12. CIRCUIT BOARDS LOCATION Power Block (HS-030SH) TK-51 (SWITCHING REGULATOR) (RF/SERVO) AU-208 (AUDIO) FR-146 (IR/POWER SWITCH) MB-82 MS-46 (SIGNAL PROCESS/SERVO) (LOADING) FL-97 (FUNCTION SWITCH) 2-5 E...

  • Page 25: Block Diagrams

    DVP-S320 SECTION 3 BLOCK DIAGRAMS 3-1. OVERALL BLOCK DIAGRAM MB-82 BOARD BASE UNIT TK-51 BOARD AU-208 BOARD (SEE PAGE 4-11) (SEE PAGE 4-19 to 37) (SEE PAGE 4-41) KHM-220AAA IC304 IC402, 403 16M DRAM 16M SDRAM OPTICAL DEVICE VIDEO V, VIDEO Y, VIDEO C...

  • Page 26: Rf/Servo Block Diagram

    DVP-S320 3-2. RF/SERVO BLOCK DIAGRAM IC001%¢(DVD play) BASE UNIT TK-51 BOARD MB-82 BOARD(1/5) (SEE PAGE 4-11) (SEE PAGE 4-23, 25) 500mV/DIV 100ns/DIV KHM-220AAA IC0011(DVD play) IC001$º(DVD play) IC001$º(CD play) 200mV/DIV 100ns/DIV IC701^•(DVD play) 500mV/DIV 50ms/DIV 100mV/DIV 50ms/DIV IC701^ª(DVD play) 100mV/DIV 5ms/DIV 500mV/DIV 50ms/DIV 1.5Vp-p...

  • Page 27: Signal Process/Video Block Diagram

    DVP-S320 3-3. SIGNAL PROCESS/VIDEO BLOCK DIAGRAM AU-208 BOARD(1/2) MB-82 BOARD(2/5) (SEE PAGE 4-41) (SEE PAGE 4-19, 21, 27, 35) IC303!¶(DVD play) 500mV/DIV 100ns/DIV IC304 IC402, 403 16M DRAM 16M SDRAM 1.6Vp-p IC303!ª(CD play) 500mV/DIV 200ns/DIV IC3214  1.6Vp-p 136-139 154-157 105-108...

  • Page 28: System Control Block Diagram

    DVP-S320 3-4. SYSTEM CONTROL BLOCK DIAGRAM MB-82 BOARD(3/5) (SEE PAGE 4-29, 31, 33) IC204 IC206 1M SRAM 16M FLASH HA 0-21 SIGNAL PROCESS, AUDIO VIDEO +3.3V IC207 (SEE PAGE 3-9) (SEE PAGE 3-5) HD 0-15 IC201 POWER ON 146-154 126-133...

  • Page 29: Audio Block Diagram

    DVP-S320 3-5. AUDIO BLOCK DIAGRAM AU-208 BOARD(2/2) MB-82 BOARD(4/5) (SEE PAGE 4-41) (SEE PAGE 4-35) J502 Q341 COAXIAL BUFFER DIGITAL IC505 SPDIF D IN OPTICAL J505 SIGNAL PROCESS, AUDIO OUT1 IC902 VIDEO IC431 CN005 CN301 AUDIO 2CH DAC (SEE PAGE 3-6)

  • Page 30: Interface Control Block Diagram

    DVP-S320 3-6. INTERFACE CONTROL BLOCK DIAGRAM FR-146 BOARD FL-97 BOARD MB-82 BOARD(5/5) (SEE PAGE 4-49) (SEE PAGE 4-45, 47) (SEE PAGE 4-29) CN202 CN006 SCLK1 IFSC0 IC051 SOUT1 IFSI0 IC201 REMOTE COMMANDER IF CON RECEIVER CN002 CN201 SIN1 IFSO0 SYSTEM CONTROL...

  • Page 31: Power Block Diagram

    DVP-S320 3-7. POWER BLOCK DIAGRAM HS-030SH BOARD AU-208 BOARD (SEE PAGE 4-53) (SEE PAGE 4-41) B301 IC301 +12V CN201 CN101 +8V REG D101 +12V P211 +12V T101 F101 L101, 102 P311 Q101-103 IC431 LINE SWITCH P611 +3.3V +3.3V FILTER –12V IC302 –9V REG...

  • Page 32: Printed Wiring Boards And Schematic Diagrams

    DVP-S320 SECTION 4 PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS THIS NOTE IS COMMON FOR PRINTED WIRING For schematic Diagram: • Caution when replacing chip parts. BOARDS AND SCHEMATIC DIAGRAMS. New parts must be attached after removal of chip. (In addition to this, the necessary note is printed Be careful not to heat the minus side of tantalum capacitor, in each block.)

  • Page 33: Frame Schematic Diagram

    DVP-S320 4-1. FRAME SCHEMATIC DIAGRAM FRAME (1) SCHEMATIC DIAGRAM FRAME (1/2)
  • Page 34 DVP-S320 FRAME (2) SCHEMATIC DIAGRAM FRAME (2/2)

  • Page 35: Printed Wiring Boards And Schematic Diagrams

    DVP-S320 There are few cases that the part isn't mounted in this model is printed on this diagram. 4-2. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS TK-51 TK-51 (RF/SERVO) PRINTED WIRING BOARD BOARD(SIDE A) – Ref. No.: TK-51 board; 2,000 series –...
  • Page 36 DVP-S320 • Waveforms 1 IC001 1 (DVD play) 6 IC001 #ª (CD play) 200 mV/DIV 100 ns/DIV 500 mV/DIV 200 ms/DIV TK-51 BOARD(SIDE B) 536 mVp-p 1.7 Vp-p 2 IC001 1 (CD play) 7 IC001 $º (DVD play) 500 mV/DIV 500 ns/DIV...
  • Page 37 DVP-S320 TK-51 (RF/SERVO) SCHEMATIC DIAGRAM • See page 4-7 for printed wiring board and page 4-10 for waveforms. – Ref. No.: TK-51 board; 2,000 series – Note: The components identified by mark ! or dotted line with mark ! are critical for safety.

  • Page 38: Printed Wiring Board And Schematic Diagram

    DVP-S320 MS-46 (LOADING) PRINTED WIRING BOARD AND SCHEMATIC DIAGRAM – Ref. No.: MS-46 board; 3,000 series – There are few cases that the part isn't mounted in this model is printed on this diagram. MS-46 BOARD S001 (TRAY SENSOR) S001...
  • Page 39 DVP-S320 MB-82 (SIGNAL PROCESS/SERVO) PRINTED WIRING BOARD There are few cases that the part isn't mounted in this model is printed on this diagram. – Ref. No.: MB-82 board; 1,000 series – MB-82 BOARD(SIDE A) MB-82 BOARD (SIDE A) CN001...
  • Page 40 DVP-S320 MB-82 BOARD(SIDE B) MB-82 BOARD (SIDE B) D701 D806 IC005 IC201 IC203 IC204 IC207 IC304 IC402 IC403 IC404 IC702 IC801 IC802 IC803 IC902 1-672-676- (23) SIGNAL PROCESS/SERVO MB-82 4-17 4-18...

  • Page 41: Av Decoder) Schematic Diagram

    DVP-S320 MB-82 (AV DECODER) SCHEMATIC DIAGRAM • See page 4-15 for printed wiring board. – Ref. No.: MB-82 board; 1,000 series – AV DECODER MB-82 (1/10) 4-19 4-20...

  • Page 42: Mb-82 (Sdram) Schematic Diagram

    DVP-S320 MB-82 (SDRAM) SCHEMATIC DIAGRAM • See page 4-15 for printed wiring board. – Ref. No.: MB-82 board; 1,000 series – • Waveforms 1 IC401 ^¡ 1.1 Vp-p (H) 2 IC401 ^™ 816 mVp-p (H) 3 IC401 ^∞ 1.2 Vp-p (H)

  • Page 43: Servo Dsp) Schematic Diagram

    DVP-S320 MB-82 (SERVO DSP) SCHEMATIC DIAGRAM • See page 4-15 for printed wiring board. – Ref. No.: MB-82 board; 1,000 series – • Waveforms 1 IC701 ^ª (DVD play) 500 mV/DIV 50 ms/DIV 1.4 Vp-p 2 IC701 ^ª (CD play) 500 mV/DIV 200 mV/DIV 1.7 Vp-p...

  • Page 44: Drive) Schematic Diagram

    DVP-S320 MB-82 (DRIVE) SCHEMATIC DIAGRAM • See page 4-15 for printed wiring board. – Ref. No.: MB-82 board; 1,000 series – DRIVE MB-82 (4/10) 4-25 4-26...

  • Page 45: Mb-82 (Arp) Schematic Diagram

    DVP-S320 MB-82 (ARP) SCHEMATIC DIAGRAM • See page 4-15 for printed wiring board. – Ref. No.: MB-82 board; 1,000 series – • Waveforms 1 IC303 !¶ (DVD play) 500 mV/DIV 100 ns/DIV 1.6 Vp-p 2 IC303 !ª (CD play) 500 mV/DIV 200 ns/DIV 1.6 Vp-p...

  • Page 46: System Control) Schematic Diagram

    DVP-S320 MB-82 (SYSTEM CONTROL) SCHEMATIC DIAGRAM • See page 4-15 for printed wiring board. – Ref. No.: MB-82 board; 1,000 series – • Waveforms 1 IC202 (™ 2 IC202 5 SYSTEM CONTROL 2.4 Vp-p (12.5 MHz) 4 Vp-p (25.3 MHz)

  • Page 47: Hga) Schematic Diagram

    DVP-S320 MB-82 (HGA) SCHEMATIC DIAGRAM • See page 4-15 for printed wiring board. – Ref. No.: MB-82 board; 1,000 series – MB-82 (7/10) 4-31 4-32...

  • Page 48: Clock Generator) Schematic Diagram

    DVP-S320 MB-82 (CLOCK GENERATOR) SCHEMATIC DIAGRAM • See page 4-15 for printed wiring board. • Waveforms – Ref. No.: MB-82 board; 1,000 series – 1 IC004 2, 7 6 IC001 !¢ (DVD play) 4.2 Vp-p (25.3 MHz) 4.2 Vp-p (26.9 MHz) 2 IC003 7 7 IC001 !¢...

  • Page 49: Dac) Schematic Diagram

    DVP-S320 MB-82 (DAC) SCHEMATIC DIAGRAM • See page 4-15 for printed wiring board. – Ref. No.: MB-82 board; 1,000 series – MB-82 (9/10) 4-35 4-36...

  • Page 50: Bias) Schematic Diagram

    DVP-S320 MB-82 (BIAS) SCHEMATIC DIAGRAM • See page 4-15 for printed wiring board. – Ref. No.: MB-82 board; 1,000 series – BIAS MB-82 (10/10) 4-37 4-38...
  • Page 51 DVP-S320 AU-208 (AUDIO/VIDEO BUFFER) PRINTED WIRING BOARD There are few cases that the part isn't mounted in this model is printed on this diagram. – Ref. No.: AU-208 board; 2,000 series – AU-208 BOARD CN301 D301 A-11 D304 D305 D306...

  • Page 52: Schematic Diagram

    DVP-S320 AU-208 (AUDIO/VIDEO BUFFER) SCHEMATIC DIAGRAM – Ref. No.: AU-208 board; 2,000 series – AUDIO/VIDEO BUFFER AU-208 4-41 4-42...
  • Page 53 DVP-S320 FL-97 (FUNCTION SWITCH/IF CON) PRINTED WIRING BOARD There are few cases that the part isn't mounted in this model is printed on this diagram. – Ref. No.: FL-97 board; 2,000 series – FL-97 BOARD RETURN TITLE DVD MENU FLUORESCENT INDICATOR TUBE...

  • Page 54: Function Switch) Schematic Diagram

    DVP-S320 FL-97 (FUNCTION SWITCH) SCHEMATIC DIAGRAM – Ref. No.: FL-97 board; 2,000 series – FUNCTION SWITCH FL-97 (1/2) 4-45 4-46...

  • Page 55: If Con) Schematic Diagram

    DVP-S320 FL-97 (IF CON) SCHEMATIC DIAGRAM • See page 4-43 for printed wiring board. – Ref. No.: FL-97 board; 2,000 series – • Waveform 1 IC201 !¢ 3.9 Vp-p (4 MHz) IF CON FL-97(2/2) 4-47 4-48...
  • Page 56 DVP-S320 FR-146 (IR/POWER SWITCH) PRINTED WIRING BOARD AND SCHEMATIC DIAGRAM – Ref. No.: FR-146 board; 4,000 series – There are few cases that the part isn't mounted in this model is printed on this diagram. Power Block (HS-030SH) TK-51 (SWITCHING REGULATOR)

  • Page 57: Switching Regulator

    DVP-S320 HS-030SH (SWITCHING REGULATOR) PRINTED WIRING BOARD – Ref. No.: HS-030SH board; 6,000 series – There are few cases that the part isn't mounted in this model is printed on this diagram. HS-030SH BOARD CN101 CN102 CN201 CN202 CN203 D101...

  • Page 58: Hs-030Sh Schematic Diagram

    DVP-S320 HS-030SH (SWITCHING REGULATOR) SCHEMATIC DIAGRAM – Ref. No.: HS-030SH board; 6,000 series – HS-030SH BOARD T101 L211 P211 D211 10uH CN201 8P 500mA 60V S2L20U +3.3V C112 0.047uF 630V Q103 C213 C211 2SK2333 330uF 47uF AU-208 BOARD R152 +12V...

  • Page 59: System Control Pin Function (Mb-82 Board Ic202)

    5-1. SYSTEM CONTROL PIN FUNCTION (MB-82 BOARD IC202) Pin No. Pin name Function Pin No. Pin name Function Analog filter gain control EOP0 Not used VES gain control “H”: VES AVCC Power supply Rear CH boost control “H”: rear boost AVRH Reference power supply (+3.3V) VCC3...

  • Page 60: Test Mode

    DVP-S320 SECTION 6 TEST MODE 6-1. GENERAL DESCRIPTION ### Syscon Diagnosis ### Diag All Check The Test Mode allows you to make diagnosis and adjustment eas- No. 2 Version ily using the remote commander and monitor TV. The instructions, diagnostic results, etc. are given on the on-screen display (OSD).
  • Page 61 2-digit hexadecimal number. Disconnect flat cables connected to the CN002 and CN003 of MB-82 board. Also, disconnect Model Type harness from the CN011. DVP-S320 (Singapore) 5. Supply Caution: Do not conduct this check with a mechanical deck con- (2-5) Region nected.
  • Page 62 6. AV Decoder (5-4) ARP to RAM Address Bus Data write → other address read discord check (6-2) 1930 RAM Error 10: ARP → RAM address bus error Data write → read, and accord check Caution: Address and data display in case of an error is Error 13: AVD RAM read data discord different from the display of other diagnosis (de- The program code data stored in ROM (IC206) are copied...
  • Page 63 Check Items List Error Codes List 00: Error not detected 01: RAM write/read data discord 2) Version 02: Gate array NG (2-2) Revision 03: EEPROM NG (2-3) ROM Check Sum 08: ARP register read data discord (2-4) Model Type 09: ARP ←→ RAM data bus error (2-5) Region 10: ARP ←→...

  • Page 64: Drive Auto Adjustment

    6-4. DRIVE AUTO ADJUSTMENT 1. DVD-SL (single layer) [ENTER] Select , insert DVD single layer disc, and press key, and the adjustment will be made through the following steps, then On the Test Mode Menu screen, press key on the remote com- adjusted values will be written to the EEPROM.
  • Page 65 2. CD 3. DVD-DL (dual layer) [ENTER] [ENTER] Select , insert CD disc, and press key, and the adjust- Select , insert DVD dual layer disc, and press key, ment will be made through the following steps, then adjusted val- and the adjustment will be made through the following steps, then ues will be written to the EEPROM.

  • Page 66: Drive Manual Operation

    4. SACD 6-5. DRIVE MANUAL OPERATION [ENTER] Select , insert SACD disc, and press key, and the adjustment will be made through the following steps, then adjusted On the Test Mode Menu screen, select , and the manual opera- values will be written to the EEPROM. However, if SACD disc is tion menu will be displayed.
  • Page 67 0. Disc Check Memory Disc Type 1. Disc Type Auto Check Disc Check 2. DVD SL 12 cm 3. DVD DL 12 cm 4. CD 12cm 5. SACD 12 cm 1. SL Disc Check 6. DVD SL 8 cm 7. DVD DL 8 cm 2.

  • Page 68: Mecha Aging

    6-6. MECHA AGING Reset SLED TILT Reset the Sled and Tilt to initial posi- tion. ### Mecha Aging ### Turn ON/OFF the laser. Turn ON/OFF the spindle. Press OPEN key Focus Search the focus and turn on the focus. Turn ON/OFF the tracking servo. Sled Turn ON/OFF the sled servo.

  • Page 69: Version Information

    How to see Emergency History 6-8. VERSION INFORMATION ## Version Information ## IF con. Ver. x. xxx (xxxx) Group SYScon. Ver. x. xxx (xxxx) Model Region 1 : Emergency Code 2 : Don’t Care These codes are used for verification of software designing. 3 : Historical order 1 to 9 Exit: RETURN Emergency Codes List...

  • Page 70: Electrical Adjustments

    DVP-S320 SECTION 7 ELECTRICAL ADJUSTMENTS 7-1. POWER SUPPLY ADJUSTMENT In making adjustment, refer to 7-4. Adjustment Related Parts Arrangement. 1. Power Supply Check (HS-030SH BOARD) Note: During diagnostic check, the characters and color bars can be seen only with the NTSC monitor. Therefore, for diag-...

  • Page 71: Adjustment Of Video System

    7-2. ADJUSTMENT OF VIDEO SYSTEM 3. Checking S Video Output S-C (MB-82 BOARD) <Purpose> This checks whether the S-C satisfies the NTSC Standard. If it is 1. Video Level Adjustment (MB-82 BOARD) not correct, the colors will be too dark or light. <Purpose>...

  • Page 72: Adjustment Related Parts Arrangement

    7-3. ADJUSTMENT RELATED PARTS ARRANGEMENT MB-82 BOARD (SIDE A) CN005 RV401 VIDEO LEVEL ADJ HS-030SH BOARD (SIDE A) CN203 CN202 7-4 E...

  • Page 73: Repair Parts List

    DVP-S320 SECTION 8 REPAIR PARTS LIST 8-1. EXPLODED VIEWS NOTE: The components identified by • The mechanical parts with no reference number in • -XX and -X mean standardized parts, so they may mark ! or dotted line with mark the exploded views are not supplied.

  • Page 74: Front Panel Assembly

    X-3949-774-1 PANEL ASSY, FRONT 3-054-220-11 BUTTON (PLAY) 3-054-221-01 WINDOW (FL) 3-053-504-11 CUSHION 3-974-997-41 WINDOW, REMOTE CONTROL 1-771-564-11 SWITCH, TACTILE 4-963-404-41 EMBLEM (5-A), SONY 3-053-496-01 STICK (L), CURSOR 3-053-954-21 BUTTON, POWER * 113 A-6065-300-A FR-146 BOARD, COMPLETE 3-053-955-01 INDICATOR, POWER 1-790-167-11 CABLE, FLEXIBLE FLAT (FMF-35) 4-951-620-01 SCREW (2.6X8), +BVTP...

  • Page 75: Chassis Assembly

    8-1-3. CHASSIS ASSEMBLY Mechanism deck supplied supplied supplied supplied supplied supplied supplied supplied The components identified by mark ! or dotted line with mark ! are criti- cal for safety. Replace only with part number speci- fied. Ref. No. Part No. Description Remark Ref.

  • Page 76: Mechanism Deck Assembly

    8-1-4. MECHANISM DECK ASSEMBLY M001 The components identified by mark ! or dotted line with mark ! are criti- cal for safety. Replace only with part number speci- fied. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 201 A-6065-275-A TK-51 BOARD, COMPLETE...

  • Page 77: Electrical Parts List

    AU-208 8-2. ELECTRICAL PARTS LIST NOTE: The components identified by • Due to standardization, replacements in the • Items marked “*” are not stocked since they mark ! or dotted line with mark parts list may be different from the parts speci- are seldom required for routine service.
  • Page 78 AU-208 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < JACK > < RESISTOR > J502 1-779-382-11 JACK, PIN 1P (COAXIAL) R301 1-216-042-00 METAL CHIP 1/10W J505 1-785-535-11 JACK BLOCK, PIN (LINE OUT/S VIDEO OUT) R302 1-216-042-00 METAL CHIP 1/10W R303...
  • Page 79 FL-97 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-6065-299-A FL-97 BOARD, COMPLETE JR218 1-216-295-91 SHORT JR219 1-216-295-91 SHORT ********************* (Ref.No. 2,000 Series) JR220 1-216-295-91 SHORT JR224 1-216-296-91 SHORT 3-053-487-11 HOLDER, FL TUBE JR226 1-216-295-91 SHORT <...
  • Page 80 FL-97 FR-146 MB-82 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R259 1-216-025-91 RES, CHIP 1/10W < FERRITE BEAD > R260 1-216-025-91 RES, CHIP 1/10W R261 1-216-025-91 RES, CHIP 1/10W FB001 1-414-135-11 FERRITE R262 1-216-025-91 RES, CHIP 1/10W FB002 1-414-135-11 FERRITE...
  • Page 81 MB-82 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C304 1-110-563-11 CERAMIC CHIP 0.068uF C602 1-162-970-11 CERAMIC CHIP 0.01uF C307 1-125-822-11 TANTALUM 10uF C603 1-162-970-11 CERAMIC CHIP 0.01uF C309 1-107-826-91 CERAMIC CHIP 0.1uF C604 1-162-970-11 CERAMIC CHIP 0.01uF C310 1-162-970-11 CERAMIC CHIP...
  • Page 82 MB-82 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C910 1-125-822-11 TANTALUM 10uF FB058 1-500-283-11 INDUCTOR CHIP 0uH C923 1-107-826-91 CERAMIC CHIP 0.1uF FB060 1-500-283-11 INDUCTOR CHIP 0uH FB080 1-216-801-11 METAL CHIP 1/16W < CONNECTOR > FB081 1-216-801-11 METAL CHIP 1/16W...
  • Page 83 MB-82 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R313 1-216-833-91 RES, CHIP 1/16W IC801 8-759-522-13 IC BA5981FP-E2 IC802 8-759-567-26 IC BA5983FP-E2 R314 1-216-833-91 RES, CHIP 1/16W IC803 8-759-338-78 IC BA10324AFV-E2 R315 1-216-833-91 RES, CHIP 1/16W IC902 8-759-572-26 IC CXD8799N-T2 R316...
  • Page 84 MB-82 MS-46 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R642 1-216-809-11 METAL CHIP 1/16W R839 1-216-848-11 METAL CHIP 180K 1/16W R643 1-216-815-11 METAL CHIP 1/16W R840 1-216-848-11 METAL CHIP 180K 1/16W R647 1-216-833-91 RES, CHIP 1/16W R841 1-216-843-11 METAL CHIP...
  • Page 85 POWER BLOCK TK-51 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-468-359-11 POWER BLOCK (HS-030SH) ! PC103 8-749-010-59 PHOTO COUPLER TLP721F *********************** (Ref.No. 6,000 Series) < TRANSISTOR > < CAPACITOR > Q101 9-880-450-01 TRANSISTOR 2SK2333 Q102 8-729-023-98 TRANSISTOR 2SC3377 C110 9-884-088-01 ELECT...
  • Page 86 TK-51 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-790-163-11 CABLE, FLEXIBLE FLAT (FMA-7) < CONNECTOR > ! 156 1-769-744-91 CORD, POWER CN001 1-785-700-21 CONNECTOR, FPC (ZIF) 23P ! 220 8-820-081-03 OPTICAL PICK-UP KHM-220AAA/J1RP CN002 1-566-529-11 CONNECTOR, FPC (ZIF) 13P M001 1-541-632-11 MOTOR, DC (LOADING) CN003...
  • Page 87 DVP-S320 Sony Corporation 99G05091-1D Printed in Japan © 1999. 7 9-921-728-11 Home Video Company Published by Quality Assurance Dept. – 132 –...
