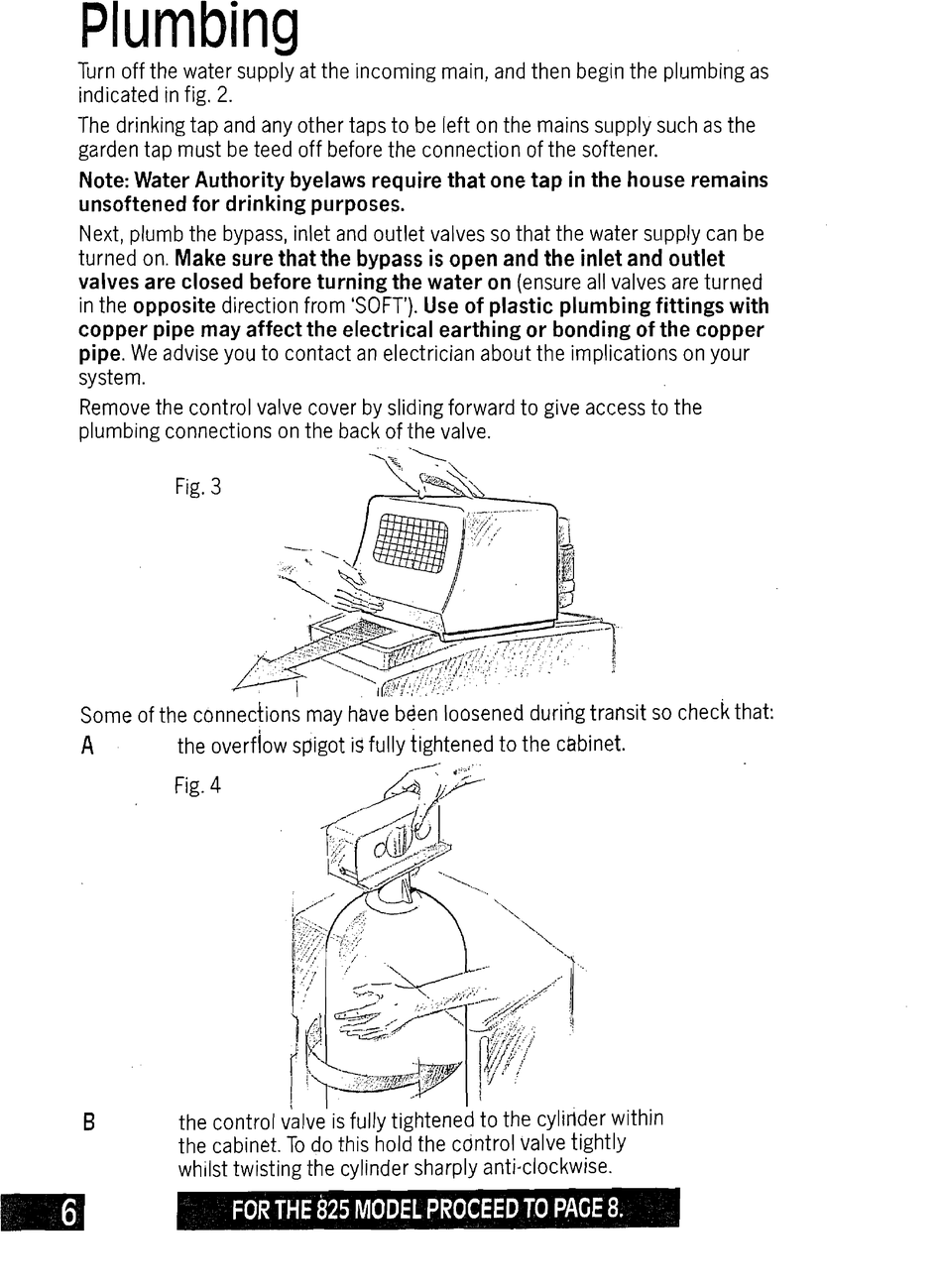

Plumbing
Turn off the water supply at the incoming main, and then begin the plumbing as
indicated in fig. 2.
The drinking tap and any other taps to be left on the mains supply such as the
garden tap must be teed off before the connection of the softener.
Note: Water Authority byelaws require that one tap in the house remains
unsoftened for drinking purposes.
Next, plumb the bypass, inlet and outlet valves so that the water supply can be
turned on. Make sure that the bypass is open and the inlet and outlet
valves are closed before turning the water on (ensure all valves are turned
in the opposite direction from 'SOFT). Use of plastic plumbing fittings with
copper pipe may affect the electrical earthing or bonding of the copper
pipe. We advise you to contact an electrician about the implications on your
system.
Remove the control valve cover by sliding forward to give access to the
plumbing connections on the back of the valve.
~'0,
'':­
FI
' g.
3 "'.
\~~,
........
\
~.;:,,,
.
.;:
~~ IiJt~::­
~.~~
. j.
,
>~. ~l
ZEJfF1!z~g0;\/lJJr7~­
Some of the connections may have baen loosened during transit so check that:
A
the overflow spigot is fully tightened to the cabinet.
Fig. 4
fi~?
~/' /~l/ll
IJf(.~~ill~~?j)
~.~/4 "',
,
. /
"~\ ,~
.,
.........
,
" "",
r
I
~. r' .
,--,.".,.!I,
I""
,··t",'.7J:r!j:'TiNJ.:" ..
· ://P
V .
I
~ . , " _/_),/,;",:./1;,-,1:,'" /;-.:. ~
I
: ' \
B
the control v~lve is fully tightened to the cylinder within
the cabinet. To do this hold the control valve tightly
whilst twisting the cylinder sharply anti-clockwise.
FOR THE
825
MODEL PROCEED TO PAGE 8.
