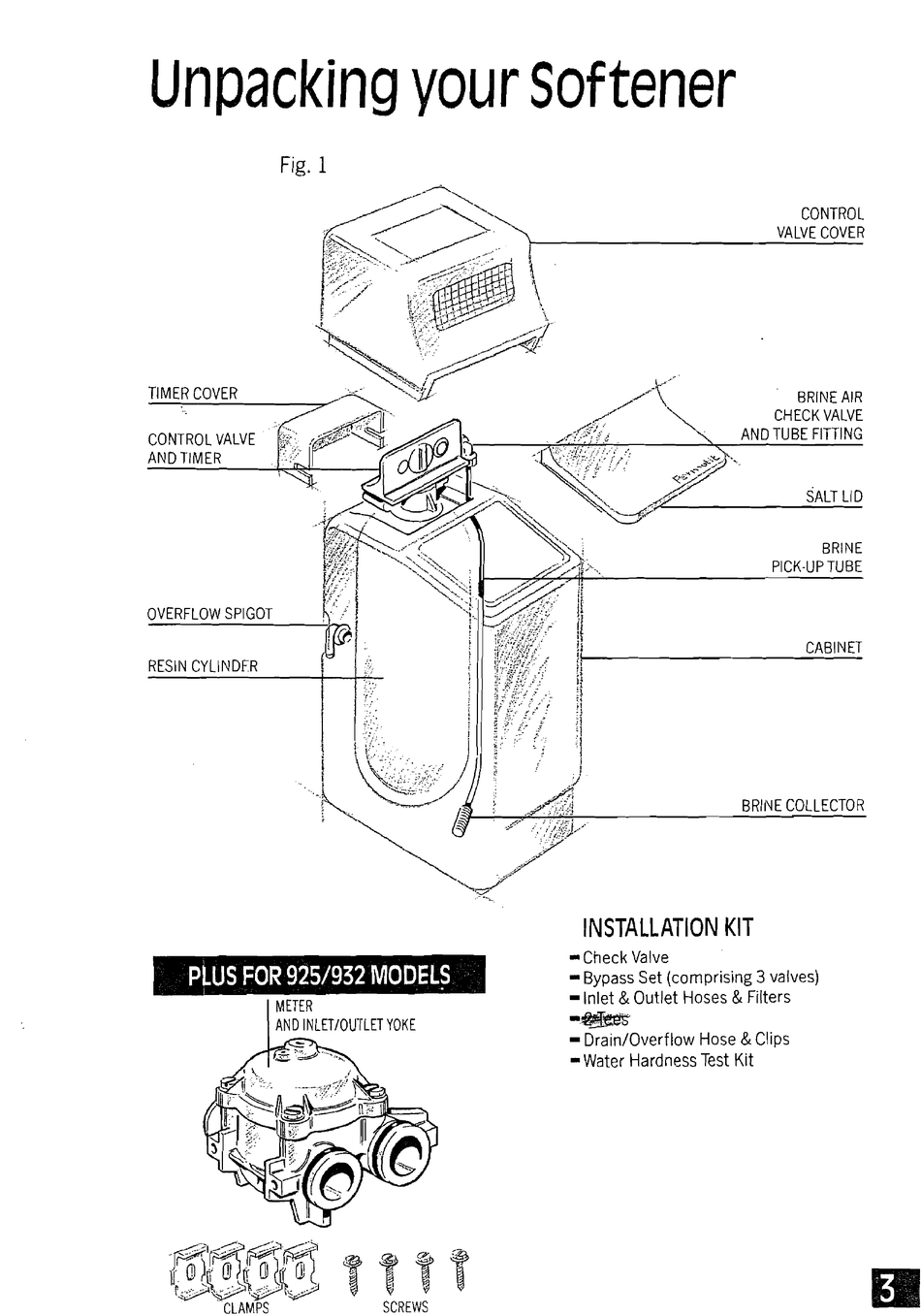

Unpacking your Softener
Fig. 1
TIMER COVER
CONTROL VALVE
AND TIMER
OVERFLOW SPIGOT
RESIN CYLINDFR
CONTROL
VALVE COVER
BRINE AIR
CHECK VALVE
SALT LID
BRINE
PICK-UP TUBE
CABINET
INSTALLATION KIT
- Check Valve
pLus
FOR 925/932 MODEL~
- Bypass Set (comprising 3 valves)
-Inlet & Outlet Hoses & Filters
METER
AND INLET/OUTLET YOKE
-~-
- Drain/Overflow Hose & Clips
- Water Hardness Test Kit
(!l:(!r(j!!
t t t T
CLAMPS SCREWS
