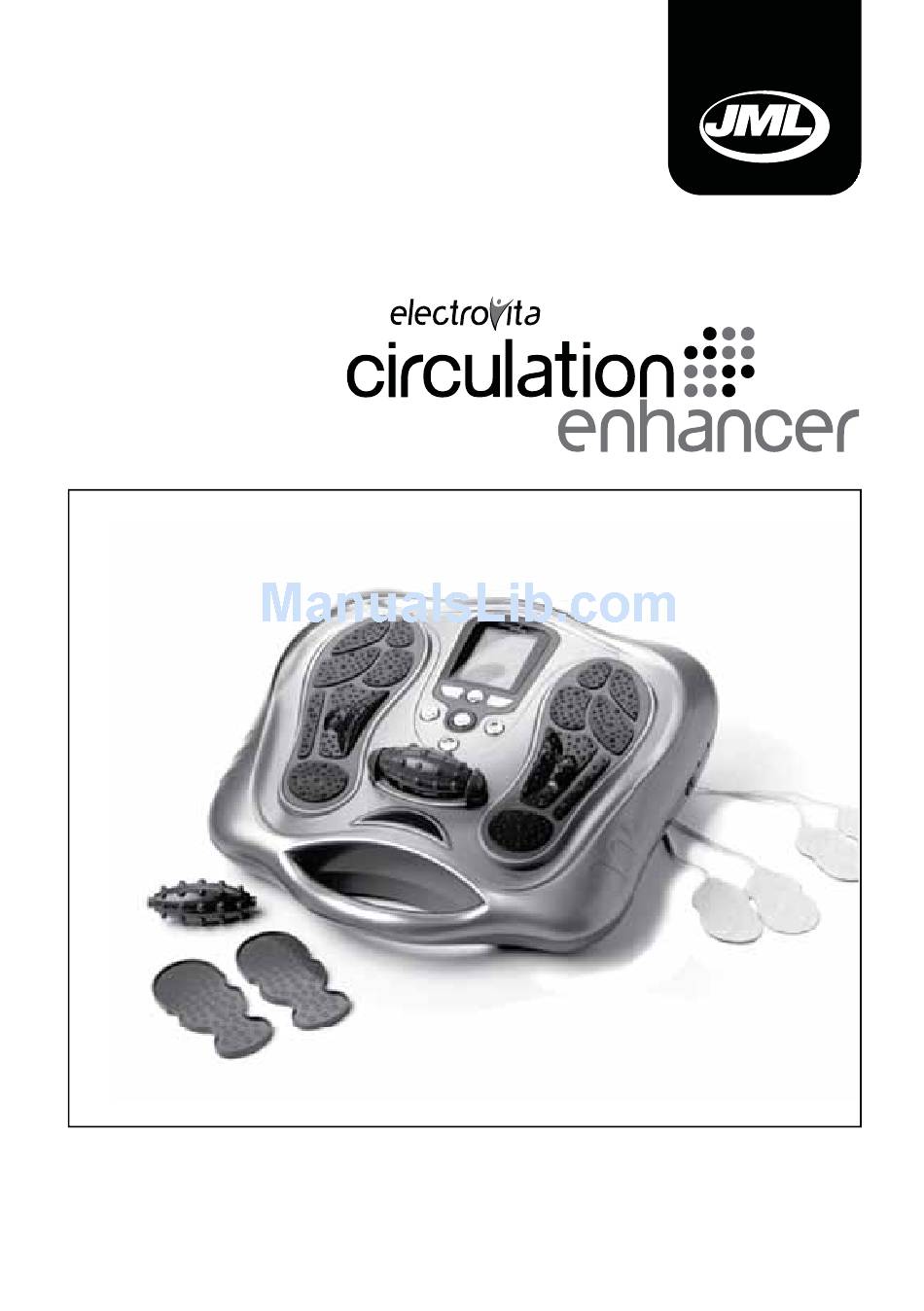

  • Page 1 Instructions...

  • Page 2: Table Of Contents

    Helps reduce stresses and aches with the amazing ElectroVita Circulation Enhancer from JML. Simply place your feet on the footpads, set the intensity level and sit back. Low frequency micro-currents safely stimulate the reflex points in your feet, waking up tired nerves, muscles and capillaries.

  • Page 3: Quick Start Guide

    For detailed operation of your ElectroVita™ Circulation Enhancer Electrical Stimulator please refer to the comprehensive instructions within this manual. To use the Circulation Enhancer immediately follow this 5 point quick start guide. 1. Remove your ElectroVita Circulation Massager from the packaging.

  • Page 4: Important Safety Information

    Important safety information 1. Please read these instructions thoroughly before use. 2. Please check that you have all of the component parts as detailed in this user manual. 3. Take all parts out of the plastic bags and examine them to familiarise yourself with the components. Notes on Safety The icons and warning signs are indicated here for your safety and correct usage of the product as well as to prevent injuries and/or damage to properties.
  • Page 5 Important safety information Danger This unit must not be used in combination with the following medical devices: Using this unit with other electronic medical devices may cause erroneous operation of those devices. Warning Persons with the following conditions must consult the doctor before using this unit: May cause an accident or ill health.
  • Page 6 Important safety information Do not use this unit on infants or people not capable of expressing their intentions. May cause an accident or ill health. Do not use this unit in places with high humidity such as bathrooms or while taking a bath or shower.

  • Page 7: Important Safety Information

    BE109 (Circulation Enhancer) as replacement parts for internal components, may result in increased EMISSIONS or decreased IMMUNITY of BE109 (Circulation Enhancer). WARNING that BE109 (Circulation Enhancer) should not be used adjacent to or stacked with other equipment.

  • Page 8: What Is Electronic Nerve Stimulation

    What is electronic nerve stimulation? INTENDED USE: Medical Purpose This Electronic Nerve Stimulator is intended to be used as a massager to relieve (muscle) pain, increase blood circulation, relax stiffness muscles, reduce swollen feet and ankles and fatigue. The massaging effect is achieved by electronic stimulation of the nerves through electrode pads placed on the skin or through the foot plates.

  • Page 9: Machine Overview And Part Names

    Machine overview and part names Output for the feet - LCD Display Screen Electrode Silicon Area for Foot Treatment Output for Body - for Sole Massage connecting Gel Pads Roller (cable jack) for Body Massage Treatment The EletroFlex Circulation Adaptor Jack Cable connecting Massager is also supplied the Electrode Gel...

  • Page 10: Functions And Programmes

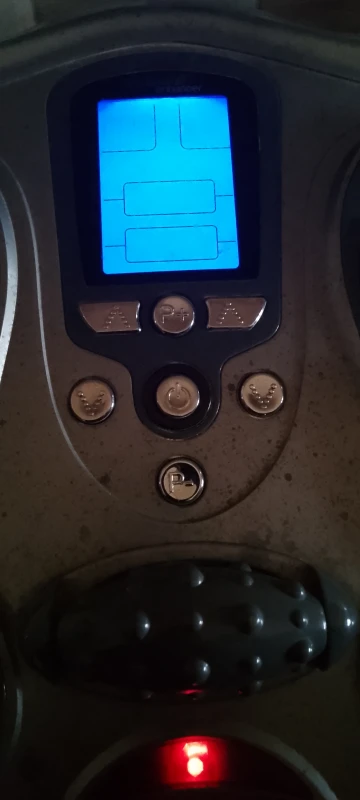

    Functions and programmes Control Panel LCD showing the LCD showing the Intensity Level Intensity Level for feet – maximum 40 for body – maximum 40 BAND1 BAND2 Levels Levels LCD showing the Timer M i n LCD showing the Program PROGRAM Indication from 1 –...

  • Page 11: Electroflex Output Wave Forms

    Circulation Enhancer output wave forms Foot Electro Therapy Massage We will examine the operation in more detail later in your instructions but the principle is relatively easy to understand. There are two separate controls/channels, one for the feet, being band 1 and one for the pads being band 2. Place your feet on the foot plates, turn on...
  • Page 12 ElectroVita output wave forms...

  • Page 13: How To Operate

    How to operate For feet - BAND 1 In order to increase the conductivity we recommend that you dampen the soles of your feet. 1. Place your bare feet onto ElectroVita (do not wear socks). 2. Press (and hold down for 3 seconds) the on/off button, the LCD screen will light up in blue. The program will show 01 and both band shows 00, which means the device is in standby mode.
  • Page 14 How to operate For Body – BAND 2 Using the Gel Pads Connect the output wire to the gel pads. Connect the other end of the output wire to the output jack on ElectroFlex. Remove the protective film from the adhesive pads. Attach the gel pads to the skin.

  • Page 15: How To Operate

    How to operate Connect with the supplied AC/DC Power Adapter Plug the DC plug of the power supply into the socket on the side of ElectroVita (see Figure 10. Plug in power adaptor to a suitable wall socket. (Make sure that the input voltage of the wall socket is suitable for the supplied adaptor).

  • Page 16: Cleaning

    Cleaning Electrode Gel pad: keep away from oily or sticky objects. The life of the electrodes varies depending on skin conditions, storage, amount of use, type of stimulation, and stimulation site. Usage may be extended by carefully cleaning the gel surface with a damp cloth. Do not get the cables wet electrode gel pads.

  • Page 17: Troubleshooting And Maintenance

    Troubleshooting and Maintenance SYMPTOM CAUSE ACTION Device will Batteries inserted in wrong direction Insert batteries in correct direction or check the not turn on battery is not discharged The adaptor is not connected to the Check the connection of the adaptor jack is properly device correctly connected to the device and in the wall socket Power turns o...
  • Page 18 Troubleshooting and Maintenance Product Name ElectroVit a - Circulation Massager Electrical Stimulator Model BE109 Power Supply 4.5V DC or 3 x 1.5V Alkaline Batteries Type C* Supplier of Adaptor Golden Pro t Electronics Ltd. Adaptor Input 230V~ 50Hz 100mA Model Number of Adaptor SY-04010-BS Adaptor Input 230V~ 50Hz 100mA...

  • Page 19: Important Information

    Important Information Electro Magnetic Compatibility (EMC) 1. ElectroVita needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in the ACCOMPANYING DOCUMENTS. 2. Portable and mobile RF communications equipment can affect ElectroVita . 3.
  • Page 20 Important Information 5. Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The ElectroVita is intended for use in the electromagnetic environment specified below. The customer or the user of the ElectroVita should assure that it is used in such an environment. Immunity Test IEC 60601 Compliance...
  • Page 21 Important Information Immunity Test IEC 60601 Compliance Electromagnetic Environment Guidance Test Level Level Conducted RF 3V/ms 3V/m Portable and mobile RF communications equipment IEC 61000-4-6 150kHz to should be used no closer to any part of the ElectroFlex, 80MHz including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.

  • Page 22: Important Information

    Important Information 7. Recommended separation distances between portable and mobile RF communications equipment and the ELECTROVITA The ElectroVita is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the ElectroVita can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the ElectroVita as recommended below, according to the maximum output power of the communications equipment.
  • Page 24 JML, Distributed by JML Unit 1 Eastside, Port of Tyne South Shields NE33 5SP info@JMLgroup.co.uk Freephone 0800 781 7831 | Web: www.JMLdirect.com Product code: V0393 Registered address: JML House, NW5 3EG...
