Nextar N3-505 Instruction Manual

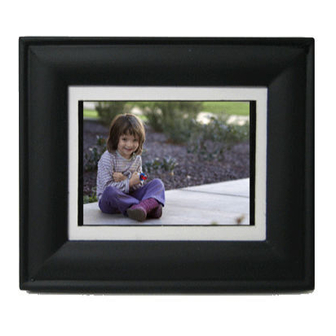

3.5 inch digital photo frame
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N3-505 and is the answer not in the manual?

Questions and answers

Related Manuals for Nextar N3-505

Summary of Contents for Nextar N3-505

  • Page 2: Table Of Contents

    Safety precautions... 2 Introduction... 2 1. Features... 4 2. Packaging Check List... 4 3. Product Diagram... 5 A. Top View... 5 B. Front View...5 C. Side View... 6 D. Bottom View...6 Using Your Digital Picture Frame...7 Technical Notes... 10 Question/Troubleshooting Guide... Specifications...12 FCC Compliance…...

  • Page 3: Safety Precautions

    Safety precautions 1) Use only the supplied Input 100-240V, Output 5V adapter. 2) Turn off power before cleaning. Use only a soft cloth to clean the unit. Do not use liquid cleaners. 3) Avoid exposing the unit to extreme heat. 4) Disassembling the Digital Picture Frame may result in electric shock and will void your warranty.

  • Page 4: Features

    1. Features ● Shows sharp pictures on a 3.5 inch LCD display ● Supports SD, MMC MS memory card formats ● Displays pictures from memory cards or directly from internal memory ● Renders in a smooth and clear resolution of 320X240 pixels ●...

  • Page 5: Product Diagram

    3. Product Diagram Top View A. MODE: Press once to start slide show. Press and hold to turn off the screen. B. DOWN: Moves the cursor down C. UP: Moves the cursor up. D. ESC: Return to the previous screen. E.

  • Page 6: Side View

    3. Product Diagram Side View G. USB Port: Connects to a computer through a USB cable or to an electronic socket through the power adaptor H. Magnetic Stand: This adjustable arm supports the unit on a table top or other flat surface.

  • Page 7: Using Your Digital Picture Frame

    Using Your Digital Picture Frame View pictures from memory cards Step 1: Install the magnetic stand for tabletop display or prepare a mount on the wall. Step 2: Power on the unit by either: 1: Connecting it to an electronic socket through the provided power adapter. 2: Connecting it to a computer through the provided USB cable.
  • Page 8 Using Your Digital Picture Frame  Press the UP and DOWN buttons to display the Previous/Next picture.  Press and hold the ENTER button to rotate the picture 90°counter-clockwise.  Press the ENTER button once to zoom. When the picture is zoomed in, you can roam on the picture by pressing the UP, DOWN, MODE, and ESC button.
  • Page 9 Using Your Digital Picture Frame Delete files from the unit To delete files which are stored in the built-in memory. Step 1 On the main menu shown upon startup, select “ EDIT”by pressing the UP and DOWN buttons and then press the ENTER button to confirm. Step 2 Press the UP and DOWN buttons to select “...

  • Page 10: Technical Notes

    Technical Notes 1. Your Digital Picture Frame is a sophisticated electronic unit. Do not drop or subject the unit to jarring or strong vibrations. 2. Avoid placing the Digital Picture Frame in areas of high humidity or where it might be exposed to liquids.
  • Page 11 2. Question: What should I do if the system does not respond when the unit is turned on? Answer: Please make sure the unit is properly connected to a power source. If so, turn the unit off, reconnect the power and turn it on again. 3.

  • Page 12: Specifications

    This manual was correct and complete at the time of printing. However, specifications and updates can occur at any time without prior notice. No part of this manual may be copied, republished, reproduced, transmitted, or distributed in any way without the prior written consent of Nextar, Inc. Any unauthorized distribution of this manual is expressly forbidden.

  • Page 13: Fcc Compliance

    FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 14 Nextar (Hong Kong) Limited. Nextar may find it necessary to modify, amend or otherwise change or update this manual. We reserve the right to do this at any time, without any prior notice. All specifications and features are subject to change without notice.
