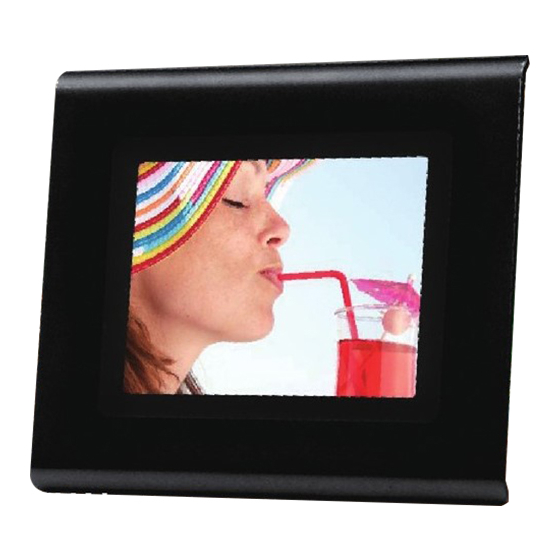

- Page 1 3.5 inch Digital Photo Frame USER’S MANUAL Item : N3-501...
-
Page 2: Content Warning
Warning To always guarantee optimal function and performance of your product, we would ask the following: Before using the product for the first time, carefully read the operating instructions and adhere to the safety precautions! All activities at and with this product may only be carried out as described in these operating instructions. - Page 3 1. Read all safety and operating instructions before operating this product. 2. Save these instructions for future reference. 3. Adhere to all warnings in this operating manual. 4. This product should be connected to a power supply only of the type described in the operating instructions or as marked on the unit.
-
Page 4: Table Of Contents
Warning ...1 Safety precaution ...1 Introduction ...4 1、Features...4 2、Packaging Check List ...4 3、Specifications ...5 Product Diagram & Function ...6 Frame Screen Technical Notes...11 Question/Troubleshooting Guide ...11 Content... -
Page 5: Introduction
Introduction 1、Features ● 3.5inch TFT (Digital - 4:3) ● Automatic slide show and operate by user ● Slide Show Intervals preset and allow changing by user ● Supports SD / MS / MMC memory slot ● Supports viewing one selectable photo ●... -
Page 6: Specifications
3、Specifications ○ Screen Dimension: 3.5” Screen ○ Resolution: 320 x 240 ○ Brightness: 240cd/m ○ Contrast: 100:1 ○ Photo File Formats: JPEG ○ Memory Card Formats: SD / MS / MMC Card ○ Voltage: DC 5V/1.0A ○ Current: 1.0A ○ View Angle: Left/Right 45 degrees, Up/Down 30 degrees. -
Page 7: Product Diagram & Function
Product Diagram Frame Magnetic changeable Frames Screen... - Page 8 1. Enter Button 1) Thumbnail file list: To display selected picture 2) Single show mode: Click this button to zoom in and press it for one second, it will rotate the picture by 90 degrees. 3) Slide show Mode: Click to stop slide show...
- Page 9 2. Down button 1) Thumbnail file list: Move down to highlight different pictures 2) Zoom: It will move the picture downwards 3) Single show and slide show mode: Click the button to return to the Main Menu 3. Up button 1) Thumbnail file list: Move up to highlight different pictures 2) Zoom: It will move the picture upwards...
- Page 10 4. Right button 1) Thumbnail file list: Move right to highlight different pictures 2) Zoom: It will move the picture rightwards 3) Single show mode: Click the button to display the next picture 5. Left button 1) Thumbnail file list: Move left to highlight different pictures 2) Zoom: It will move the picture leftwards 3）Single show mode: Click the button to display the...
- Page 11 6. Power Port Plug in the adaptor and it will turn on automatically 7. SD/MS/MMC Card Slot Insert your media card and it will enter into the thumbnail interface 8. Stand Attach the stand to the back of the frame.
-
Page 12: Technical Notes
1. Your Digital Photo Frame is a sophisticated electronic device. Do not drop or subject the unit to jarring or strong vibrations. 2. Avoid placing the Digital Photo Frame in areas of high humidity or where it might be subjected to splashing. - Page 13 1.Question: What kind of photos does this device’s supports? Answer: The Frame will display digital photos that are stored in the JPEG format which is the standard format for nearly all digital cameras. Some cameras allow images to be stored as TIFF or with the Frame; RAW files as well as JPEG.
- Page 14 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with limits for Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 15 Nextar™ a trademark of Nextar (Hong Kong) Limited Nextar may find it necessary to modify, amend or otherwise change or update this manual. We may reserve the right to do this at any time, without any prior notice. All specifications and features are subject to change without notice.
