Summary of Contents for Zodiac Pacer B3

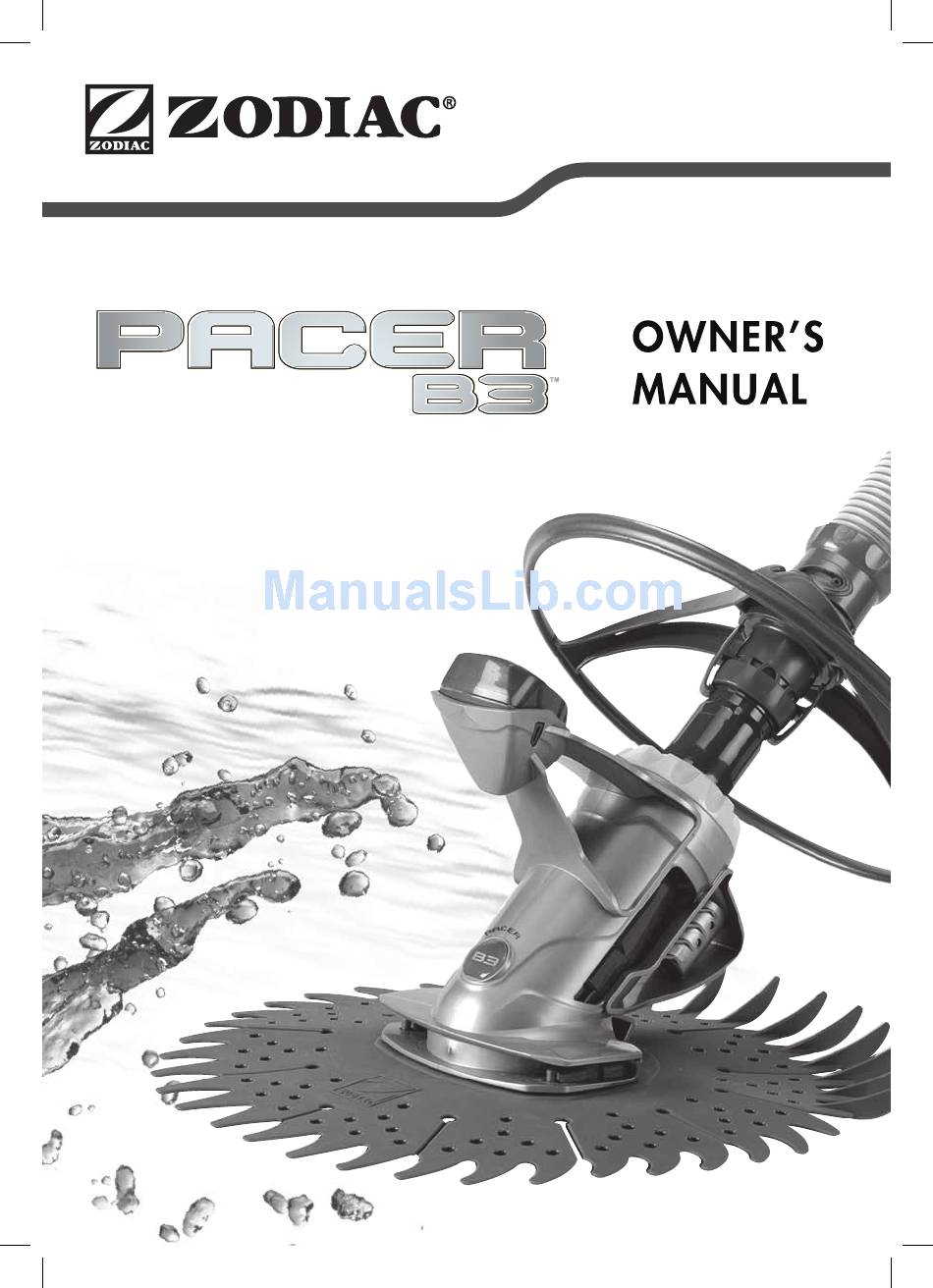

  • Page 1 1905 pacerb3 manual rev2.indd 1 2012/09/13 12:10 PM...
  • Page 2 ® products and service. Complemented by a team of dedicated staff throughout the country, we guarantee premium after sales service. Should you require assistance on your Zodiac product, need to locate ® a dealer near you or just wish to find out more information, log onto our website or call our Customer Care Helpline.
  • Page 3 INDEX INtRODUCtION sECtION 1 – INstallatION Preparing your pool assembling the Hoses Connecting to the Weir sECtION 2 – CORRECt sEttINGs auto Weir Valve Correct Balancing Pool Coverage sECtION 3 – CaRE aND maINtENaNCE 12 sECtION 4 – PaRts IDENtIfICatION sECtION 5 – tROUBlEsHOOtING 17-18 sECtION 6 – OPtIONal aCCEssORIEs sECtION 7 – tHE PERfECt PaRtNER fOR yOUR PaCER B3™ sECtION 8 – GEttING tO kNOW yOU BEttER sECtION 9 – at yOUR sERVICE 1905 pacerb3 manual rev2.indd 3 2012/09/13 12:10 PM...
  • Page 4 ImPORtaNt INfORmatION WaRNING RISK OF SUCTION HAZARD, WHICH IF NOT AVOIDED, CAN RESULT IN SERIOUS INJURY OR DEATH. READ THIS MANUAL IN ITS ENTIRETY BEFORE INSTALLING AND OPERATING THE CLEANER. Do not block the suction fittings in the pool, the suction opening on the cleaner or the cleaner hoses with any part of your body.
  • Page 5 At Zodiac, we are constantly striving to bring the latest innovation and technology to your pool via our range of products. The Pacer B3™ is specifically designed for small pools but rapidly cleans large pools too.

  • Page 6: Section 1 – Installation

    While the Pacer B3™ is designed for easy installation, some preliminary steps will assist the installation process. Where possible, assembly should take place as close to the weir as possible. PREPaRING yOUR POOl aND fIltRatION systEm 1) Empty the weir basket. 2) Clean the pump basket.

  • Page 7: Assembling The Hoses

    sECtION 1 – INstallatION assEmBlING tHE HOsEs With your swimming pool preparation complete, you are ready to begin installation. WaRNING: to avoid severe injury, make sure to turn off the pool pump prior to completing these steps. Your Hose Quick Connector should already be connected to the cleaner head when received in the packaging. Remove this part from your cleaner and begin the following steps. If not already connected to your pool cleaner, you will find it in your accessory bag.

  • Page 8: Connecting To The Weir

    (measured from weir) and then add one extra length. Weir Weir Note: Ensure only genuine Zodiac Twist Lock Hoses are used for optimum performance. CONNECtING tO tHE WEIR In your accessory bag, you will find an Auto Weir Valve connected to a 90º...

  • Page 9: Section 2 – Correct Settings

    The Zodiac Auto Weir Valve is preset at the factory to obtain maximum pool cleaning efficiency. Your Pacer B3 is preset on setting 2. However, if you ™ do experience difficulties, it can be manually adjusted to one of the three settings (high, medium or low - see adjustment settings below).

  • Page 10: Correct Balancing

    CORRECt BalaNCING The Pacer B3 cycles on/off with the pool filtration pump, vacuuming ™ and cleaning surfaces randomly throughout the pool. The coverage of the cleaner is dependent on the pool’s shape and available water flow. The main purpose of your Hose Weight is to adjust your cleaner’s balance which is vital for its performance.
  • Page 11 Sunlight, water and pool chemicals create a harsh environment. With care and regular maintenance, your Pacer B3™ will remain in the best possible condition. To properly care for your unit: 1. Remove the Pacer B3™ from the pool before shock treatment and reinstall at least four hours later.

  • Page 12: Section 3 – Care And Maintenance

    sECtION 3 – CaRE aND maINtENaNCE W aRNING: to avoid severe injury, make sure to turn off the pool pump prior to completing these steps. If the cleaner stops, remove the cleaner from the water and then check the Diaphragm for blockages. 1. Turn cleaner over (see Figure 1). 2. Inspect Diaphragm for blockages. If you find debris or obstacles, Figure 1 remove carefully.
  • Page 13 sECtION 3 – CaRE aND maINtENaNCE 6. Use a breaking action to separate the Inner Extension Pipe from the Cup Assembly. Once separation is achieved, push the Diaphragm through the Cup Figure 4 Assembly (see Figure 4). 7. Inspect the Diaphragm for wear and rinse it thoroughly with water.
  • Page 14 sECtION 3 – CaRE aND maINtENaNCE 4. Insert the engine into the body and thread the Handnut down until tight (see Figure 8). 5. Make sure the Outer Extension Pipe swivels freely by spinning it Figure 8 (see Figure 9). After several years of use, you may find that the Diaphragm is stretched and the cleaner works very slowly Figure 9...
  • Page 15 sECtION 3 – CaRE aND maINtENaNCE Outer Cup Inner Cup 1. Follow the steps on page 9 on how to remove the Engine Assembly from your pool cleaner. Figure 10 2. Unthread the Outer Extension Pipe Outer Cup Inner Cup from the Cup Assembly. 3. On the inner cup of the Cup Assembly, you will see a number 2.

  • Page 16: Section 4 – Parts Identification

    12, 13 Zodiac 6 5 4 3 2 1 0 Description Handnut Compression Ring Engine Assembly Outer Extension Tube Cup Assembly Inner Extension Tube Duralife Diaphragm Float Bumper Body Housing Disc Auto Weir Valve Hose Quick Connector Twist Lock Hose (1.2m)

  • Page 17: Section 5 – Troubleshooting

    sECtION 5 – tROUBlEsHOOtING PROBlEm CHECks sOlUtIONs your Pacer B3™ Is the filter clean? Backwash and rinse the filter works slowly, runs thoroughly. then stops, or not at all. Are the baskets clean? Remove baskets, clean thoroughly (baskets must be in good condition). Is the vacuum lid sitting flush Remove and re-install. in the weir? Is the vacuum lid damaged? Replace vacuum lid.

  • Page 18: Section 5 – Troubleshooting

    Remove Engine Assembly from main body and rinse both body and Engine Assembly with water to flush out debris. For additional assistance, contact our Customer Care Helpline on 0860 ZODIAC (0860 963 422) 1905 pacerb3 manual rev2.indd 18 2012/09/13 12:11 PM...

  • Page 19: Section 6 – Optional Accessories

    sECtION 6 – OPtIONal aCCEssORIEs CYCLONIC LEAF CATCHER ™ 1905 pacerb3 manual rev2.indd 19 2012/09/13 12:11 PM...

  • Page 20: Section 7 – The Perfect Partner For Your

    Not only does Zodiac offer the most energy efficient range of Heat Pumps available today, but also the most environmentally friendly. To find out which model and size fits your pool, contact your local Zodiac dealer, or call the Zodiac Customer Care Helpline 0860 ZODIAC (0860 963 422) or go to www.zodiac.co.za.

  • Page 21: Section 8 – Getting To Know You Better

    At Zodiac, we strive to give our consumers superior quality products as well as service excellence. To help us improve, please spare a moment of your time and let us understand your needs a little better. Once you have filled in the following survey please fax a copy to (011) 314 3486.

  • Page 22: Section 9 – At Your Service

    Briefly describe the problem in the space below. (Send a photocopy and retain this page for future use.) mail to: Zodiac Pool Care SA, Private Bag X127, Halfway House, 1685 fax to: (011) 314 3486 Your Name ............Tel No........
  • Page 23 1905 pacerb3 manual rev2.indd 23 2012/09/13 12:11 PM...
  • Page 24 ZODIAC POOL CARE SOUTH AFRICA (PTY) LTD 1905 pacerb3 manual rev2.indd 24 2012/09/13 12:11 PM...
