STORING FILES ONBOARD THE EGX400

© 2002 Schneider Electric All Rights Reserved
The EGX400 has internal memory for storing the custom web pages:
Use File Transfer Protocol (FTP) to download these files. Follow these steps:
1. Create a folder on your computer hard drive to store files you want to
download into the EGX400 via FTP. In this example, the folder egx is
located on the G: drive.
2. Access DOS on your computer by selecting Start>Program>Command
Prompt.
NOTE: This path is typical for Windows NT. The path may differ for other
platforms.
3. Type the drive you want to access (in this example G:) and press Enter.
4. Change to your new directory. Type: cd egx and press Enter. See
Figure 2.

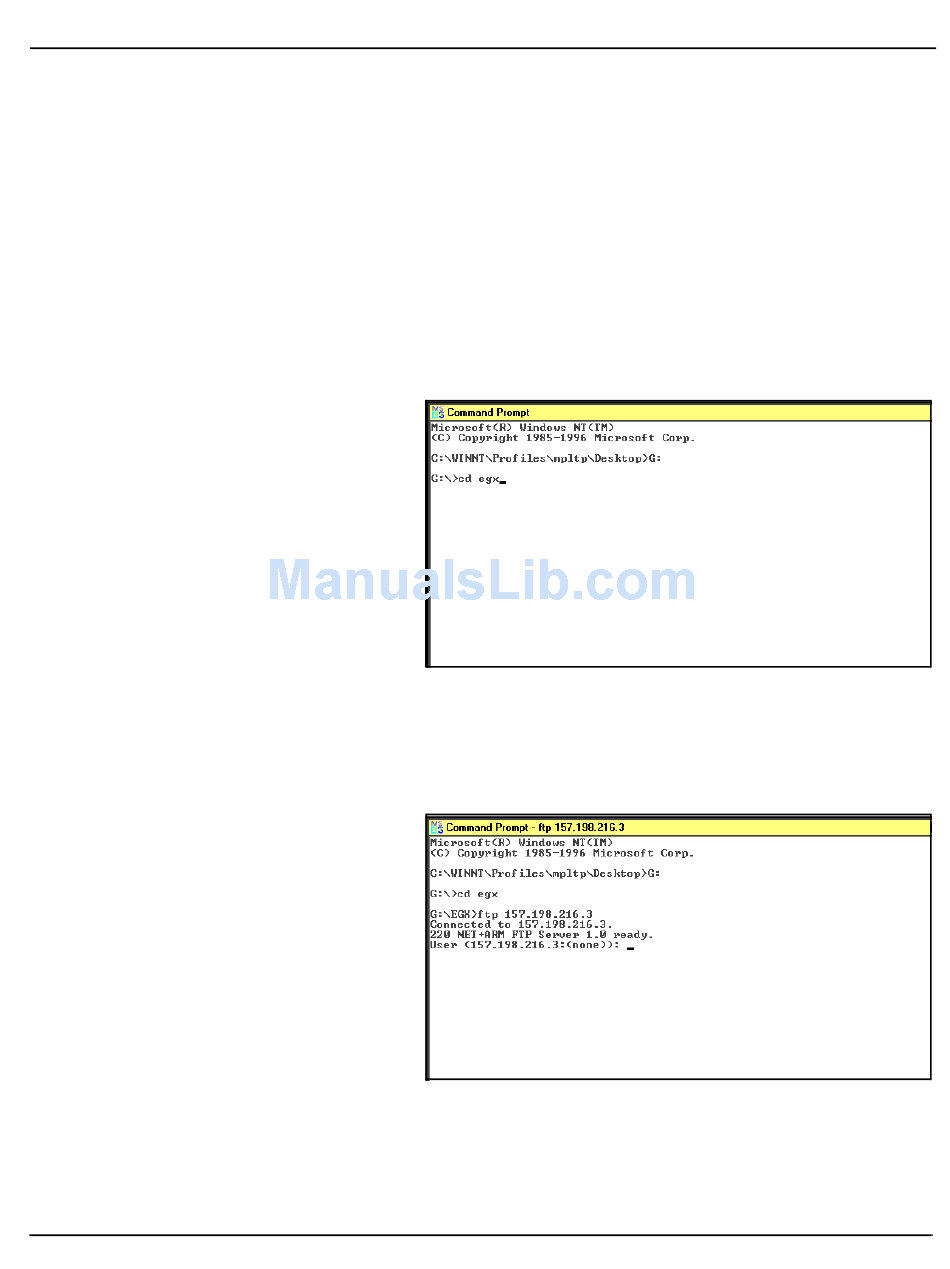

Figure 2: Identifying the folder where the files are stored
5. Type: ftp and the IP address assigned to the EGX400 and press Enter.
You should receive the message "Connected to [IP address]", indicating
you are now in an FTP session (Figure 3).
NOTE: The IP address 157.198.216.3 is used as an example only.
Figure 3: FTP connection to the IP address
