Parking Light - FlashLogic FLC-AL-CH4 Install Manual

ADS-AL(DL)-CH4 T2 XX-XX
iNstall Guide
Page 4 of 9
300
300 Limited
300c
300c SRT8
Town & Country
Town & Country
Caravan
Challenger SXT
Challenger R/T
Challenger SRT8
Charger SE
Charger R/T
Charger SRT8
Durango
Grand Caravan
Grand Caravan
Journey
Magnum
RAM 1500
RAM 2500
RAM 3500
Commander
Grand Cherokee
C/V
C/V
1500
2500
3500
Routan
www.flash-it.com

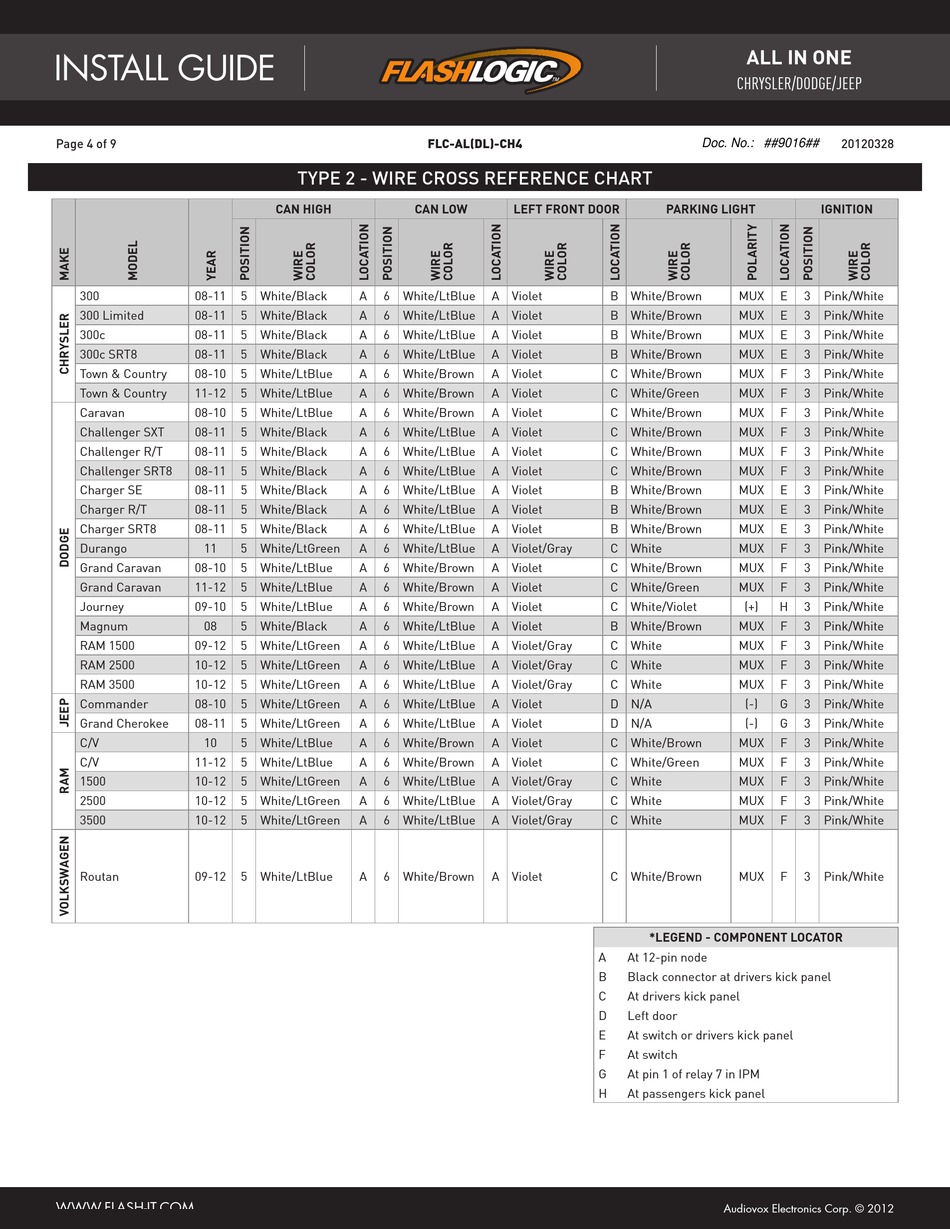

tyPe 2 - wire CrOSS reFerenCe CHart
CAN HIGH
08-11 5 White/Black A
08-11 5 White/Black A
08-11 5 White/Black A
08-11 5 White/Black A
08-10 5 White/LtBlue A
11-12 5 White/LtBlue A
08-10 5 White/LtBlue A
08-11 5 White/Black A
08-11 5 White/Black A
08-11 5 White/Black A
08-11 5 White/Black A
08-11 5 White/Black A
08-11 5 White/Black A
11 5 White/LtGreen A
08-10 5 White/LtBlue A
11-12 5 White/LtBlue A
09-10 5 White/LtBlue A
08 5 White/Black A
09-12 5 White/LtGreen A
10-12 5 White/LtGreen A
10-12 5 White/LtGreen A
08-10 5 White/LtGreen A
08-11 5 White/LtGreen A
10 5 White/LtBlue A
11-12 5 White/LtBlue A
10-12 5 White/LtGreen A
10-12 5 White/LtGreen A
10-12 5 White/LtGreen A
09-12 5 White/LtBlue A
FLC-AL(DL)-CH4
CAN LOW LEFT FRONT DOOR
6 White/LtBlue A Violet
6 White/LtBlue A Violet
6 White/LtBlue A Violet
6 White/LtBlue A Violet
6 White/Brown A Violet
6 White/Brown A Violet
6 White/Brown A Violet
6 White/LtBlue A Violet
6 White/LtBlue A Violet
6 White/LtBlue A Violet
6 White/LtBlue A Violet
6 White/LtBlue A Violet
6 White/LtBlue A Violet
6 White/LtBlue A Violet/Gray
6 White/Brown A Violet
6 White/Brown A Violet
6 White/Brown A Violet
6 White/LtBlue A Violet
6 White/LtBlue A Violet/Gray
6 White/LtBlue A Violet/Gray
6 White/LtBlue A Violet/Gray
6 White/LtBlue A Violet
6 White/LtBlue A Violet
6 White/Brown A Violet
6 White/Brown A Violet
6 White/LtBlue A Violet/Gray
6 White/LtBlue A Violet/Gray
6 White/LtBlue A Violet/Gray
6 White/Brown A Violet
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##9016##

PARKING LIGHT

B White/Brown MUX
B White/Brown MUX
B White/Brown MUX
B White/Brown MUX
C White/Brown MUX
C White/Green MUX
C White/Brown MUX
C White/Brown MUX
C White/Brown MUX
C White/Brown MUX
B White/Brown MUX
B White/Brown MUX
B White/Brown MUX
C White MUX
C White/Brown MUX
C White/Green MUX
C White/Violet (+)
B White/Brown MUX
C White MUX
C White MUX
C White MUX
D N/A (-)
D N/A (-)
C White/Brown MUX
C White/Green MUX
C White MUX
C White MUX
C White MUX
C White/Brown MUX
*LEGEND - COMPONENT LOCATOR
A At 12-pin node
B Black connector at drivers kick panel
C At drivers kick panel
D Left door
E At switch or drivers kick panel
F At switch
G At pin 1 of relay 7 in IPM
H At passengers kick panel
