FlashLogic FLC-AL-CH4 Install Manual page 3

iNstall Guide
Page 3 of 9
!
REFER TO
ASSEMBLY FOR PROPER
CONNECTIONS AND MATCH
EACH LETTER ACCORDINGLY
LEGEND
N/A NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
GWR (-) INPUT - BLUE/WHITE GWR (-) INPUT - BLUE/WHITE
(NC) WHITE (NC) WHITE
(NC) BLACK (NC) BLACK
(NC) RED (NC) RED
LOCK/ARM (-) INPUT - GREEN/BLACK LOCK/ARM (-) INPUT - GREEN/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK UNLOCK/DISARM (-) INPUT - BLUE/BLACK
LEFT SLIDING DOOR (-) INPUT - PURPLE/YELLOW LEFT SLIDING DOOR (-) INPUT - PURPLE/YELLOW
RIGHT SLIDING DOOR (-) INPUT - PURPLE/BLACK RIGHT SLIDING DOOR (-) INPUT - PURPLE/BLACK
STARTER (+) INPUT - BLACK/WHITE STARTER (+) INPUT - BLACK/WHITE
*E-BRAKE STATUS (-) OUTPUT - GREEN *E-BRAKE STATUS (-) OUTPUT - GREEN
*TACH (AC) OUTPUT - PURPLE/WHITE *TACH (AC) OUTPUT - PURPLE/WHITE
THE BRAKE STATUS WIRE IS FUNCTIONAL
ONLY WHEN THE IGNITION IS POWERED.
FLCHH (OLD)
ASSEMBLY
E
A
D
B
C
F
www.flash-it.com

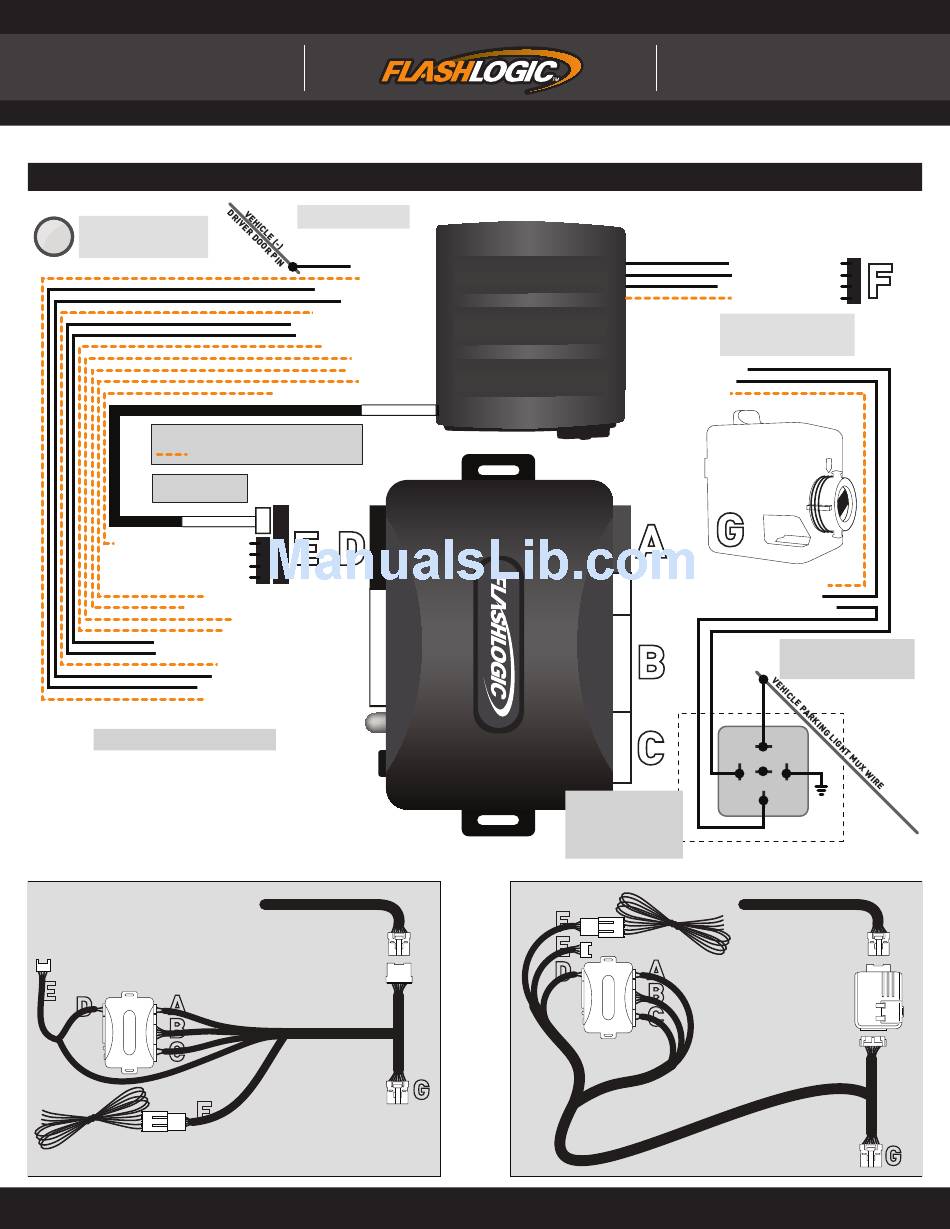

tyPe 1 - wiring diagram
ONLY WHEN RAP ONLY WHEN RAP
SHUTDOWN IS REQUIRED SHUTDOWN IS REQUIRED
REARM (-) OUTPUT REARM (-) OUTPUT
TACH (AC) INPUT TACH (AC) INPUT
E-BRAKE STATUS (-) INPUT E-BRAKE STATUS (-) INPUT
STARTER (+) OUTPUT STARTER (+) OUTPUT
PARKING LIGHT (+) OUTPUT PARKING LIGHT (+) OUTPUT
RIGHT SLIDING DOOR (-) OUTPUT RIGHT SLIDING DOOR (-) OUTPUT
LEFT SLIDING DOOR (-) OUTPUT LEFT SLIDING DOOR (-) OUTPUT
DISARM ONLY (-) OUTPUT DISARM ONLY (-) OUTPUT
TRUNK (-) OUTPUT TRUNK (-) OUTPUT
UNLOCK (-) OUTPUT UNLOCK (-) OUTPUT
LOCK (-) OUTPUT LOCK (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT GROUND WHEN RUNNING (-) OUTPUT
DATA MODE
E D
TRUNK (-) INPUT - RED/WHITE TRUNK (-) INPUT - RED/WHITE
DISARM ONLY (-) INPUT - BROWN DISARM ONLY (-) INPUT - BROWN
PARKING LIGHT (+) INPUT - WHITE PARKING LIGHT (+) INPUT - WHITE
SOLD SEPARATELY
VEHICLE HARNESS
FLC-AL(DL)-CH4
REMOTE STARTER
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED OPTIONAL ->
<- REQUIRED OPTIONAL ->
<- REQUIRED OPTIONAL ->
IF YOUR MODULE
HARDWARE IS VERSION
1.23 OR NEWER YOU
CAN ELIMINATE THE
RELAY AND CONNECT
THE YELLOW WIRE
DIRECTLY TO THE VEHICLE
FLCHH (NEW)
ASSEMBLY
F
E
D
OR
G
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##9016##
IGNITION OUTPUT - PINK IGNITION OUTPUT - PINK
GROUND INPUT - BLACK GROUND INPUT - BLACK
12V (+) INPUT - RED/WHITE 12V (+) INPUT - RED/WHITE
BRAKE INPUT - ORANGE BRAKE INPUT - ORANGE
DO NOT USE THE RED/WHITE DO NOT USE THE RED/WHITE
WIRE IF YOU ARE PLANNING WIRE IF YOU ARE PLANNING
TO POWER THE VEHICLE TO POWER THE VEHICLE
POSITIVE PARKLIGHTS WIRE. POSITIVE PARKLIGHTS WIRE.
PARKING LIGHT (+) OUTPUT PARKING LIGHT (+) OUTPUT
TRUNK STATUS (-) INPUT TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT DOOR STATUS (-) INPUT
G
A
YELLOW/BLACK - DOOR STATUS (-) OUTPUT* YELLOW/BLACK - DOOR STATUS (-) OUTPUT*
YELLOW/RED - TRUNK STATUS (-) OUTPUT* YELLOW/RED - TRUNK STATUS (-) OUTPUT*
YELLOW - MULTIPLEX PARKING LIGHT OUTPUT YELLOW - MULTIPLEX PARKING LIGHT OUTPUT
B
USE THIS OUTPUT ONLY ON
VEHICLES EQUIPPED WITH
MUX PARKING LIGHT CONTROL
C
87
87A
85 86
30
SOLD SEPARATELY
VEHICLE HARNESS
A
B
C
audiovox electronics corp. © 2012
20120328
F
WARNING
G
