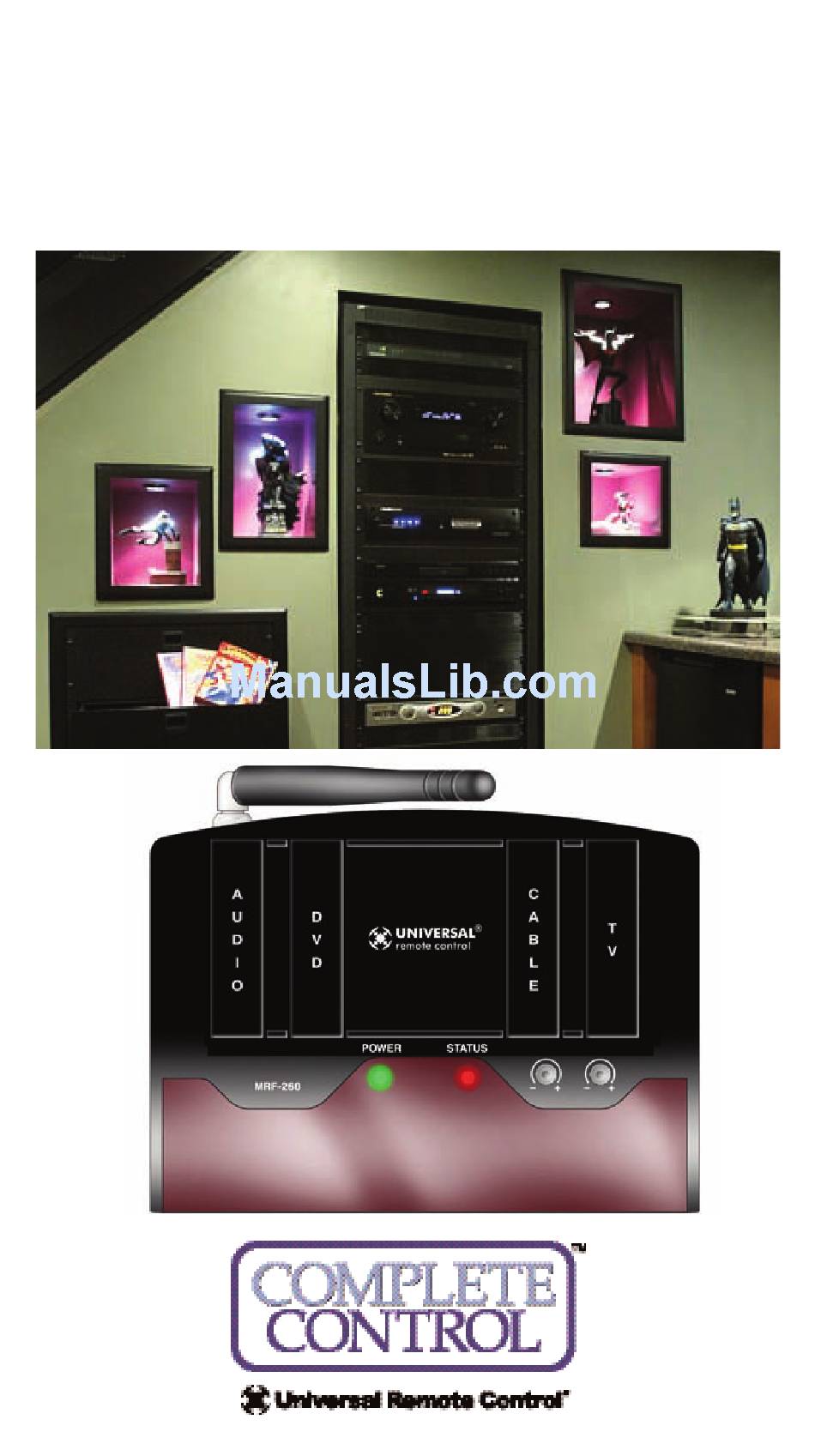

- Page 1 MRF-260i Installation Manual Optimizing Narrow Band Reception with Complete Control Remotes...
- Page 2 The information in this owner’s manual is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Universal Remote Control, Inc. UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPER- ATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.
-
Page 3: Table Of Contents
ABLE ONTENTS Introduction Features and Benefits Parts Guide Installation Testing Front Blaster Overload Disabling the Front Blaster - Step by Step via PC Controlling Four Identical Components/Zones Identical Components/Zones - Step by Step via PC Programming For Multiple Equipment Locations Limited Warranty Statement End User Agreement Frequently Asked Questions... -
Page 4: Introduction
Addressing gives you the ability to control as many as 60 identical components throughout a house. To enable better range and reliabili- ty the MRF-260i is equipped with the Narrow Band RF reception (like the MRF-350i), so is only compatible with other Narrow Band remotes. -
Page 5: Features And Benefits
Identical Zones of a Multi Zone Preamp/Matrix Switcher Each MRF-260i has four “addressable” IR Line Outputs. For example, you can control up to four identical TV’s with one MRF-260i or route volume commands for a specific zone to a particular zone IR input on a multi-zone preamp. -
Page 6: Installation
RF Interference (particularly devices with high speed microprocessors or hard drives). 3. Check that the address wheel on the rear of the MRF-260i is set to ID#0 (the interference “sniffing” position). Check that the arrow pointer in the center of the wheel is pointed to 0, the default “interference sniffing”... - Page 7 MRF-260i B TATION 5. Observe the Status LED of the MRF-260i. If it is glowing or flick- ering you must relocate the MRF-260i to a location where the LED doesn’t flicker. If your installation location simply doesn’t offer you any choice...
-
Page 8: Testing
IR Line Output level. Note: Remember, the MRF-260i will NOT respond if you select IR line outputs 5 or 6. The MRF-260i has only four IR Line Outputs. 1. Connect an IR emitter to each IR output and run the emitter wire to the front panel of each component. -
Page 9: Front Blaster Overload
Front Blaster. This will limit the number of components your MRF- 260i can control to four. If you have more than four components you can purchase an additional MRF-260i or upgrade to an MRF- 350i. Disabling the Front Blaster - Step by Step via PC Note: If you are programming a URC MX “addressable”... -
Page 10: Controlling Four Identical Components/Zones
Controlling Four Identical Components/Zones There are several considerations to take into account when you are installing an MRF-260i to control an array of identical components: 1. The RF ID# cannot be set to Code 0, the universal setting. You must use one of the fifteen unique IR Routing addresses. - Page 11 MRF-260i B TATION default programming sets all of the devices to send both IR and RF commands. If you look at the column for Flashers, you can see that the default sends IR commands for all devices to ALL of the flash- ers.
- Page 12 MRF-260i B TATION Note: Remember, the MRF-260i will only respond to selections 1 through 4. Step 5 - Make sure that the ID# is set on both the remote and on the wheel of the MRF-260i. Click on the Receivers button and set the RF address to one of the first 15 addresses (1-9 or A, B, C, D or E).
-
Page 13: Programming For Multiple Equipment Locations
Programming For Multiple Equipment Locations You can operate up to 15 different equipment locations, each with an MRF-260i assigned a unique Receiver ID#. You program each of your remotes to talk to the equipment locations you want by assign- ing each of your devices to a receiver. First, you must add and... -
Page 14: Limited Warranty Statement
TATION Limited Warranty Statement 1. LIMITED WARRANTY AND DISCLAIMERS Universal Remote Control, Inc. (“URC”) warrants that URC equipment purchased directly from URC or from an authorized URC dealer or distributor shall be free from defects in material and workmanship under normal usage for a period of one (1) year from... - Page 15 MRF-260i B TATION EXCEPT AS EXPRESSLY PROVIDED FOR HEREIN, TECHNICAL SERVICES ARE SUPPLIED "AS IS", WITHOUT ANY WARRANTY, EXPRESS, STATUTORY OR IMPLIED, OF ANY KIND. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, URC EXPRESSLY DISCLAIMS ALL WARRANTIES RELATING TO...
-
Page 16: End User Agreement
MRF-260i B TATION With the exception of URC's IR-only, broad-based consumer remotes, none of URC's PC programmable remotes or any of our Total Control® whole-house equipment are authorized for online internet sales. Buying URC's PC programmable remotes or any of our Total Control®... -
Page 17: Frequently Asked Questions
Second, set the RF ID# from 1-9 or A-F on both the remote control and the rear of the MRF-260i. Third, check that the flasher level is set to the mini- mum necessary. Fourth, check that the emitter is facing the component. - Page 18 " User shall attention to the external ac adpater to be used before connection to the MRF-260i Base station. Only LPS satisfied external AC adapter shall be used and connected for safety operation of base station "...
