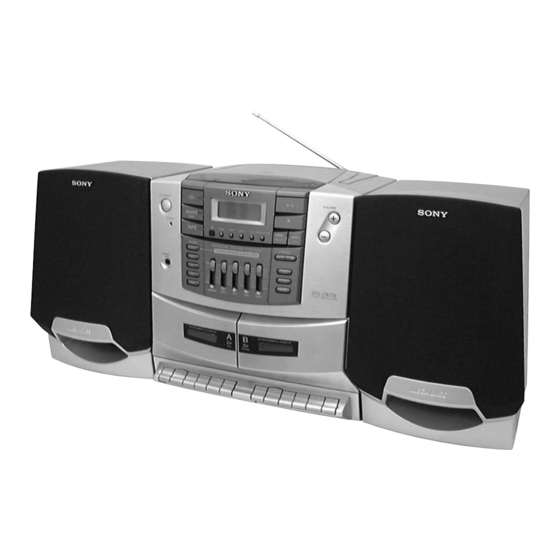

Sony PHC-ZW770L Service Manual
  1. Manuals
  2. Brands
  3. Sony Manuals
  4. Stereo System
  5. PHC-ZW770L
  6. Service manual

Sony PHC-ZW770L Service Manual

Hide thumbs Also See for PHC-ZW770L:
Table of Contents

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
Ver 1.0 1999. 03
CD player section
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wave length: 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance of
about 200 mm from the objective lens surface on
the optical pick-up block with 7 mm aperture.)
Spindle speed
200 r/min (rpm) to 500 r/min (rpm) (CLV)
Number of channels
2
Frequency response
20 - 20,000 Hz +1/–2 dB
Wow and flutter
Below measurable limit
Radio section
Frequency range
FM: EE and CET model
65 - 74 MHz
87.5 - 108 MHz
Except EE and CET model
87.5 - 108 MHz
MW: 531 - 1,602 kHz
LW: 153 - 279 kHz
IF
FM: 10.7 MHz
MW/LW: 450 kHz
Aerials:
FM: Telescopic antenna
MW/LW: Built-in ferrite bar antenna
MICROFILM
PHC-ZW770L
Model Name Using Similar Mechanism PMC-D305L
CD
CD Mechanism Type
Section
Optical Pick-up Name
Model Name Using Similar Mechanism NEW
TC
Section Tape Transport Mechanism Type
SPECIFICATIONS
Cassette-corder section
Recording system
4-track 2 channel stereo
Fast winding time
Approx. 120 s (sec.) with Sony cassette C-60
Frequency response
TYPE I (normal): 80 - 12,500 Hz
General
Speaker
Full range: 10 cm (4 in.) dia.,
6 ohms, cone type (2)
Outputs
Headphones jack (stereo minijack)
For 16 - 68 ohms impedance headphones
Maximum power output
4.5 W + 4.5 W
Power requirements
For personal audio system:
230 V AC, 50 Hz
9 V DC, 6 R20 (size D) batteries
For memory back-up:
4.5 V DC, 3 R6 (size AA) batteries
For remote controller:
3 V DC, 2 R6 (size AA) batteries
Power consumption
AC 28 W
PERSONAL AUDIO SYSTEM
– 1 –
AEP Model
UK Model
E Model
KSM-213CDM
KSS-213C
MF-ZW750-117
– Continued on next page –
